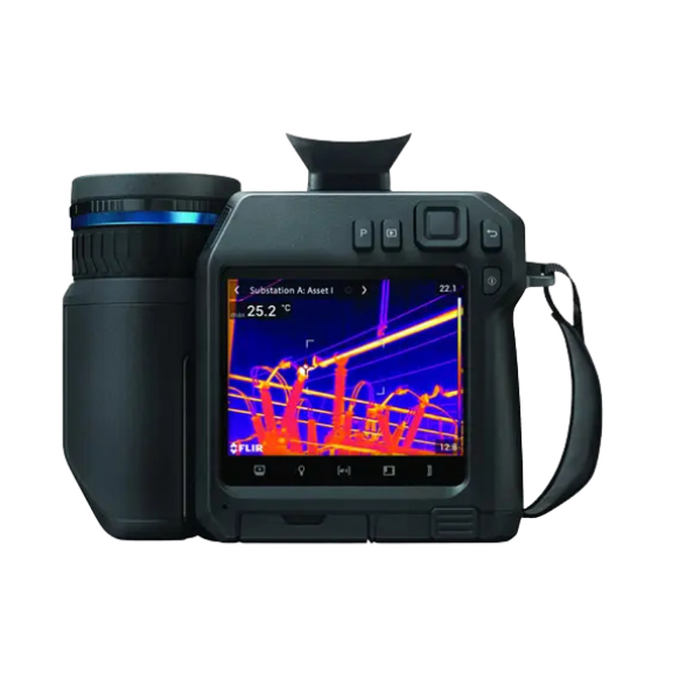

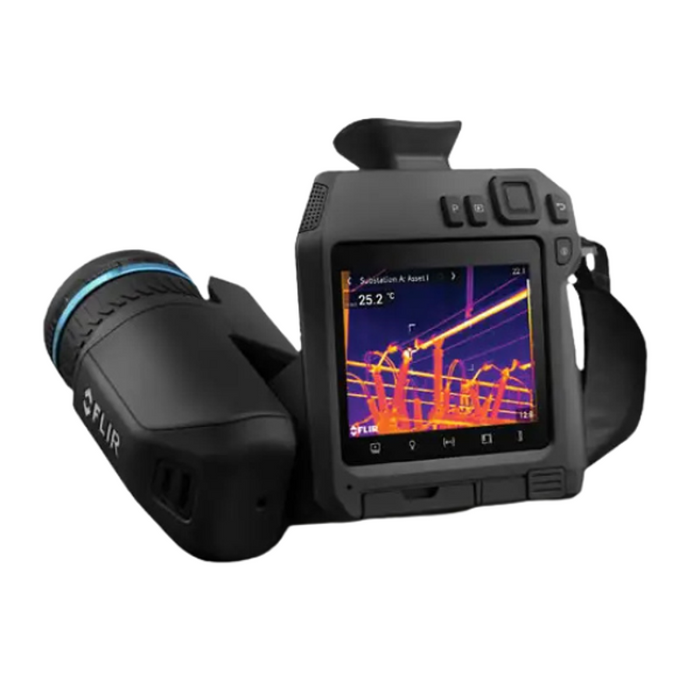

The Teledyne FLIR T865-24-42-NIST High-Performance Thermal Camera offers professionals a cutting-edge solution for non-contact inspection of electrical and mechanical systems. Equipped with a 640 x 480 IR resolution sensor, 24° and 42° lenses, and built-in MSX and UltraMax image enhancement technologies, this camera delivers sharp thermal imagery and highly accurate temperature readings. The ergonomic tilting optic design ensures comfortable use, even when capturing overhead or ground-level targets.

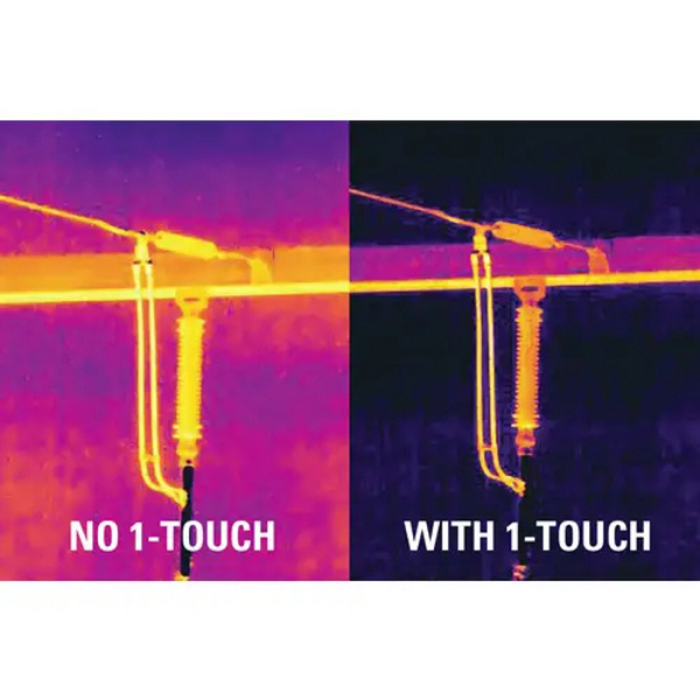

With advanced features like laser-assisted autofocus, 1-Touch Level/Span, and voice/text annotation, the T865 streamlines condition monitoring tasks and predictive maintenance procedures. It supports seamless route-based inspection workflows using Teledyne FLIR Route Creator and automates data organization via FLIR Thermal Studio Pro. The integrated viewfinder and 4-inch LCD display make it easy to operate in all lighting environments. Built for performance and productivity, the T865 helps professionals identify issues early, reduce downtime, and improve asset reliability.
What's Included:
- 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 640 x 480, 30 Hz
- 1 - 24° Lens
- 1 - 42° Lens
- 1 - Small Viewfinder Eyecup
- 2 - Rechargeable Li-ion Batteries
- 1 - Battery Charger
- 2 - Hard Carrying Case
- 1 - Lanyards
- 1 - Front Lens Cap
- 1 - Power Supply
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI C
Features
Dual Lenses for Versatile Imaging
Includes both 24° and 42° lenses to handle close-up inspections and wide-area views efficiently.

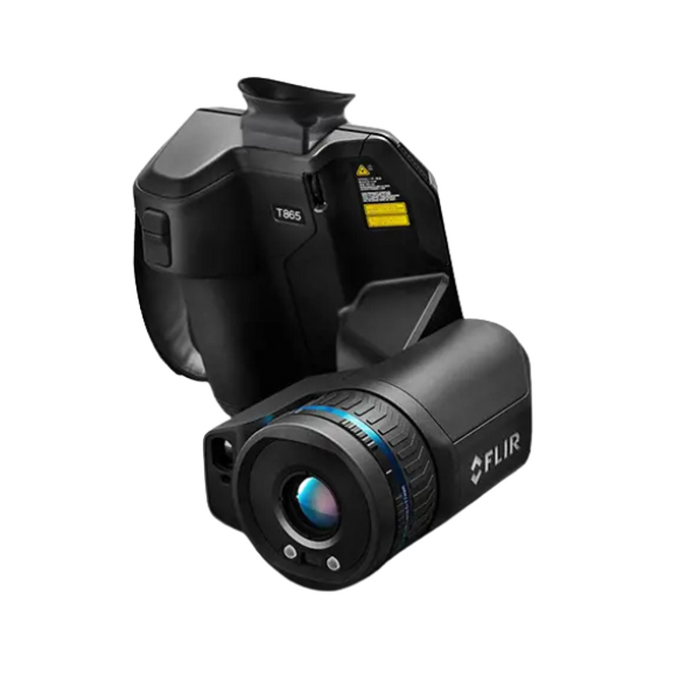

Ergonomic Tilting Optical Block
Rotate the lens up to 180° for strain-free imaging of hard-to-reach areas, whether overhead or below waist level.
MSX and UltraMax Image Enhancements
Improve image clarity and thermal detail using Teledyne FLIR’s proprietary MSX and UltraMax technologies.
Accurate Temperature Measurement
±1°C or ±1% accuracy ensures reliable data for critical maintenance decisions.
Laser-Assisted Autofocus
Quickly obtain sharp images with laser distance measurement and autofocus options.
Automated Workflow Support
Create, upload, and execute inspection routes using FLIR Route Creator; analyze and report using FLIR Thermal Studio Pro.
High-Resolution Visual Camera
Capture integrated 5MP photos and video with a built-in LED lamp for documentation and reporting.
Comprehensive Measurement Tools
Features hot/cold spot detection, center spot, on-screen area measurement, and laser pointer functionality.
Rugged and Field-Ready
Designed for indoor and outdoor use with IP54 encapsulation and operation from -15°C to 50°C.
Flexible Storage and Connectivity
Save data to removable SD card and transfer via USB, Wi-Fi, Bluetooth, or DisplayPort.
What's Included
Included with Your Purchase:
- 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 640 x 480, 30 Hz
- 1 - 24° Lens
- 1 - 42° Lens
- 1 - Small Viewfinder Eyecup
- 2 - Rechargeable Li-ion Batteries
- 1 - Battery Charger
- 2 - Hard Carrying Case
- 1 - Lanyards
- 1 - Front Lens Cap
- 1 - Power Supply
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI C
Specifications
-
IR Resolution: 640 x 480 (1,228,800 with UltraMax)
-
Detector Pitch: 12 μm
-
Temperature Range: -40°F to 3632°F (split into 3 sub-ranges)
-
Digital Zoom: 1-8x continuous
-
Macro Mode Focus Distance: 50 μm (24° lens)
-
Focus Modes: Continuous, One-shot LDM, One-shot contrast, Manual
-
Thermal Sensitivity (NETD): <30 mK @ 30°C (42° lens)
-
Spectral Range: 7.5 to 14.0 μm
-
Image Frequency: 30 Hz
-
Display: 4-inch 640 x 480 LCD touchscreen with auto-rotation
-
Visual Camera: 5 MP with LED lamp
-
Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
-
Measurement Presets: Center spot, Hot spot, Cold spot, User presets
-
Laser Distance Meter: Yes, dedicated button
-
Storage Media: Removable SD card (8 GB included)
-
Image Format: JPEG with embedded measurement data
-
Radiometric Video: .csq format, real-time
-
Connectivity: USB 2.0, Wi-Fi, Bluetooth, DisplayPort
-
Battery Type: Li-ion, approx. 4-hour runtime at 25°C
-
Operating Temperature: -15°C to 50°C
-
Shock/Vibration Rating: 25 g / 2 g
-
Enclosure Rating: IP54
-
Certification: NIST Calibration Certificate included
FAQ
Q: What lenses are included with the T865?
A: The package includes both a 24° and a 42° lens, suitable for both wide and close-up thermal imaging.
Q: What is UltraMax, and how does it work?
A: UltraMax captures multiple frames and combines them into one high-resolution image with quadrupled pixel count, enhancing detail and measurement accuracy.
Q: Can this thermal camera measure from a safe distance?
A: Yes, the high-resolution IR sensor and telephoto lens compatibility allow precise measurement from a distance.
Q: How long can the battery last on a single charge?
A: Each battery lasts approximately 4 hours under typical conditions at 25°C (77°F). Two batteries are included for extended use.
Q: Is this camera suitable for bright environments?
A: Yes, it features a large color LCD and an integrated viewfinder, enabling clear viewing even in sunlight.
