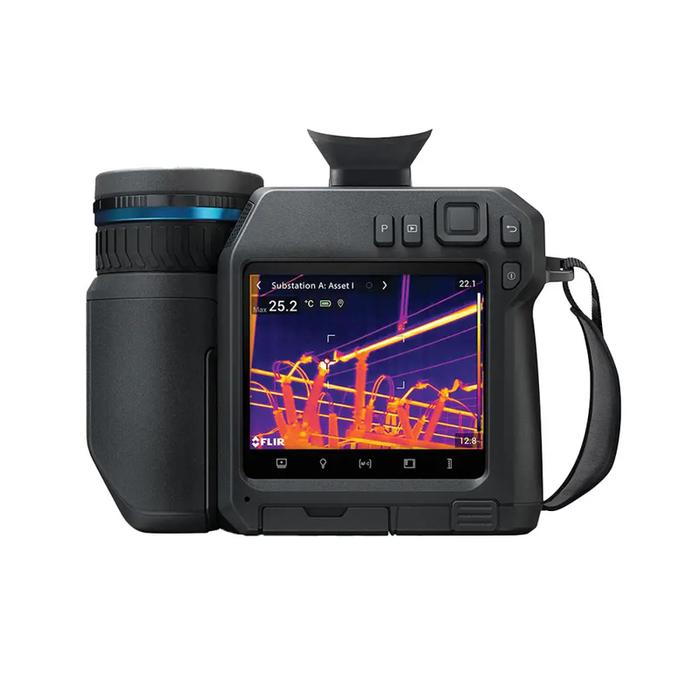

The Teledyne FLIR T840-24-42-NIST is a high-performance thermal camera engineered for professional-grade inspections in challenging environments. Designed with utility and thermography experts in mind, it enables users to comfortably examine indoor and outdoor equipment for signs of potential failure. Equipped with both a bright 4-inch LCD screen and an integrated eyepiece viewfinder, this unit ensures optimal visibility in direct sunlight or poorly lit areas.
Its ergonomic design features a 180° rotating optical block for ease in viewing hard-to-access components. MSX® technology overlays key visual details onto infrared imagery for enhanced clarity, while UltraMax™ super-resolution capability amplifies image detail and measurement accuracy. With rapid reporting tools, intuitive controls, laser-assisted autofocus, and embedded GPS, the T840 streamlines your workflow and enhances inspection precision.
What's Included:
- 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 464 x 348, 30 Hz
- 1 - 24° Lens
- 1 - 42° Lens
- 1 - Small Viewfinder Eyecup
- 2 - Li-Ion Batteries
- 1 - Battery Charger
- 1 - Hard Transport Case
- 1 - Lanyards
- 1 - Front Lens Cap
- 1 - Power Supplies
- 1 - Printed Documentation
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI Cable
- 1 - USB Type-C to USB Type-C Cable
- 1 - 3-Month Subscription to FLIR Thermal Studio Pro and FLIR Route Creator
- 1 - NIST Certificate of Calibration
Features
Dual Field of View
Comes with both 24° and 42° lenses to suit different inspection needs, offering versatility for wide and focused thermal views.
Enhanced Visibility in Any Lighting
The integrated eyepiece viewfinder and scratch-resistant 4-inch LCD display ensure clear image viewing in bright or dark environments.
Advanced Image Clarity
Combines MSX, UltraMax, and FLIR Vision Processing technologies for sharper, more informative thermal imagery.
Laser Distance Measurement
Quickly gauge the accessibility of components with an on-screen activated laser distance meter.
Ergonomic 180° Rotating Lens
Inspect hard-to-reach areas with reduced strain using the flexible optical block.
AutoCal Optics Compatibility
Interchange lenses across multiple compatible FLIR models without recalibration thanks to AutoCal technology.
Laser-Assisted Autofocus
Ensure sharp images and accurate temperature readings every time.
Streamlined Reporting
On-camera tools help capture and organize inspection data efficiently in the field.
Responsive Controls
Intuitive buttons and touchscreen interface offer fast access to settings and menus.
Live Wi-Fi Streaming
Broadcast findings in real time to the FLIR Tools app for collaborative review and analysis.
Integrated GPS and METERLiNK Support
Embed GPS location and third-party measurement data for precise documentation.
High-Resolution Thermal Sensing
IR resolution of 464 x 348 pixels, enhanced up to 645,888 pixels using UltraMax.
Wide Temperature Range
Measure temperatures from -4 to 2732°F for high-demand industrial applications.
Includes NIST Certificate
Ships with a calibration certificate for compliance and quality assurance.
What's Included
Included with Your Purchase:
- 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 464 x 348, 30 Hz
- 1 - 24° Lens
- 1 - 42° Lens
- 1 - Small Viewfinder Eyecup
- 2 - Li-Ion Batteries
- 1 - Battery Charger
- 1 - Hard Transport Case
- 1 - Lanyards
- 1 - Front Lens Cap
- 1 - Power Supplies
- 1 - Printed Documentation
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI Cable
- 1 - USB Type-C to USB Type-C Cable
- 1 - 3-Month Subscription to FLIR Thermal Studio Pro and FLIR Route Creator
- 1 - NIST Certificate of Calibration
Specifications
-
IR Resolution: 464 x 348 pixels (161,472 total)
-
UltraMax Resolution: 645,888 effective pixels
-
Image Frequency: 30 Hz
-
Temperature Range: -4 to 2732°F
-
F-Number: f/1.1 (42°), f/1.3 (24°), f/1.5 (14°), f/1.35 (6°)
-
Minimum Focus Distance: 0.15 m (24° and 42°), 1.0 m (14°), 5.0 m (6°), optional macro mode
-
Display: 4-inch LCD, scratch-resistant
-
Rotation: 180° optical block
-
Streaming: Wi-Fi via FLIR Tools app
-
GPS Integration: Yes
-
METERLiNK Support: Yes
-
Software: Includes 3-month subscription to FLIR Thermal Studio Pro
FAQ
Q: What lenses are included with the T840-24-42-NIST?
A: It comes with both 24° and 42° lenses for flexible imaging in a variety of scenarios.
Q: Can I use this thermal camera outdoors in bright sunlight?
A: Yes, the integrated viewfinder and high-brightness LCD are specifically designed for outdoor use in high-glare conditions.
Q: What is UltraMax technology?
A: UltraMax captures multiple thermal frames and combines them into a higher-resolution image, improving detail and measurement accuracy.
Q: Does it support live streaming?
A: Yes, the camera streams thermal video over Wi-Fi to the FLIR Tools app.
Q: Is the device calibrated?
A: Yes, it includes a NIST Certificate of Calibration for assurance of measurement accuracy.
Resources
Documents:
