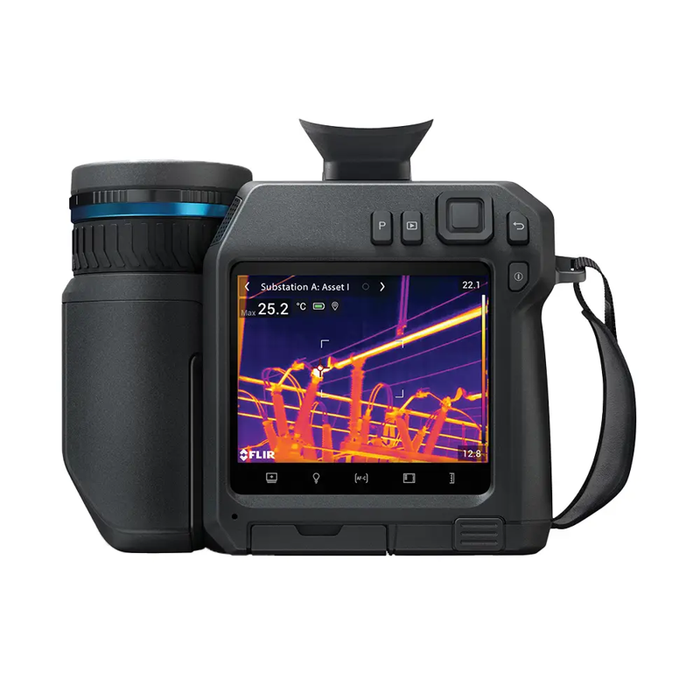

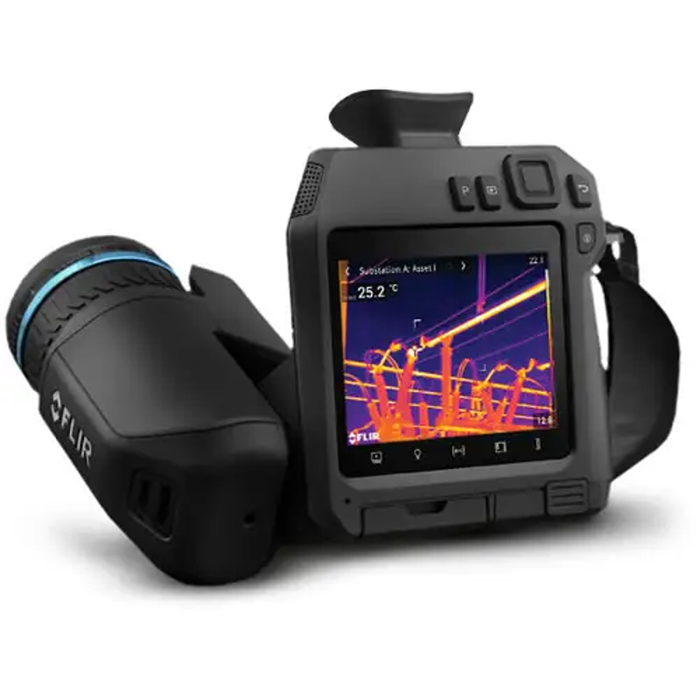

The Teledyne FLIR T865-42-14 High-Performance Thermal Camera is a powerful non-contact inspection tool that helps professionals quickly assess critical electrical and mechanical systems. Featuring a tilting optic design, MSX and UltraMax imaging, and a vibrant 4-inch display with viewfinder, the T865 delivers superior thermal clarity and ease of use in both indoor and outdoor environments.
Engineered with precision tools like 1-Touch Level/Span and laser-assisted autofocus, the T865 offers reliable temperature measurement accuracy as good as ±1°C / ±1%. This makes it a valuable asset for predictive maintenance programs aiming to improve efficiency, reduce downtime, and cut maintenance costs. The system supports Teledyne FLIR AutoCal interchangeable lenses, and integrates seamlessly with FLIR Thermal Studio Pro software for streamlined data analysis and reporting.
What's Included:
- 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 640 x 480, 30 Hz
- 1 - 42° Lens
- 1 - 14° Lens
- 1 - Small Viewfinder Eyecup
- 2 - Rechargeable Li-ion Batteries
- 1 - Battery Charger
- 2 - Hard Carrying Case
- 1 - Lanyards
- 1 - Front Lens Cap
- 1 - Power Supply
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI Cable
- 1 - USB Type-C to USB Type-C Cable
- 1 - License Card for FLIR Thermal Studio Pro (3-Month)
Features
Dual-Lens System
Comes equipped with both 14° and 42° lenses, providing flexibility for capturing wide views or distant targets with high precision.
Seamless Inspection Workflow
Teledyne FLIR Route Creator enables efficient inspection planning and execution with automated route uploads.
UltraMax and MSX Imaging
Combines image enhancement and multi-spectral overlay for industry-leading thermal clarity and sharp detail.
Streamlined Data Management
Automated file organization and wireless syncing to FLIR Thermal Studio Pro accelerates reporting and analysis.
Comfortable and Safe Operation

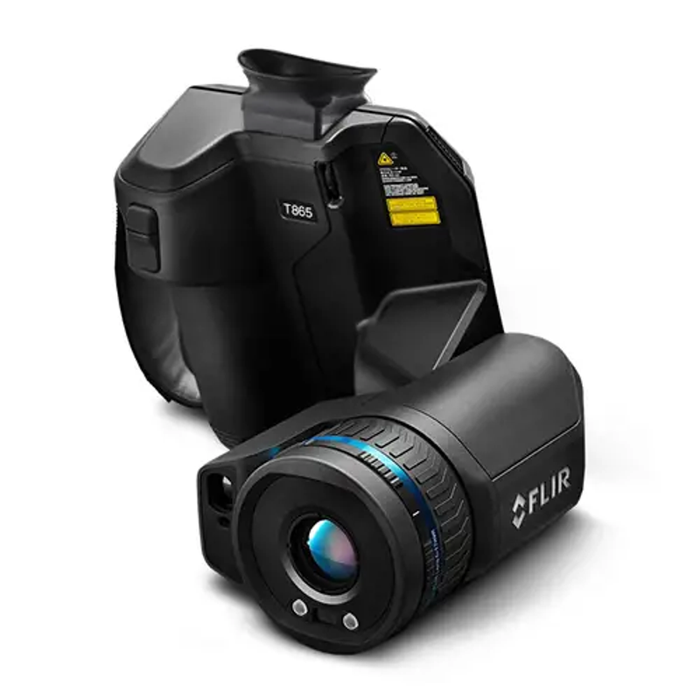

Rotating optical block and viewfinder support ergonomic use in any lighting condition or angle.
Precision Measurement Tools

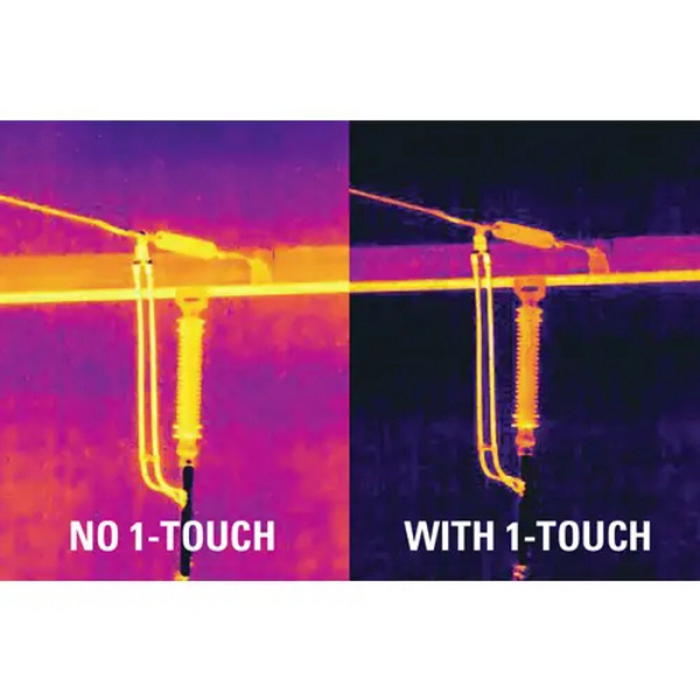

Features laser-assisted autofocus and 1-Touch Level/Span to ensure consistent measurement accuracy.
Flexible Imaging Modes
Supports infrared, visual, MSX, and resizable picture-in-picture modes for detailed visual representation.
Robust Field Performance
IP54-rated construction withstands harsh environments, while a long battery life supports extended use.
What's Included
Included with Your Purchase:
- 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 640 x 480, 30 Hz
- 1 - 42° Lens
- 1 - 14° Lens
- 1 - Small Viewfinder Eyecup
- 2 - Rechargeable Li-ion Batteries
- 1 - Battery Charger
- 2 - Hard Carrying Case
- 1 - Lanyards
- 1 - Front Lens Cap
- 1 - Power Supply
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI Cable
- 1 - USB Type-C to USB Type-C Cable
- 1 - License Card for FLIR Thermal Studio Pro (3-Month)
Specifications
-
IR Resolution: 640 x 480 (307,200 pixels/1,228,800 with UltraMax)
-
Detector Pitch: 12 μm
-
Object Temperature Range: -40°F to 248°F; 32°F to 1202°F; 572°F to 3632°F
-
Digital Zoom: 1-8x continuous
-
Spotmeter and Area: 10 and 5 in live mode
-
Accuracy: ±1°C / ±1% (varies by range)
-
Detector Type: Uncooled microbolometer
-
Thermal Sensitivity: <30 mK @ 30°C (42° lens)
-
Spectral Range: 7.5 to 14.0 μm
-
Image Frequency: 30 Hz
-
Lens Identification: Automatic
-
F-number: f/1.1 (42°), f/1.5 (14°)
-
Focus: Laser, contrast, manual
-
Minimum Focus Distance: 0.49 ft (42°), 3.28 ft (14°)
-
Display: 4-inch 640 x 480 LCD touchscreen
-
Digital Camera: 5 MP with LED lamp
-
Image Modes: Infrared, visual, MSX, Picture-in-picture
-
Measurement Presets: Center spot, hot/cold spot, user presets
-
Laser Distance Meter: Yes
-
Annotations: Voice, text, image sketch, GPS tagging
-
Storage: Removable SD card (JPEG with data)
-
Video Recording: Radiometric (.csq), H.264, MPEG-4
-
Video Streaming: UVC, Wi-Fi, DisplayPort
-
Battery Operation: Approx. 4 hours at 77°F
-
Operating Temperature: 5°F to 122°F
-
Durability: IP54, 25 g shock, 2 g vibration
FAQ
Q: What lenses are included with the T865-42-14?
A: It includes both 14° and 42° lenses for versatile viewing and measurement needs.
Q: Can the camera be used outdoors?

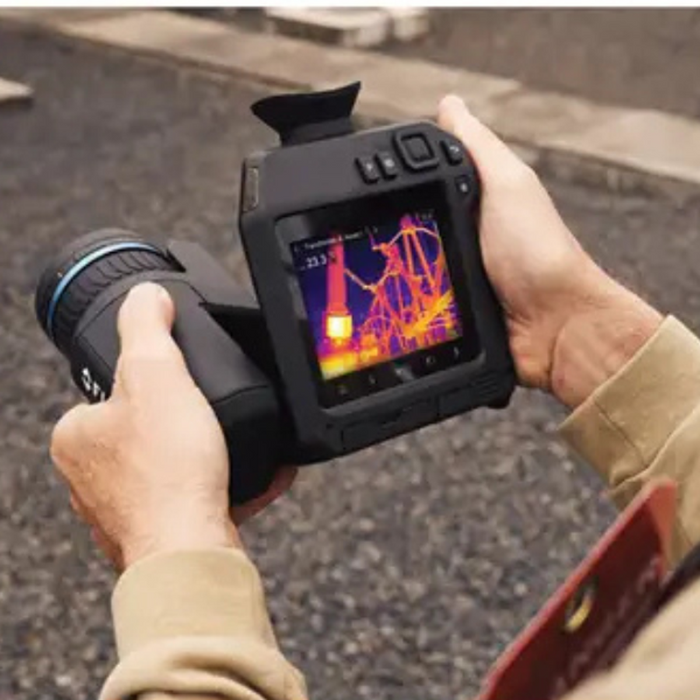

A: Yes, the T865 is IP54 rated and features a viewfinder for bright sunlight, making it suitable for outdoor use.
Q: What is MSX and how does it help?
A: MSX overlays visual details onto thermal images, making text and edges clearer without needing a separate reference image.
Q: How does UltraMax enhance image resolution?
A: UltraMax captures multiple thermal images and combines them to quadruple pixel data, improving detail and measurement precision.
Q: How long does the battery last?
A: Each battery provides approximately 4 hours of operation at standard temperature conditions.
