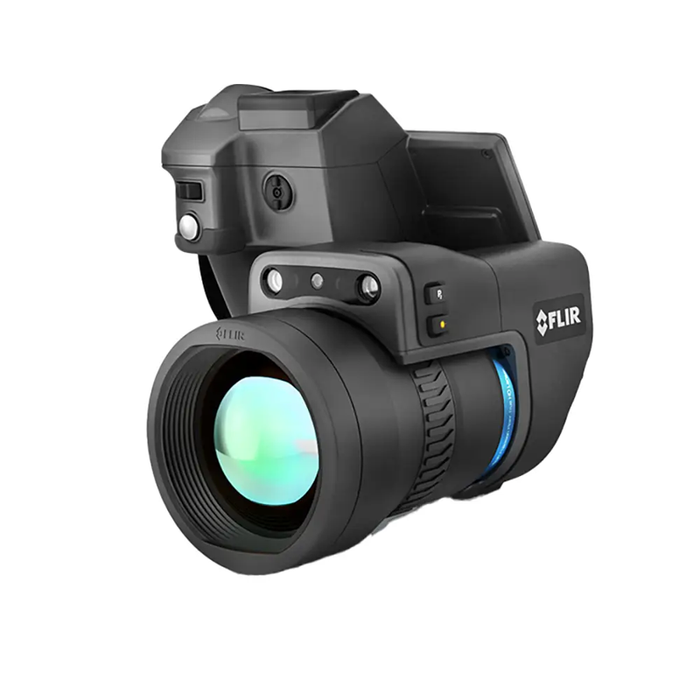

The Teledyne FLIR T1020-12 HD Thermal Imaging Camera with Viewfinder, MSX and UltraMax Technologies, and 12° lens delivers industry-leading infrared clarity and temperature accuracy for professionals who demand the best. Built on five decades of innovation in thermal imaging, this camera offers 1024 x 768 resolution, unmatched detail, and full radiometric data for precise diagnostics.
Featuring the OSX Precision HDIR optical system, dynamic focus control, and continuous autofocus, the T1020-12 allows you to capture clear images across varying conditions. The rugged, rotating optical block and intuitive interface make it easy to inspect hard-to-reach areas, while the ergonomic design reduces user fatigue during extended use.
What's Included:
- Teledyne FLIR T1020-12 HD Thermal Camera with 12° Lens
- FLIR Tools+ Analysis and Reporting Software
- Integrated Viewfinder
- Battery Pack(s)
- Battery Charger
- Hard Transport Case
- Neck Strap and Lens Cap
- User Documentation
Features
High-Resolution Thermal Imaging
1024 x 768 IR resolution delivers sharp thermal imagery with over 786,000 pixels for detailed inspections.
UltraMax Super Resolution
Combines multiple images to achieve effective resolution of 3.14 megapixels, improving clarity and measurement accuracy.
Advanced Thermal Sensitivity
Detects subtle temperature changes with NETD of less than 20 mK, enabling early detection of anomalies.
OSX Precision HDIR Optics
Captures fine details from long distances with high-fidelity optics and precision engineering.
Built-in Viewfinder
800 x 480 pixel electronic viewfinder improves visibility in bright environments.
Flexible Measurement Ranges
Measures temperatures from -40°C to 2000°C, accommodating a wide variety of applications.
MSX Imaging Enhancement
Improves image definition by overlaying visible light contours on IR imagery.

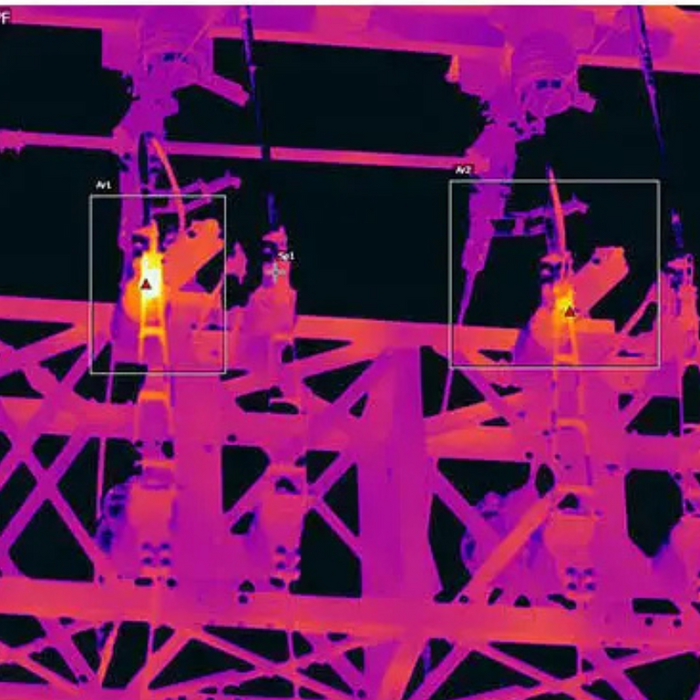

Comprehensive Measurement Tools
Includes spotmeters, area boxes, alarms, and isotherms for versatile thermal analysis.
Radiometric Video Recording
Captures full-frame, full-resolution thermal video for post-analysis and documentation.
Teledyne FLIR Tools+ Software
Provides powerful image analysis and customizable report generation out of the box.
What's Included
Included with Your Purchase:
- Teledyne FLIR T1020-12 HD Thermal Camera with 12° Lens
- FLIR Tools+ Analysis and Reporting Software
- Integrated Viewfinder
- Battery Pack(s)
- Battery Charger
- Hard Transport Case
- Neck Strap and Lens Cap
- User Documentation
Specifications
-
IR Resolution: 1024 x 768 (786,432 pixels)
-
UltraMax Resolution: 3.14 Mpixels
-
Thermal Sensitivity/NETD: < 20 mK @ 30°C (86°F)
-
Field of View: 12° x 9° (83 mm lens)
-
Viewfinder: Built-in, 800 x 480 pixels
-
Picture-in-Picture: Resizable and movable
-
IR Time-lapse: 15 sec to 24 hrs
-
Temperature Ranges: -40°C to 150°C, 0°C to 650°C, 300°C to 2000°C
-
Accuracy: ±1°C or ±1% at 25°C
-
Measurement Functions: Spotmeter (10), Area (5 + 5), with max/min/avg
-
Alarms: Above, below, interval, moisture, insulation
-
GPS Tagging: Automatic with built-in GPS
-
Connectivity: METERLiNK, HDMI output
-
Software: FLIR Tools+
FAQ
Q: What is the maximum temperature the T1020-12 can measure?
A: It can measure temperatures up to 2000°C (3632°F), ideal for high-heat applications.
Q: How does UltraMax improve image resolution?
A: UltraMax combines multiple thermal images into a higher resolution composite, enhancing detail and measurement accuracy.
Q: Can I record and analyze full-resolution video?
A: Yes, the T1020-12 supports full-frame, full-resolution radiometric video capture.
Q: Does this model support GPS tagging?
A: Yes, GPS coordinates are automatically embedded in each image for easy location tracking.
