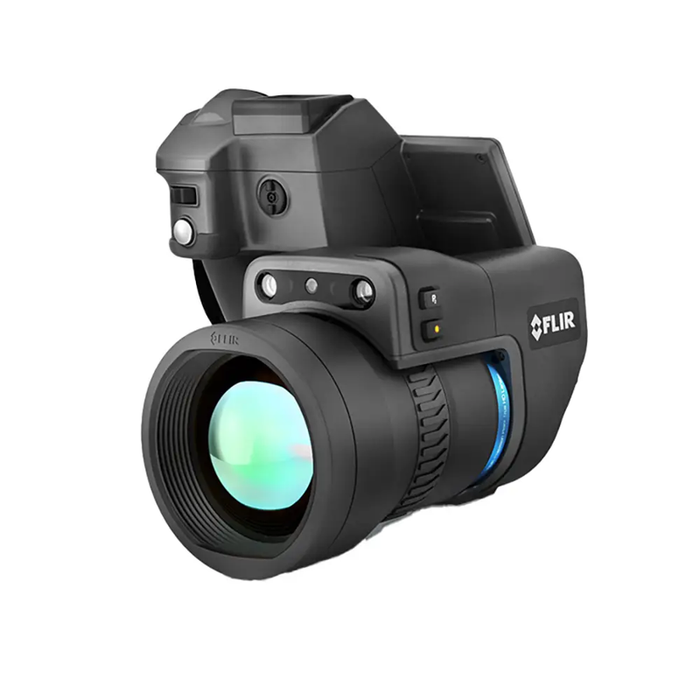

The Teledyne FLIR T1020-45 HD Thermal Imaging Camera sets a new standard for high-definition thermography with its 1024 x 768 infrared resolution and advanced optics. Built for professionals who demand performance and precision, this camera delivers unsurpassed image clarity and thermal detail, even at long distances. It’s equipped with an ergonomic rotating optical block for flexible operation in challenging environments and long inspection days.
Thanks to its integrated viewfinder, intuitive graphical user interface, and high-sensitivity detector with <20 mK thermal sensitivity, the T1020-45 makes it easy to identify temperature anomalies and capture critical data. Teledyne FLIR’s proprietary MSX and UltraMax technologies further enhance image detail, giving you a clearer view and improved measurement accuracy. The camera also supports full-frame radiometric video capture and includes FLIR Tools+ software for in-depth analysis and reporting.
What’s Included:
- Teledyne FLIR T1020-45 HD Thermal Imaging Camera
- 45° HDIR Precision Lens
- Built-in Viewfinder
- FLIR Tools+ Software License
- Battery Pack
- Power Supply with Plugs
- Car Charger
- Carrying Case
- User Documentation
Features
High-Definition Infrared Resolution
1024 x 768 resolution with over 786,000 pixels provides exceptional thermal detail for accurate inspections.
UltraMax Super Resolution
Enhances thermal images to 3.1 MP, reducing noise and improving the distance-to-spot-size ratio for smaller temperature targets.
Advanced Teledyne FLIR Optics
OSX Precision HDIR lenses provide crisp thermal imagery across wide-angle and telephoto views.
Integrated MSX Technology
Adds visual edge detail from the visible light spectrum to thermal images for greater clarity and faster diagnostics.
Versatile Temperature Measurement
Supports up to 2000°C range across three selectable spans for diverse industrial and electrical applications.
Built-In Viewfinder
800 x 480 resolution viewfinder enables precise targeting in bright outdoor environments.
Comprehensive Radiometric Video
Captures full-frame, full-resolution video with embedded temperature data for detailed post-analysis.
Intuitive User Interface
Fast, responsive graphical interface with 1-Touch Level/Span simplifies image adjustments and data access.
Advanced Measurement Functions

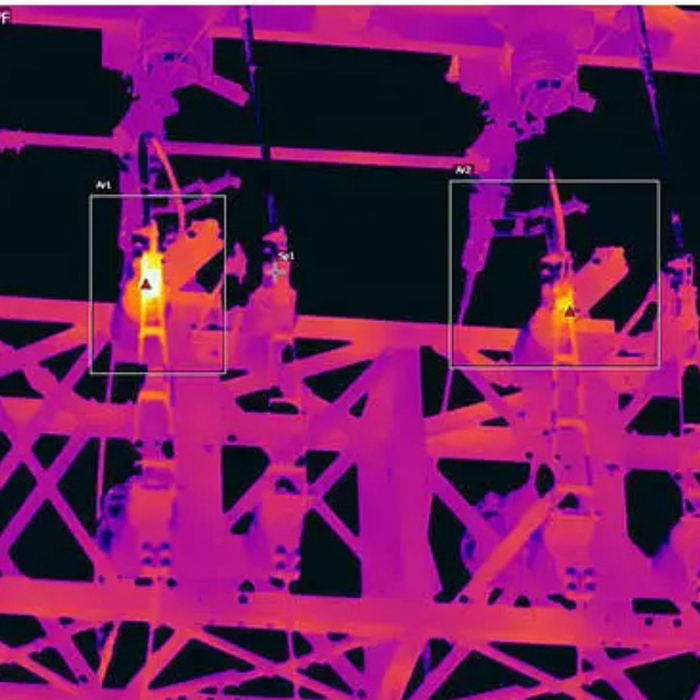

Includes 10 spotmeters, 10 areas, and real-time min/max/avg calculations with visual/audible alarms.
Integrated GPS and Compass
Automatically geotags images to support documentation and inspection workflows.
What's Included
Included with Your Purchase:
- Teledyne FLIR T1020-45 HD Thermal Imaging Camera
- 45° HDIR Precision Lens
- Built-in Viewfinder
- FLIR Tools+ Software License
- Battery Pack
- Power Supply with Plugs
- Car Charger
- Carrying Case
- User Documentation
Specifications
-
IR Resolution: 1024 x 768 (786,432 pixels)
-
UltraMax Resolution: 3.14 Mpixels
-
Thermal Sensitivity/NETD: < 20 mK @ 30°C (86°F)
-
Field of View: 45° x 34°
-
Viewfinder: 800 x 480 pixels
-
Picture-in-Picture: Resizable and movable
-
IR Time-lapse: 15 seconds to 24 hours
-
Temperature Ranges: -40°C to 150°C, 0°C to 650°C, 300°C to 2000°C
-
Accuracy: ±1°C or ±1% at 25°C (5°C to 150°C range)
-
Measurement Alarms: Above, below, interval, moisture, insulation
-
Measurement Functions: Spotmeter (10), Area (5 + 5 boxes/circles), max/min/avg
-
Compass/GPS: Yes, automatic geotagging
-
METERLiNK: Yes, multiple readings
-
Radiometric Video: Full-frame, full-resolution recording
FAQ
Q: What is UltraMax and how does it improve image quality?
A: UltraMax captures multiple thermal images and combines them to produce a clearer, higher-resolution image with four times more pixels.
Q: What is the temperature range of the T1020-45?
A: It can measure from -40°C to 2000°C across three selectable ranges.
Q: Can I capture and analyze radiometric video with this camera?
A: Yes, the T1020-45 supports full-resolution radiometric video for advanced analysis.
Q: Is there onboard GPS?
A: Yes, the camera includes automatic GPS tagging for each image.
