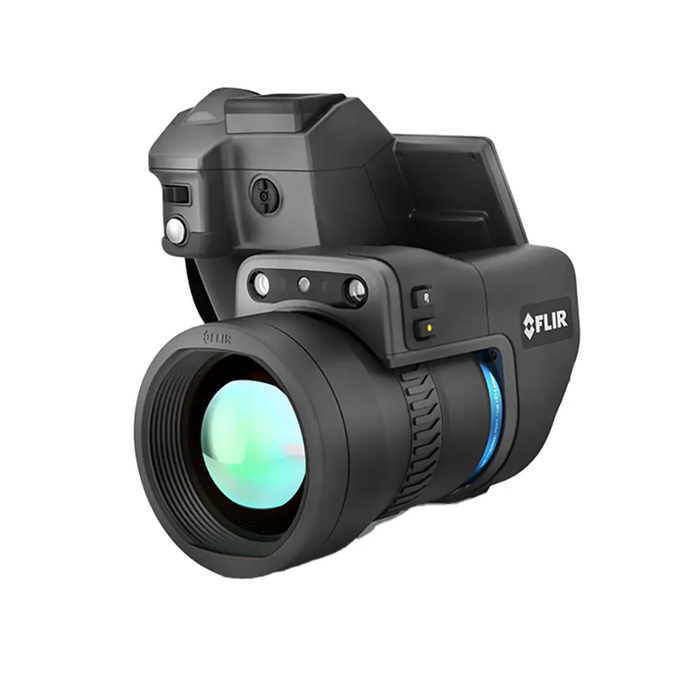

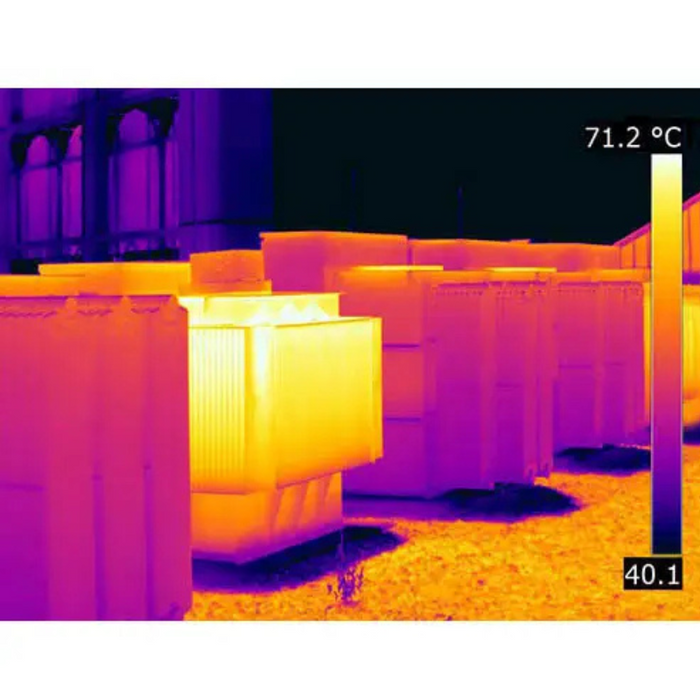

The Teledyne FLIR T1020-KIT-45 HD Thermal Imaging Camera is a powerful, high-performance tool designed for professionals who demand precision and clarity. Engineered with over 50 years of infrared expertise, it delivers unparalleled image quality and thermal accuracy, ideal for detecting minute temperature variations in electrical and mechanical systems.
Equipped with a built-in viewfinder, dynamic focus control, and continuous autofocus, this camera offers an ergonomic, rotating optical block that allows easy inspection of hard-to-reach areas. The intuitive user interface streamlines workflows, while the MSX and UltraMax technologies elevate imaging detail and resolution for comprehensive analysis.

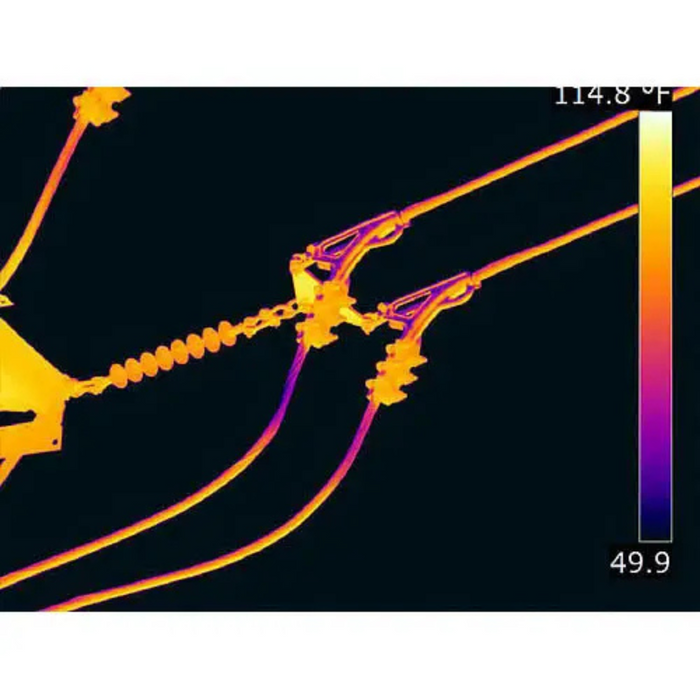

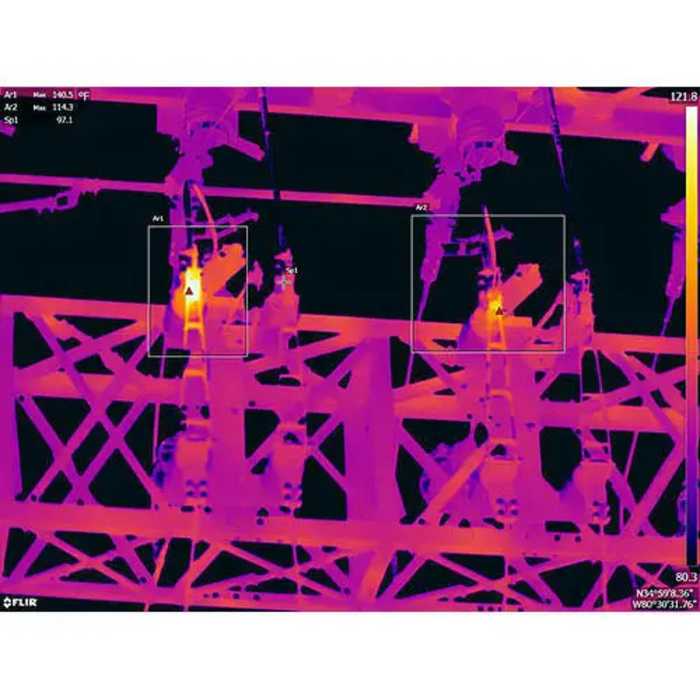

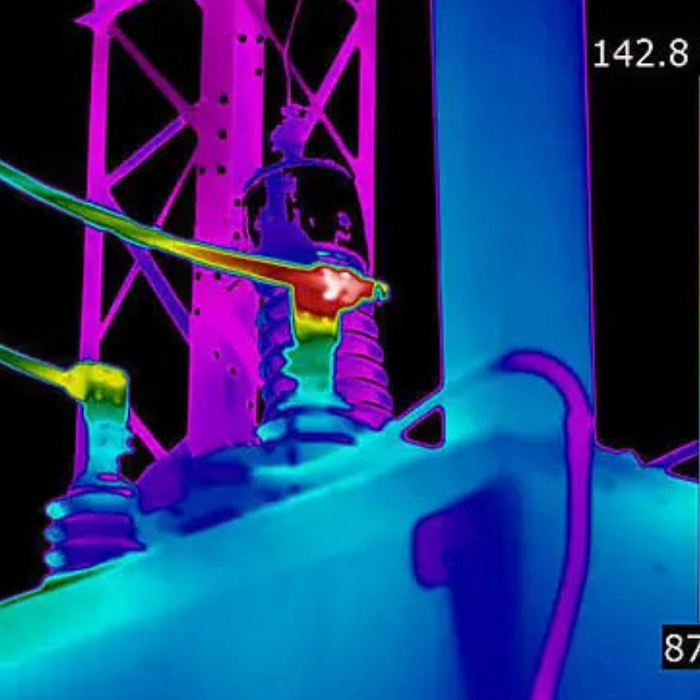

The included FLIR Tools+ software provides robust image reporting and analysis capabilities, enhancing productivity and decision-making in the field. Whether monitoring high-voltage installations or diagnosing thermal anomalies in rotating machinery, the T1020-KIT-45 is built to deliver unmatched results with speed and accuracy.
What's Included:
- Teledyne FLIR T1020 Thermal Camera with Built-in Viewfinder
- 28° and 45° Precision HDIR Lenses
- FLIR Tools+ Software
Features
High Resolution Thermal Imaging
Captures images at 1024 x 768 resolution, delivering 786,432 pixels for precise detail and temperature clarity.
UltraMax Image Enhancement
Enhances image resolution up to 3.14 megapixels, allowing better analysis of fine details with improved spot-size accuracy.
Advanced Thermal Sensitivity
Detects temperature differences smaller than 20 mK at 30°C, making it ideal for pinpointing subtle thermal anomalies.
Versatile Field of View
Includes both 28° and 45° lenses for flexible coverage depending on your inspection needs.
Integrated Viewfinder
Features an 800 x 480 pixel built-in viewfinder for enhanced visibility in bright conditions.
Time-Lapse Functionality
Supports infrared time-lapse capture from 15 seconds to 24 hours for thorough monitoring and documentation.
Extended Temperature Measurement Range
Measures from -40 °C to 2000 °C, covering a wide array of industrial applications.
High Accuracy Readings
Provides ±1 °C or ±1% accuracy at 25 °C, ensuring reliable data for critical decisions.
Smart Alarms and Measurement Tools
Built-in alarms for temperature thresholds, moisture, and insulation issues, plus 10 spotmeters and 5 area measurement zones.
FLIR Vision Processing
Combines MSX, UltraMax, and adaptive filtering for smoother, clearer thermal video and still images.
Full Radiometric Video Capture
Records full-frame thermal videos for comprehensive post-capture analysis.
Intuitive User Interface
Rapid-response GUI and 1-Touch Level/Span tools make setup and adjustments fast and efficient.
Comprehensive Reporting Tools
Analyze and document thermal data quickly using the included FLIR Tools+ software.
What's Included
Included with Your Purchase:
- Teledyne FLIR T1020 Thermal Camera with Built-in Viewfinder
- 28° and 45° Precision HDIR Lenses
- FLIR Tools+ Software
Specifications
-
IR Resolution: 1024 x 768 (786,432 pixels)
-
UltraMax Resolution: 3.14 megapixels
-
Thermal Sensitivity (NETD): < 20 mK @ 30°C
-
Field of View: 28° x 21° (36 mm lens); 45° x 34° (21 mm lens)
-
Viewfinder: Built-in, 800 x 480 pixels
-
Picture-in-Picture: Resizable and movable
-
IR Time-Lapse: 15 sec to 24 hrs
-
Temperature Ranges: -40 °C to 150 °C, 0 °C to 650 °C, 300 °C to 2000 °C
-
Accuracy: ±1 °C or ±1% at 25 °C for 5 °C to 150 °C
-
Alarms: Above, below, interval, moisture, insulation
-
Measurement Alarm: Audible/visible above/below on any measurement function
-
GPS: Automatic image tagging
-
METERLiNK: Multiple readings
-
Spotmeters: 10
-
Area Analysis: 5 boxes and 5 circles with max/min/avg
FAQ
Q: What is the resolution of the thermal camera?
A: The camera offers a high-resolution of 1024 x 768 pixels and can achieve 3.14 MP with UltraMax enhancement.
Q: What temperature range can the T1020-KIT-45 measure?
A: It can measure from -40 °C to 2000 °C, supporting a wide range of applications.
Q: What is MSX and how does it help?
A: MSX adds visible edge detail to IR images for easier identification of objects and clearer imaging results.
Q: Can I record thermal video with this camera?
A: Yes, the camera supports full-resolution, full-frame radiometric video recording.
Q: What software is included with the camera?
A: The T1020-KIT-45 comes with Teledyne FLIR Tools+ software for thermal image analysis and reporting.
