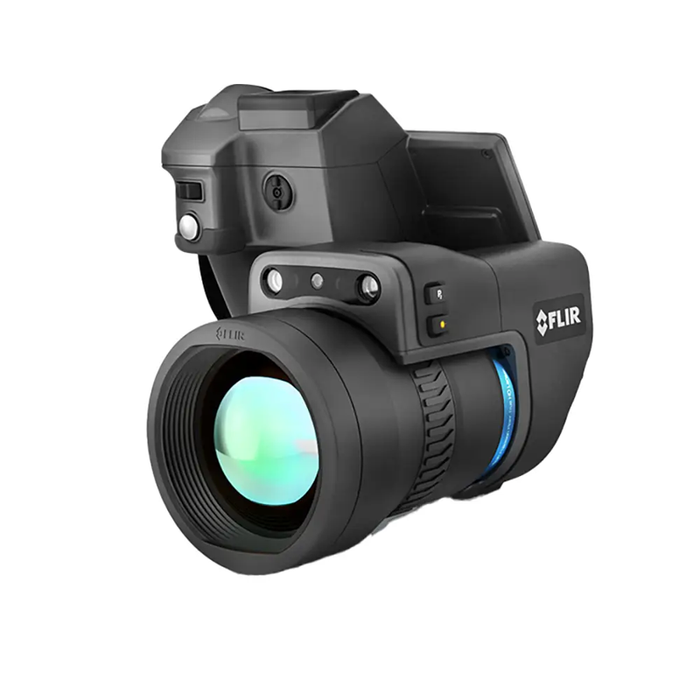

The Teledyne FLIR T1020-12-NIST HD Thermal Imaging Camera is engineered for professionals who demand precision, clarity, and high performance in thermal imaging. Built with five decades of infrared innovation, the T1020 offers a striking combination of exceptional resolution, advanced imaging technologies, and user-friendly ergonomics.
Featuring the proprietary OSX Precision HDIR optical system, this camera captures crisp thermal images across various angles and distances. With dynamic and continuous autofocus, it adapts seamlessly to your inspection needs, while the rotating optical block and rugged design ensure comfort and durability even during extended use.
MSX Technology enhances image detail by overlaying visible light outlines on thermal images, making text and structural elements easily identifiable. UltraMax Technology further elevates performance by combining multiple image captures into a single enhanced thermal image with quadruple the pixels, reducing noise and improving measurement precision.
What's Included:
- Teledyne FLIR T1020-12-NIST Thermal Camera
- 12° HDIR Lens
- Built-in Viewfinder
- FLIR Tools+ Software
- NIST Certificate of Calibration
Features
Ultra-High Thermal Resolution
Delivers sharp 1024 x 768 resolution, with UltraMax enhancement up to 3.14 megapixels for detailed thermal analysis.
Built-in Viewfinder
Ensures comfortable, high-visibility imaging in bright conditions with an 800 x 480 pixel display.
Wide Temperature Ranges
Captures temperatures from -40 °C to 2000 °C, accommodating a wide range of industrial applications.
Advanced Imaging with MSX
Multi-Spectral Dynamic Imaging overlays edge detail from visible images for greater clarity in thermal views.
OSX Precision HDIR Lenses
Pinpoints minute anomalies from long distances using high-fidelity optics.
1-Touch Level/Span
Simplifies thermal adjustments for precise readings with a single tap.
Comprehensive Alarms
Includes visual and audible alerts for above/below thresholds, moisture, insulation, and more.
Enhanced Image Analysis
Records full-resolution radiometric video and supports detailed inspection with FLIR Tools+.
Flexible Measurement Tools
Includes 10 spotmeters, 10 area boxes/circles with max/min/avg, and adjustable IR time-lapse from 15 sec to 24 hrs.
Integrated GPS and METERLiNK
Automatically tags image location and connects multiple sensor readings to thermal images.
What's Included
Included with Your Purchase:
- Teledyne FLIR T1020-12-NIST Thermal Camera
- 12° HDIR Lens
- Built-in Viewfinder
- FLIR Tools+ Software
- NIST Certificate of Calibration
Specifications
-
IR Resolution: 1024 x 768 (786,432 pixels)
-
UltraMax Resolution: 3.14 Mpixels
-
Thermal Sensitivity/NETD: < 20 mK @ 30°C (86°F)
-
Field of View (FOV): 12° x 9°
-
Viewfinder: 800 x 480 pixels
-
Temperature Ranges: -40 °C to 150 °C, 0 °C to 650 °C, 300 °C to 2000 °C
-
Accuracy: ±1 °C or ±1% at 25 °C for 5 °C to 150 °C
-
Spotmeter: 10
-
Measurement Areas: 5 boxes + 5 circles
-
Alarms: Above, below, interval, moisture, insulation
-
GPS Tagging: Automatic image geotagging
-
METERLiNK: Several sensor readings integration
-
Picture-in-Picture (PIP): Resizable and movable
-
Infrared Time-Lapse: 15 sec to 24 hrs
FAQ
Q: What is UltraMax and how does it help?
A: UltraMax captures and combines multiple images to enhance resolution and reduce noise, improving detail and measurement accuracy.
Q: Can I use the T1020 outdoors in bright sunlight?
A: Yes, the built-in viewfinder enables clear visibility in bright environments.
Q: How accurate are the temperature readings?
A: The camera provides accuracy of ±1 °C or ±1% within standard temperature ranges.
Q: Is software included for thermal analysis?
A: Yes, Teledyne FLIR Tools+ software is included for advanced image analysis and reporting.
