The Teledyne FLIR T840-42-14 High-Performance Thermal Camera is engineered to support utility and thermography professionals in identifying electrical and mechanical issues before failure occurs. Designed for both indoor and outdoor use, it combines advanced imaging technology and a robust, ergonomic design to provide reliable results in challenging environments. A bright 4-inch LCD and integrated eyepiece viewfinder ensure optimal visibility even in direct sunlight, while the 180° rotating optical block enhances access to hard-to-reach areas.
The T840 integrates FLIR’s exclusive MSX and UltraMax technologies for extraordinary image clarity. MSX overlays visual light details on the thermal image for better object recognition, while UltraMax enhances resolution and reduces noise for sharper, more accurate results. With laser-assisted autofocus, intuitive controls, and embedded GPS, this camera simplifies the inspection process and supports precise reporting.
Whether inspecting high-voltage equipment or confined components, the T840 empowers professionals to perform comprehensive diagnostics safely, efficiently, and accurately—anytime, anywhere.
What's Included:
- 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 464 x 348, 30 Hz
- 1 - 42° Lens
- 1 - 14° Lens
- 1 - Small Viewfinder Eyecup
- 2 - Li-Ion Batteries
- 1 - Battery Charger
- 1 - Hard Transport Case
- 1 - Lanyards
- 1 - Front Lens Cap
- 1 - Power Supplies
- 1 - Printed Documentation
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI Cable
- 1 - USB Type-C to USB Type-C Cable
- 1 - 3-Month Subscription to FLIR Thermal Studio Pro and FLIR Route Creator
Features
Dual Lenses for Versatility
Includes 14° and 42° lenses to adapt to different inspection scenarios and fields of view.
Exceptional Imaging Technology
Delivers superior clarity with FLIR Vision Processing, MSX, UltraMax, and adaptive filtering for enhanced diagnostic capabilities.
Laser Distance Measurement
Quickly determines component accessibility with an integrated on-screen laser distance tool.

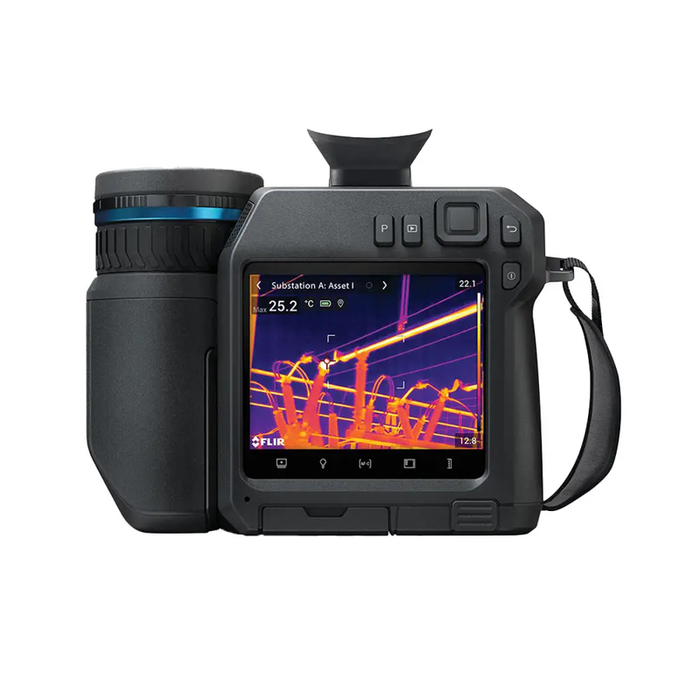

Durable and Bright Display
Scratch-resistant, high-resolution 4-inch LCD makes spotting issues in bright daylight effortless.
Comfortable All-Day Use
Features a 180° rotating optical block and ergonomic grip to reduce strain during extended inspections.
AutoCal Lens Sharing
AutoCal optics allow lenses to be shared across a fleet of compatible FLIR cameras.
Laser-Assisted Autofocus
Guarantees accurate thermal readings and crisp images with laser-assisted focusing.
Intelligent Workflow Features
Speeds up reporting and organizes findings efficiently in the field.
Intuitive Control Interface
Offers a rapid response touchscreen and accessible menus for seamless operation.
Real-Time Wi-Fi Streaming
Stream live to the FLIR Tools app, allowing clients or team members to observe findings remotely.
Integrated GPS and METERLiNK
Automatically tags images with location data and integrates with FLIR test instruments for comprehensive reports.
High-Resolution Imaging
IR resolution of 464 x 348 with enhanced UltraMax resolution reaching 645,888 effective pixels.
Optimized Lens Parameters
F-Numbers range from f/1.1 to f/1.5 and minimum focus distances down to 0.15 m for close-up precision.
What's Included
Included with Your Purchase:
- 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 464 x 348, 30 Hz
- 1 - 42° Lens
- 1 - 14° Lens
- 1 - Small Viewfinder Eyecup
- 2 - Li-Ion Batteries
- 1 - Battery Charger
- 1 - Hard Transport Case
- 1 - Lanyards
- 1 - Front Lens Cap
- 1 - Power Supplies
- 1 - Printed Documentation
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI Cable
- 1 - USB Type-C to USB Type-C Cable
- 1 - 3-Month Subscription to FLIR Thermal Studio Pro and FLIR Route Creator
Specifications
-
IR Resolution: 464 x 348 pixels
-
Image Frequency: 30 Hz
-
UltraMax Resolution: 645,888 effective pixels
-
Temperature Range: -4 to 2732°F
-
F-Number: f/1.1 (42°), f/1.5 (14°)
-
Minimum Focus Distance: 0.15 m (42°), 1.0 m (14°)
FAQ
Q: Can I use different FLIR lenses with this camera?
A: Yes, the T840 features AutoCal compatibility, allowing you to share lenses across a fleet.
Q: How does MSX enhance thermal imaging?
A: MSX overlays visual details onto thermal images, improving clarity and enabling you to see labels and edges more distinctly.
Q: What benefits does UltraMax provide?
A: UltraMax enhances image resolution by combining multiple frames, offering clearer, higher-detail images with full radiometric data.
Q: Can I stream thermal footage live?
A: Yes, the T840 supports real-time streaming to the FLIR Tools app via Wi-Fi.
Q: What is the minimum focus distance for close-up inspections?
A: With the 42° lens, the minimum focus distance is 0.15 m, allowing detailed close-range imaging.
