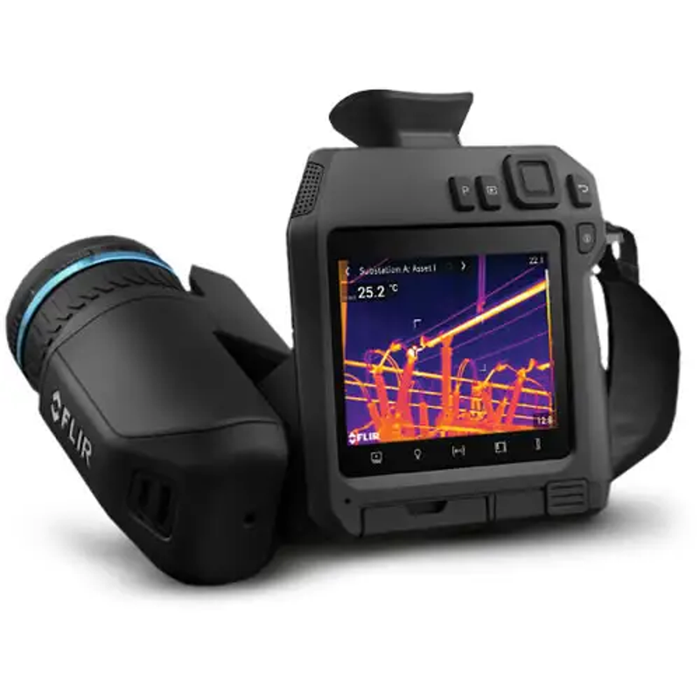

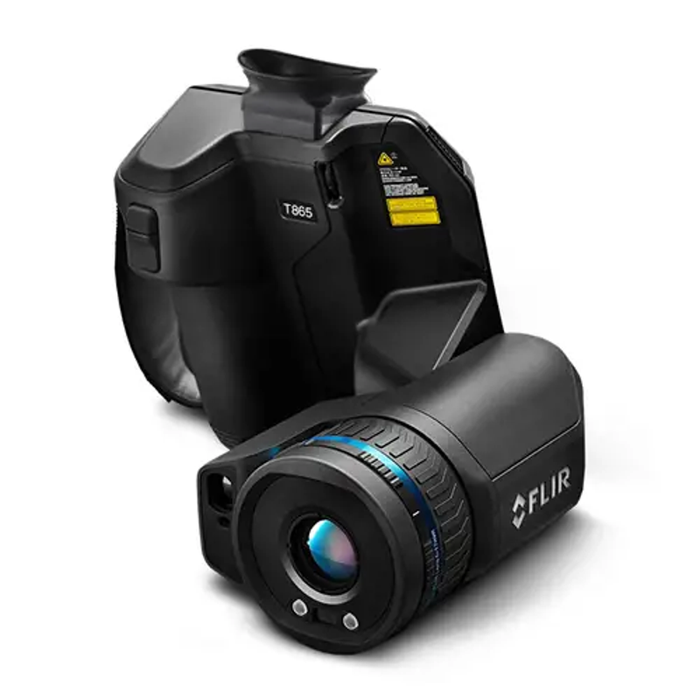

The Teledyne FLIR T865-24 High-Performance Thermal Camera delivers advanced thermal imaging capabilities in a rugged, ergonomic design ideal for industrial inspection, electrical maintenance, and predictive diagnostics. With a high-resolution 640 x 480 IR sensor and 24° lens, it captures clear, accurate thermal data for reliable measurements from a safe distance. The built-in viewfinder, 4-inch color LCD touchscreen, and 180° rotating optical block enable easy operation in challenging lighting and tight spaces.

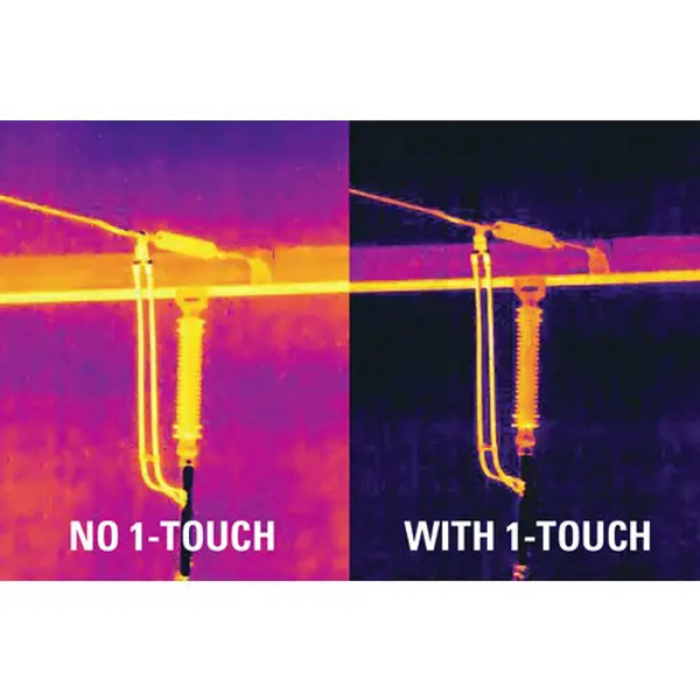

Enhanced by MSX and UltraMax technologies, the T865 fuses visible and infrared imagery and increases thermal resolution for precise detail. Laser-assisted autofocus, a laser distance meter, and 1-Touch Level/Span controls simplify targeting and ensure accurate results. Use Teledyne FLIR Route Creator and Thermal Studio Pro for organized inspections and automated reporting workflows.
What's Included:
- 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 640 x 480, 30 Hz
- 1 - 24° Lens
- 1 - Small Viewfinder Eyecup
- 2 - Rechargeable Li-ion Batteries
- 1 - Battery Charger
- 2 - Hard Carrying Case
- 1 - Lanyard
- 1 - Front Lens Cap
- 1 - Power Supply
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI Cable
- 1 - USB Type-C to USB Type-C Cable
- 1 - License Card for FLIR Thermal Studio Pro (3-Month Subscription) and FLIR Route Creator Plugin for Thermal Studio Pro
- 1 - User Manual
Features
High-Resolution Imaging
Captures crisp thermal data with a 640 x 480 IR detector and 24° lens for detailed inspections of large scenes or small targets at a distance.
Advanced Image Processing
Delivers unmatched clarity with Teledyne FLIR Vision Processing, combining MSX, UltraMax, and adaptive filtering technologies.
Rotating Optical Block
The 180° rotating lens module enables comfortable viewing at high or low angles, reducing operator fatigue in the field.
Laser-Assisted Autofocus
Ensures accurate focus every time with support from an integrated laser distance meter and one-touch controls.

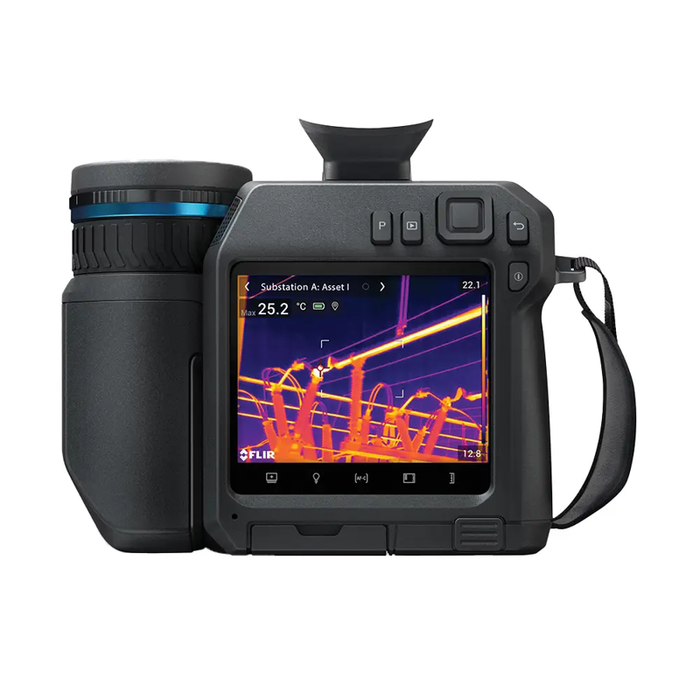

Integrated Viewfinder and LCD
Switch easily between the high-contrast 4-inch touchscreen LCD and eyepiece for bright outdoor environments.
Route-Based Inspections
Develop inspection routes using FLIR Route Creator and execute directly on the camera for streamlined asset assessments.
Thermal and Visual Documentation
Store infrared, visible, MSX, and picture-in-picture images with voice annotations, GPS data, and measurement overlays.
Enhanced Data Management
Transfer organized data directly to FLIR Thermal Studio Pro software for automated reporting and efficient workflow.
Flexible Storage and Connectivity
Save radiometric JPEGs and videos to SD card, and share wirelessly via Wi-Fi or through USB-C and DisplayPort outputs.
Built-In Laser Pointer
Visually identify exact target areas for inspection without needing external markers or estimation.
What's Included
Included with Your Purchase:
- 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 640 x 480, 30 Hz
- 1 - 24° Lens
- 1 - Small Viewfinder Eyecup
- 2 - Rechargeable Li-ion Batteries
- 1 - Battery Charger
- 2 - Hard Carrying Case
- 1 - Lanyard
- 1 - Front Lens Cap
- 1 - Power Supply
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI Cable
- 1 - USB Type-C to USB Type-C Cable
- 1 - License Card for FLIR Thermal Studio Pro (3-Month Subscription) and FLIR Route Creator Plugin for Thermal Studio Pro
- 1 - User Manual
Specifications
-
IR Resolution: 640 x 480 (1,228,800 pixels with UltraMax)
-
Image Frequency: 30 Hz
-
Digital Zoom: 1–8x continuous
-
Display: 4-inch 640 x 480 pixel LCD touchscreen with auto-rotation
-
Viewfinder: Integrated eyepiece for use in bright sunlight
-
Temperature Range: -40°F to 3632°F (3 ranges)
-
Accuracy: ±1°C or ±1%, depending on range
-
Spectral Range: 7.5 to 14.0 μm
-
Detector Type: Uncooled microbolometer, 12 μm pitch
-
Minimum Focus Distance: 0.15 m (24° lens)
-
Focus Options: Laser distance meter, contrast, manual
-
Laser Pointer: Yes, with dedicated button
-
Video Output: DisplayPort, USB-C, Wi-Fi streaming (H.264, MJPEG)
-
Image File Format: Radiometric JPEG with embedded data
-
Voice Annotation: 60-second recordings via mic or Bluetooth
-
Storage: Removable SD card (8 GB included)
-
Battery Life: Approximately 4 hours per charge
-
Operating Temperature: 5°F to 122°F
-
Environmental Protection: IP54, Shock: 25 g, Vibration: 2 g
FAQ
Q: What is MSX technology?
A: MSX overlays visible spectrum details onto infrared images to add clarity, such as readable labels and structural edges.
Q: How does UltraMax enhance image quality?
A: UltraMax combines multiple images into one high-resolution thermal image with improved detail and reduced noise.
Q: Can this camera be used outdoors in bright light?
A: Yes, it includes both a bright LCD touchscreen and an integrated viewfinder for outdoor visibility.
Q: Does the T865 support route-based inspections?
A: Yes, you can predefine and upload inspection routes using FLIR Route Creator for organized asset evaluation.
Q: What connectivity options are available?
A: The camera supports USB 2.0, Wi-Fi, Bluetooth, and DisplayPort for data transfer and streaming.
