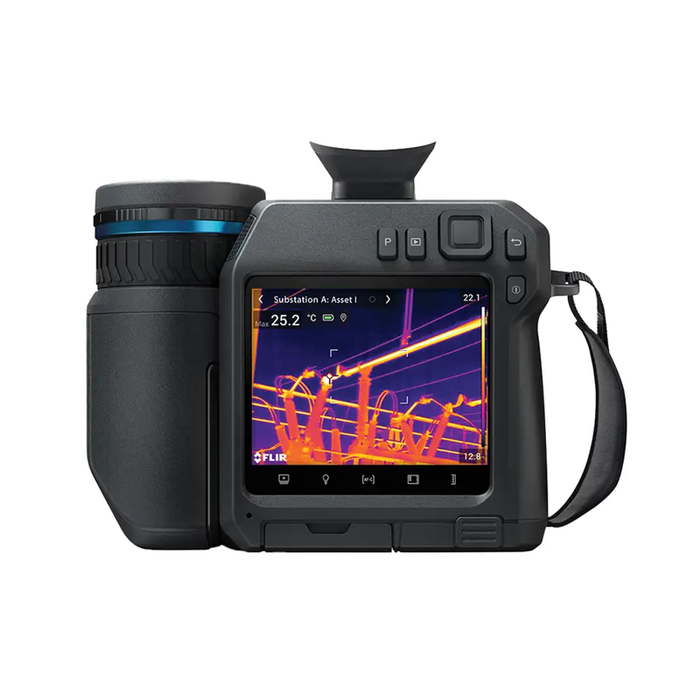

The Teledyne FLIR T865-24-14-42-NIST High-Performance Thermal Camera delivers precise, non-contact thermal inspections with exceptional clarity and detail. Its ergonomic rotating optical block enables safe, strain-free inspections from any angle, even in challenging lighting conditions. Designed for professionals in predictive maintenance and condition monitoring, this camera features 1-Touch Level/Span, laser-assisted autofocus, and sharp image quality via Teledyne FLIR Vision Processing technologies including MSX and UltraMax.
Users benefit from accurate temperature readings with ±1°C / ±1% precision, while AutoCal lenses provide flexibility with rapid transitions between wide-angle, standard, and telephoto perspectives. Capture thermal and visual imagery in sequence for logical, fast data collection, and enhance workflow with Teledyne FLIR’s Inspection Route and Thermal Studio Pro integration. The T865 is the ideal choice for detecting potential issues in electrical and mechanical systems before costly failures occur.
What's Included:
- 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 640 x 480, 30 Hz
- 1 - 24° Lens
- 1 - 14° Lens
- 1 - 42° Lens
- 1 - Small Viewfinder Eyecup
- 2 - Rechargeable Li-ion Batteries
- 1 - Battery Charger
- 2 - Hard Carrying Case
- 1 - Lanyards
- 1 - Front Lens Cap
- 1 - Power Supply
- 1 - SD Card (8 GB)
Features
Multi-Lens Flexibility
Includes 14°, 24°, and 42° lenses for versatile imaging across different distances and field-of-view requirements.
Efficient Inspection Workflow
Streamlines data collection with Teledyne FLIR Route Creator and logical route-based imaging.
High Accuracy and Resolution
Delivers 640 x 480 thermal resolution, expandable to 1,228,800 pixels via UltraMax for enhanced detail.
Advanced Thermal Analysis

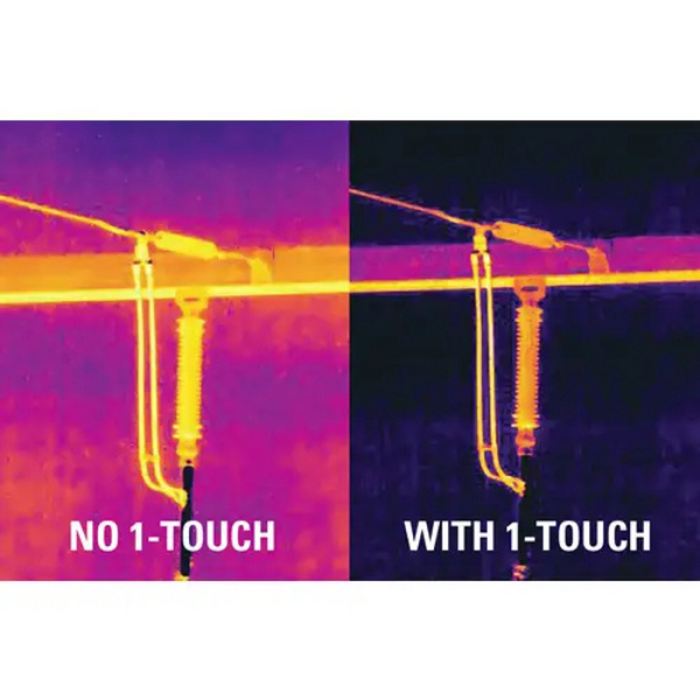

Capture detailed imagery and precise measurements with laser-assisted autofocus, 1-Touch Level/Span, and multiple measurement presets.
Built for Rugged Use
IP54-rated, vibration and shock-tested, and operable from -15°C to 50°C for indoor and outdoor environments.
Vivid Display and Viewfinder

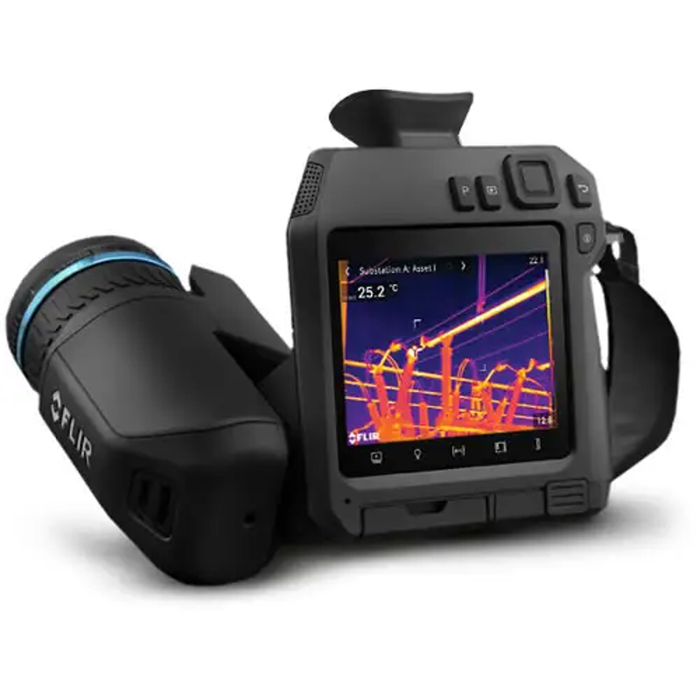

Features a 4-inch LCD touchscreen with integrated eyepiece viewfinder for outdoor and sunlight viewing.
Adaptive Ergonomics

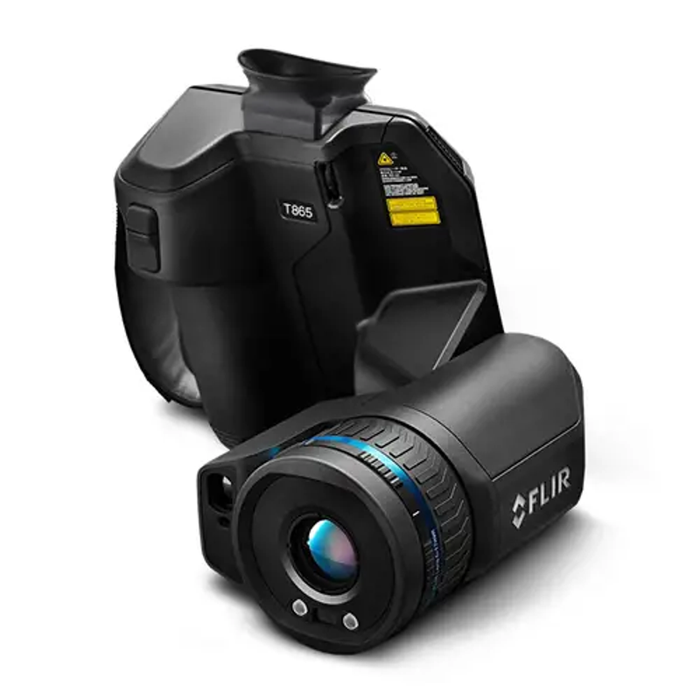

180° rotating optical block allows overhead and low-angle inspections without physical strain.
Superior Image Processing
Combines MSX, UltraMax, and adaptive filtering to produce clear, diagnostic-quality images.
Smart Data Management
Organizes files for fast export to FLIR Thermal Studio and supports Wi-Fi sync, voice notes, and GPS tagging.
Enhanced Communication Tools
Includes USB, Bluetooth, DisplayPort, and Wi-Fi for flexible video streaming and data transfer.
What's Included
Included with Your Purchase:
- 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 640 x 480, 30 Hz
- 1 - 24° Lens
- 1 - 14° Lens
- 1 - 42° Lens
- 1 - Small Viewfinder Eyecup
- 2 - Rechargeable Li-ion Batteries
- 1 - Battery Charger
- 2 - Hard Carrying Case
- 1 - Lanyards
- 1 - Front Lens Cap
- 1 - Power Supply
- 1 - SD Card (8 GB)
Specifications
-
IR Resolution: 640 x 480 (1,228,800 pixels with UltraMax)
-
Detector Pitch: 12 μm
-
Temperature Ranges: -40°F to 248°F, 32°F to 1202°F, 572°F to 3632°F
-
Accuracy: ±1°C or ±1% typical
-
Digital Zoom: 1-8x continuous
-
Thermal Sensitivity (NETD): <30 mK @ 30°C (42° lens)
-
Spectral Range: 7.5 to 14.0 μm
-
Image Frequency: 30 Hz
-
Display: 4-inch touchscreen, 640 x 480 pixels
-
Digital Camera: 5 MP with LED lamp
-
Image Modes: IR, visual, MSX, Picture-in-picture
-
Storage: SD card, standard JPEG with embedded measurement data
-
Video Recording: Radiometric and non-radiometric formats supported
-
Communication: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
-
Battery Life: Approx. 4 hours
-
Operating Temperature: 5°F to 122°F
-
Durability: IP54, 25 g shock, 2 g vibration
-
Certifications: NIST Calibration Certificate included
FAQ
Q: What makes the T865 suitable for outdoor inspections?
A: It features a rotating optical block, sun-readable viewfinder, and wide operating temperature range from -15°C to 50°C.
Q: Can I change lenses easily on this camera?
A: Yes, the camera supports AutoCal interchangeable lenses for quick transitions between 14°, 24°, and 42°.
Q: How accurate are the temperature measurements?
A: The T865 offers measurement accuracy of ±1°C or ±1%, ideal for critical diagnostics.
Q: What kind of image processing enhancements does it support?
A: It includes MSX for visible detail, UltraMax for superresolution, and adaptive filtering for clarity.
Q: How do I export and manage captured data?
A: Files can be organized and synced via Wi-Fi or transferred to FLIR Thermal Studio for streamlined reporting.
