The Teledyne FLIR T865-42-14-NIST High-Performance Thermal Camera delivers unmatched precision for predictive maintenance and critical inspections, combining ergonomic design with advanced imaging technology. Its 640 x 480 thermal resolution, laser-assisted autofocus, and high-accuracy temperature readings empower professionals to assess conditions safely and effectively, even at a distance. The 180° rotating optical block allows for strain-free overhead and low-angle targeting, while the integrated eyepiece viewfinder ensures usability in any lighting condition.
With MSX and UltraMax technologies, this camera enhances image clarity and resolution, enabling finer detail recognition without sacrificing measurement accuracy. The included 14° and 42° lenses provide versatile imaging options for both wide and narrow fields of view. Designed for real-time decision-making and efficient post-analysis, the T865 integrates seamlessly with Teledyne FLIR Thermal Studio Pro software and supports automated inspection routes using the FLIR Route Creator.
Whether capturing radiometric video, annotating images, or syncing files wirelessly to mobile apps, this system boosts operational efficiency across industrial and utility environments.
What's Included:
- 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 640 x 480, 30 Hz
- 1 - 42° Lens
- 1 - 14° Lens
- 1 - Small Viewfinder Eyecup
- 2 - Rechargeable Li-ion Batteries
- 1 - Battery Charger
- 2 - Hard Carrying Case
- 1 - Lanyard
- 1 - Front Lens Cap
- 1 - Power Supply
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI Cable
- 1 - USB Type-C to USB Type-C Cable
Features
Dual Field of View Lenses
Includes 14° and 42° lenses to adapt to both wide-area and long-range thermal inspections.

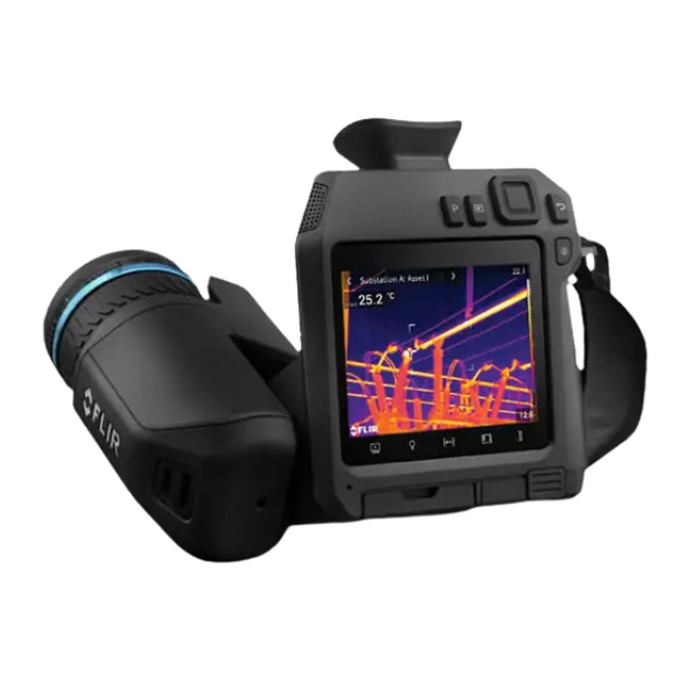

Ergonomic Rotating Block Design
180° rotating lens assembly enables comfortable viewing at any angle without physical strain.
High-Resolution Thermal Imaging
640 x 480 IR resolution with UltraMax processing provides crisp, detailed visuals with up to 1.2 million pixels.

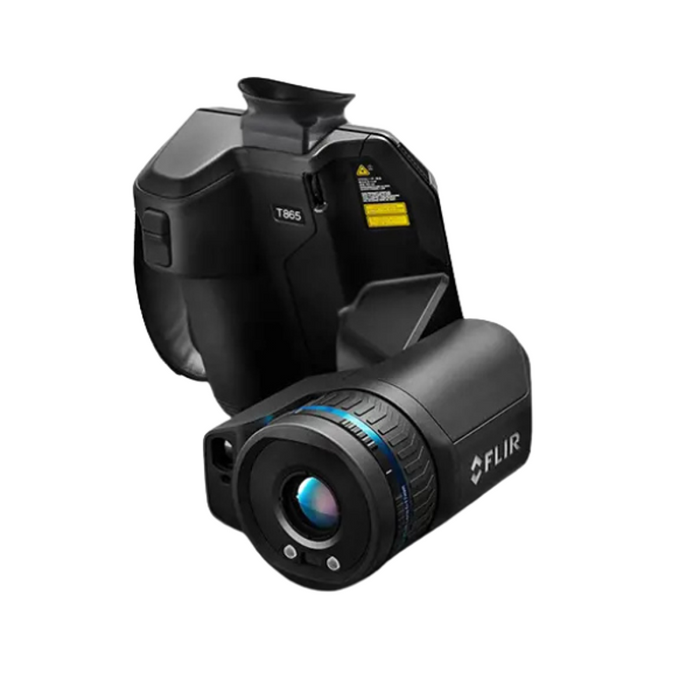

Laser-Assisted Autofocus
Ensures precise focus for accurate temperature measurement and reduced diagnostic errors.
MSX and UltraMax Technology
Enhances IR images with visible light detail and quadruples pixel count for refined analysis.
Advanced Inspection Workflows
Compatible with FLIR Route Creator for pre-programmed inspection routes and FLIR Studio Pro for automated reporting.
Voice and Text Annotation
Capture context-rich data using voice notes, text input, and sketch tools directly on infrared images.

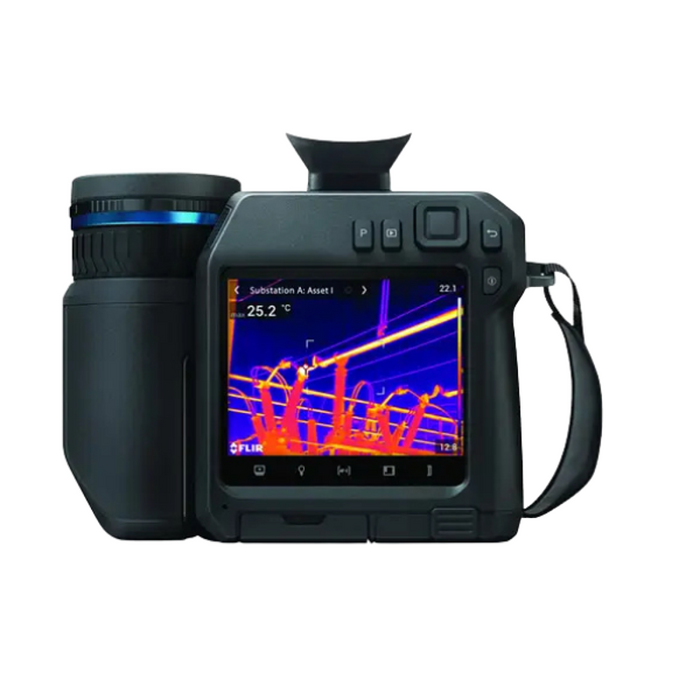

Flexible Display Options
View data on a 4-inch touchscreen LCD or through the built-in viewfinder for sunlight readability.
Wireless Sync and Sharing
Transfer organized files via Wi-Fi to FLIR mobile apps, speeding up report generation and data distribution.
Versatile Imaging Modes
Switch between IR, visual, MSX, and resizable picture-in-picture modes for clearer diagnostics.
What's Included
Included with Your Purchase:
- 1 - High-Performance Thermal Camera with MSX and UltraMax Technologies, 640 x 480, 30 Hz
- 1 - 42° Lens
- 1 - 14° Lens
- 1 - Small Viewfinder Eyecup
- 2 - Rechargeable Li-ion Batteries
- 1 - Battery Charger
- 2 - Hard Carrying Case
- 1 - Lanyard
- 1 - Front Lens Cap
- 1 - Power Supply
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI Cable
- 1 - USB Type-C to USB Type-C Cable
Specifications
-
IR Resolution: 640 x 480 (307,200 pixels; 1,228,800 with UltraMax)
-
Detector Type: Uncooled microbolometer
-
Thermal Sensitivity (NETD): <30 mK @ 30°C (42° lens)
-
Spectral Range: 7.5 to 14.0 μm
-
Image Frequency: 30 Hz
-
Object Temperature Range: -40°F to 248°F; 32°F to 1202°F; 572°F to 3632°F
-
Accuracy: ±1°C or ±1% up to 248°F, ±2% or ±2°C above
-
Zoom: 1–8x continuous digital zoom
-
Display: 4-inch 640 x 480 touchscreen LCD with auto-rotation
-
Focus: Laser Distance Meter, One-shot contrast, manual
-
Storage: SD card, JPEG with measurement data
-
Video Recording: Radiometric (.csq) and non-radiometric (H.264) formats
-
Battery Life: Approximately 4 hours at 77°F
-
Interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
-
Environmental Rating: IP54; -15°C to 50°C (5°F to 122°F)
-
Compliance: EN/UL/CSA/PSE 60950-1
-
Certification: NIST Certificate of Calibration included
FAQ
Q: What is the benefit of having both 14° and 42° lenses?
A: The 14° lens allows for detailed imaging at longer distances, while the 42° lens offers a wider field of view for inspecting larger areas quickly.
Q: Does the camera come with reporting software?
A: Yes, it includes Teledyne FLIR Thermal Studio Pro for efficient data management and reporting.
Q: How is UltraMax different from normal interpolation?
A: UltraMax uses multiple offset images to improve resolution and reduce noise, preserving radiometric accuracy, unlike standard interpolation techniques.
Q: Can the camera be used outdoors in bright sunlight?
A: Absolutely. It features a built-in viewfinder and a high-resolution LCD screen for visibility in any lighting condition.
Q: Is the T865 compatible with inspection route workflows?
A: Yes, it supports Teledyne FLIR Route Creator, allowing preloaded route-based inspections to enhance workflow efficiency.
