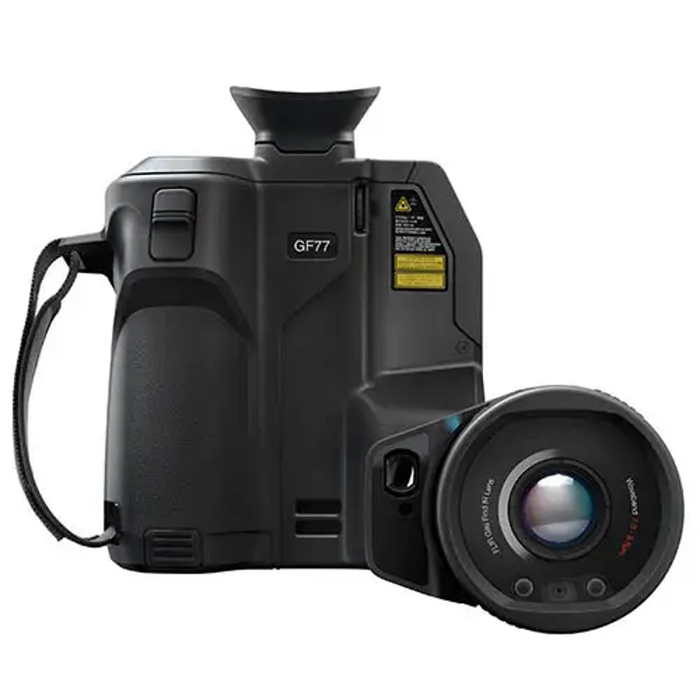

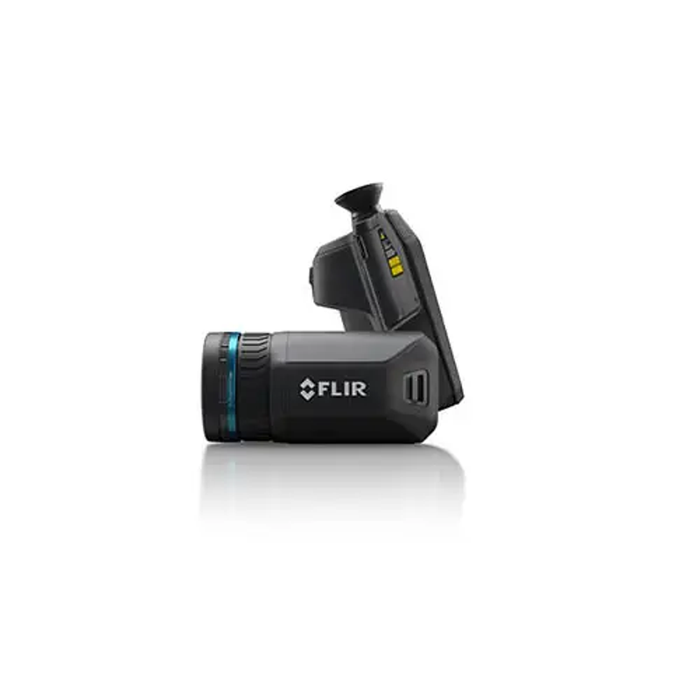

The Teledyne FLIR GF77-25-LR-HR-6-HR Thermal Imaging Camera is a versatile, uncooled optical gas imaging system designed for industrial gas detection and thermal analysis. Featuring a 320 x 240 IR resolution at 30 Hz and equipped with both low-range and high-range interchangeable lenses, this powerful device can visualize gases like methane (CH4), sulfur hexafluoride (SF6), ammonia (NH3), and ethylene (C2H4). Built for demanding environments across power utilities, oil and gas, manufacturing, agriculture, and emergency response, it seamlessly blends radiometric temperature measurement with gas leak visualization.

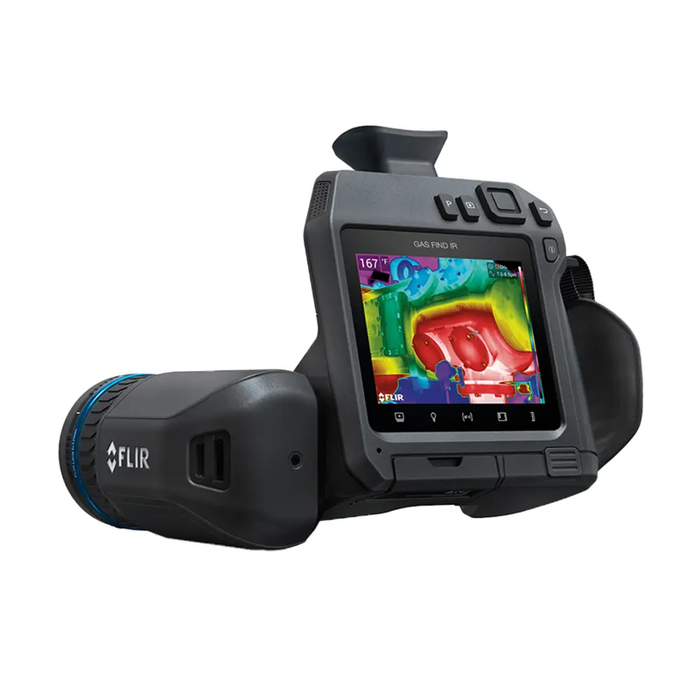

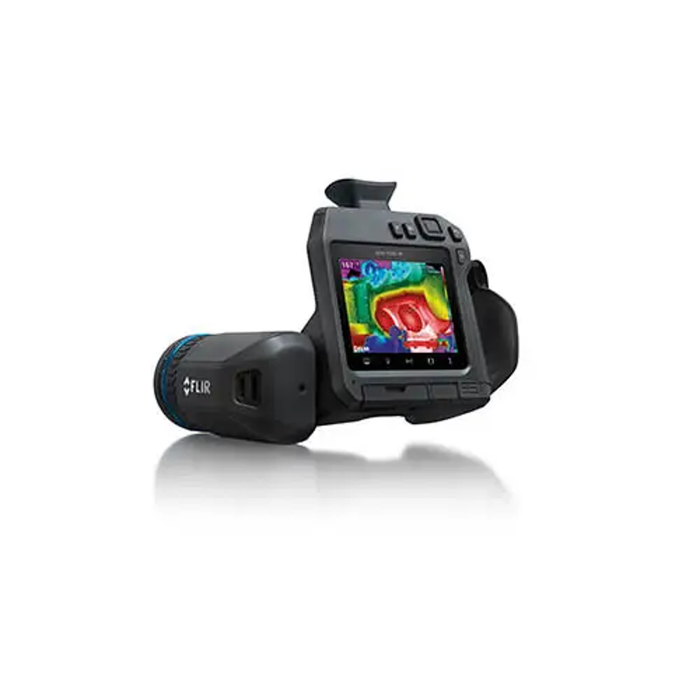

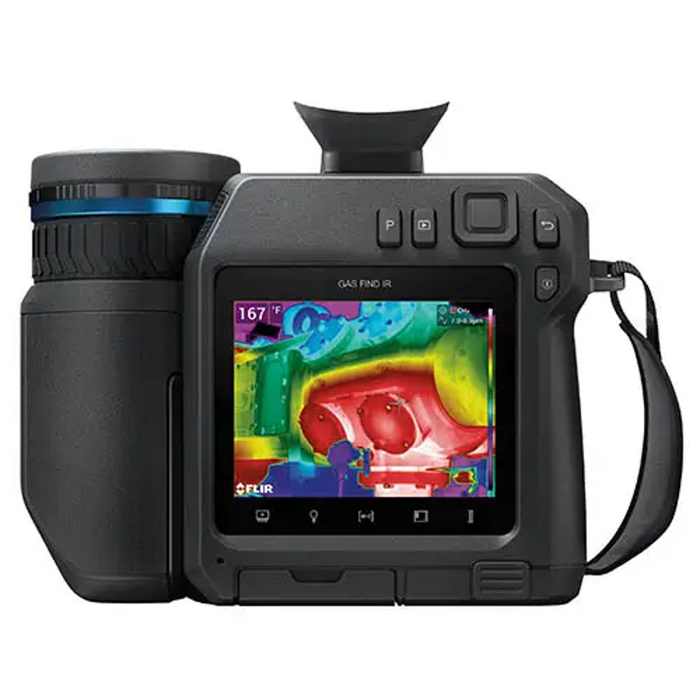

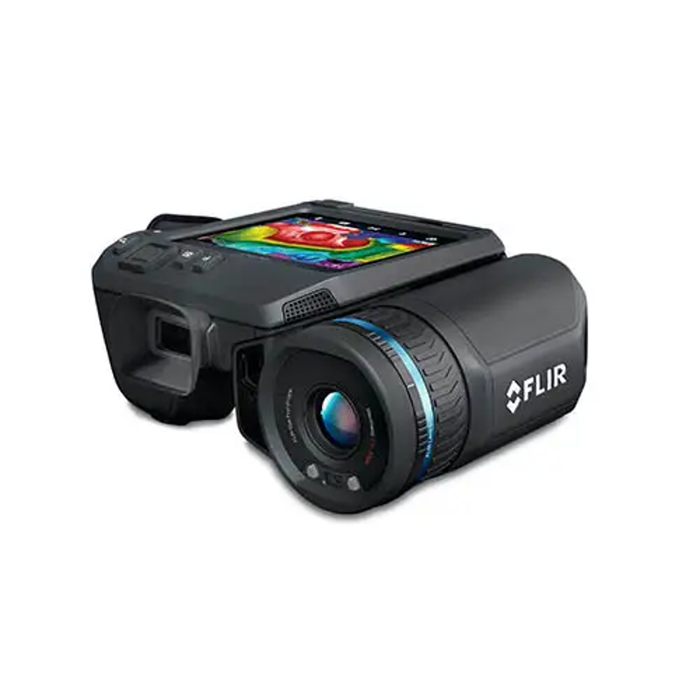

This model integrates the award-winning T-Series platform design, offering a 4-inch LCD touchscreen, a 180° rotating optical block, and a viewfinder for use in bright conditions. It allows real-time cloud connectivity, intuitive inspection routing, and laser-assisted autofocus for precise targeting. With automated GPS tagging, built-in tools for area measurement, and support for powerful software like Thermal Studio Pro, this camera is a comprehensive tool for maintenance, safety, and compliance.
What's Included:
- 1 - Thermal Imaging Camera with Industrial Gas Detection, 320 x 240, 30 Hz
- 1 - 25° Low-Range Lens
- 1 - 25° High-Range Lens
- 1 - 6° High-Range Lens
- 1 - Power Supply for Battery Charger
- 1 - Power Supply 15 W/3 A
- 1 - Printed Documentation
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI and PD Adapter
- 1 - USB Type-C to USB Type-C Cable (USB 2.0 Standard)
- 1 - Lens Cap Strap
- 1 - Lens Cleaning Cloth
- 1 - Neck Strap
- 1 - Small Eyecup
- 2 - Batteries
- 1 - Battery Charger
- 1 - Hard Transport Case
- 1 - Lens Cap Front
- 1 - Lens Cap Front and Rear
Features
Combined Radiometric and Gas Detection Lenses
Offers the ability to detect multiple gases while simultaneously capturing precise temperature measurements.
Versatile Lens Options
Includes interchangeable 25° and 6° lenses for low- and high-range gas detection, expanding its usability across various applications.
Cloud Connectivity
Automatically transfers, stores, backs up, and shares data through the Teledyne FLIR cloud, streamlining workflows.
Multi-Gas Visualization
Detects CH4, SF6, NH3, and C2H4 with wavelength-specific lenses and a built-in thermal imager.
Safe and Efficient Emission Scanning
Scan for leaks from a distance and pinpoint the exact location for rapid repair.
Wide Temperature Measurement Range
Measures temperatures from -20°C to 500°C with ±3°C or 3% accuracy in various environments.
Daylight-Friendly Viewing
Switch to the integrated viewfinder in bright conditions to ensure a clear image.
1-Touch Level/Span Adjustment
Enhances gas detection contrast for improved visibility of leaks.
High Sensitivity Mode (HSM)
Increases leak detectability with a patented sensitivity enhancement feature.
Laser-Assisted Autofocus
Ensures the target area is precisely focused for accurate analysis.
Built-in Measurement Tools
Area tools enable volume and tank level calculations directly on-screen.
Optional Inspection Routing Software
Compatible with Teledyne FLIR Thermal Studio Pro and Route Creator for inspection planning and reporting (sold separately).
Integrated GPS Tagging
Each image is automatically tagged with geolocation data for effortless identification.
Wireless Data Transfer
Wi-Fi capability allows for immediate image and report sharing with mobile devices.
Comprehensive Gas Detection Capability
Detects methane, nitrous oxide, propane, sulfur dioxide, R-134a, R-152a, sulfur hexafluoride, ammonia, and ethylene using included lenses.
What's Included
Included with Your Purchase:
- 1 - Thermal Imaging Camera with Industrial Gas Detection, 320 x 240, 30 Hz
- 1 - 25° Low-Range Lens
- 1 - 25° High-Range Lens
- 1 - 6° High-Range Lens
- 1 - Power Supply for Battery Charger
- 1 - Power Supply 15 W/3 A
- 1 - Printed Documentation
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI and PD Adapter
- 1 - USB Type-C to USB Type-C Cable (USB 2.0 Standard)
- 1 - Lens Cap Strap
- 1 - Lens Cleaning Cloth
- 1 - Neck Strap
- 1 - Small Eyecup
- 2 - Batteries
- 1 - Battery Charger
- 1 - Hard Transport Case
- 1 - Lens Cap Front
- 1 - Lens Cap Front and Rear
Specifications
-
IR Resolution: 320 x 240 px
-
Image Frequency: 30 Hz
-
Spectral Range: 9.5 µm - 12 µm
-
Temperature Measurement Range: -20°C to 500°C
-
Temperature Accuracy: ±3°C or 3%
-
Viewfinder: Integrated, for sunlight readability
-
Display: 4-inch touchscreen LCD
-
Optical Block: 180° rotating
-
Connectivity: Wi-Fi, USB Type-C
-
Memory: SD Card (8 GB included)
-
Battery: Rechargeable with charger and two batteries included
FAQ
Q: What gases can this camera detect?
A: It detects methane, sulfur hexafluoride, ammonia, ethylene, and several other industrial gases depending on the lens used.
Q: Does the camera include all the lenses shown?
A: Yes, it comes with a 25° low-range lens, a 25° high-range lens, and a 6° high-range lens.
Q: Can the camera measure temperature as well?
A: Yes, it provides accurate radiometric temperature measurements from -20°C to 500°C.
Q: Is the data backed up automatically?
A: Yes, it features Teledyne FLIR cloud connectivity for automatic storage, transfer, and sharing.
Q: Is it usable in outdoor daylight conditions?
A: Absolutely, it includes a viewfinder and rotating optical block for flexible viewing even in bright sunlight.
