The Teledyne FLIR ETS320 Thermal Imaging System is a specialized non-contact thermal measurement camera designed for electronics testing and research. Featuring a high-sensitivity 320 x 240 IR sensor, this system allows for precise temperature measurements across 76,800 individual points without physical contact.
It provides a true 45° x 34° field of view to easily scan for potential issues and displays thermal feedback instantly through a vibrant 3-inch LCD screen. Sensitive enough to detect temperature changes smaller than 0.06°C, the ETS320 helps engineers and technicians quickly discover hot spots and design flaws, expediting product development and testing processes.

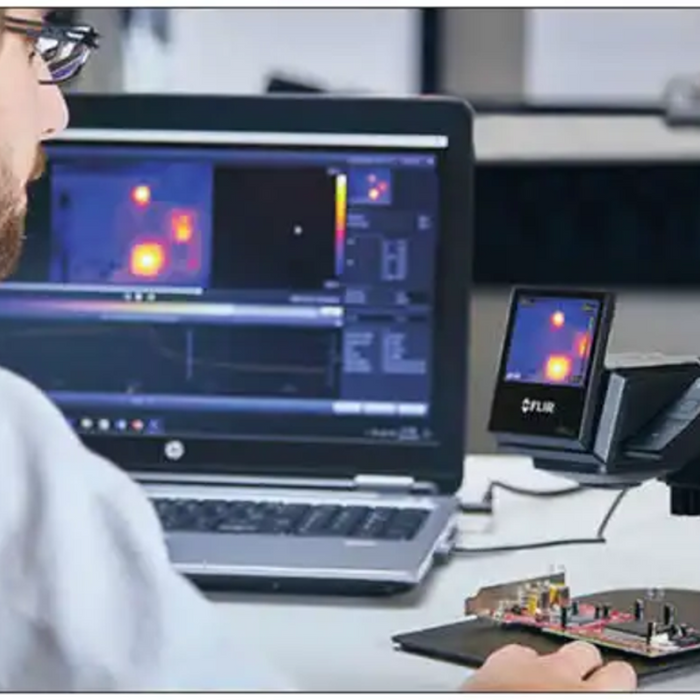

Paired with the powerful Teledyne FLIR Tools+ software, the system enhances thermal analysis and reporting, making it a valuable asset for laboratories, R&D teams, and quality control environments.
What's Included:
- 1 - Thermal Camera
- 1 - Mount
- 1 - Stand
- 1 - Power Supply
- 1 - USB Cable
- 1 - FLIR Tools+ Software
Features
High-Sensitivity 320 x 240 IR Sensor
Offers 76,800 points of non-contact temperature measurement for precise evaluation of electronics.
Wide Field of View
True 45° x 34° FOV allows broad initial scans to quickly identify thermal anomalies.
Low Image Frequency
9 Hz image capture ensures consistent and stable thermal readings for analysis.
Exceptional Measurement Accuracy
Accuracy within ±3°C supports quality assurance and factory acceptance of PCBs.
Bright LCD Display
3-inch vibrant screen provides immediate thermal feedback for on-the-spot decisions.
High Thermal Sensitivity
Capable of detecting temperature shifts smaller than 0.06°C for detailed evaluations.
Wide Temperature Range
Measures temperatures from -20 °C to 250 °C, ideal for a variety of thermal testing applications.
Precision Spot Size
Measures small components with a spot size down to 170 μm per pixel.
Radiometric JPEG Capture
Records standard radiometric JPEGs for easy storage and analysis.

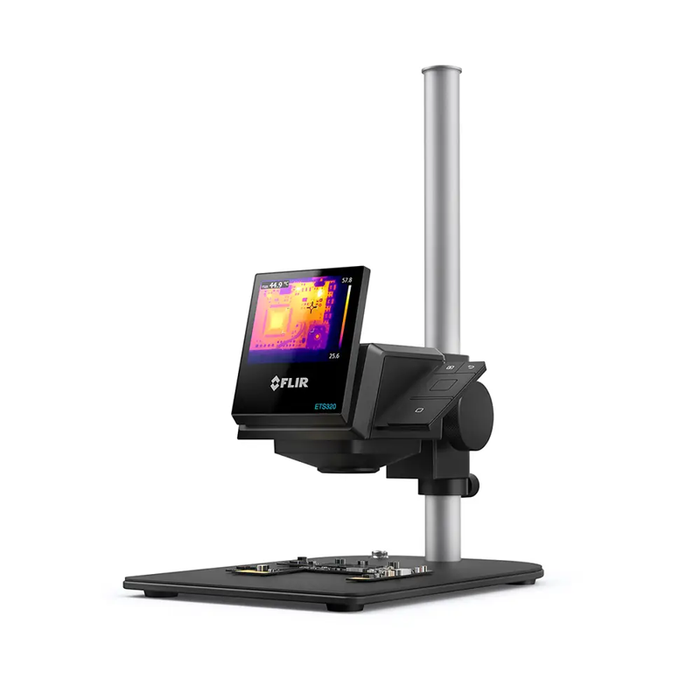

Optimized for Hands-Free Testing
Designed with an integrated stand and simplified controls to focus on work rather than camera operation.
Enhanced Analysis Software
Includes FLIR Tools+ software for immediate image analysis and Time vs. Temperature measurement capabilities.
Fast Setup
Pole mount included for quick and easy workstation configuration.
Application Versatility

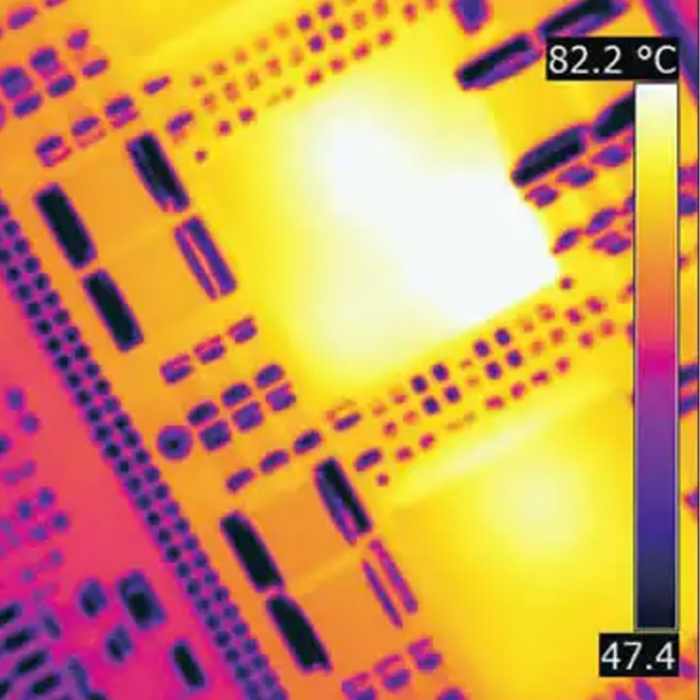

Perfect for electronic board evaluation, device evaluation, R&D, product testing, and more.
Designed for Engineers and Technicians
Tailored to meet the needs of engineers, R&D specialists, and test technicians.
What's Included
Included with Your Purchase:
- 1 - Thermal Camera
- 1 - Mount
- 1 - Stand
- 1 - Power Supply
- 1 - USB Cable
- 1 - FLIR Tools+ Software
Specifications
-
IR Resolution: 320 x 240 pixels (76,800 pixels)
-
Image Frequency: 9 Hz
-
Field of View (FOV): 45° x 34°
-
Measurement Accuracy: ±3°C
-
Display: 3-inch LCD
-
Thermal Sensitivity: <0.06°C
-
Temperature Range: -20 °C to 250 °C
-
Minimum Spot Size: 170 μm per pixel
-
Image Capture: Standard radiometric JPEGs
-
Software: Teledyne FLIR Tools+
-
Mounting: Integrated stand with pole mount included
-
Condition: NEW
-
Brand: FLIR
FAQ
Q: What is the IR resolution of the ETS320?
A: The ETS320 features a 320 x 240 pixel IR sensor, providing 76,800 individual temperature measurement points.
Q: Can the ETS320 detect very small temperature changes?
A: Yes, it is sensitive enough to detect shifts smaller than 0.06°C.
Q: Is the system designed for handheld use?
A: No, it is specifically designed for hands-free laboratory testing using its integrated stand.
Q: What file format does it use for images?
A: The ETS320 captures standard radiometric JPEG images.
Q: What types of applications is the ETS320 suited for?
A: It is ideal for electronic board evaluation, device evaluation, research and development, and product testing.
