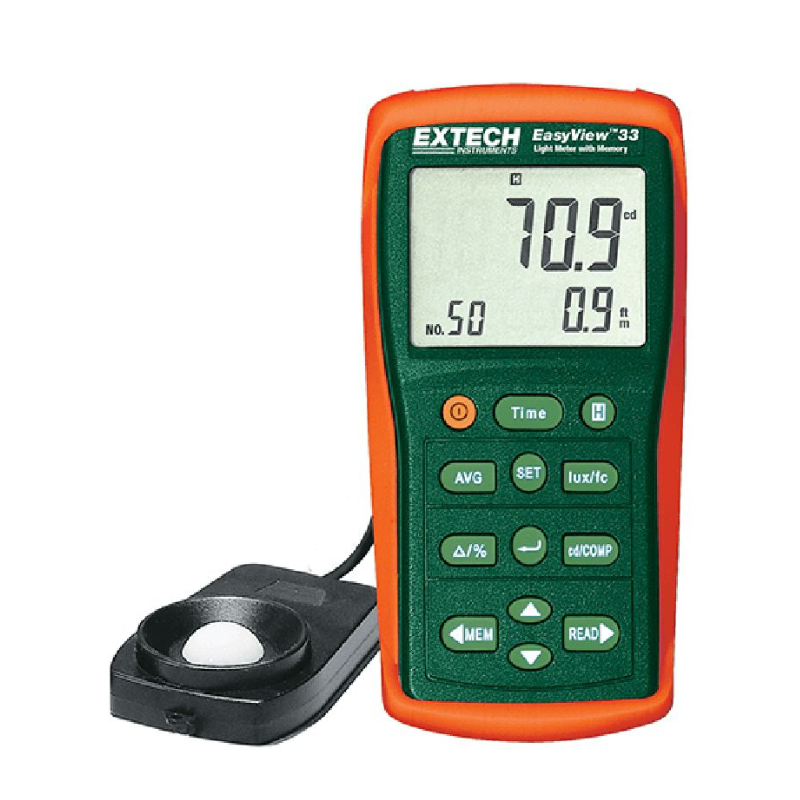

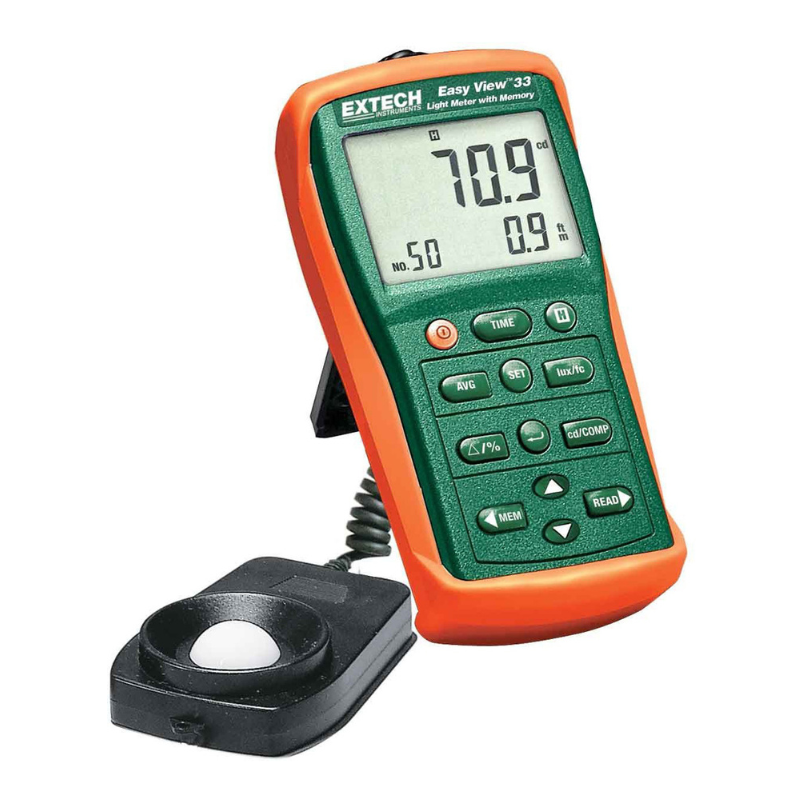

The Extech EA33-NIST EasyView Light Meter is a compact, rugged tool built for high-intensity light measurements across a wide range of applications. Capable of measuring up to 99,990 Foot Candles or 999,900 Lux with high resolution (0.001Fc/0.01Lux), it delivers precise results in demanding lighting environments. The unit features a large LCD display and advanced illuminance functions such as candela calculations, timed hold, relative and percentage deviation readings, and a ripple function that filters out stray light interference.
This light meter includes the ability to store and recall up to 50 measurements with time or real-time stamps, enabling users to perform detailed light tracking and analysis. A built-in comparator function provides high/low alarm capabilities, while the auto power-off feature ensures energy efficiency. NIST certification guarantees its measurement accuracy, making it ideal for professional settings where calibrated results are critical.
What's Included:
- 1 - NIST Certificate of Calibration
- 1 - Built-In Stand
- 1 - Light Sensor Protective Cover With 36” (0.9M) Coiled Cable
- 1 - Protective Holster
- 6 - AAA Batteries
- 1 - Carrying Case
Features
Wide Measurement Range
Measures up to 99,990 Foot Candles and 999,900 Lux across 5 ranges for both units with fine resolution of 0.001Fc and 0.01Lux.
Advanced Display and Functions
Large LCD screen provides clear readings and supports features like multi-point averaging and ripple mode for stray light filtering.
Luminous Intensity Capability
Calculates luminous intensity in candela, expanding measurement utility for specialized lighting analysis.
Data Logging and Time Stamps
Stores and recalls up to 50 readings with relative or real-time clock stamps to support organized data tracking.
Timed Hold and Comparator Alarms
Enables measurement stability over time and sets thresholds for light conditions with audible high/low alerts.
Relative Measurement Options
Displays changes as absolute values or percentage deviation, ideal for comparative readings.
Certified Accuracy
Includes a NIST calibration certificate ensuring compliance with rigorous quality standards.
Auto Power Off
Conserves battery life with a power-saving feature that can be disabled when needed.
What's Included
Included with Your Purchase:
- 1 - NIST Certificate of Calibration
- 1 - Built-In Stand
- 1 - Light Sensor Protective Cover With 36” (0.9M) Coiled Cable
- 1 - Protective Holster
- 6 - AAA Batteries
- 1 - Carrying Case
Specifications
-
Measurement Range: Up to 99,990 Fc / 999,900 Lux
-
Resolution: 0.001 Fc / 0.01 Lux
-
Memory Capacity: 50 measurements
-
Display: Large LCD
-
Functions: Timed Hold, Relative Measurement, Comparator with Alarms, Multi-point Average, Ripple
-
Luminous Intensity: Candela calculation supported
-
Calibration: NIST Certified
-
Power: 6 AAA Batteries (included)
-
Included Accessories: Stand, Sensor Cover, Holster, Carrying Case
-
UPC: 793950412336
-
Condition: New
-
Model: EA33-NIST
FAQ
Q: How many light measurements can the EA33-NIST store?
A: It can store up to 50 measurements with either a relative or real-time clock stamp.
Q: What is the resolution of light readings?
A: The meter offers a resolution of 0.001 Fc and 0.01 Lux for precise readings.
Q: Is the light meter calibrated?
A: Yes, it comes with a NIST Certificate of Calibration.
Q: Does the meter filter out ambient stray light?
A: Yes, it features a ripple function that helps exclude stray light from the primary light source measurement.
