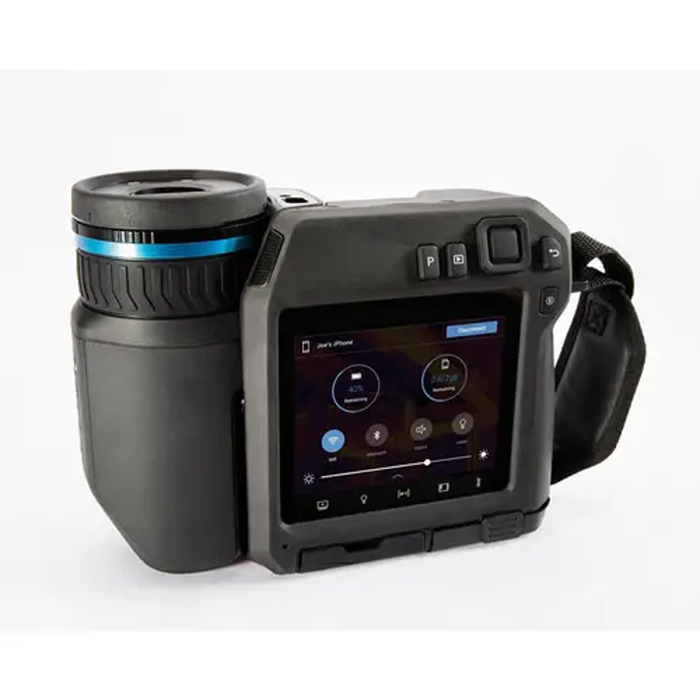

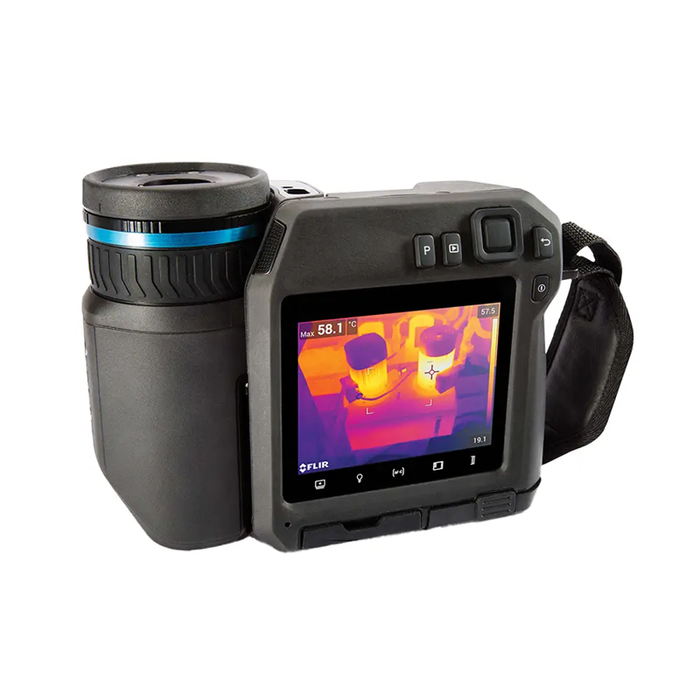

The Teledyne FLIR T530-24-42 Thermal Imaging Camera delivers advanced thermal imaging performance in a rugged, user-focused package. Engineered for professional thermographers, this camera features a 320 x 240 resolution and dual lenses (24° and 42°), enabling precise inspections across wide and detailed views. The T530's 180° rotating optical block, 4-inch scratch-resistant LCD, and ergonomic design make it perfect for extended use, even in difficult-to-access or overhead spaces.
MSX (Multi-Spectral Dynamic Imaging) technology overlays visible light details onto infrared imagery for sharper, more informative visuals, while UltraMax technology enhances image resolution and clarity by compiling 16 rapid-fire thermal shots into a single, super-detailed image. Whether measuring components from a distance or conducting up-close inspections, this camera ensures efficiency and accuracy with laser-assisted autofocus and on-screen laser distance measurement.
Operators benefit from intuitive touchscreen controls, programmable buttons, embedded GPS, voice annotation, text comments with auto-fill, and streamlined report generation. The T530 supports data integration from METERLiNK-enabled FLIR clamps and multimeters, and it is compatible with AutoCal interchangeable lenses, increasing flexibility across inspection tasks.

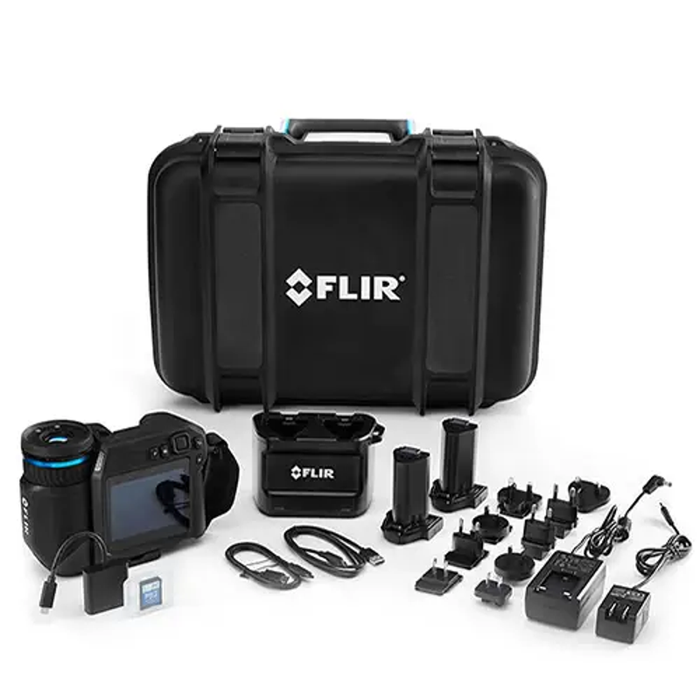

What's Included:
- Teledyne FLIR T530 Thermal Imaging Camera
- 24° and 42° AutoCal Lenses
- Hard Transport Case
- Battery Pack
- Battery Charger
- USB Cable
- Power Supply
- Front Protection Lens
- Hand Strap and Neck Strap
- Software License
- Documentation
Features
Dual 24° and 42° Lenses
Switch between wide and narrow fields of view for both situational awareness and close-up analysis with high-resolution 320 x 240 imagery.
Wide Temperature Range
Measure temperatures from -4 to 1202°F, with support for extended high-temp capability using an optional upgrade.
180° Rotating Optical Block
Capture images comfortably from any angle, including difficult overhead or ground-level perspectives.
Laser-Assisted Autofocus
Automatically sharpens focus for more precise temperature readings and clear visuals.
FLIR Vision Processing with MSX and UltraMax
Combines edge enhancement, super-resolution, and noise reduction to deliver industry-leading image quality.
On-Screen Laser Distance Measurement
Instantly measure distance to targets and assess component accessibility.
4" LCD Touchscreen
Features a rugged, scratch-resistant display that makes it easy to identify issues in bright or dim environments.
Smart User Interface
Navigate quickly using a touchscreen and two customizable buttons for commonly used functions.
Advanced Reporting Tools
Includes voice annotations, text entry with auto-fill, image sketching, and GPS tagging for robust documentation.
AutoCal Interchangeable Lenses
Use one lens system across your FLIR fleet for cost-effective and flexible operation.
What's Included
Included with Your Purchase:
- Teledyne FLIR T530 Thermal Imaging Camera
- 24° and 42° AutoCal Lenses
- Hard Transport Case
- Battery Pack
- Battery Charger
- USB Cable
- Power Supply
- Front Protection Lens
- Hand Strap and Neck Strap
- Software License
- Documentation
Specifications
-
Thermal Resolution: 320 x 240
-
Lens Options: 24° and 42° (AutoCal Interchangeable)
-
Temperature Range: -4°F to 1202°F (with upgrade)
-
Zoom: 1x to 4x continuous
-
Image Enhancement: MSX, UltraMax, Adaptive Filtering
-
Display: 4-inch LCD touchscreen
-
Laser Features: Laser-assisted autofocus, laser distance measurement
-
Measurement Points: 161,472
-
Connectivity: METERLiNK-enabled for external sensor data
-
Control Interface: Touchscreen with 2 programmable buttons
-
Data Features: Voice notes, text, sketch, GPS tagging
-
Refresh Rate: 30 Hz
FAQ
Q: What is the advantage of having both 24° and 42° lenses?
A: The dual lenses allow users to switch between wide-area scans and detailed inspections without changing cameras.
Q: Can I upgrade the camera to measure higher temperatures?
A: Yes, with the T199616 upgrade, the camera can extend its temperature range up to 1202°F.
Q: Is this camera compatible with other FLIR cameras’ lenses?
A: Yes, AutoCal lenses are interchangeable across supported FLIR camera models.
Q: How does UltraMax improve image quality?
A: UltraMax enhances image clarity and resolution by combining data from multiple thermal frames, reducing noise and improving detail.
Q: What types of environments is this camera suitable for?
A: It’s ideal for industrial and utility environments, including electrical, mechanical, and high-heat inspections.
