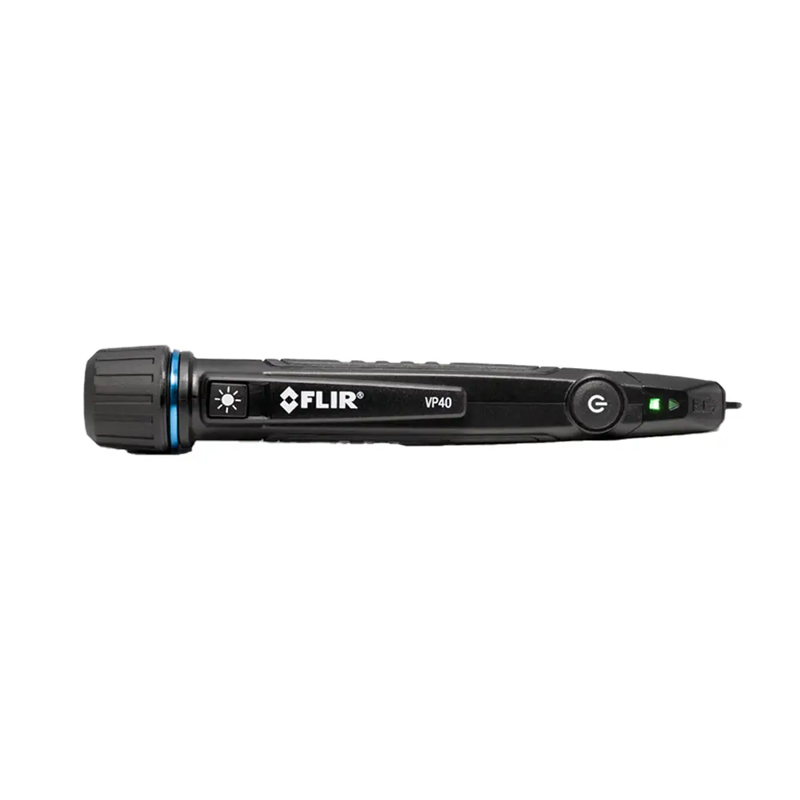

The Teledyne FLIR VP40 True-RMS Non-Contact AC Voltage Detector and Flashlight is a high-quality, durable tool designed to enhance field troubleshooting and verification tasks. Combining a bright flashlight, tactile vibration alarm, and a CAT IV safety rating, this device makes it easy to identify live and neutral wires without contact, even in challenging environments.
Its rugged, ergonomic design ensures comfortable handling and long-term reliability. The VP40 features a double-molded slip-resistant grip and anti-roll casing, making it less prone to drops. With advanced features like a low-profile probe tip, high-sensitivity mode, and low-battery indication, this voltage detector streamlines the work process for residential, commercial, and industrial electricians.
What's Included:
- 1 - True-RMS Non-Contact AC Voltage Detector and Flashlight, 90 to 1000V AC
Features
Durable and Reliable Build
Designed for safety and long-term, trouble-free operation with a rugged, high-quality construction.
Voltage Detection Versatility
Detects voltage in both modern safety outlets and traditional electrical systems in residential and industrial environments.
Enhanced Notification System
Never miss voltage detection with tactile vibration feedback and bright LED alarms, ideal for dark or noisy conditions.
Impact Resistance
Engineered to withstand drops from heights of up to 3 meters, providing reliable durability.
Ergonomic and Slip-Resistant Design
Features a double-molded grip and an anti-roll case for secure handling and reduced drop risk.
Safe Non-Contact Technology
Allows users to avoid touching live wires using non-contact voltage (NCV) detection technology.
Low-Profile Probe Tip
Enables close access to electrical sources for more accurate readings.
Integrated Lighting Features
Bright flashlight and tip light ensure visibility in poorly lit workspaces.
Battery Management Features
Includes a low-battery indication and auto power-off feature to maximize battery life.
Wide Voltage and Frequency Range
Default mode detects 90 to 1000V AC, while high-sensitivity mode covers 24 to 1000V AC, operating at frequencies from 45 to 65 Hz.
What's Included
Included with Your Purchase:
- 1 - True-RMS Non-Contact AC Voltage Detector and Flashlight, 90 to 1000V AC
Specifications
-
Voltage Detection Range (Default Mode): 90 to 1000V AC
-
AC Excitation Voltage / Distance: 90 VAC minimum / 1 cm (0.4 in)
-
Frequency Range: 45 to 65 Hz
-
High-Sensitivity Mode Range: 24 to 1000V AC
-
Battery Type: 2 x AAA alkaline batteries
-
Battery Life: Approximately 7 hours continuous (flashlight off)
-
Safety Rating: CAT IV
-
Replacement Model: VP502
-
UPC: 793950400401
FAQ
Q: Can the VP40 detect voltage without making direct contact?
A: Yes, it uses non-contact voltage (NCV) technology to detect live wires safely.
Q: What is the drop resistance of the VP40?
A: The VP40 is designed to withstand drops up to 3 meters.
Q: Does the VP40 include any visual or tactile alerts?
A: Yes, it features vibration feedback and bright LED alarms for voltage detection.
Q: What type of battery does the VP40 use?
A: It operates on two AAA alkaline batteries.
Q: Is there a high-sensitivity mode available?
A: Yes, the high-sensitivity mode allows detection from 24 to 1000V AC.
