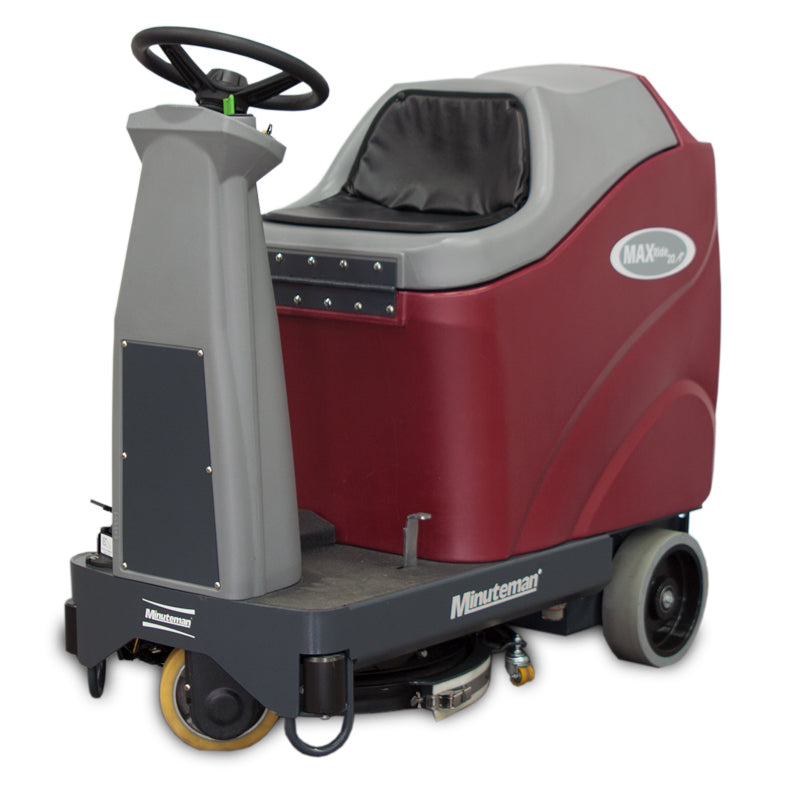

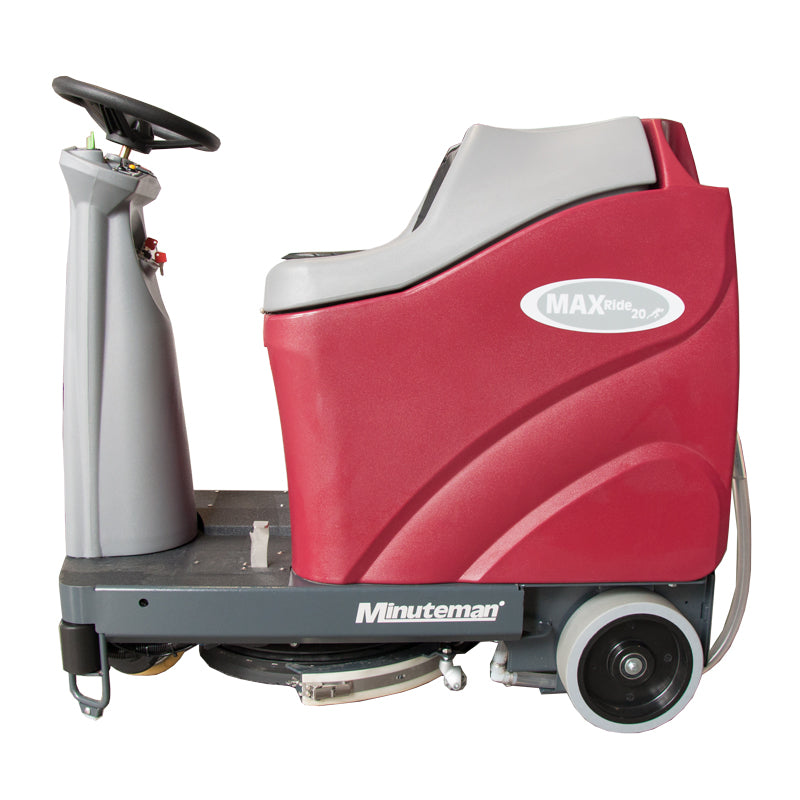

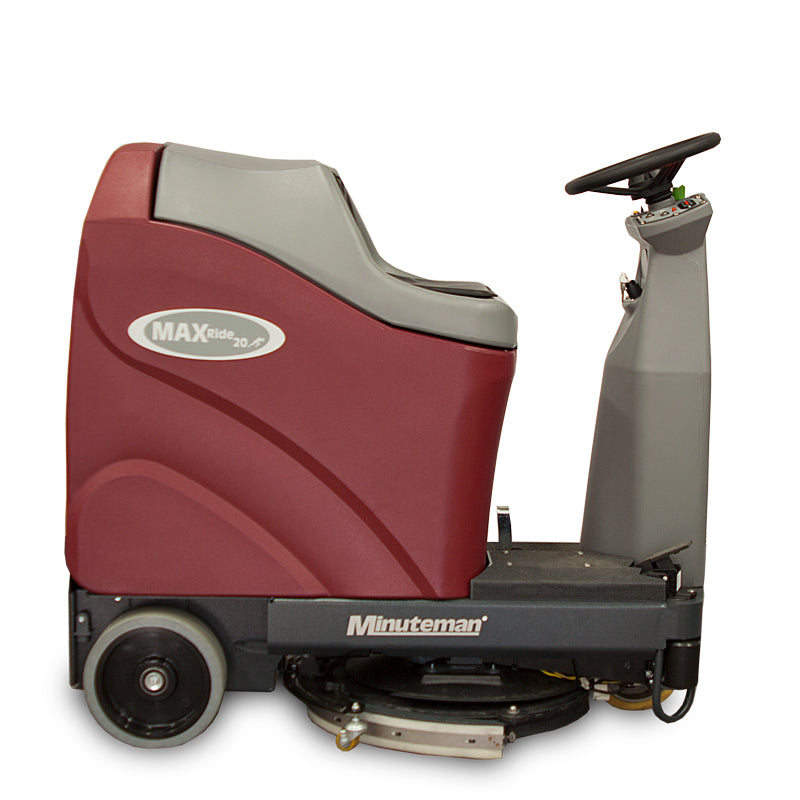

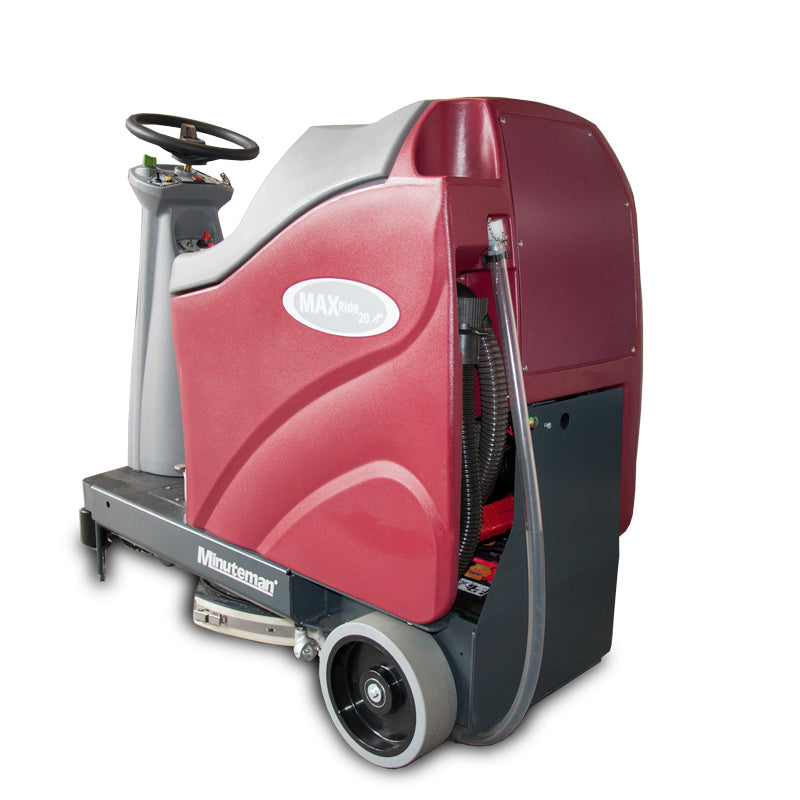

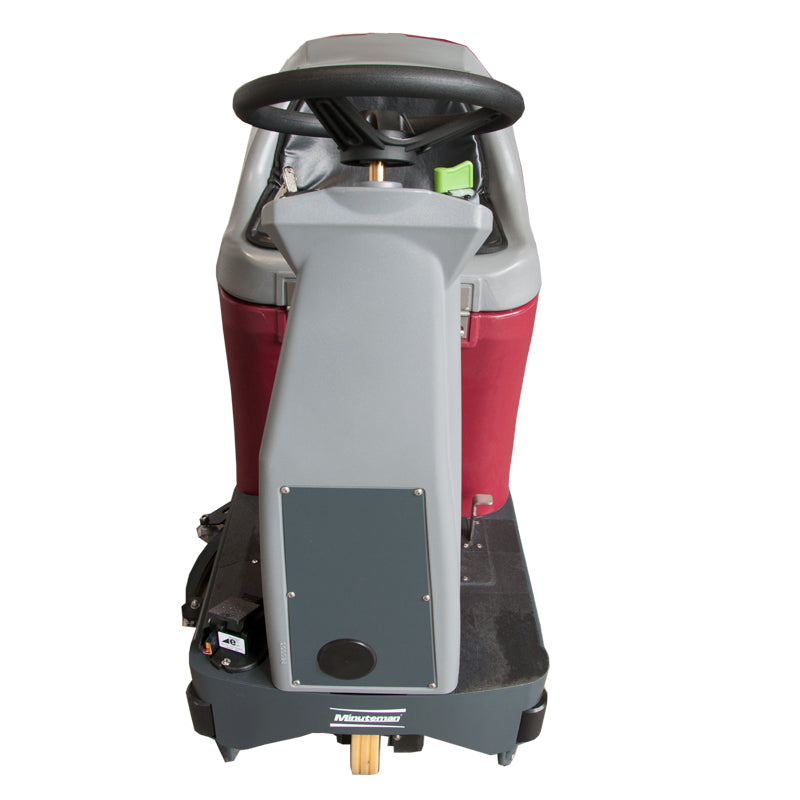

The Minuteman Max Ride 20 is a compact ride-on floor scrubber that puts a seated operator behind a 20" disc and a 25" squeegee. It is built on an e-coated steel frame with matched 18 gal solution and recovery tanks, and it scrubs up to 27,200ft² per hour at a 3.1 mph top speed.

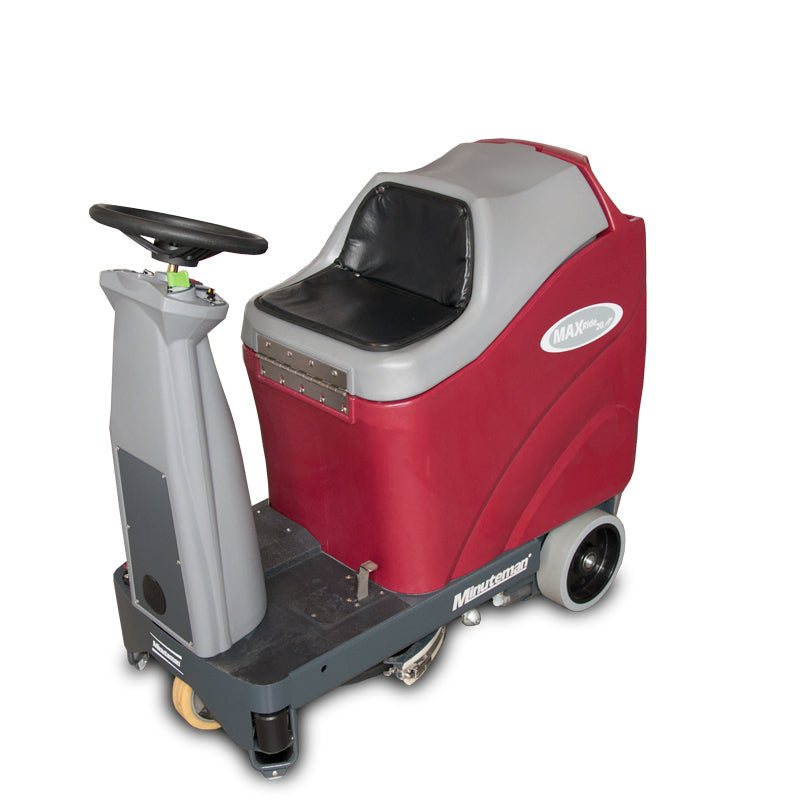

Because it turns on its own axis in a 50.5" aisle, the Max Ride 20 works in stockrooms, school corridors, retail aisles and healthcare floors that would otherwise mean hours behind a walk-behind. The Quick Pack ships with batteries, an on-board charger and a 20" pad driver.
Features
Turns on Its Own Axis
The rider pivots 360 degrees in place and turns around in a 50.5" aisle, so it fits where larger riders cannot.
Automatic Brush Loading

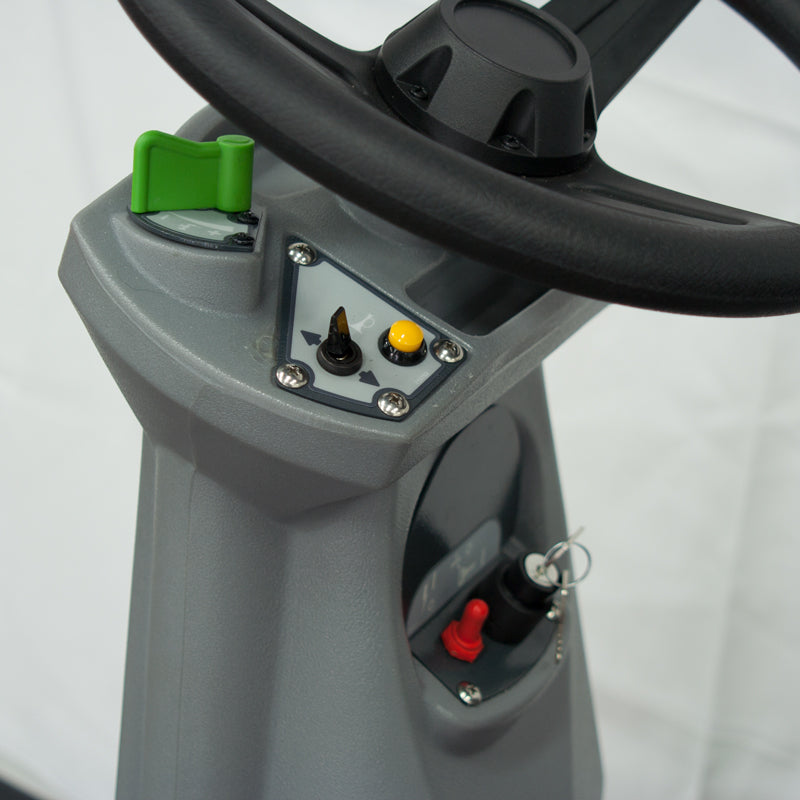

Center the pad driver or brush, lower the deck and tap the pedal to load it. Turn the key left past off to drop it again.

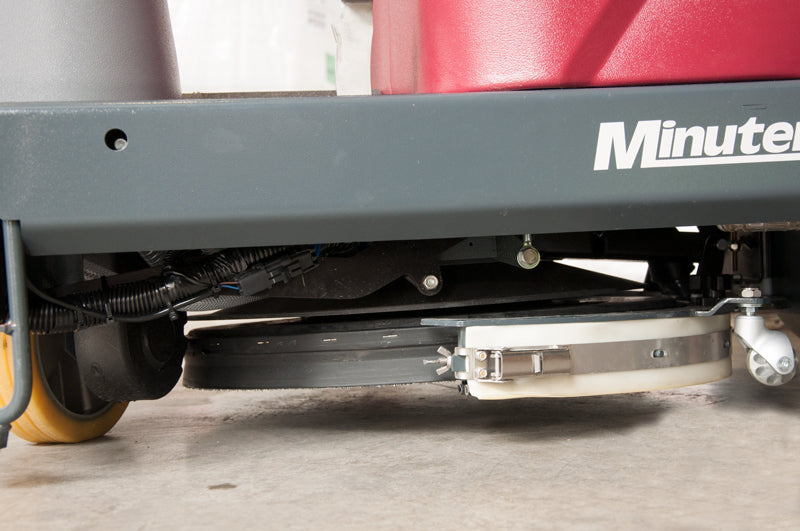

Contained Squeegee
The 25" squeegee sits under the machine and follows the disc for full water pickup. It lifts automatically in reverse and comes off without tools.
Strong Vacuum Recovery
A 550 W vacuum motor pulls 69 CFM at 68" of water lift through the squeegee.

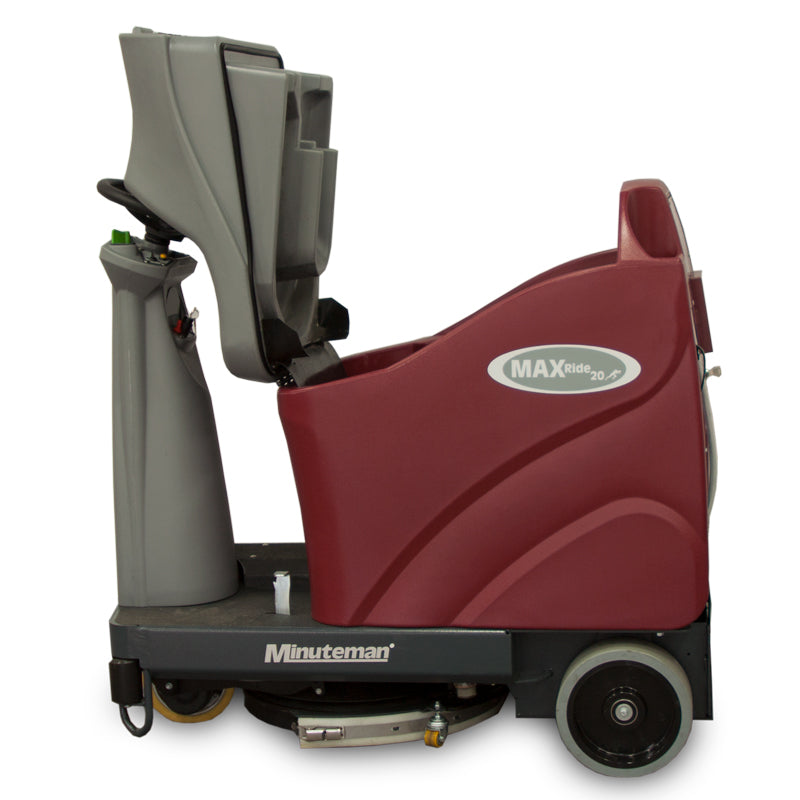

18 Gal Solution and Recovery

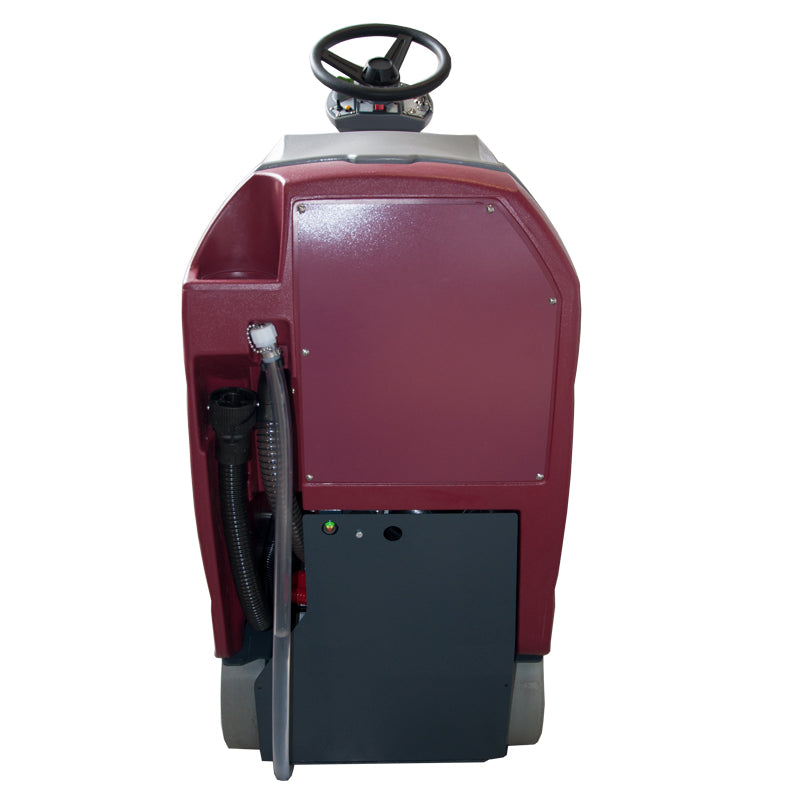

Matched tanks with a flexible drain hose and a water level indicator. Solution flows only while the accelerator pedal is pressed.

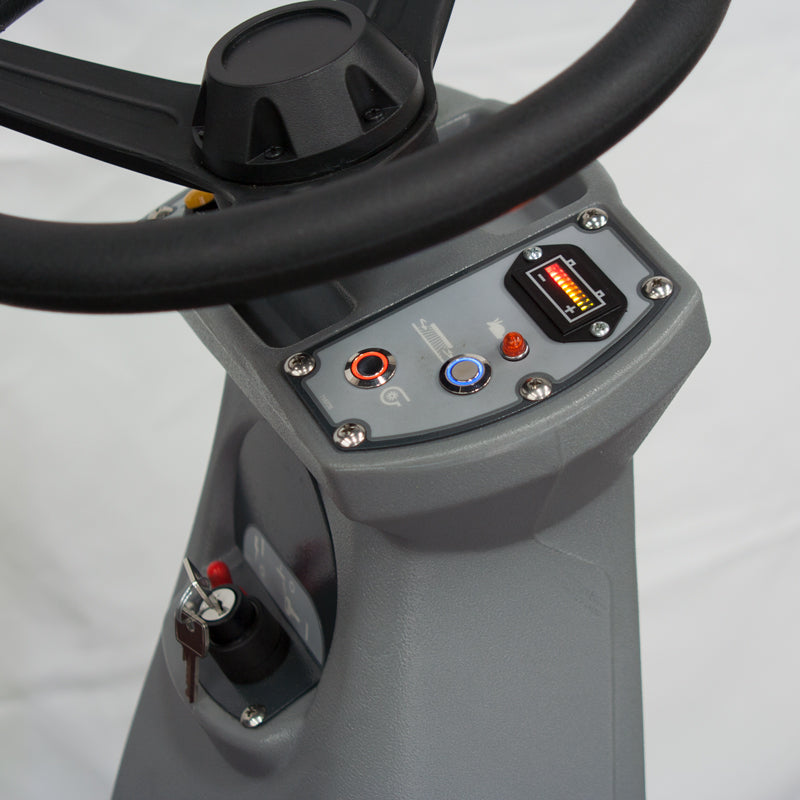

On-Board Charger and Battery Gauge
Charge from any grounded outlet. The gauge warns at 10% run time, and at 5% the vacuum runs five more minutes before shutting off.
Operator Safety Interlocks
A seat pressure switch and lid switches stop the machine when the operator leaves the seat or the tank is open, and an electromagnetic brake holds it when the pedal is released.
Specifications
-
Model: Max Ride 20 ECO (A-MR20DQP, A-MR20DQPG)
-
Scrub Path: 20", single disc
-
Squeegee Width: 25"
-
Solution Tank: 18 gal
-
Recovery Tank: 18 gal
-
Maximum Productivity: 27,200ft²/hr
-
Actual Productivity: 22,015ft²/hr
-
Maximum Speed: 3.1 mph
-
Brush Speed: 185 rpm
-
Vacuum: 550 W, 69 CFM, 68" water lift
-
Solution Flow: 0.45 gpm
-
Minimum Turn-Around Aisle: 50.5"
-
Maximum Ramp: 2%
-
Voltage: 24 V DC (two 12 V batteries)
-
Batteries: 115 Ah wet lead-acid or 140 Ah AGM
-
Charger: On-board
-
Maximum Run Time: 3 to 3.5 hrs (rated with the 140 Ah pack)
-
Sound Pressure: 68 dBA
-
Water Protection: IPX4
-
Dimensions with Squeegee: 47.5"L x 25.5"W x 45"H
-
Weight: 342 lbs without batteries; 691 lbs with 140 Ah batteries and full solution
What's Included
- Minuteman Max Ride 20 rider floor scrubber
- On-board battery charger
- Two 12 V batteries (115 Ah wet lead-acid or 140 Ah AGM, per the option chosen)
- 20" pad driver
Setup & Placement
Charge the batteries fully before the first shift: unwind the on-board charger's cord and plug it into a grounded outlet in a well-ventilated area, away from open flames. With wet lead-acid batteries, check the water level before each use and top up with distilled water to 1/4"-1/2" above the separators, without overfilling.
To load a pad driver or brush, center it under the scrub deck, pull the scrubhead lift lever down and tap the accelerator pedal once the deck is lowered.
Resources
Warranty & Shipping
Warranty. Covered by Minuteman's Commercial Limited Warranty for battery automatic scrubbers, including the on-board charger: 5 years parts, 3 years labor, 12 years on polyethylene components and 90 days travel. Batteries are replaced in full for the first 3 months and pro-rated from months 4 to 12. Wear items such as belts, cords, switches, hoses, rubber parts, brushes and electric motor components are not covered, and non-Minuteman replacement filters void the warranty. Claims go through Minuteman's factory-authorized service stations, for the original purchaser in the U.S. and Canada.
Shipping. Ships from the U.S.; larger machines travel by LTL freight truck.
Inspect on delivery. Check the carton and the machine when it arrives and note any damage on the delivery receipt before signing.
About Minuteman
Minuteman International is based in Pingree Grove, Illinois, and is a member of the Hako Group. It builds commercial floor care equipment: automatic scrubbers, sweepers, carpet extractors, floor machines and vacuums for schools, hospitals, offices, retail and warehouses.
The Max Ride 20 and Max Ride 26 are Minuteman's micro riders, sized between the E series walk-behind scrubbers and the larger Scrubmaster B120 riders. The Max Ride 26 adds a 26" path from two 13" brushes and bigger 21 gal and 23.5 gal tanks for wider floors.
