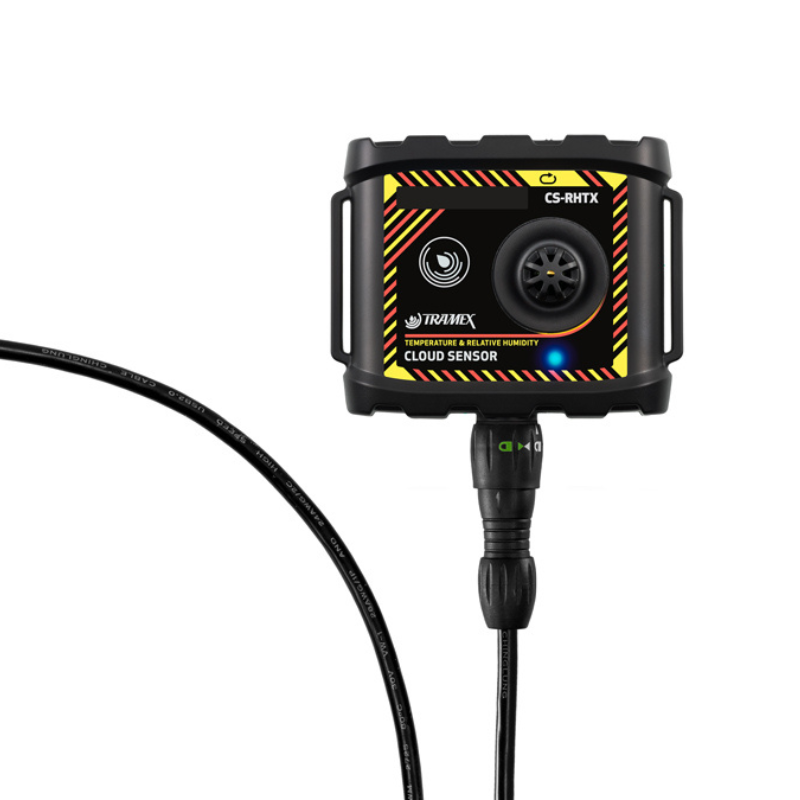

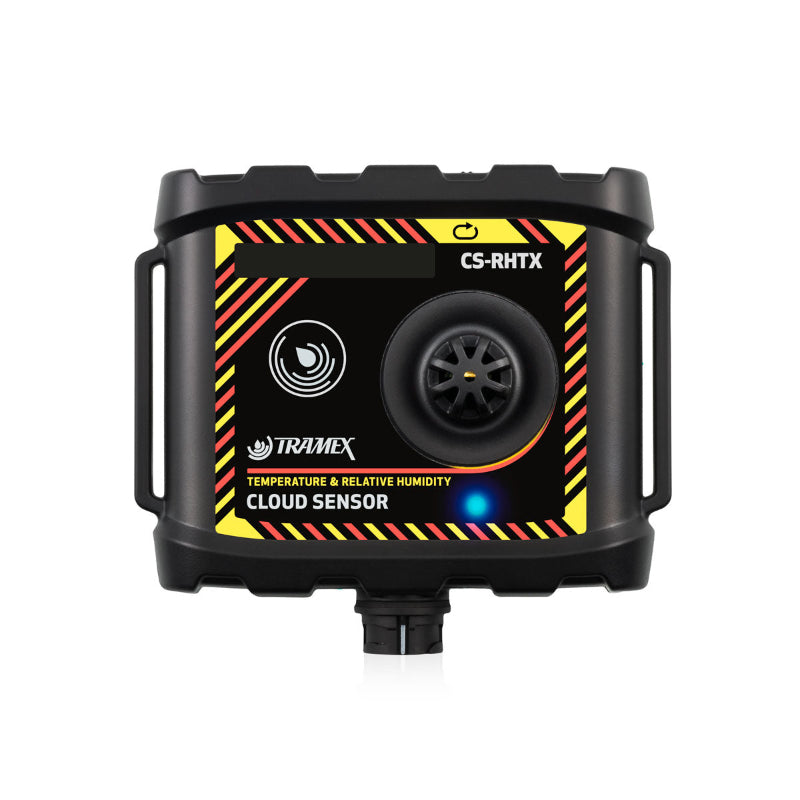

The Tramex AP-TREMS-Xtra Accessory Pack is an advanced expansion solution for the Tramex Remote Environmental Monitoring System. It includes five additional CS-RHTX Cloud Sensors and five external Relative Humidity probes, designed to significantly extend your monitoring capabilities. These sensors enable ambient and in-situ environmental data capture from within walls, ceilings, and concrete structures, enhancing project scope and precision.
Each sensor in the pack wirelessly transmits key environmental metrics including relative humidity, temperature (°C/°F), dew point, and grains per pound or grams per kilo. They communicate through the Tramex Cloud Station, supporting up to 200 sensors on a single project. Simple QR-code check-in makes deployment fast and efficient, while the long-life battery design ensures extended usage. Tramex Cloud provides secure data access and alert notifications with no subscription fees or data charges.

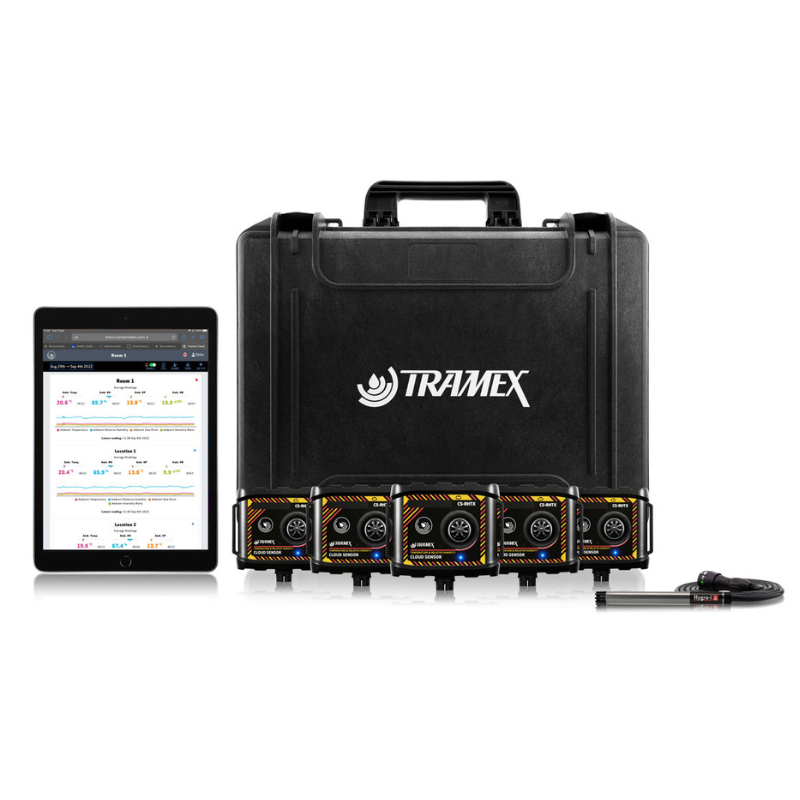

What's Included:
- 5 x CS-RHTX Tramex Cloud Sensors
- 5 x External Relative Humidity probes for in-situ
- 1 x Heavy Duty Protective Carry Case
- Tramex Cloud Software Monitoring platform (Tablet not included)
Features
Expanded Monitoring Capability
Includes 5 cloud-enabled sensors and 5 external RH probes for ambient and in-situ data collection across complex structures.

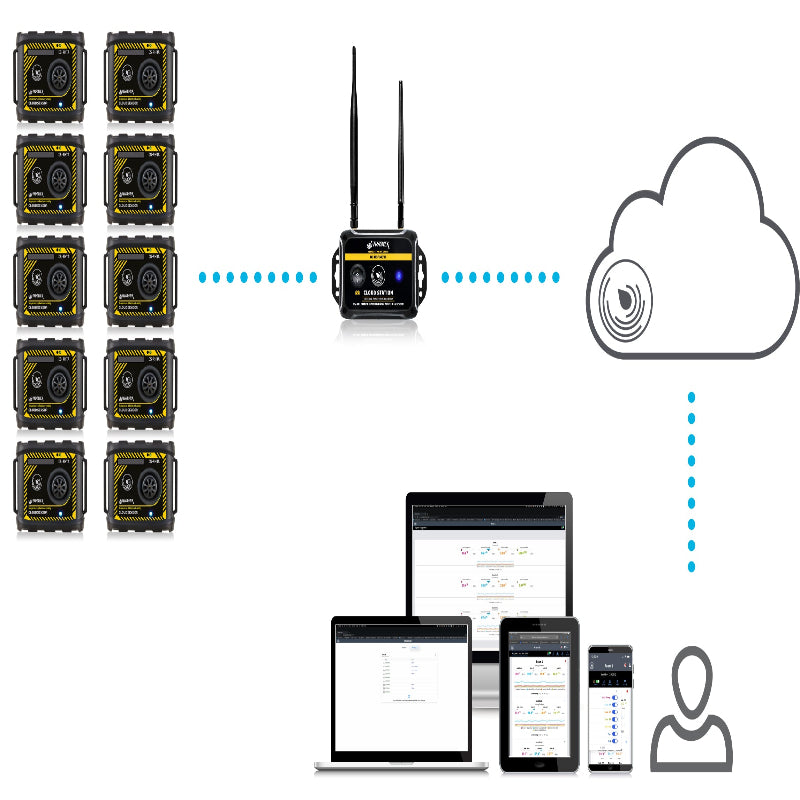

Wireless Cloud Integration
Sensors transmit data wirelessly via the Tramex Cloud Station with a range of up to 2 miles line-of-sight.
Multi-Environmental Readings
Measures and logs temperature, relative humidity, dew point, and moisture content metrics in multiple units.
Effortless Setup
QR-code registration simplifies on-site deployment for quick and accurate sensor integration.
Data Security and Access
Tramex Cloud offers free data storage for 2 years with browser-based access and real-time alerts.
Reliable Power Source
Each sensor is powered by a built-in long-life CR123A battery for prolonged remote use without maintenance.
No Subscription Fees
Benefit from full functionality and data reporting without ongoing costs.
What's Included
Included with Your Purchase:
- 5 x CS-RHTX Tramex Cloud Sensors
- 5 x External Relative Humidity probes for in-situ
- 1 x Heavy Duty Protective Carry Case
- Tramex Cloud Software Monitoring platform (Tablet not included)
Specifications
-
Temperature Accuracy (Sensor): ±0.1ºF from -4ºF to 158ºF (±0.1°C from -20°C to 70°C)
-
Temperature Range (Sensor): -4ºF to 158ºF (-20°C to 70°C)
-
Sensor Protection: PTFE film for water and dust resistance
-
Temperature Drift: <0.04ºF (0.03ºC) per year
-
RH Accuracy: ±1.5%RH (0–80%), ±2.0%RH (80–99%) @77ºF (25ºC)
-
RH Range: 0 to 100%RH
-
RH Resolution: 0.1% across full range
-
RH Drift: <0.25%RH per year
-
Transmission Range: Up to 2 miles line-of-sight
-
Communication Frequency: Multiple readings per hour
-
Sensor ID: Individually coded for logging and setup
-
Sensor Dimensions: 3.94” x 3.54” x 1.38” (100mm x 90mm x 35mm)
-
Sensor Weight: 3.53oz (100g)
-
Sensor Construction: ABS enclosure
-
Sensor Power: Built-in CR123A long-life battery
-
Mounting: Wall mounting included
-
External Probe Temp Accuracy: ±0.1ºF from 68ºF to 140ºF (±0.1°C from 20°C to 60°C)
-
External Probe Temp Range: -40ºF to 257ºF (-40ºC to 125ºC)
-
Kit Size: 17.1” x 14.2” x 5.5” (43.5cm x 36cm x 14cm)
-
Kit Weight: 7.6lbs (3.56kg)
-
Kit Power: 5 x CR123A 3-volt batteries (included)
-
Data Retention: Free storage for 2 years
FAQ
Q: How many sensors can be used with a single Cloud Station?
A: Up to 200 sensors can be wirelessly connected and monitored via one Cloud Station.
Q: Do I need a subscription to use Tramex Cloud?
A: No, there are no subscription fees. Tramex Cloud access and data storage are provided free of charge for two years.
Q: What types of readings do the sensors provide?
A: The sensors deliver temperature, relative humidity, dew point, and grains per pound/grams per kilo readings.
Q: Can I use the external RH probes in concrete?
A: Yes, they are designed for in-situ RH readings in concrete and other structural cavities.
Q: How is the system powered?
A: Each sensor uses a built-in CR123A battery, which provides long-life performance without the need for regular replacement.
