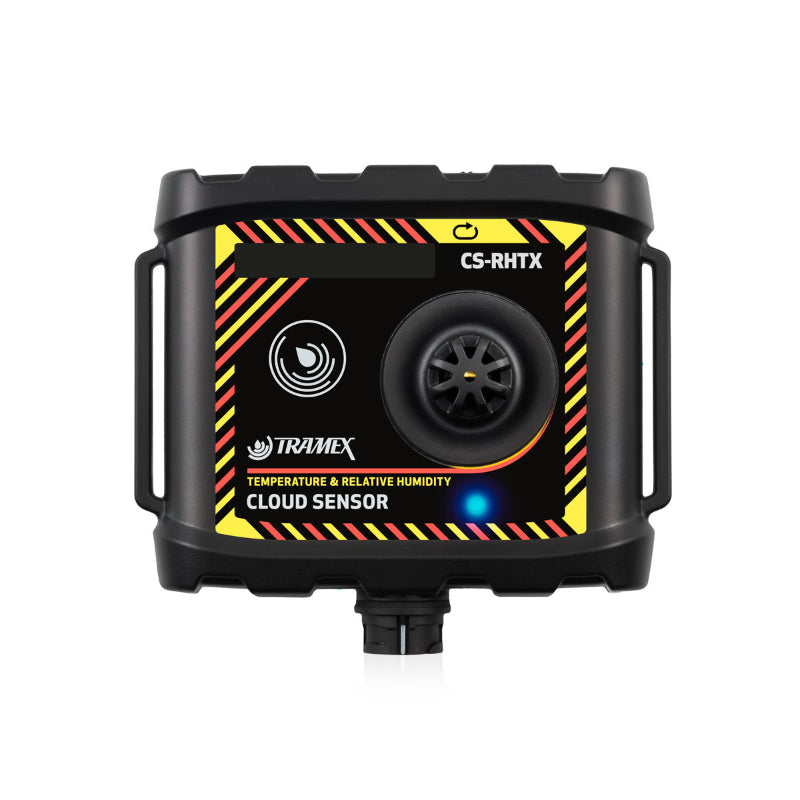

The Tramex Cloud Sensor Xtra (CS-RHTX) is a wireless ambient temperature and humidity sensor designed for seamless integration with the Tramex Remote Environmental Monitoring System (TREMS). Featuring built-in long-life batteries, these compact sensors measure ambient and in-situ relative humidity, temperature (in both °C and °F), dew point, and grains per pound or grams per kilo. Data is transmitted wirelessly to the Tramex Cloud Station, enabling efficient, remote monitoring of up to 200 sensors via the Tramex Cloud platform.
The CS-RHTX sensor is compatible with a wide array of Tramex accessories, including relative humidity probes, TREMS-WME/MC pin probes, and the CTP-WME contact temperature probe. Quick and easy setup is ensured by simply scanning the QR code on the back of the unit to register the sensor directly into your Tramex Cloud account.
What's Included:
- Tramex Cloud Sensor Xtra (CS-RHTX)
- Wall Mounting Kit
- Built-in CR123A Long-Life Battery
Features
Wireless Remote Monitoring
Supports communication with up to 200 on-site sensors using the Tramex Cloud Station for efficient environmental data tracking.
Multi-Parameter Measurement
Captures temperature, relative humidity, dew point, and grains per pound/grams per kilo to provide a full environmental snapshot.
Broad Compatibility
Integrates with Tramex RH probes, pin-type probes, and contact temperature probes for flexible use.
Easy Registration
Setup is simple with QR code scanning and direct Cloud registration, streamlining deployment.
Robust & Compact Design
Encased in a durable ABS housing and weighing just 100g, this sensor is designed for both resilience and convenience.
Long Battery Life
Powered by a built-in CR123A battery, the unit ensures long-term reliability without frequent replacements.
Accurate and Stable Readings
High precision sensors offer reliable measurements with minimal annual drift.
What's Included
Included with Your Purchase:
- Tramex Cloud Sensor Xtra (CS-RHTX)
- Wall Mounting Kit
- Built-in CR123A Long-Life Battery
Specifications
-
Temperature Accuracy: ±0.1 °C from -20°C to 70°C (±0.1°F from -4°F to 158°F)
-
Temperature Range: -20°C to 70°C (-4°F to 158°F)
-
Temperature Sensor Drift: <0.03°C (0.04°F) per year
-
Humidity Accuracy: ±1.5%RH (0–80%RH), ±2.0%RH (80–99%RH @ 25°C)
-
Humidity Range: 0 to 100%RH
-
Humidity Resolution: 0.1% across the entire range
-
Humidity Sensor Drift: <0.25%RH per year
-
Sensor Protection: PTFE Film over sensor opening to guard against dust and water
-
Transmission Range: Over 3km line-of-sight
-
Communication Frequency: Multiple readings per hour
-
Identification: Individually coded for easy setup and tracking
-
Size: 100mm x 90mm x 35mm (3.94” x 3.54” x 1.38”)
-
Weight: 100g (3.53oz)
-
Construction: ABS enclosure
-
Power: Built-in long-life CR123A battery
FAQ
Q: How do I register the sensor to the Tramex Cloud?
A: Simply scan the QR code on the back of the sensor and click ‘register’ in your Tramex Cloud account.
Q: What parameters does the CS-RHTX measure?
A: It measures ambient and in-situ relative humidity, temperature, dew point, and grains per pound or grams per kilo.
Q: Can I use the CS-RHTX with other Tramex probes?
A: Yes, it is compatible with Tramex RH probes, TREMS-WME/MC pin probes, and the CTP-WME contact temperature probe.
Q: What is the expected battery life of the sensor?
A: The built-in CR123A battery is long-life, designed for extended use without frequent replacement.
Q: How far can the sensor transmit data?
A: It has a transmission range of over 3 kilometers line-of-sight.
