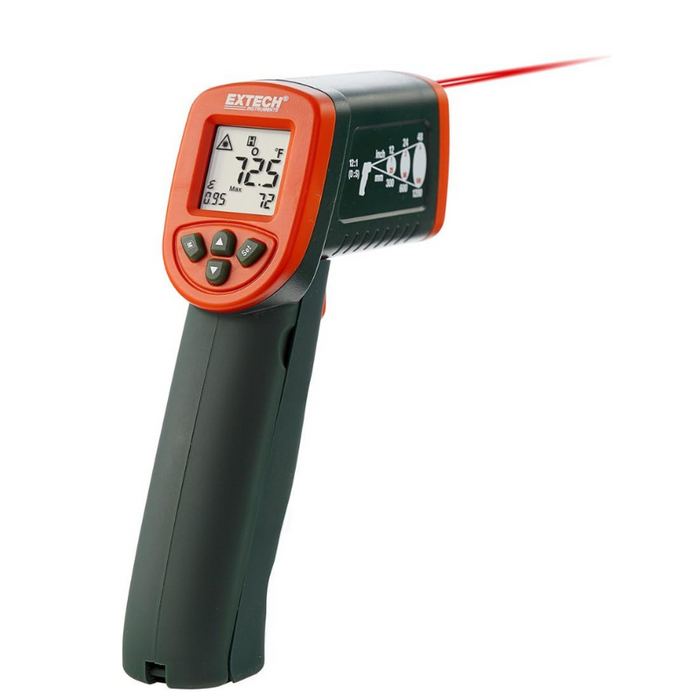

The Extech IR267 Mini InfraRed Thermometer is a compact, non-contact temperature measuring device designed for precise readings in a wide range of applications. It combines infrared temperature sensing with Type K thermocouple input for added versatility, allowing you to measure surface temperatures up to 1112°F (600°C) without contact, or use the thermocouple for readings up to 1832°F (1000°C).
A built-in laser pointer helps identify the exact target area, while adjustable emissivity ensures accurate measurements on different surfaces. Its backlit LCD display and ergonomic button layout provide ease of use, even in low light environments. With features like data hold, high/low alarms, and multiple temperature reading modes, the IR267 is ideal for both industrial and general-purpose temperature monitoring.
What's Included:
- 1 - 9V Battery
- 1 - General Purpose Type K Bead Wire Probe
Features
Dual Measurement Capability
Displays both ambient air temperature and non-contact infrared or Type K thermocouple readings simultaneously.
Wide Temperature Range
Measures non-contact surface temperatures up to 1112°F (600°C) and Type K input up to 1832°F (1000°C).
Laser Targeting
Built-in laser pointer helps to accurately identify the measurement target area.
Adjustable Emissivity
Enables improved accuracy on a variety of surface types.
12:1 Distance to Spot Ratio
Offers a focused measurement field for better precision at longer distances.
Visual and Audible Alarms
Programmable high/low limits alert users when temperature thresholds are exceeded; alarm can be muted.
Temperature Recording Functions
Includes MAX, MIN, AVG, and DIF recording for thorough monitoring and analysis.
Selectable Units
Choose between Fahrenheit and Celsius readings depending on user preference.
Automatic Data Hold
Keeps the last reading visible after the trigger is released for convenient recording.
Backlit Display
Bright white backlight enhances visibility in low-light conditions.
Auto Power Off
Conserves battery life by turning off approximately 10 seconds after the trigger is released.
Battery Status Indicator
Clearly displays battery level so users can avoid unexpected power loss.
What's Included
Included with Your Purchase:
- 1 - 9V Battery
- 1 - General Purpose Type K Bead Wire Probe
Specifications
-
Non-Contact Temperature Range: -58°F to 1112°F (-50°C to 600°C)
-
Type K Thermocouple Range: Up to 1832°F (1000°C)
-
Ambient Temperature Range: Up to 158°F (70°C)
-
Distance to Spot Ratio: 12:1
-
Emissivity: Adjustable
-
Display: Backlit LCD
-
Alarms: Programmable high/low with visual and audible alerts
-
Temperature Recording: MAX/MIN/AVG/DIF
-
Units: °F / °C
-
Data Hold: Automatic when trigger is released
-
Auto Power Off: After approximately 10 seconds
-
Power Supply: 9V battery (included)
-
Model Number: IR267
-
UPC: 793950422670
-
Condition: NEW
FAQ
Q: Can this thermometer measure both contact and non-contact temperatures?
A: Yes, it uses infrared for non-contact measurement and includes a Type K input for contact readings.
Q: What is the maximum temperature it can measure?
A: It can measure up to 1112°F (600°C) using infrared and up to 1832°F (1000°C) with the Type K probe.
Q: Does it support temperature unit switching?
A: Yes, you can switch between Fahrenheit and Celsius readings.
Q: Is the display readable in dark environments?
A: Yes, the unit features a bright white backlit display for visibility in low light areas.
