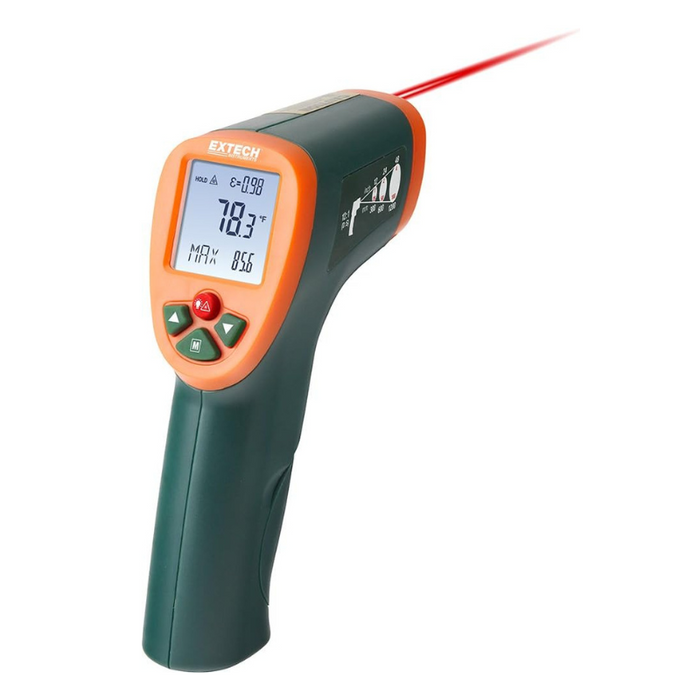

The Extech IR270 is a compact and reliable infrared thermometer engineered for fast, non-contact temperature readings across a wide range of surfaces. Whether you're working in HVAC, electrical, automotive, or food service applications, this handheld device delivers accurate measurements with minimal setup.
Equipped with a built-in laser pointer, the IR270 helps users precisely target areas for measurement. Its adjustable emissivity enhances accuracy across different materials, while the programmable Hi/Low alarms provide alerts when temperatures fall outside set parameters. The tri-color backlit LCD visually signals safe, warning, or critical temperature conditions, enhancing usability in dynamic work environments.
With a 12:1 distance-to-spot ratio, the IR270 captures surface temperatures from -4 to 1202°F (-20 to 650°C) safely and efficiently. Additional features include a bright white backlight, automatic data hold, and memory recall for up to 20 readings. Lightweight and easy to handle, it is an ideal tool for technicians and inspectors needing quick and trustworthy results.
What's Included:
Features
Wide Temperature Range
Measures non-contact temperatures from -4 to 1202°F (-20 to 650°C), suitable for various industrial and home applications.
High Accuracy and Resolution
Offers a resolution of 0.1°F/°C with ±(1% of reading + 2°F/1°C) accuracy for dependable results.
Targeting Precision
Features a 12:1 distance-to-spot ratio and a built-in laser pointer to precisely identify the target area.
Color Alert Display
Tri-color backlit LCD changes to blue for low alarm and red for high alarm thresholds, making alerts easy to interpret at a glance.
Customizable Emissivity
Adjustable from 0.10 to 1.00, allowing accurate readings on different surfaces.
Data Storage and Hold
Automatically holds data when the trigger is released and can store up to 20 readings for review.
Multiple Measurement Modes
Includes MAX, MIN, AVG, and DIF functions for detailed temperature analysis.
Portable and User-Friendly
Compact and lightweight design with auto power-off, low battery indicator, and bright white backlight for ease of use in various environments.
What's Included
Included with Your Purchase:
Specifications
-
Temperature Range: -4 to 1202°F (-20 to 650°C)
-
Distance to Spot Ratio: 12:1
-
Resolution: 0.1°F/°C
-
Accuracy: ±(1% of reading + 2°F/1°C)
-
Emissivity: Adjustable from 0.10 to 1.00
-
Display: Tri-color backlit LCD
-
Functions: MAX, MIN, AVG, DIF
-
Memory: Record/recall up to 20 readings
-
Auto Features: Data Hold, Auto Power Off
-
Power Supply: 1 x 9V battery
-
Dimensions: 7.1 x 4.2 x 1.6 in (180 x 107 x 40 mm)
-
Weight: 5.3 oz (150 g)
FAQ
Q: What is the IR270's distance-to-spot ratio?
A: It offers a 12:1 distance-to-spot ratio, meaning you can measure a 1-inch spot from 12 inches away.
Q: Can the emissivity be adjusted?
A: Yes, emissivity can be adjusted from 0.10 to 1.00 for more accurate readings across different materials.
Q: What do the color alerts indicate?
A: The backlight turns blue when readings fall below the low alarm and red when exceeding the high alarm setting.
Q: How many readings can it store?
A: The IR270 can record and recall up to 20 readings.
Q: Does it have a data hold feature?
A: Yes, it automatically holds data on screen once the trigger is released.
