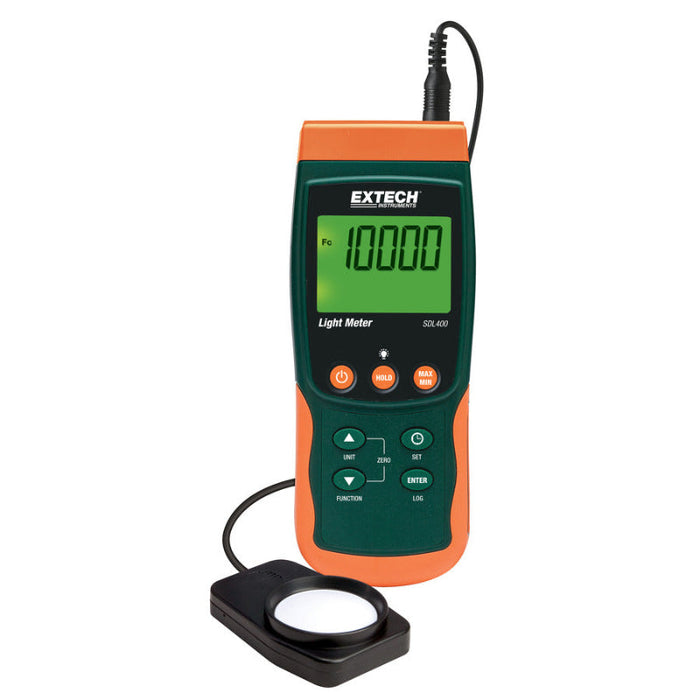

The Extech SDL400-NIST Light Meter Datalogger offers professional-grade accuracy for measuring illumination levels in industrial, commercial, and laboratory environments. With its broad measurement range up to 10,000 foot-candles (100,000 Lux), this meter is ideal for precision lighting assessments. Its cosine and color-corrected sensor ensures reliable readings under various lighting conditions, making it suitable for diverse applications.
This instrument utilizes a precision silicon photodiode and spectral response filter for consistent performance. Measurements can be viewed on a large, backlit LCD display, with the option to manually record 99 readings or log over 20 million data points via the included 2 GB SD card. A zero-offset adjustment function enables accurate relative measurements, while adjustable sampling rates allow for flexible data capture.
With built-in support for Type K/J thermocouple probes, the SDL400-NIST can also record high-temperature environments, enhancing its versatility. Features like MIN/MAX recording, data hold, auto power-off, and USB PC interface add further utility. Supplied with a NIST calibration certificate, it’s ready for regulated environments from day one.
What's Included:
- 1 - NIST Certificate of Calibration
- 6 - AA Batteries
- 1 - SD Card
- 1 - Hard Carrying Case
- Light Sensor With Protective Cover
Features
Wide Measurement Range
Measures illumination levels up to 10,000 foot-candles or 100,000 Lux for comprehensive lighting assessments.
Color and Cosine Corrected
Provides accurate readings in varied lighting with built-in cosine and color correction.
High-Precision Sensor
Utilizes a silicon photodiode and spectral response filter for consistent, accurate light detection.
Relative Measurement Function
Offset adjustment allows for easy zeroing and comparison of light levels.
Flexible Data Logging
Manually stores 99 readings or up to 20 million readings using the included 2 GB SD card.
Thermocouple Input
Supports Type K and J thermocouples for monitoring high temperatures alongside light data.
Backlit LCD Display
Large, dual display ensures visibility in all lighting conditions.
Comprehensive Recording Modes
Features MIN, MAX, data hold, and auto power-off to streamline usage and conserve battery.
Built-in PC Interface
Easily transfer and analyze data via the integrated USB connection.
NIST Certified
Includes a certificate of calibration to meet regulatory requirements for traceability.
What's Included
Included with Your Purchase:
- 1 - NIST Certificate of Calibration
- 6 - AA Batteries
- 1 - SD Card
- 1 - Hard Carrying Case
- Light Sensor With Protective Cover
Specifications
-
Illuminance Range: Up to 10,000 Fc / 100,000 Lux
-
Data Storage: 99 manual readings, 2 GB SD card for 20M readings
-
Thermocouple Input: Type K/J
-
Display: Large backlit dual LCD
-
Functions: MIN, MAX, Data Hold, Auto Power Off
-
Interface: USB PC interface
-
Power: 6 x AA batteries
-
Included Memory: 2 GB SD card
-
Calibration: NIST Certified
-
Model Number: SDL400-NIST
-
UPC: 793950434116
-
Condition: NEW
FAQ
Q: Does this meter come calibrated?
A: Yes, it includes a NIST Certificate of Calibration for immediate compliance use.
Q: Can this meter log data over time?
A: Yes, it supports both manual and automatic data logging, with storage for over 20 million readings using the included 2 GB SD card.
Q: Is the display easy to read in dark environments?
A: Absolutely, it has a backlit dual LCD screen for clear visibility in any lighting condition.
Q: What types of thermocouples does it support?
A: It supports both Type K and Type J thermocouple probes for additional temperature measurements.
