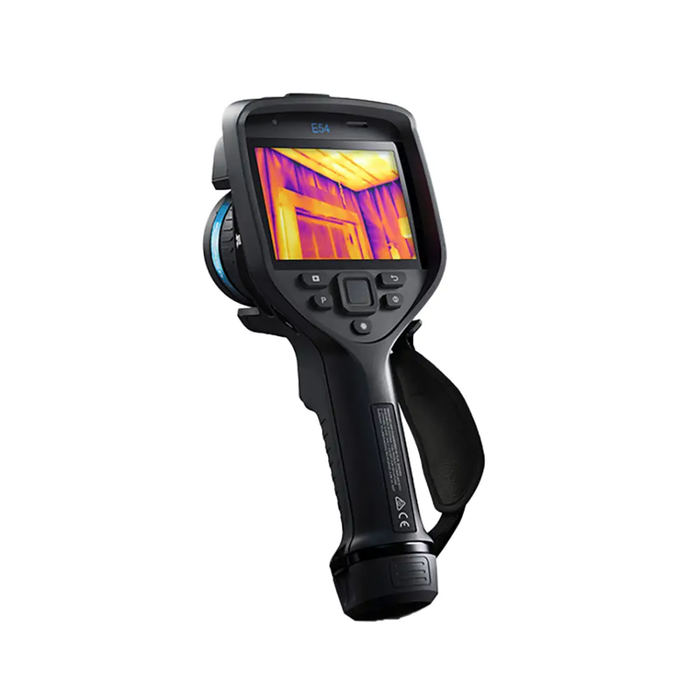

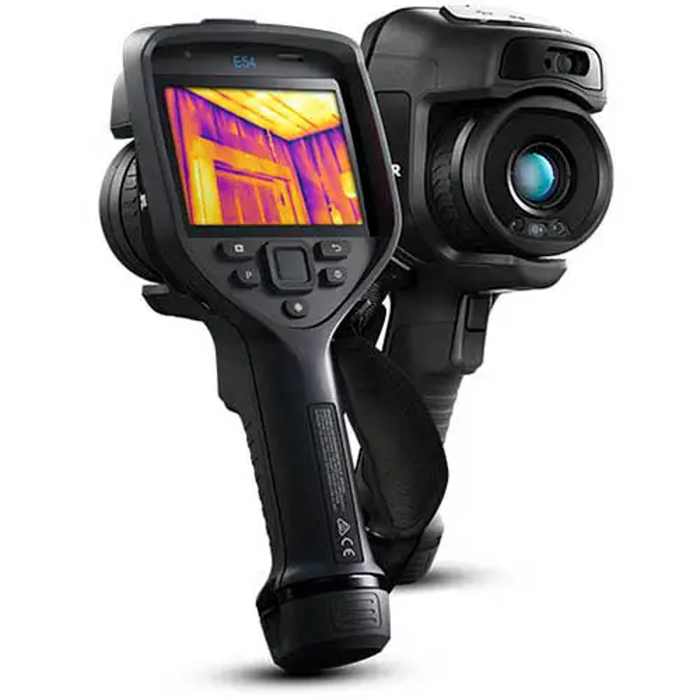

The Teledyne FLIR E54-24 Advanced Thermal Imaging Camera with 24° Lens delivers the precise thermal resolution and intuitive features needed for effective condition monitoring, electrical and mechanical inspections, and building diagnostics. With a 320 x 240 infrared resolution, this camera can measure temperatures up to 650°C (1202°F) and enhance detail using FLIR’s patented MSX Technology. The included small viewfinder eyecup helps users stay focused even in bright conditions, while the built-in touchscreen offers crisp and responsive image control.
The onboard FLIR Inspection Route software supports pre-planned routes for systematic inspections across large facilities, ensuring comprehensive data capture and enhanced efficiency. AutoCal lens compatibility lets the E54-24 automatically calibrate with new lenses, eliminating downtime and guaranteeing measurement precision. FLIR Thermal Studio Pro software simplifies data management and reporting, providing tools to organize images, generate professional analysis, and maintain productivity in the field.
What's Included:
- 1 - Advanced Thermal Imaging Camera with MSX Technology, 320 x 240, 30 Hz
- 1 - 24° Lens
- 1 - Small Viewfinder Eyecup
- 2 - Batteries
- 1 - Battery Charger
- 1 - Hard Transport Case
- 1 - Lanyard(s)
- 1 - Front Lens Cap
- 1 - Power Suppl(ies)
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI Cable
- 1 - USB Type-C to USB Type-C Cable
- 1 - License Card: FLIR Thermal Studio Pro (3 Month Subscription)
- 1 - FLIR Route Creator Software Plugin for Thermal Studio Pro (3 Month Subscription)
- 1 - User Manual
Features
Advanced Thermal Resolution
Offers 320 x 240 pixel resolution with high thermal sensitivity to detect even the slightest temperature variations.
MSX Technology
Enhances thermal images with visual details like labels and object outlines for clearer identification.
FLIR Inspection Route Compatibility
Guides users through pre-set inspection paths to streamline data capture and prevent missed targets.
Touchscreen and Viewfinder
Features a 4-inch LCD with 640 x 480 resolution and a small eyecup viewfinder for flexible viewing options.
Wide Temperature Range
Measures temperatures from -20°C to 650°C (-4°F to 1202°F), ideal for various industrial inspections.
Flexible Communication
Includes Wi-Fi, Bluetooth, USB 2.0, and DisplayPort for easy data sharing and device integration.
Integrated Voice and Text Annotation
Supports 60-second voice recordings and predefined text notes to streamline documentation.
AutoCal Interchangeable Lenses
Automatically calibrates to new lenses without service interruption, enhancing versatility.
Rugged and Durable Design
Built to IP54 standards with shock and vibration resistance for tough work environments.
FLIR Thermal Studio Pro Software
Includes a 3-month license for detailed thermal analysis and report generation.
What's Included
Included with Your Purchase:
- 1 - Advanced Thermal Imaging Camera with MSX Technology, 320 x 240, 30 Hz
- 1 - 24° Lens
- 1 - Small Viewfinder Eyecup
- 2 - Batteries
- 1 - Battery Charger
- 1 - Hard Transport Case
- 1 - Lanyard(s)
- 1 - Front Lens Cap
- 1 - Power Suppl(ies)
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI Cable
- 1 - USB Type-C to USB Type-C Cable
- 1 - License Card: FLIR Thermal Studio Pro (3 Month Subscription)
- 1 - FLIR Route Creator Software Plugin for Thermal Studio Pro (3 Month Subscription)
- 1 - User Manual
Specifications
-
IR Resolution: 320 x 240 pixels
-
Image Frequency: 30 Hz
-
Thermal Sensitivity (NETD): <40 mK at 30°C (86°F)
-
Temperature Range: -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F)
-
Focus: Manual
-
Digital Camera: 5 MP with LED lamp
-
Zoom: 1-4x continuous
-
Image Display: 4-inch, 640 x 480 pixel touchscreen
-
Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
-
Measurement Tools: 3 spotmeters, hot/cold spot detection, on-screen max/min display
-
Video Recording: Radiometric and non-radiometric, formats include JPEG, H.264
-
Interfaces: USB 2.0, Wi-Fi, Bluetooth, DisplayPort
-
Battery Life: Over 2.5 hours typical use
-
Storage: Removable SD card (8 GB included)
-
Operating Temperature: -15 to 50°C (5 to 122°F)
-
Storage Temperature: -40 to 70°C (-40 to 158°F)
-
Ruggedness: IP54 rated, 25g shock, 2g vibration
-
Annotation: Voice (60 sec), text (touch or predefined), sketch
FAQ
Q: What is MSX Technology and how does it help?
A: MSX adds visual details like edges and text from a visual image onto the thermal image, providing greater clarity without needing to switch views.
Q: Can I plan inspections in advance with this camera?
A: Yes, the E54-24 supports FLIR Inspection Route, allowing users to preload inspection paths for efficient data capture.
Q: Is the camera compatible with other FLIR lenses?
A: Yes, the E54-24 supports AutoCal interchangeable lenses that auto-calibrate upon attachment.
Q: How long can the camera operate on a full charge?
A: The included rechargeable batteries provide over 2.5 hours of use at 25°C under typical conditions.
