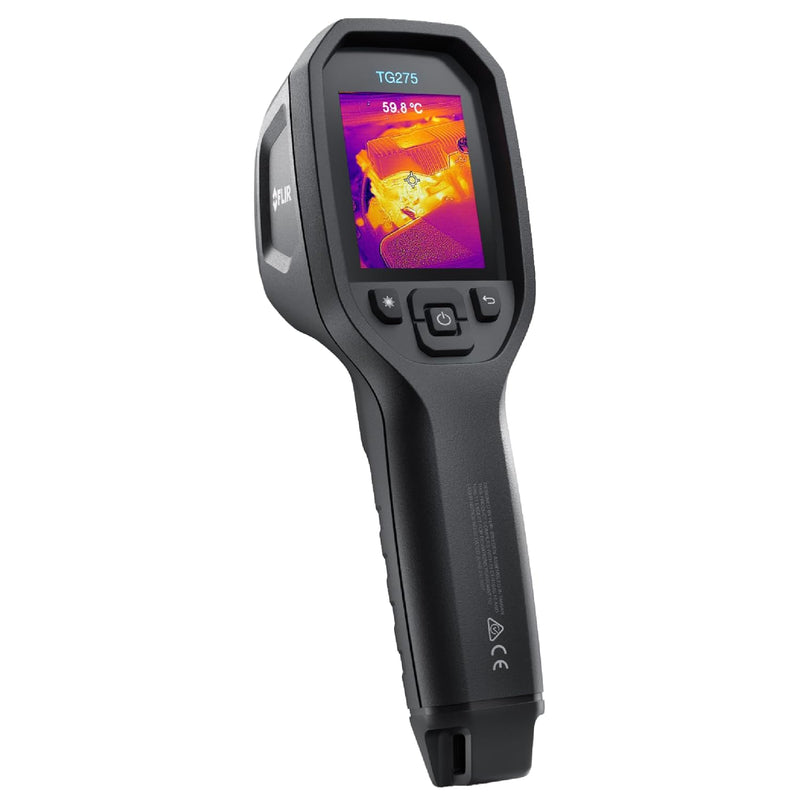

FLIR TG275 Automotive Diagnostic Thermal Camera 160 x 120 < 9 Hz

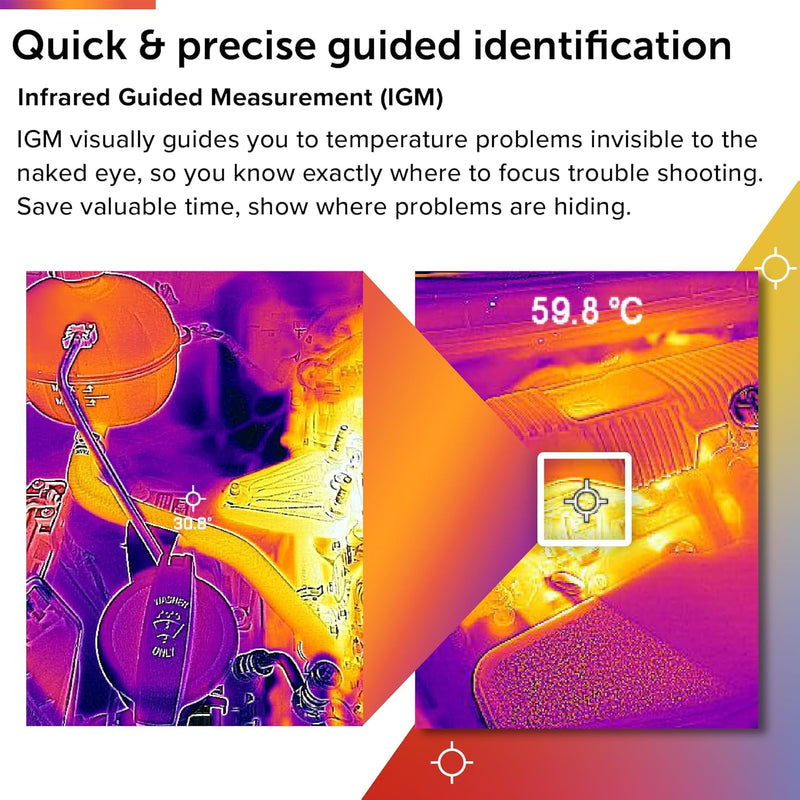

The Teledyne FLIR TG275 Thermal Camera for Automotive Diagnostics is a purpose-built tool for automotive professionals, designed to reveal hidden heat-related issues with accuracy and speed. Its Infrared Guided Measurement (IGM) technology combines non-contact temperature readings with a 160 x 120 thermal imager, allowing technicians to identify failing systems before they lead to bigger problems.

With a durable design and vibrant 2.4-inch LCD, the TG275 is ideal for troubleshooting components like relays, switches, and exhaust systems. It also features image capture functionality to verify completed repairs and reassure customers of accurate diagnostics.

What's Included:

• 1 - Thermal Camera for Automotive Diagnostics
• 1 - Wrist Strap Lanyard
• 1 - USB Cable
• 1 - Pouch
• 1 - User Manual



Features

Two-in-One Diagnostic Tool
Combines temperature measurement and thermal imaging to streamline automotive troubleshooting.

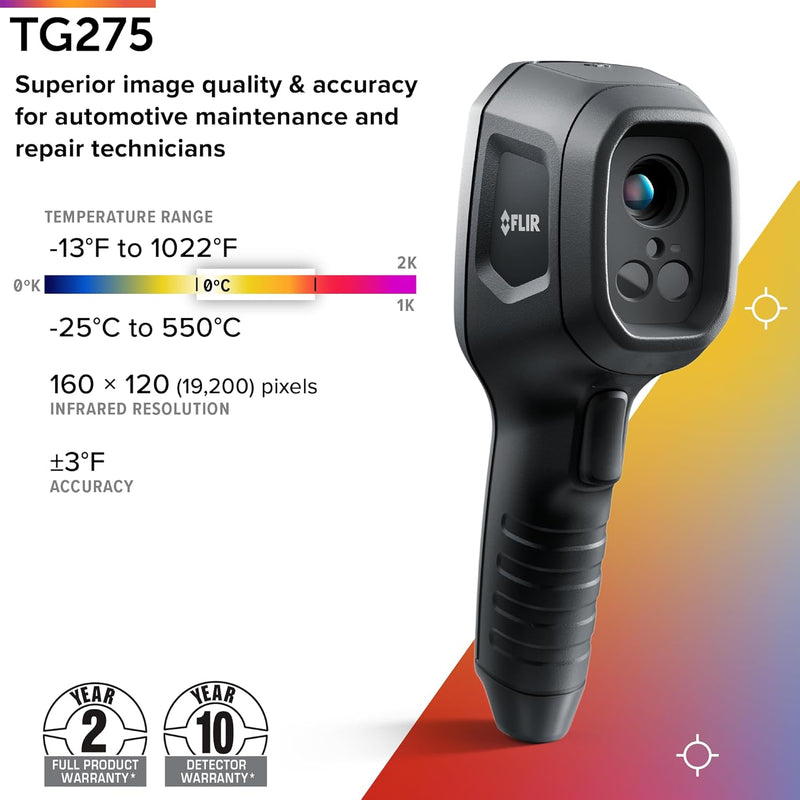

High-Resolution Thermal Imaging
160 x 120 resolution (19,200 pixels) provides detailed images for identifying heat anomalies.

Wide Temperature Range
Accurately measures from -25°C to 550°C (-13°F to 1022°F) for comprehensive diagnostics.

Precision Laser Targeting
Built-in laser helps users pinpoint exactly where temperature readings are taken.

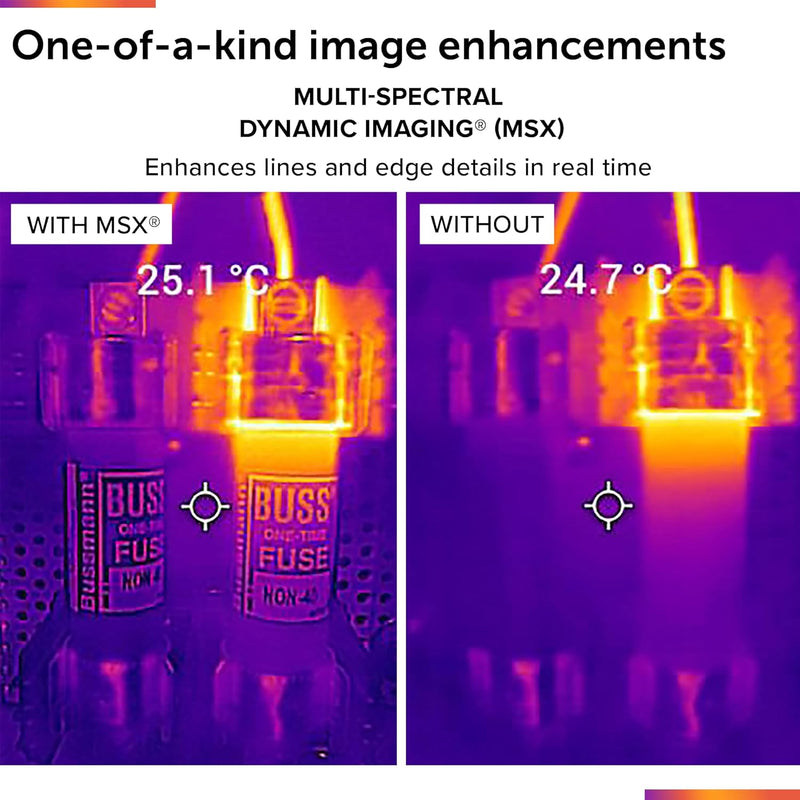

Enhanced Imaging with MSX
FLIR’s patented MSX enhancement overlays visual details for sharper, more informative thermal images.

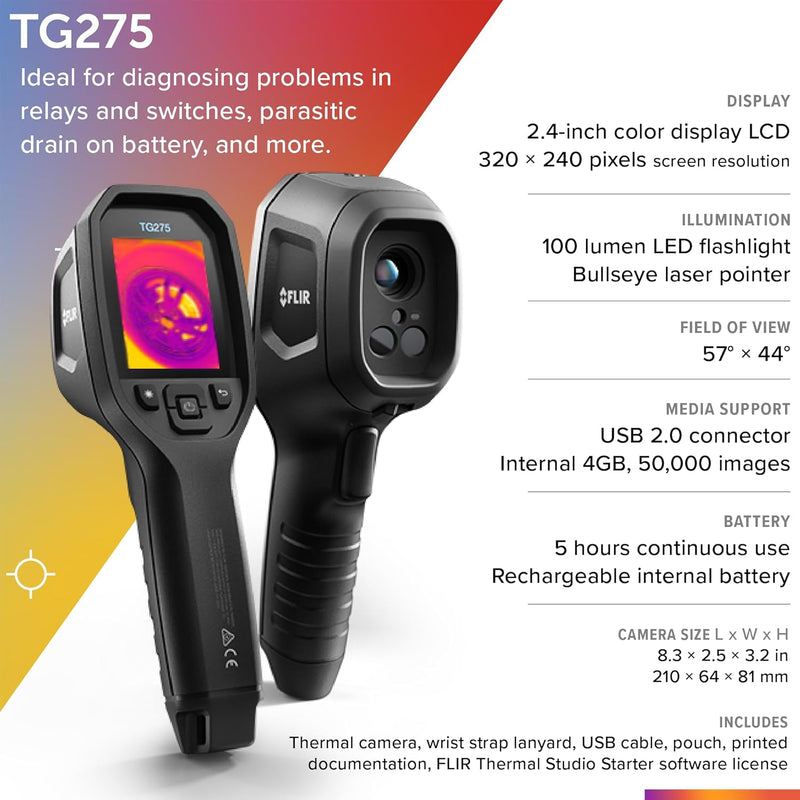

Bright LCD Display
2.4-inch screen clearly shows thermal images in multiple color palettes.

Onboard Image Capture
Records images to document issues and confirm successful repairs.

Rugged for the Shop
Durable, IP54-rated housing resists dirt, oil, and moisture in demanding environments.

30:1 Spot Size Ratio
Allows accurate readings from a safe distance, even in hard-to-reach areas.

Built-in LED Flashlight
Illuminates dark workspaces for improved visibility during diagnostics.

What's Included

Included with Your Purchase:

• 1 - Thermal Camera for Automotive Diagnostics
• 1 - Wrist Strap Lanyard
• 1 - USB Cable
• 1 - Pouch
• 1 - User Manual

Specifications

• IR Resolution: 160 x 120 (19,200 pixels)
• Thermal Sensitivity (NETD): <70 mK
• Field of View: 57° x 44°
• Distance-to-Spot Ratio: 30:1
• Minimum Focus Distance: 0.3 m (0.98 ft.)
• Temperature Range: -25°C to 550°C (-13°F to 1022°F)
• Image Frequency: 8.7 Hz
• Focus: Fixed
• Digital Camera: 2 MP, 71° x 56° FOV
• Display Resolution: 320 x 240 pixels
• Screen Size: 2.4 in color LCD
• Aspect Ratio: 4:3
• Color Palettes: Iron, Rainbow, White hot, Black hot, Arctic, Lava
• Image Storage: 4 GB (up to 50,000 images)
• Image Format: JPEG
• Measurement Accuracy: ±1.5°C (50°C to 100°C); up to ±3°C for full range
• IR Temperature Resolution: 0.1°C (0.2°F)
• Emissivity: 4 presets with custom adjustment from 0.1 to 0.99
• Laser Pointer: Center spot and circular area (Class 1)
• Interfaces: USB 2.0, Bluetooth BLE
• USB Type: USB-C (data/power)
• Battery Life: 5 hours continuous scanning
• Battery Type: Rechargeable Li-ion
• Battery Voltage: 3.7 V
• Charging Time: 4 hours (90%), 6 hours (100%)
• IP Rating: IP54
• Drop Test Rating: 2 m (6.56 ft)
• Operating Temperature: -10°C to 45°C (14°F to 113°F)
• Tripod Mount: UNC 1/4 in.-20
• Dimensions (L x W x H): 210 mm x 64 mm x 81 mm (8.3 in x 2.5 in x 3.2 in)

FAQ

Q: What makes the TG275 better than a standard IR thermometer?
A: The TG275 provides thermal images, not just a single-spot reading, helping users quickly identify issues across a surface.

Q: Can it store thermal images?
A: Yes, it has 4 GB of storage capable of holding up to 50,000 images.

Q: Is the TG275 suitable for outdoor use?
A: Absolutely, the IP54-rated housing and rugged design make it reliable for use in outdoor and shop environments.

Q: How long does the battery last?
A: The battery provides up to 5 hours of continuous scanning and fully charges in about 6 hours.

Resources

Documents:

• FLIR TG275 Datasheet
• FLIR TG275 Manual
