J&D Galvanized Portable Drum Fan, 36" to 48"

What it is

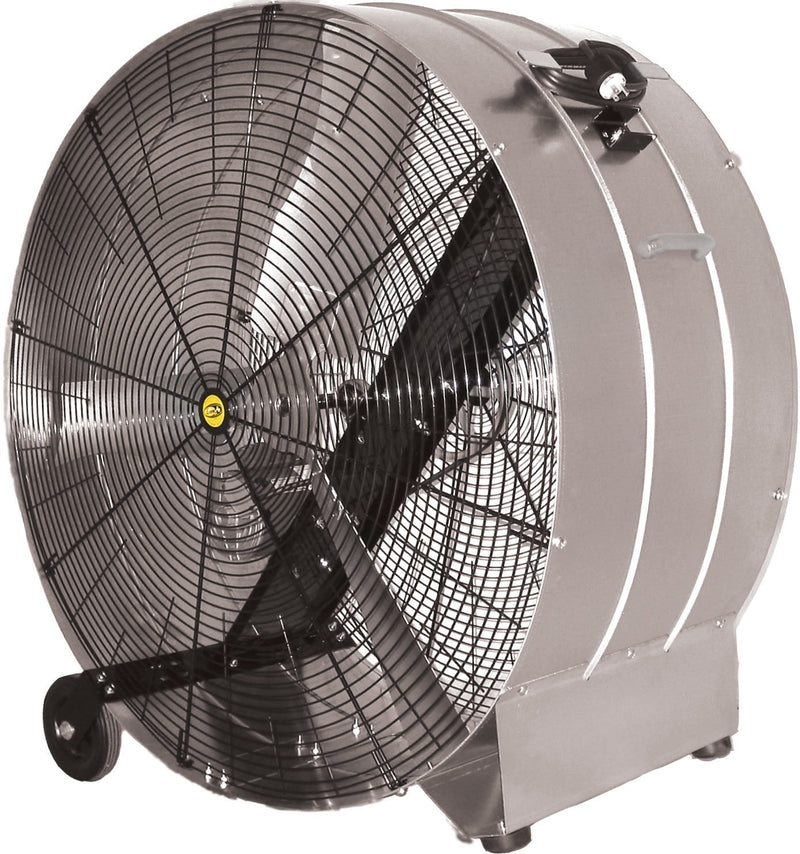

The J&D Galvanized Portable Drum Fan is a commercial drum fan with a heavy-duty G90 galvanized steel housing, built to move a large volume of air in warehouses, factories, workshops and job sites. It comes in three sizes, 36", 42" and 48", rated by J&D at 11,800, 14,440 and 23,500 CFM of thrust, and each one plugs into a 115V outlet on its attached 10' cord.

Guards and assembly

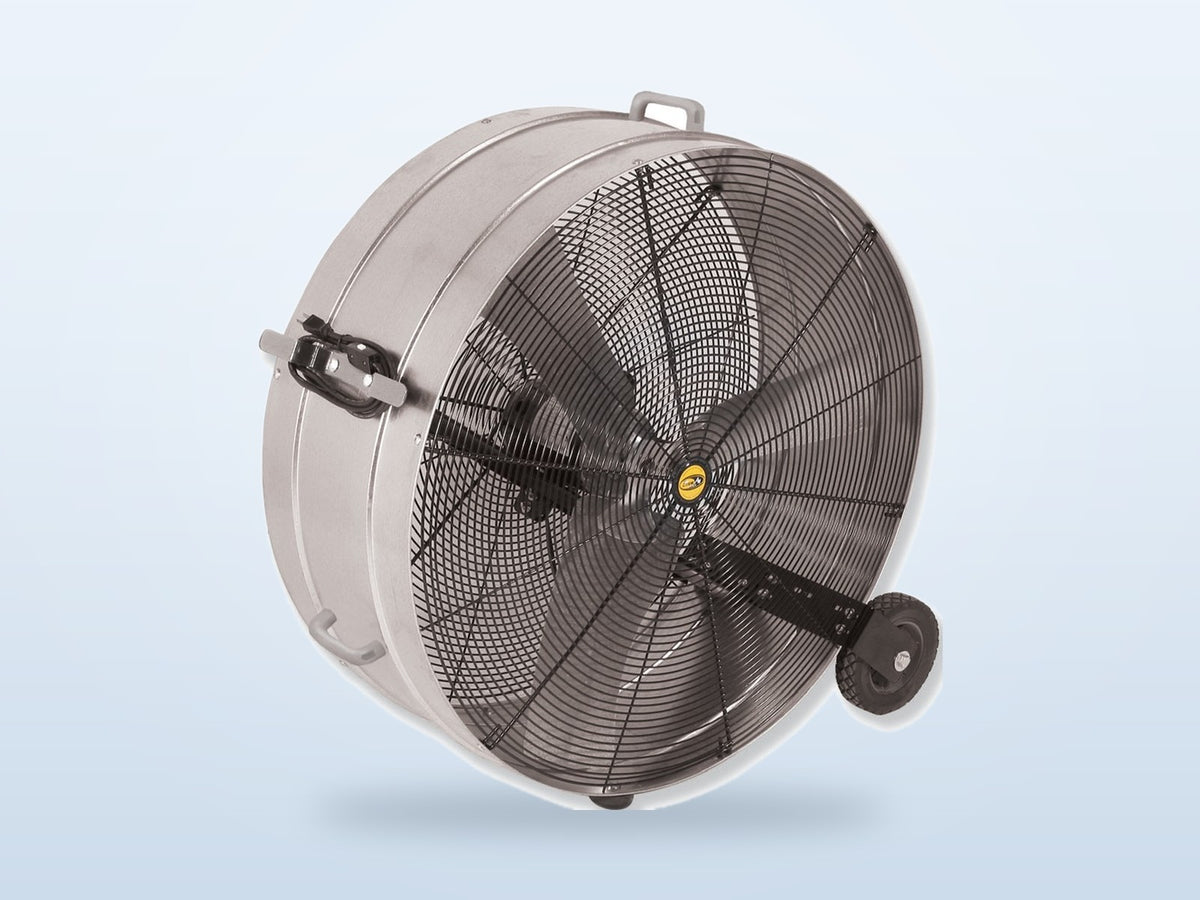

The black, powder-coated wire guards meet OSHA 1910.212(a)(5) for use at any height. Each fan ships fully assembled with the cord installed, so it is ready to run out of the box.

Motors and speeds

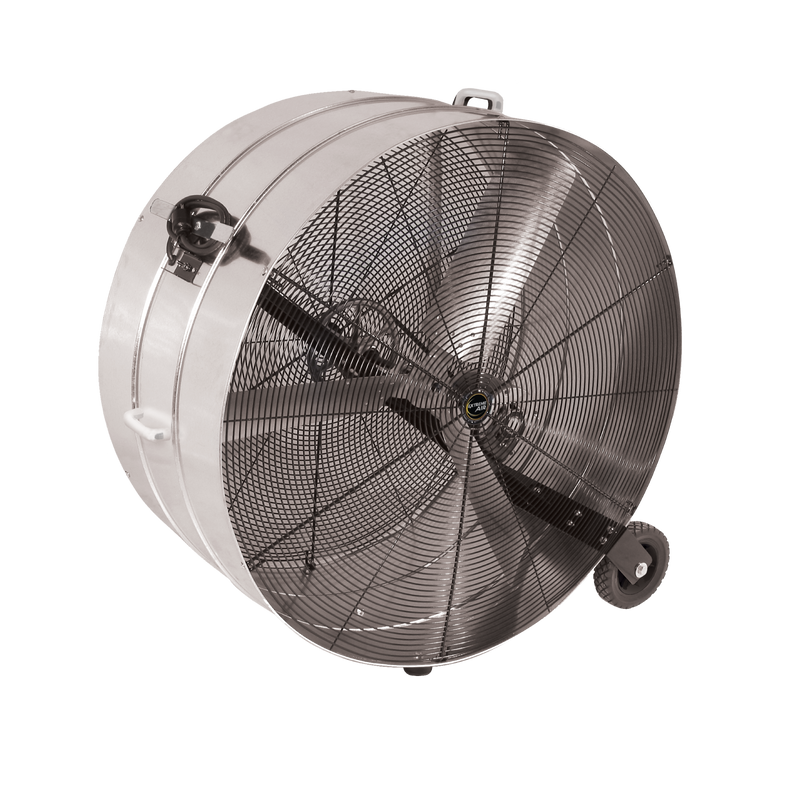

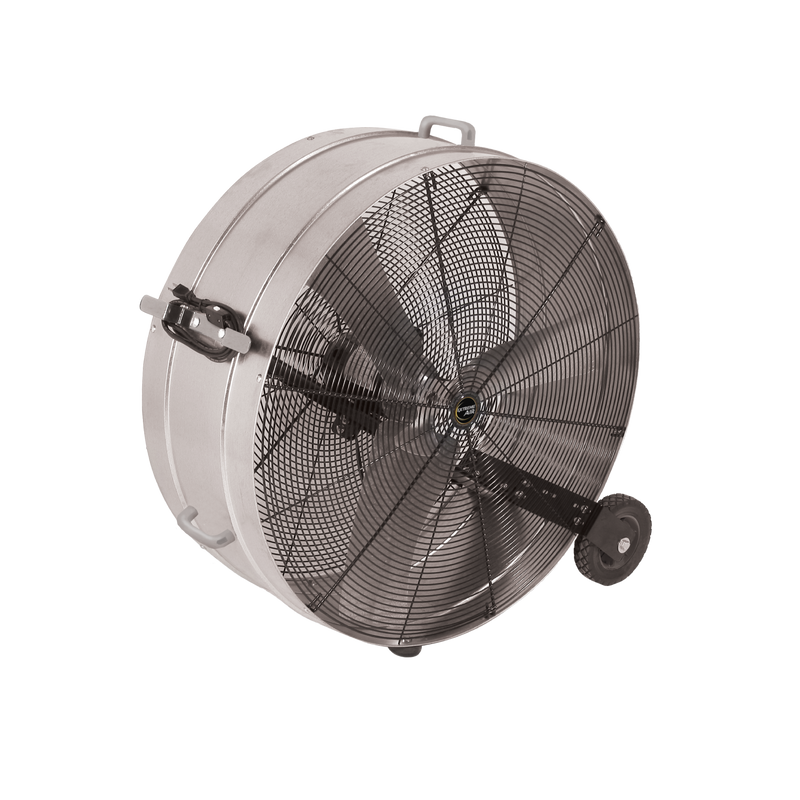

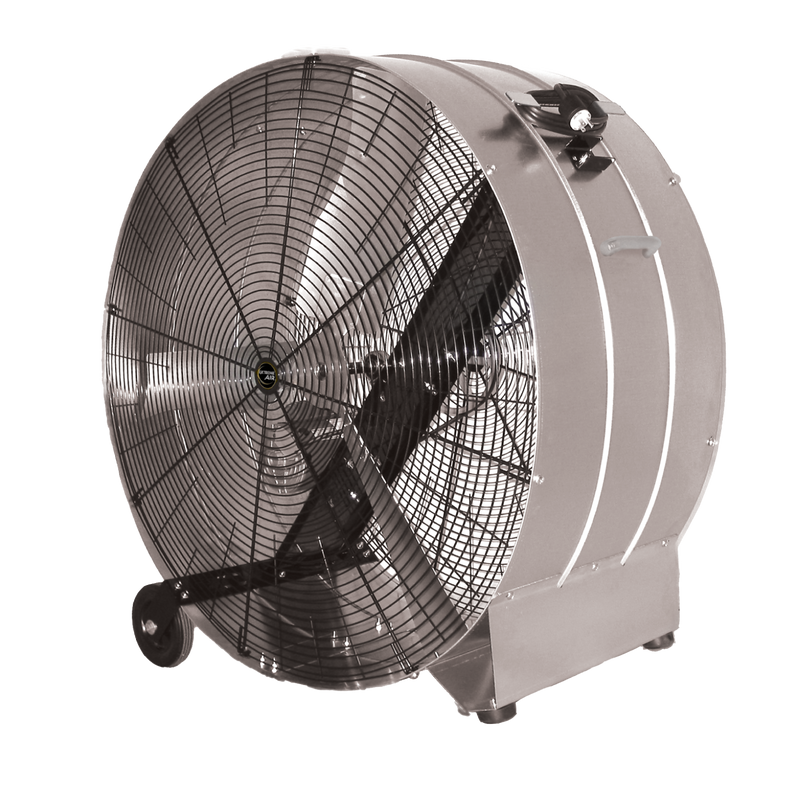

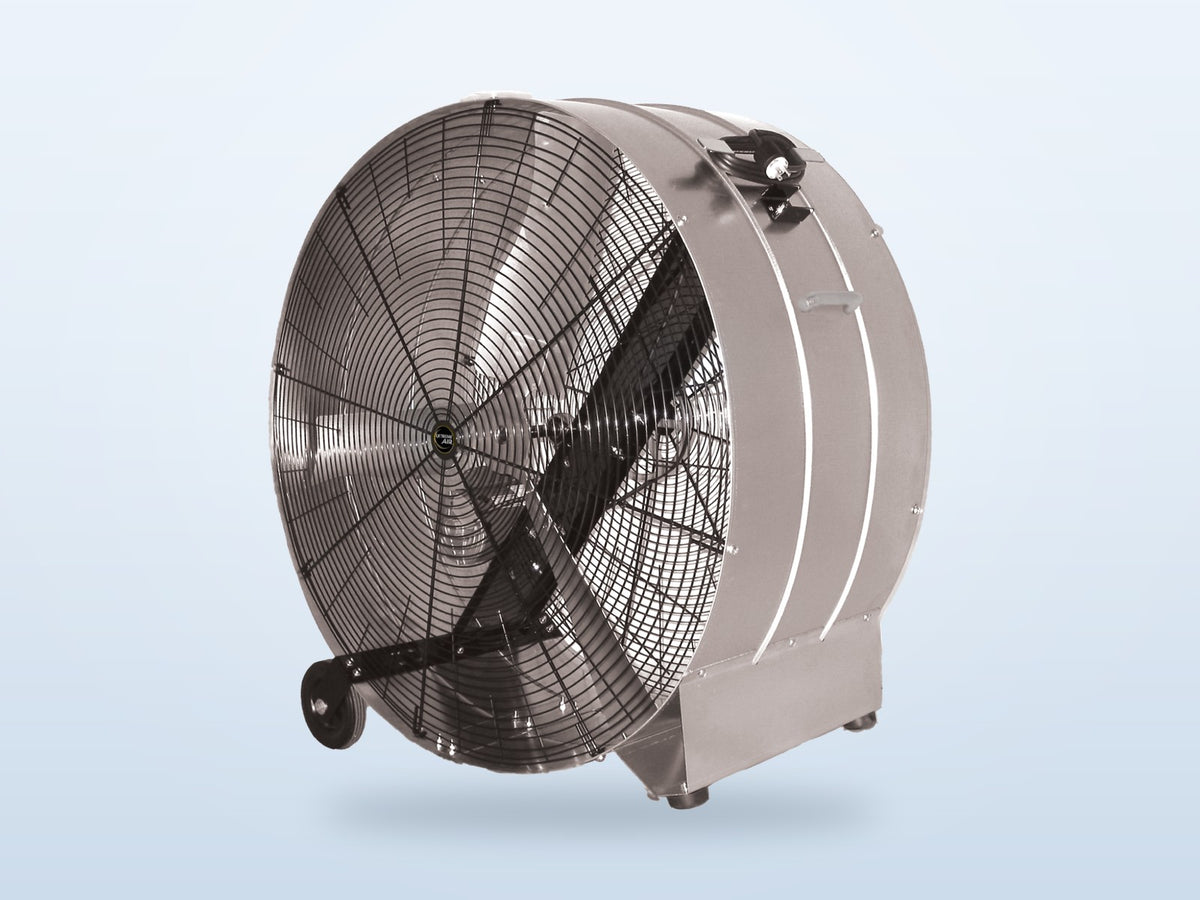

The 36" is direct drive with a 1/2 HP motor. The 42" is belt drive with a 3/4 HP, two-speed motor, and the 48" is belt drive with a 1 HP motor turning a three-blade galvanized prop at 525 RPM. Amp draw at 115V is 6.1 A for the 36", 8.9 A on high for the 42" and 9.0 A for the 48".

Moving it

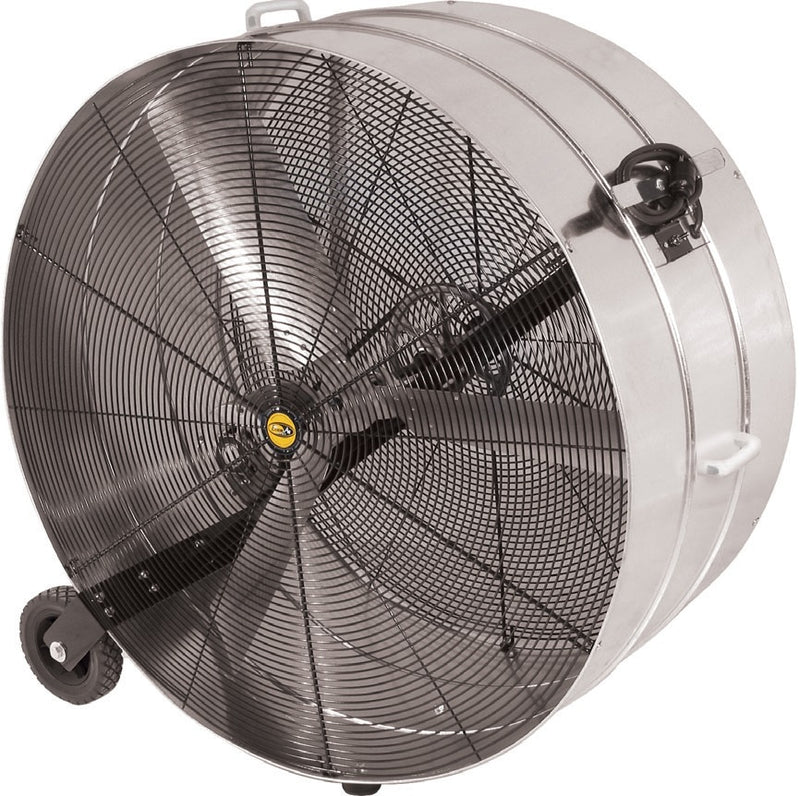

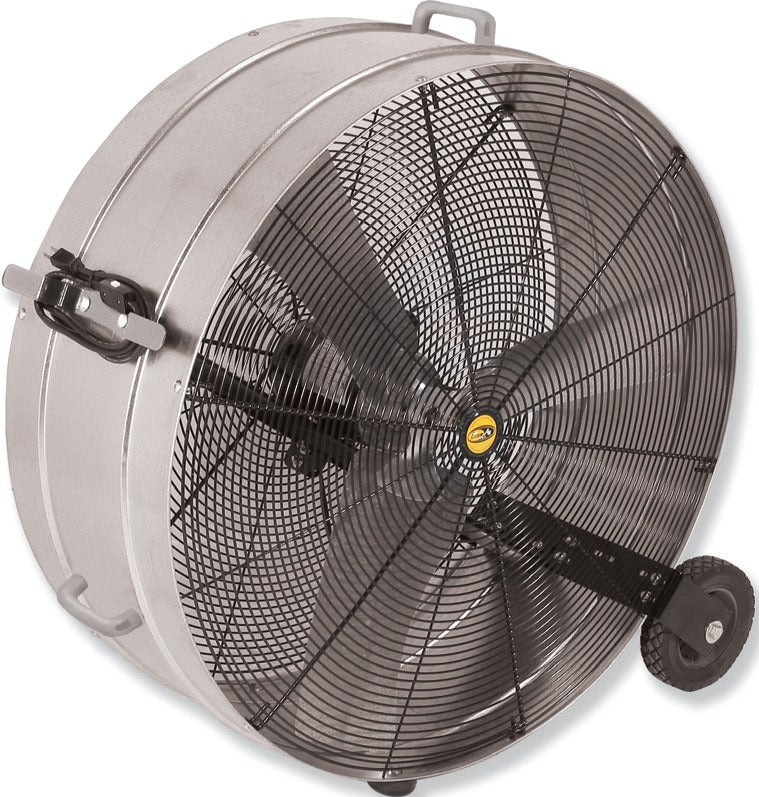

For moving between bays, the 36" and 42" sit on 8" wheels and the 48" on 10" wheels. All three have aluminum handles, a cord wrap and rubber feet for quieter, stable running.

Warranty and misting

J&D covers the fan for 1 year against defects in materials and workmanship, and the motors carry J&D's 2-year motor warranty. The fans accept J&D misting and fogging kits for evaporative cooling.

• Sizes36", 42", 48"
• Airflow11,800 to 23,500 CFM
• Power115V, 10' cord
• Motors1/2 to 1 HP
• HousingG90 steel
• Motor warranty2 years

Orders are processed in 1 to 2 business days, then J&D Manufacturing ships them by freight truck (LTL) from Eau Claire, Wisconsin. Ship times vary by model and some are built to order, so we confirm the ship date by email after you order. Freight is calculated at checkout and shown before you pay. It goes to a business address in the lower 48 states with a loading dock or forklift; contact us before you order if you need residential, liftgate or appointment delivery, or delivery to Alaska or Hawaii. You'll get tracking by email as soon as it leaves J&D.

Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.

Unused J&D equipment in its original packaging can be returned within 14 days of delivery. Ask us for a return authorization before you ship. Returns carry J&D's restocking fee of up to 25%, you pay the return shipping, and the shipping we paid to deliver it and payment processing fees are not refunded. Built-to-order, special-order and non-stock items are final sale, and installed or used equipment can't be returned.

J&D covers the Galvanized Portable Drum Fan for 1 year from the J&D invoice date against defects in materials and workmanship, and its motor for 2 years. Misuse, abuse, alterations, improper installation or operation, lack of maintenance and non-J&D parts void the warranty, and normal wear, cosmetic rust or corrosion, freight, removal, installation and labor are not covered.

Warranty claims. Contact us with your order number, model and J&D part number. We file the claim with J&D, which decides whether to repair, replace or credit the product. Keep the product clean, dry and stored until it does, because J&D may ask for it back.

J&D Manufacturing is a family-owned manufacturer in Eau Claire, Wisconsin, that has built ventilation and comfort equipment for more than 45 years. Its range covers circulation and exhaust fans, misting and high-pressure fog cooling, and air inlets for industrial buildings, greenhouses and farms. J&D runs its own accredited AMCA air test chamber, and J&D marks the airflow data that comes from accredited-lab testing to ANSI/AMCA standards on its product sheets.

The Galvanized drum fan shares its motors and airflow ratings with J&D's Diamond Brite drum fan, which uses a textured aluminum drum and adds 20" and 30" sizes. For a lighter fan, the 24" Premium Direct Drive Drum Fan runs two speeds on a tilting cart.
