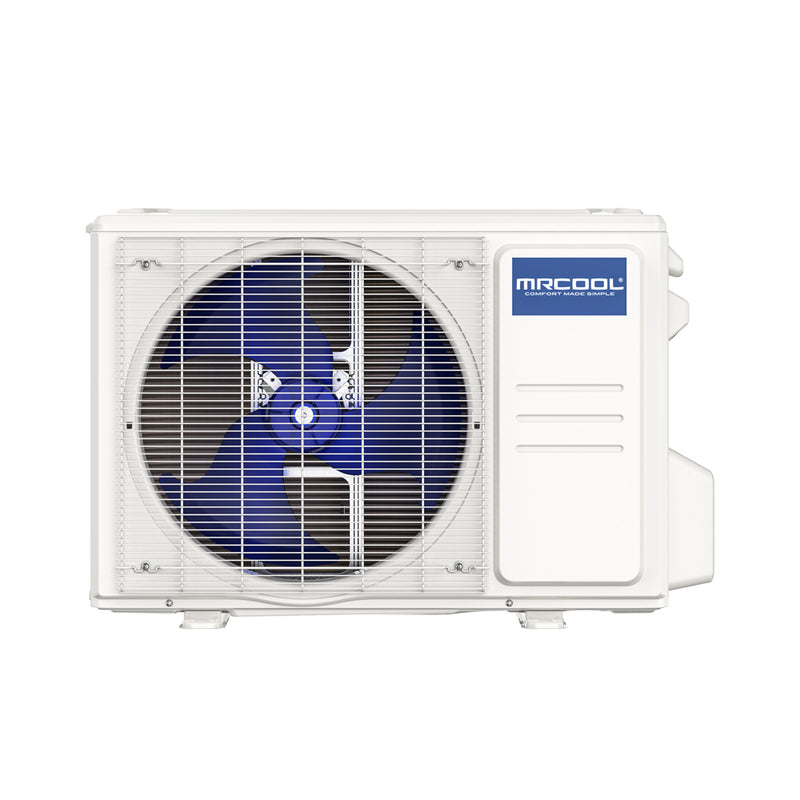

This is the outdoor heat pump unit of the MRCOOL DIY Easy Pro single-zone system, sold on its own for replacing a condenser or completing a system around a DIY Easy Pro air handler of the same capacity. It ships with an 11.5' Quick Connect line set charged with R-454B, and the 9,000 BTU unit is rated 20.2 SEER2 and 9.2 HSPF2 (Region IV).
It is rated to operate from -13°F to 122°F outdoors, and the Gold Fin coil coating suits humid or coastal air. Match the capacity to your indoor unit exactly. That is the MRCOOL DIY Easy Pro condenser.
Features
Matched Capacities
Four sizes from 9,000 to 24,000 BTU, each paired with the DIY Easy Pro wall air handler of the same capacity.
Line Set in the Box
The condenser carton includes an 11.5' Quick Connect line set, factory charged with R-454B.
Rated Efficiency
From 20.2 SEER2 on the 9,000 BTU unit to 18.9 SEER2 on the 24,000 BTU unit, with up to 9.3 HSPF2 (Region IV) in heating.
Wide Operating Range
Rated to run at outdoor temperatures from -13°F to 122°F.
Quick Connect Service Valves
The pre-charged lines thread onto the service ports, and the valves open with a 5mm Allen key once the joints are leak-checked.

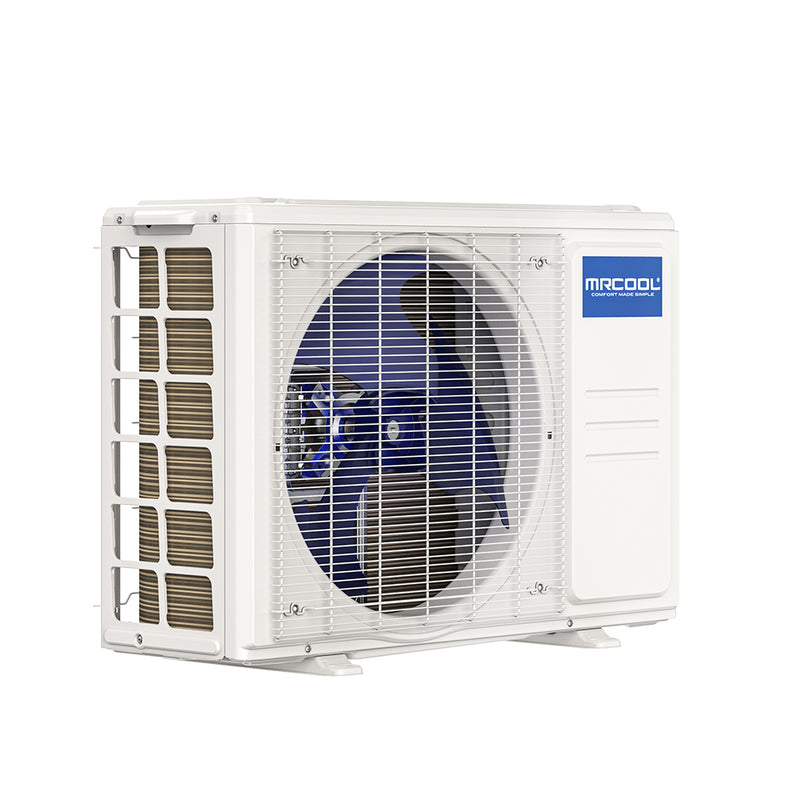

Gold Fin Coil Coating
The outdoor coil carries MRCOOL's Gold Fin coating for corrosion resistance.
Specifications
-
Zones: 1
-
Phase: 1
-
Frequency: 60 Hz
-
Max Fuse / Breaker: 20 A
-
Refrigerant: R-454B
-
Included Line Set: 11.5'
-
Compressor: Rotary
-
Inverter: Yes
-
Metering Device: EEV
-
AHRI Certified: Yes
-
UL Listed: Yes
-
ETL Listed: Yes
-
CSA Listed: Yes
-
Color: White
9,000 BTU 115V
-
Model: EZPRO-09-HP-C-11511DE-O
-
Cooling Capacity: 9,000 BTU/h
-
Heating Capacity: 10,000 BTU/h
-
Nominal Tonnage: 0.75 ton
-
SEER2: 20.2
-
EER2: 11.3
-
HSPF2 (Region IV): 9.2
-
HSPF2 (Region V): 7.1
-
Voltage: 115V
-
Minimum Circuit Ampacity: 17 A
-
Refrigerant Charge: 17.28 oz
-
Sound Level: 54 dBA
-
Max Line Set Length: 75'
-
Liquid Line: 1/4"
-
Suction Line: 3/8"
-
ENERGY STAR: Yes
-
Dimensions: 28.35"W x 10.63"D x 19.49"H
-
Weight: 54.67 lbs
12,000 BTU 115V
-
Model: EZPRO-12-HP-C-11511DE-O
-
Cooling Capacity: 12,000 BTU/h
-
Heating Capacity: 12,000 BTU/h
-
Nominal Tonnage: 1 ton
-
SEER2: 19.5
-
EER2: 9
-
HSPF2 (Region IV): 9.3
-
HSPF2 (Region V): 7
-
Voltage: 115V
-
Minimum Circuit Ampacity: 19.5 A
-
Refrigerant Charge: 21.52 oz
-
Sound Level: 54 dBA
-
Max Line Set Length: 75'
-
Liquid Line: 1/4"
-
Suction Line: 3/8"
-
ENERGY STAR: No
-
Dimensions: 28.35"W x 10.63"D x 19.49"H
-
Weight: 54.89 lbs
18,000 BTU 230V
-
Model: EZPRO-18-HP-C-23011DE-O
-
Cooling Capacity: 17,000 BTU/h
-
Heating Capacity: 18,000 BTU/h
-
Nominal Tonnage: 1.5 ton
-
SEER2: 20
-
EER2: 9.8
-
HSPF2 (Region IV): 8.5
-
HSPF2 (Region V): 6.6
-
Voltage: 208/230V
-
Minimum Circuit Ampacity: 15 A
-
Refrigerant Charge: 34.92 oz
-
Sound Level: 55 dBA
-
Max Line Set Length: 65.6'
-
Liquid Line: 1/4"
-
Suction Line: 1/2"
-
ENERGY STAR: No
-
Dimensions: 30.12"W x 11.93"D x 21.85"H
-
Weight: 62.61 lbs
24,000 BTU 230V
-
Model: EZPRO-24-HP-C-23011DE-O
-
Cooling Capacity: 24,000 BTU/h
-
Heating Capacity: 25,000 BTU/h
-
Nominal Tonnage: 2 ton
-
SEER2: 18.9
-
EER2: 9.7
-
HSPF2 (Region IV): 8.7
-
HSPF2 (Region V): 6.9
-
Voltage: 208/230V
-
Minimum Circuit Ampacity: 19 A
-
Refrigerant Charge: 50.44 oz
-
Sound Level: 61 dBA
-
Max Line Set Length: 75'
-
Liquid Line: 3/8"
-
Suction Line: 5/8"
-
ENERGY STAR: No
-
Dimensions: 35.04"W x 13.46"D x 26.5"H
-
Weight: 95.9 lbs
What's Included
- MRCOOL DIY Easy Pro single-zone condenser
- 11.5' Quick Connect pre-charged line set
Installation
Designed for homeowner installation. The Quick Connect line set arrives pre-charged with refrigerant, so no vacuum pump, gauges or refrigerant handling is needed. Each fitting is tightened with two wrenches to the torque in MRCOOL's manual and then leak-checked. Electrical work still has to meet local code: the 230V models need a dedicated 230V circuit, and some areas require a permit or a licensed electrician for that part of the job. Check your local rules before you start.

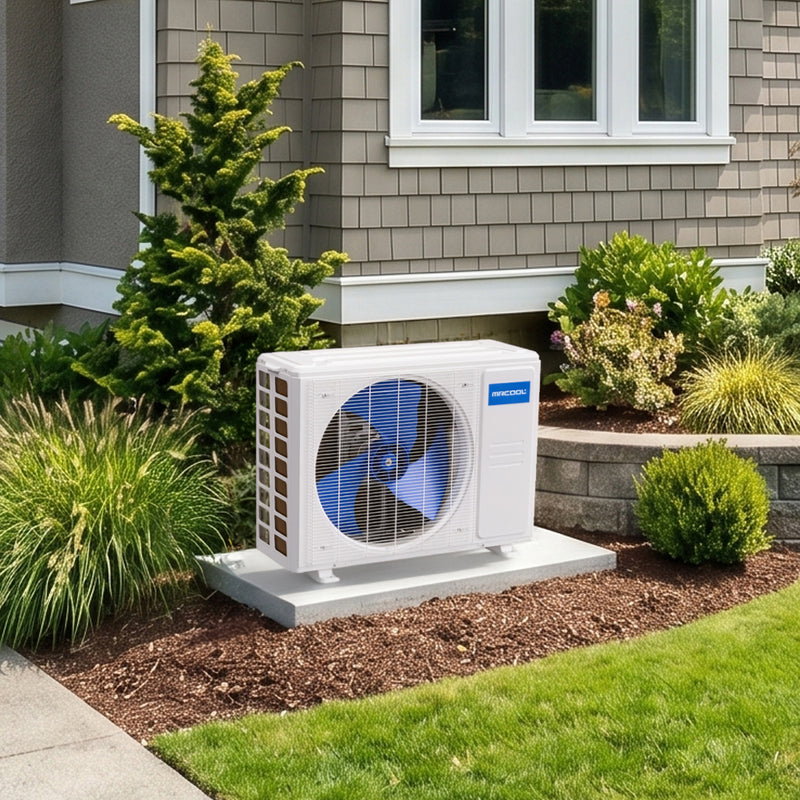

Set the condenser on a level pad or wall bracket with the clearances shown in the manual. Line sizes are 1/4" x 3/8" (9,000 and 12,000 BTU), 1/4" x 1/2" (18,000 BTU) and 3/8" x 5/8" (24,000 BTU). The outdoor unit power cable is purchased separately.
