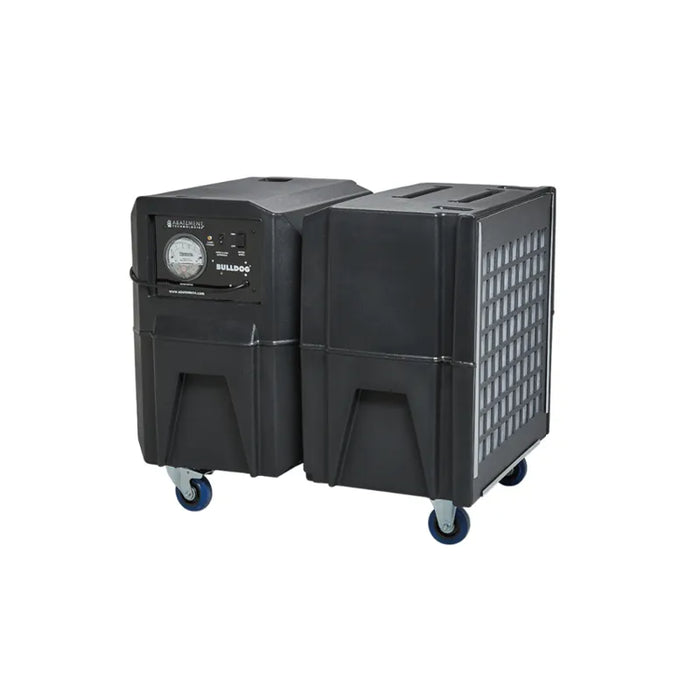

Abatement Technologies BULLDOG Series Deluxe Model Negative Air Machine BD2KMA

Technologies deliver powerful, efficient HEPA air cleaning with enhanced monitoring features. Offering airflow rates of 1,300 cfm (Low) and 2,000 cfm (High), the BD2KMA includes a differential pressure gauge and audio "change filter" alarm to alert users when filters need replacement.

Designed with a rotationally-molded, flame-retardant polyethylene cabinet, this machine is virtually indestructible, leak-tight, and easy to clean. Its three-stage filtration system, including a True HEPA filter, captures 99.97% of airborne particles as small as 0.3 microns. Built with superior mobility and user-friendly controls, the BD2KMA is ideal for demanding air quality applications.

What's Included:

• BULLDOG® Deluxe Model BD2KMA Negative Air Machine
• 24” x 24” x 6” True HEPA Filter
• Stage 1 Polypad Pre-Filter
• Stage 2 Pleated Pre-Filter (2” deep)
• User Manual

Features

Powerful Airflow
High-performance motor and custom-engineered blower deliver 2,000 cfm (High) and 1,300 cfm (Low) airflow settings for superior air cleaning.

Advanced Monitoring System
Equipped with a large 5” differential pressure gauge and an audio "change filter" alarm to alert users of necessary filter replacements.

Virtually Indestructible Cabinet
Rotationally-molded, flame-retardant polyethylene construction ensures durability, leak-tight performance, and easy cleaning.

Three-Stage Filtration
Includes a Stage 1 polypad pre-filter, Stage 2 pleated pre-filter, and a True HEPA filter rated to capture 99.97% of particles at 0.3 microns.

Optional 12-Inch Deep HEPA Filter
Compatible with an optional 12-inch deep replacement HEPA filter for increased filtration capacity.

User-Friendly Design
Features recessed controls for protection, a hinged access door for quick filter changes, and multiple speed settings for operational flexibility.

Superior Mobility
Equipped with two fixed and two locking swivel casters, plus four carrying handles for easy transport.

Certified for Safety
NRTL-certified to comply with UL Std. 507, CAN/CSA Std. #C22.2 No. 113-M1984, and UL94HB flammability standards.

What's Included

Included with Your Purchase:

• BULLDOG® Deluxe Model BD2KMA Negative Air Machine
• 24” x 24” x 6” True HEPA Filter
• Stage 1 Polypad Pre-Filter
• Stage 2 Pleated Pre-Filter (2” deep)
• User Manual

Specifications

• Dimensions (L x W x H): 39.5 x 28.5 x 31.625 inches (100.33 x 72.39 x 80.33 cm)
• Airflow: 2,000 cfm (High), 1,300 cfm (Low)
• Net Weight With Filters: 117 lbs
• Shipping Weight: 137 lbs
• Circuit Breaker: 120V/60Hz/15A
• Normal Starting Amps: 10 or less
• Cabinet Material: UL94HB flame-retardant resin
• Pre-Filter Access: Drop-in access door
• Stage 1 Pre-Filter: Polypad (H2001)
• Stage 2 Pre-Filter: 2” deep particulate pleat (H2002)
• HEPA Filter: 24” x 24” x 6” deep, 99.97% @ 0.3 microns (H242406-99)
• Optional Final Stage HEPA Filter: 24” x 24” x 12” deep, 99.97% @ 0.3 microns (H2010M)
• Motor Blower: Squirrel cage
• Operating Amp Draw: 10.0 A
• Motor Output: 1 HP, 2-speed motor with thermal overload protection
• Carrying Handles: Yes
• Casters: 2 swivel, 2 locking
• Audio Filter Alarm: Yes

FAQ

Q: How does the filter monitoring system work?
A: The BD2KMA model features a differential pressure gauge and an audio "change filter" alarm to notify users when filters need replacement.

Q: What airflow capacity does this machine provide?
A: The machine delivers 2,000 cfm on High and 1,300 cfm on Low, offering powerful performance for air cleaning needs.

Q: What types of filters are included?
A: The BD2KMA includes a Stage 1 polypad pre-filter, a Stage 2 pleated pre-filter, and a 6-inch deep True HEPA filter.

Q: Is this machine easy to transport?
A: Yes, it features two swivel and two locking casters, plus four carrying handles for mobility and convenience.

Q: Is the machine certified for safety?
A: Yes, the BD2KMA is NRTL-certified to meet UL Std. 507, CAN/CSA Std. #C22.2 No. 113-M1984, and UL94HB flammability standards.
