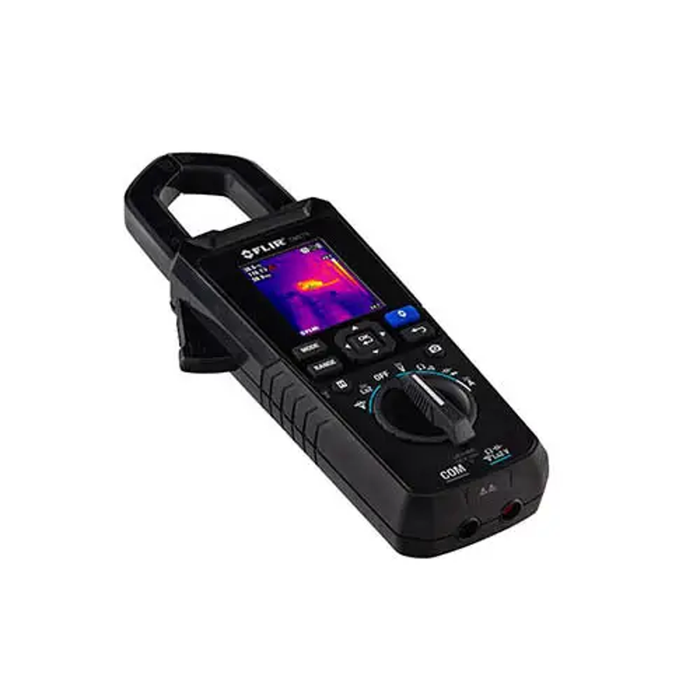

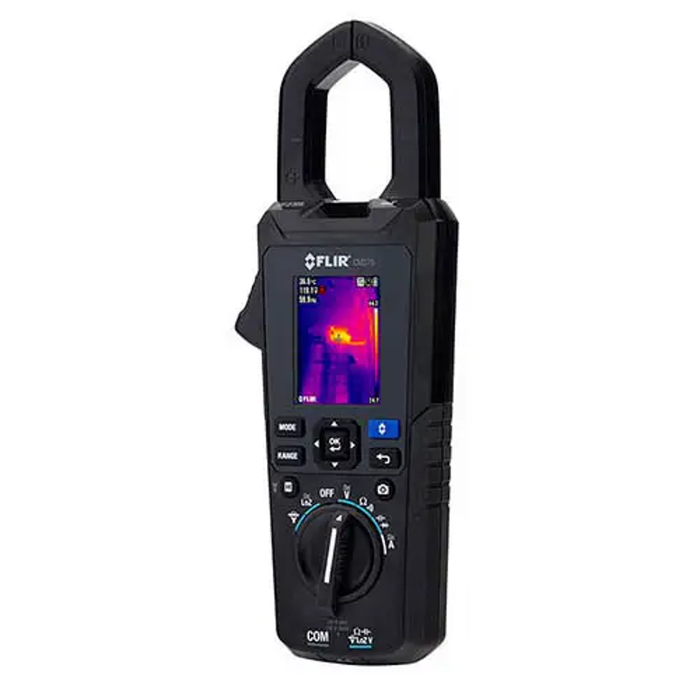

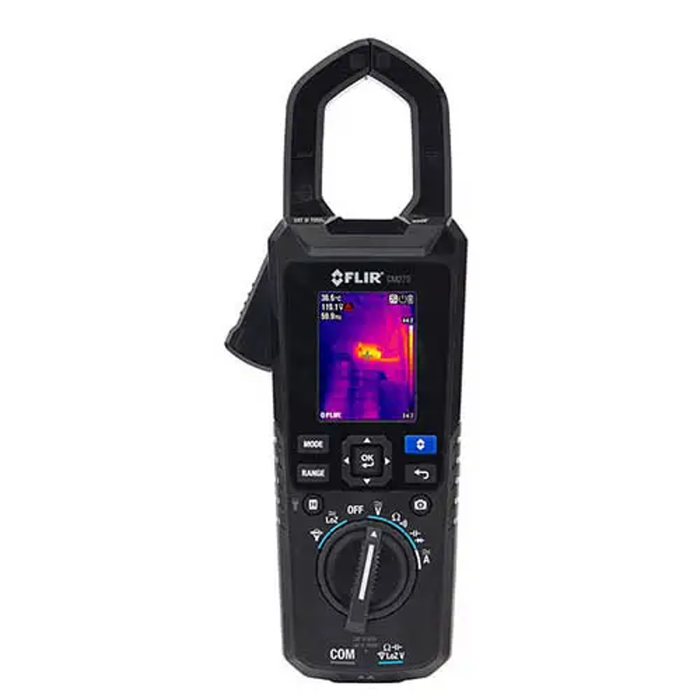

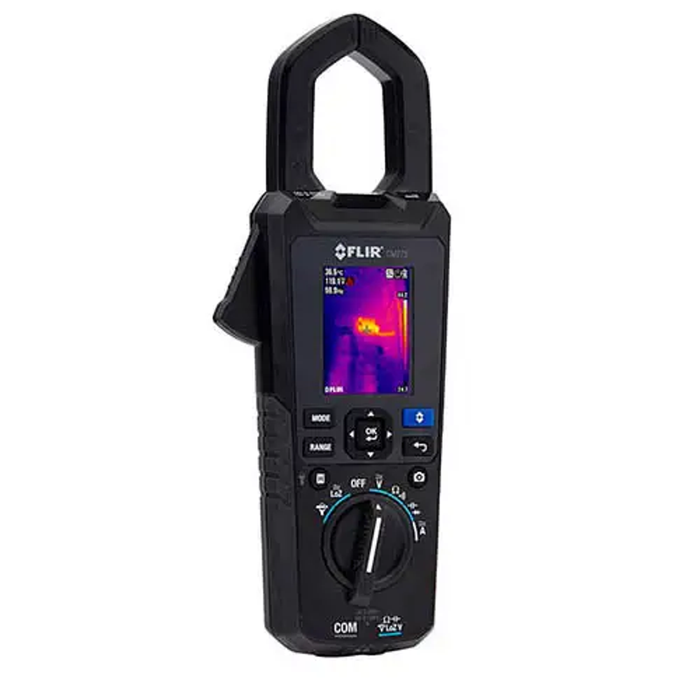

The Teledyne FLIR CM275-KIT 1000V AC/DC Data Logging Industrial Thermal Imaging Clamp Meter Kit is a comprehensive diagnostic tool that combines thermal imaging and electrical testing for industrial maintenance and inspection. With 160 x 120 infrared resolution and Infrared Guided Measurement (IGM) technology, it helps users safely and efficiently identify hot spots and overloaded circuits from a distance. Built for professionals, it integrates a full-featured clamp meter with advanced capabilities such as True-RMS, VFD mode, and LoZ, ensuring precision in both low and high-voltage environments.
Bluetooth connectivity allows seamless integration with the Teledyne FLIR InSite workflow app for data management and sharing. Its slim design, built-in worklights, and high measurement capacity make it ideal for navigating tight and dark electrical cabinets while documenting and reviewing findings with ease.
What's Included:
- 1 - 1000V AC/DC Data Logging Industrial Thermal Imaging Clamp Meter Kit (CM275)
- 3 - AA Batteries
- 1 - Silicone Test Lead Set
- 1 - Soft Carrying Case
Features
Thermal Imaging with 160 x 120 Resolution
Scan targets to detect electrical issues with high-resolution thermal imagery for precise diagnostics.
Non-Contact Temperature Measurement
Safely identify live circuits and hot spots without physical contact for added safety.
Target Pinpointing Tools
Use laser or crosshairs to accurately identify problem areas on components and wiring.
Compact Design with Worklights
Access hard-to-reach areas and illuminate dark spaces using the slim jaw design and integrated lighting.
High/Low Voltage Measurement Capability
Capture a full range of electrical measurements in complex systems with ease.
Advanced Electrical Features
Includes True-RMS, VFD mode, and LoZ for accurate readings in diverse environments.
3000A Measurement Support with Accessories
Expand range with Teledyne FLIR Flex Clamp accessories (sold separately).
Reliable Safety Ratings
CAT IV-600V and CAT III-1000V protection ensures safe operation in industrial environments.
Internal Data Storage
Save measurement logs and thermal images for later review and analysis.
Wireless Connectivity
Connects to Teledyne FLIR Tools and InSite apps for easy documentation and sharing.

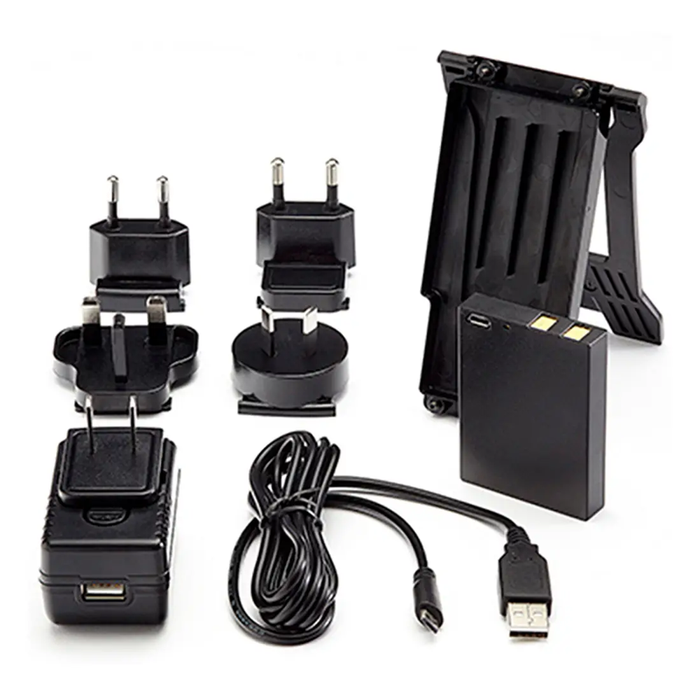

TA04 Battery Kit Included
Enables extended runtime of up to 10 hours for demanding field work.
What's Included
Included with Your Purchase:
- 1 - 1000V AC/DC Data Logging Industrial Thermal Imaging Clamp Meter Kit (CM275)
- 3 - AA Batteries
- 1 - Silicone Test Lead Set
- 1 - Soft Carrying Case
Specifications
-
Max Voltage: 1000V
-
Max Current: 600A
-
IR Resolution: 160 x 120 pixels (19,200 pixels)
-
Connectivity: Bluetooth
-
Battery Type: 3 x AA (TA04 rechargeable battery kit included)
-
Safety Ratings: CAT IV-600V, CAT III-1000V
-
Data Logging: Yes
-
Thermal Imaging: Yes, with IGM technology
-
Clamp Jaw Size: Narrow design for tight areas
-
Lighting: Built-in worklights
-
Wireless App Support: Teledyne FLIR Tools and InSite
FAQ
Q: What is the resolution of the thermal camera?
A: The camera features a 160 x 120 infrared resolution, providing clear thermal images for accurate diagnostics.
Q: Can I use this device to measure high current values?
A: Yes, with Teledyne FLIR Flex Clamp accessories (sold separately), the measurement range can be expanded up to 3000A AC.
Q: Is the device compatible with wireless apps?
A: Yes, it supports Bluetooth connectivity and integrates with the Teledyne FLIR Tools and InSite apps for streamlined documentation.
Q: What safety ratings does the CM275-KIT have?
A: It is rated CAT IV-600V and CAT III-1000V for safe operation in industrial environments.
Q: Does the kit include a rechargeable battery?
A: Yes, it includes the TA04 Battery Kit, which supports extended runtime up to 10 hours.
