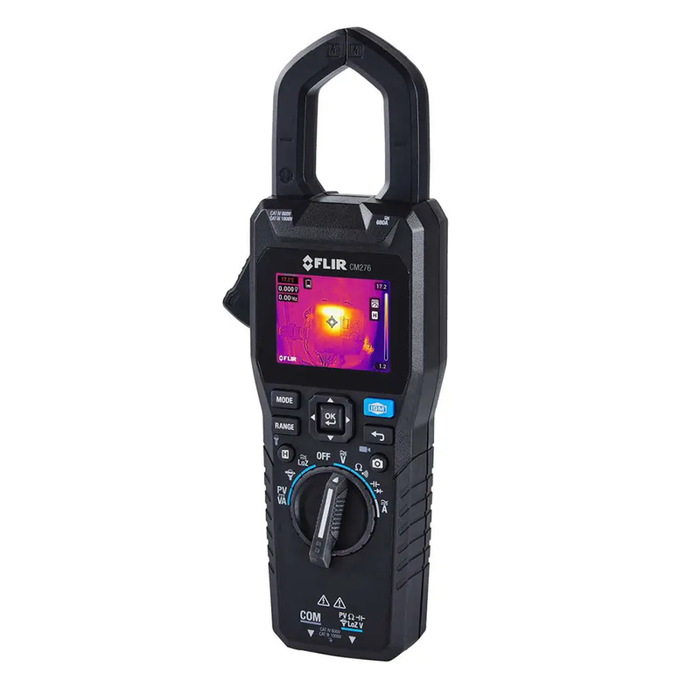

The Teledyne FLIR CM276 True-RMS AC/DC Clamp Meter is a powerful all-in-one diagnostic tool combining electrical measurement with advanced thermal imaging capabilities. Designed for professionals working with solar panels, electrical systems, motors, and pumps, the CM276 utilizes IGM™ (Infrared Guided Measurement) technology to pinpoint temperature anomalies and overloaded circuits from a safe distance. With a high-resolution FLIR Lepton® thermal sensor and MSX® technology, it delivers clear, detailed images to guide effective troubleshooting.
Integrated METERLiNK connectivity enables seamless capture, analysis, and sharing of thermal images, video clips, and measurement data via the FLIR app. The device supports robust data logging with storage for 30,000 measurements and 100 images. Equipped with a rugged design, a bright 2.4-inch TFT display, and LED worklights, the CM276 is built for demanding environments. It also features a long-lasting rechargeable battery and meets a 6.5-foot drop test for added durability.
What's Included:
- 1 - True-RMS AC/DC Clamp Meter and Thermal Imaging Camera (CM276)
- 1 - Set of CAT IV 600 V Silicone Test Leads (TA82)
- 1 - USB Type-A-to-Type-C Cable
- 1 - Soft Carrying Case
- 1 - Quick Start Guide
- 1 - FLIR Warranty Card
Features
Thermal and Electrical Integration
Combines accurate electrical measurements with FLIR's infrared imaging to quickly identify and diagnose electrical and thermal faults.
IGM Technology
Infrared Guided Measurement helps users safely locate hot spots and overloaded circuits without direct contact.
Enhanced App Connectivity
METERLiNK allows real-time image capture, data analysis, and reporting from your smartphone or tablet.
High IR Resolution
160 x 120 resolution with 19,200 thermal pixels delivers clarity for precise inspection.
Rugged and Reliable
Drop-tested to 6.5 feet with a durable design suitable for harsh work environments.
Comprehensive Data Logging
Stores 30,000 scalar measurements and 100 thermal images to support detailed diagnostics.
Intuitive Display and Controls
Features a 2.4-inch TFT screen and simple interface for ease of use in the field.
Flexible Color Palettes
Includes iron, rainbow, arctic, white hot, and black hot for customizable thermal imaging views.
Built-in Worklights
Integrated LED lights improve visibility in dimly lit inspection zones.
Wide Measurement Range
Measures up to 1000 V and 600 A with high accuracy for AC/DC voltage and current.
What's Included
Included with Your Purchase:
- 1 - True-RMS AC/DC Clamp Meter and Thermal Imaging Camera (CM276)
- 1 - Set of CAT IV 600 V Silicone Test Leads (TA82)
- 1 - USB Type-A-to-Type-C Cable
- 1 - Soft Carrying Case
- 1 - Quick Start Guide
- 1 - FLIR Warranty Card
Specifications
-
IR Resolution: 160 x 120
-
Display Size: 2.4 in., TFT screen
-
Jaw Opening: 35 mm (1.37 in.)
-
AC/DC Voltage Range: 1000 V
-
Voltage Accuracy: ±1.0%
-
AC/DC Current Range: 600.0 A
-
Current Accuracy: ±2.0%
-
Data Storage: 10 sets of 30K scalar measurements, 100 images
-
Connectivity: Bluetooth with METERLiNK support
-
Color Palettes: Iron, rainbow, arctic, white hot, black hot
-
Field of View: 44° × 57°
-
Focus: Fixed
-
Battery: Rechargeable lithium polymer
-
Drop Test Rating: 2 meters (6.5 ft.)
FAQ
Q: Can I view and share images remotely?
A: Yes, with METERLiNK and Bluetooth connectivity, you can capture, analyze, and share data from the FLIR app.
Q: What’s the resolution of the thermal camera?
A: It provides 160 x 120 thermal resolution for detailed and accurate thermal imaging.
Q: How much data can the CM276 store?
A: It can store up to 30,000 measurements and 100 thermal images.
Q: Is the clamp meter suitable for solar photovoltaic inspections?
A: Yes, it's ideal for solar panel diagnostics and can be paired with optional accessories like MC4 test leads.
Q: Does it include a carrying case?
A: Yes, a soft carrying case is included for portability and protection.
