LX recovery with tanks that fill and empty themselves.
Dual LX vacuums with 182" of water lift, an adjustable 500 PSI pump, auto-fill, a 3.3 GPM pump-out and chemical injection.
LX vacuums pull more water
Two Mytee LX vacuum motors leave carpet drier, and run effective hose lengths of 150'.
182" water lift
Keeps the tanks in check
Auto-fill and auto pump-out hold both tank levels, so you don't stop to refill or dump.
3.3 GPM auto pump-out
Loading Buddy wheels included
The A145 Loading Buddy wheel kit comes in the box for loading into a work vehicle.
135 lb machine weight
What it is
The Mytee LTD5-LX Speedster LTD is a portable carpet extractor for residential and commercial carpet cleaning, hard-surface extraction and tile and grout cleaning. It pairs Mytee's dual LX vacuum motors, rated up to 250 CFM and 182" of water lift, with an adjustable 500 PSI piston pump (1.5 GPM). Mytee rates the LX vacuums for effective hose runs of 150'.
Tanks and auto-fill
Its solution and recovery tanks hold about 11 gallons each. Auto-fill connects to a garden hose and shuts off when the solution tank is full, and the auto pump-out (3.3 GPM) drains the recovery tank through a second garden hose, so you can keep cleaning while the machine holds both tank levels. A chemical injection meter siphons your choice of concentrate from the included 5-quart Big Mouth bottle into the solution line.
Power and heat
The LTD5-LX runs on two detachable 50' 12/3 twist-lock power cords. Cord 1 draws 20 A and cord 2 draws 14 A at 115 V; plug each into its own 20 A circuit. It is an unheated extractor; Mytee's 240-120 Hot Turbo portable heater can be added for hot-water cleaning, and the LTD3 is the heated Speedster LTD.
Moving it

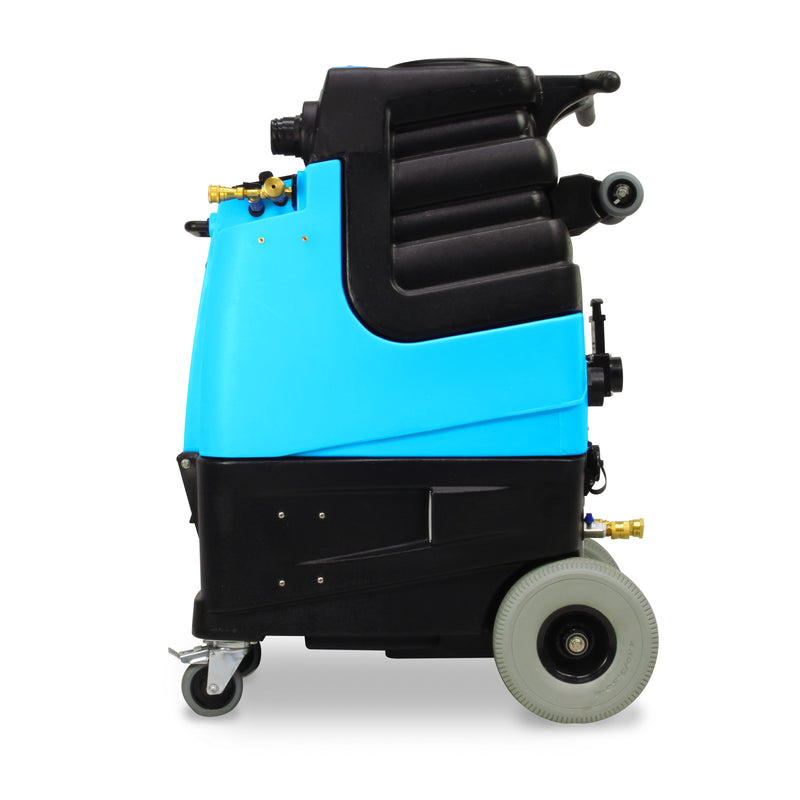

The LTD5-LX weighs 135 lb. 10" foam-filled rear wheels and 4" locking front casters move it around the job and keep it from rolling. The body is roto-molded polyethylene that resists rust and dents, and an on-board rinse hose washes out the recovery tank after the job. The A145 Loading Buddy wheel kit is included for loading into a work vehicle.
Tools and warranty
Mytee lists the 8400GT Mytee Dry GT upholstery tool and the 8314SW Bentley Pro speed wand alongside the LTD5-LX, and the P507 transport tray fits the Speedster LTD. Spare 5-quart bottles come in the PAK4-5 four-pack. The LTD5-LX is covered by Mytee's warranty: 1 year parts and labor, 2 years on major components such as pumps, vacuum motors and heaters, and 10 years on roto-molded housings and tanks.
At a glance
Water lift182"
Pump500 PSI, adjustable
Tanks11 / 11 gal approx.
Pump-out3.3 GPM
Hose run150'
Weight135 lb
Features
Dual Mytee LX Vacuum Motors
Up to 250 CFM and 182" of water lift, rated for effective hose runs of 150'.
Auto-Fill and Auto Pump-Out
Garden-hose fill that stops when the tank is full, and a 3.3 GPM pump-out that empties the recovery tank as you work.
Chemical Injection
Meters concentrate from the included 5-quart Big Mouth bottle into the solution line.
Adjustable 500 PSI Piston Pump
1.5 GPM, set from the waist-high regulator.
Loading Buddy Wheel Kit
The included A145 kit helps load the machine into a work vehicle.
Recovery Tank Rinse Hose
An on-board wash hose rinses out the recovery tank after the job.
Waist-High Switch Plate and Regulator
Controls and pressure regulator sit at waist height to reduce bending.
Roto-Molded Polyethylene Body
Resists rust and dents, with 10 years of Mytee warranty coverage on housings and tanks.
Orders are processed in 1 to 2 business days and then ship in 2 to 6 business days. You'll get tracking by email as soon as it leaves the warehouse.
Damaged in delivery
Inspect the packaging and the product before you sign. Note any damage or shortage on the delivery receipt, then email photos to support@mycleansupplies.com within 48 hours of delivery so the freight claim can be filed. Damage reported after 48 hours can't be claimed.
Returns
Unused Mytee equipment in its original packaging can be returned within 21 days of delivery. Ask us for a return authorization before you ship. Returns carry Mytee's 25% restocking fee, you pay the return shipping, and payment processing fees are not refunded. Electrical components and refurbished items are final sale, and used machines can't be returned.
Warranty
Mytee covers the LTD5-LX for 1 year on parts and labor, 2 years on major components (pumps, vacuum motors and heaters) and 10 years on roto-molded housings and tanks. Freezing damage, abuse, misuse and neglect void the warranty, and normal wear parts are not covered.
Warranty claims. Contact us with your order number, model and serial number. We file the claim with Mytee or direct you to the nearest Mytee service center.
About Mytee
Mytee is based in Poway, California, and builds professional carpet and upholstery cleaning equipment: portable extractors, spotters, detailing extractors, truckmounts, flood-restoration machines and the wands and tools that go with them. Its Speedster LTD extractors add auto-fill, auto pump-out and chemical injection to the Speedster design.
The LTD5-LX is the 500 PSI LX-vacuum model in the Speedster LTD series. The LTD3 is the heated model with dual 3-stage vacuums, and the LTD12-LX moves to a 1,200 PSI pump regulated to 1,000 PSI for tile and grout, with LX vacuums rated at 145" of water lift.
Based in
Poway, California
Builds
Extractors, spotters, truckmounts and tools
Warranty
Up to 10 years on roto-molded housings and tanks
Out Of The Box: LTD5-LX
Mytee's "Out of the Box" film on the Speedster LTD series: 11-gallon tanks, garden-hose auto-fill, a 3.3 GPM auto pump-out and chemical injection from a 5 qt Big Mouth bottle, shared by all three LTD models.
The LTD5-LX is the unheated model with Mytee's LX vacuums: 182" of water lift for effective hose runs of 150', an adjustable 500 PSI pump, and the A145 Loading Buddy wheel kit in the box.

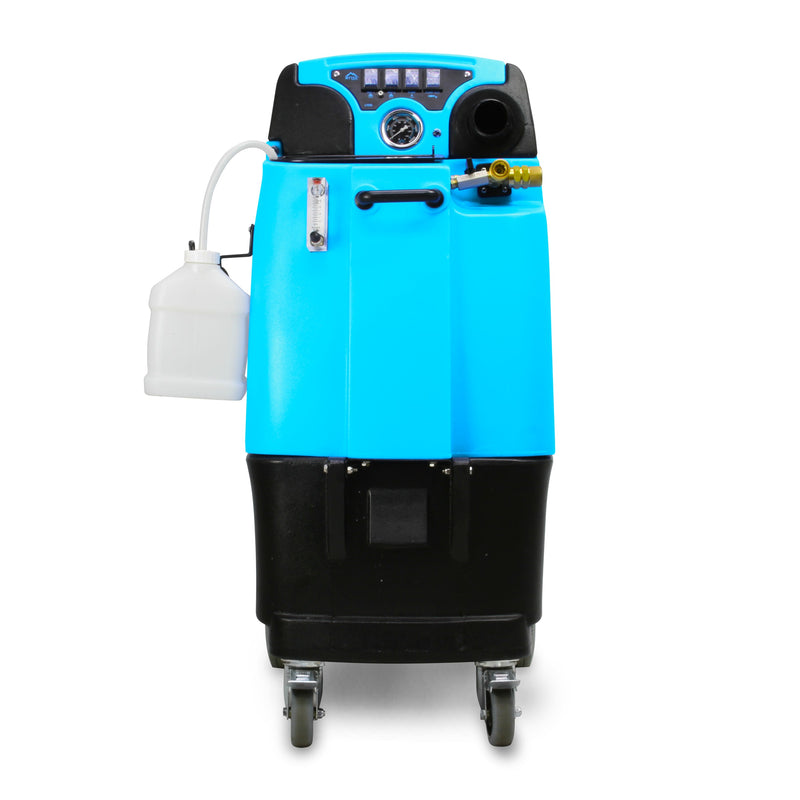

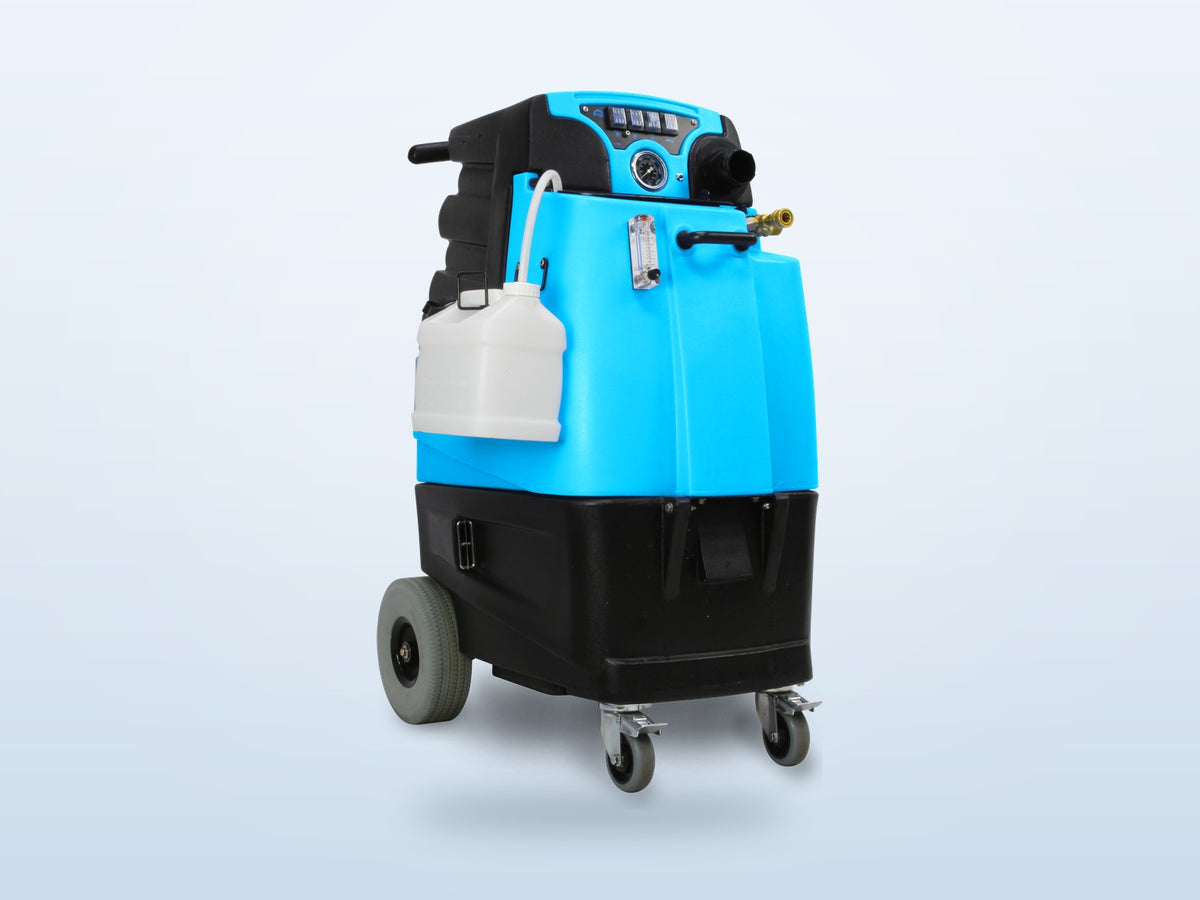

5 Qt Bottle For Chemical Injection

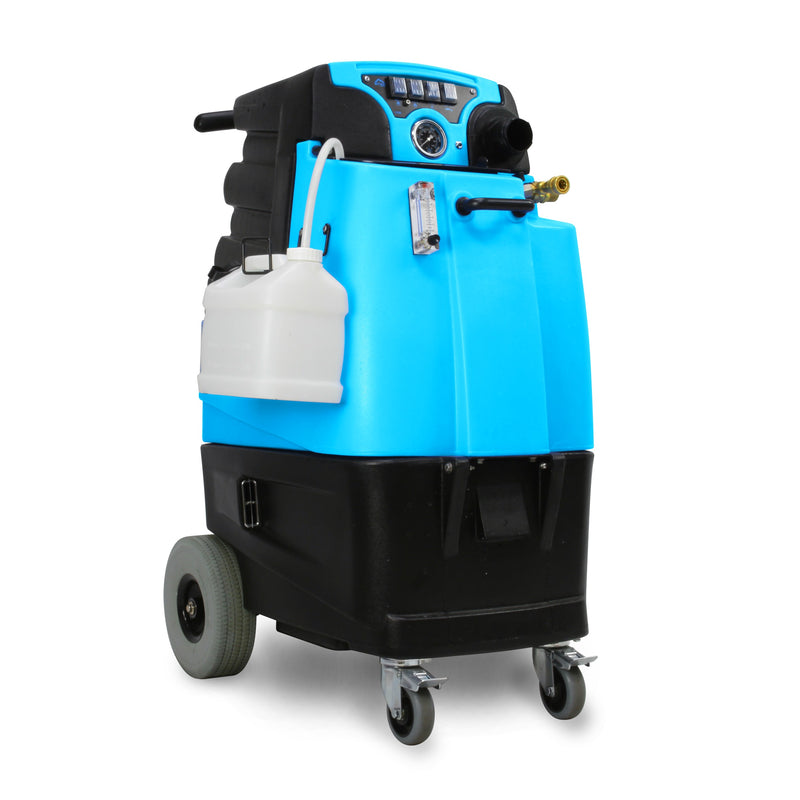

Front right view of the LTD5-LX with the included 5 qt Big Mouth bottle on its hanger beside the solution tank. Chemical injection meters concentrate from that bottle into the solution line while you clean.
Auto-fill tops up the 11-gallon solution tank from a garden hose and the 3.3 GPM pump-out empties recovery as you work, so a long job doesn't stop to refill or dump.

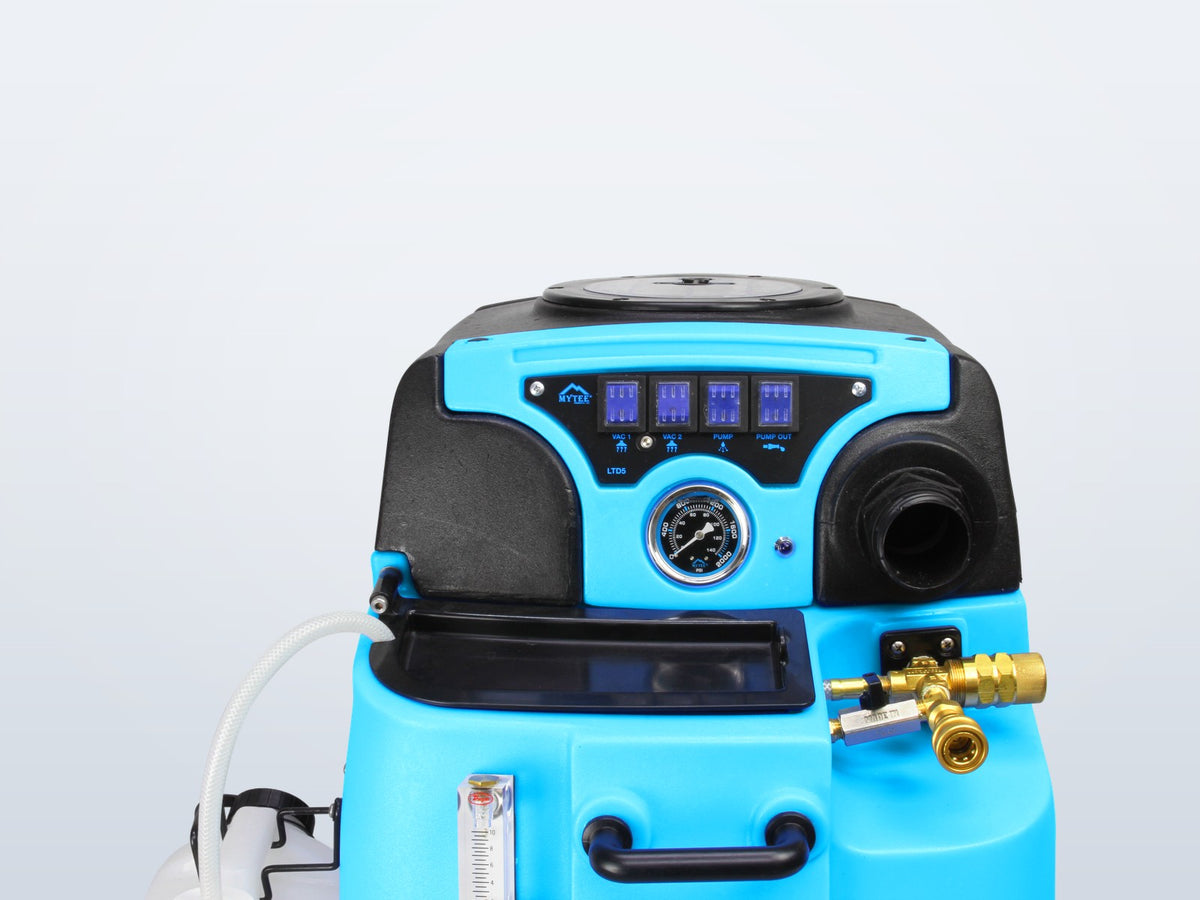

LTD5-LX Switch Plate And Gauge

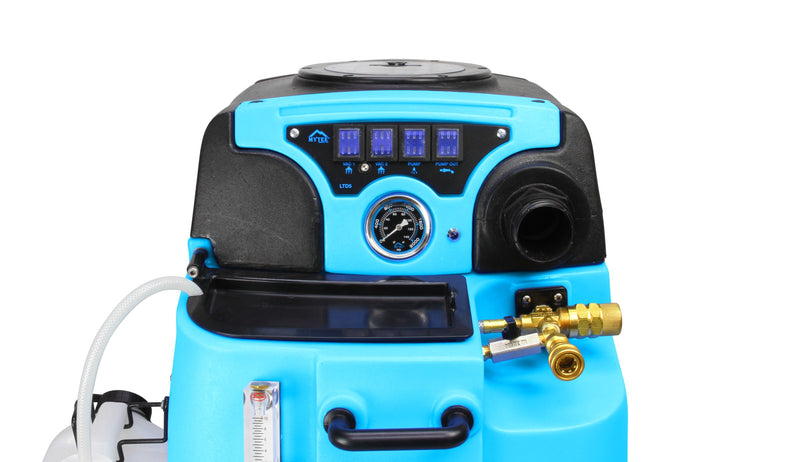

Close-up of the LTD5-LX's waist-high switch plate: four rocker switches, the pressure gauge and the brass solution quick-connect, set into the black upper housing above the blue tank.
The 500 PSI piston pump is adjustable from the waist-high regulator, so you set pressure for the job and read it on the gauge without bending. The two detachable 50' cords draw 20 A and 14 A.
Got Questions?
Find answers below or contact our support team.
Is the Mytee LTD5-LX heated?
No. The LTD5-LX is unheated. For hot-water cleaning, add Mytee's 240-120 Hot Turbo portable heater, or choose the heated LTD3.
How long a hose can I run?
Mytee rates the dual LX vacuums for effective hose runs of 150'.
How do the auto-fill and pump-out work?
Connect a garden hose to the auto-fill and the solution tank fills until it reaches the float switch. Connect a second hose to the pump-out, switch it on and open the valve, and the recovery tank drains at 3.3 GPM while you clean.
What is the chemical injection for?
Fill the included 5-quart bottle with concentrate and open the injection knob. The meter siphons chemical into the solution line at the rate you set.
What power does it need?
Two 50' 12/3 twist-lock cords, each on its own 20 A circuit. Cord 1 draws 20 A and cord 2 draws 14 A at 115 V.
What warranty does it have?
1 year parts and labor, 2 years on major components such as pumps, vacuum motors and heaters, and 10 years on roto-molded housings and tanks.
