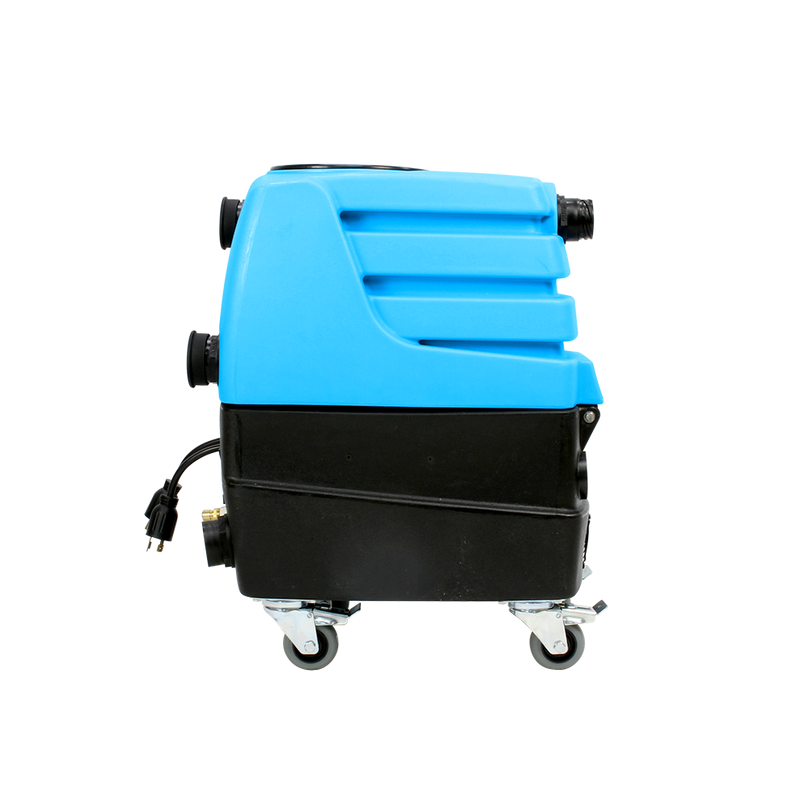

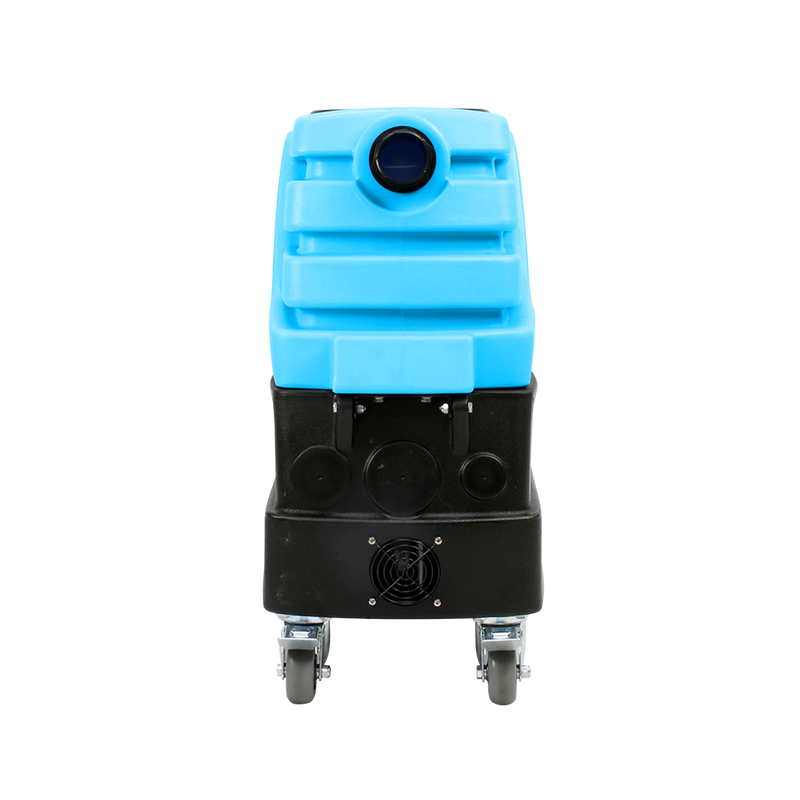

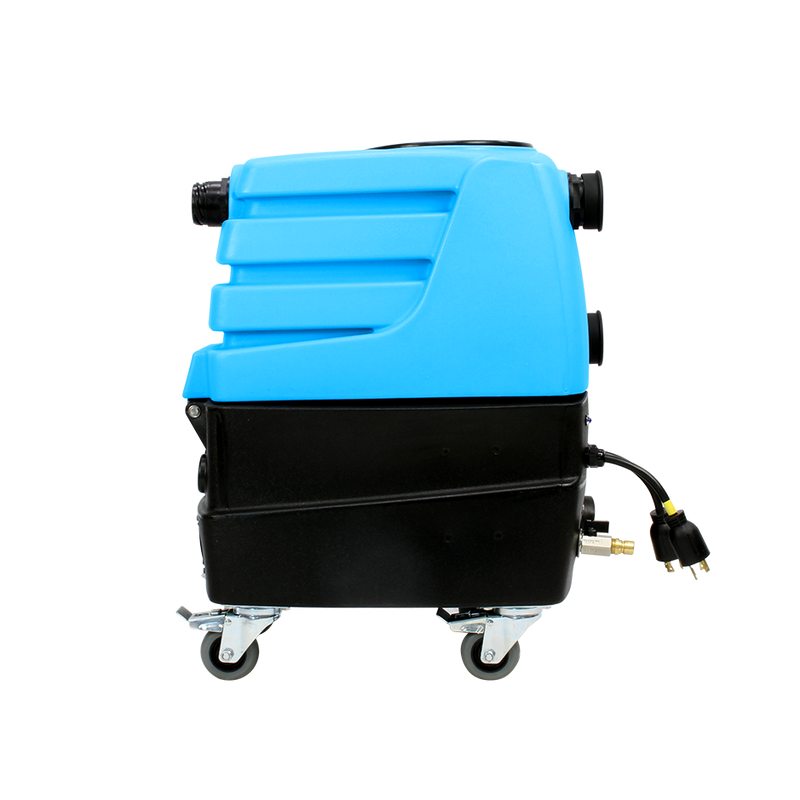

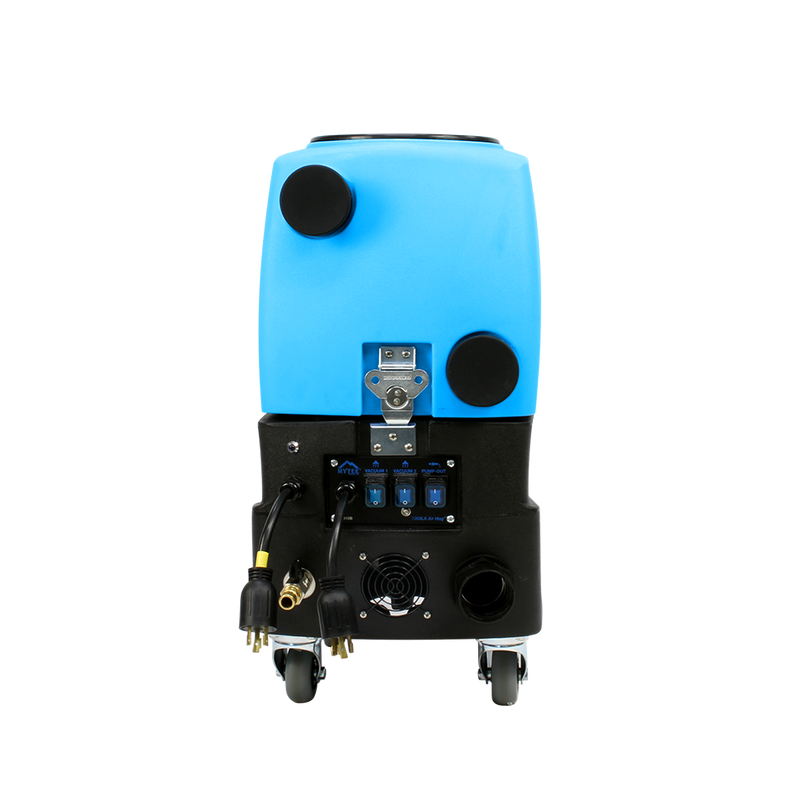

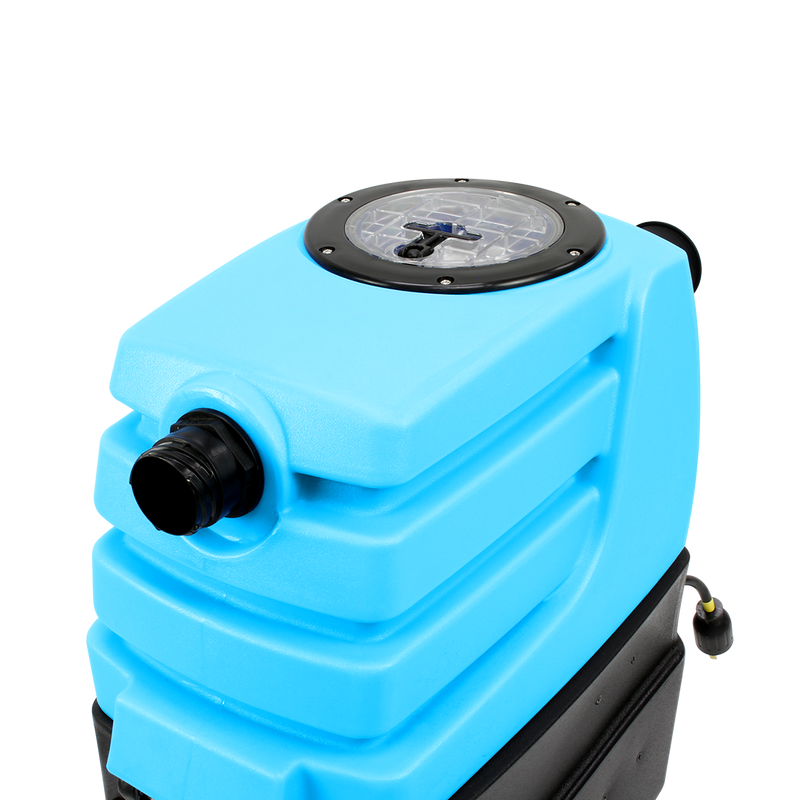

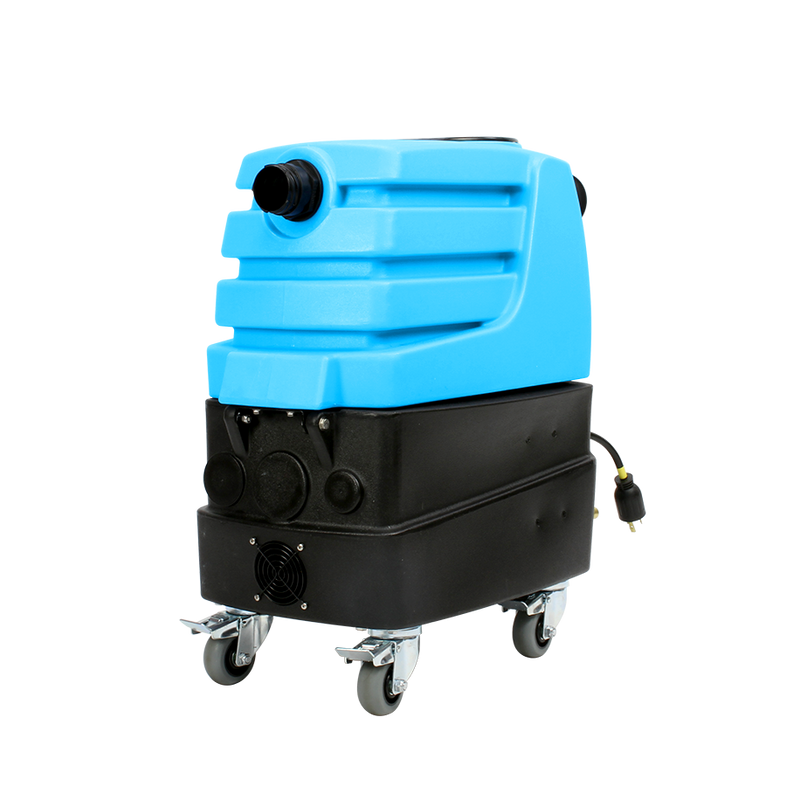

Mytee 7303LX Air Hog Vacuum Booster, 7 gal., LX vacuums

The Mytee 7303LX Air Hog Vacuum Booster is an essential addition to your cleaning equipment. Designed for professional-grade extraction, this powerful unit enhances your existing extractor's performance or functions as a stand-alone extractor. Featuring Dual LX vacuum motors, the Air Hog delivers an impressive 250 CFM and 182" water lift, enabling effective hose runs of up to 150 feet.

With its durable roto-molded polyethylene housing, automatic pump-out feature, and ability to "daisy chain" multiple units, the Air Hog is built for efficiency and versatility. Whether you're tackling large jobs or need extra suction power, this machine ensures superior performance and faster drying times.

What's Included:

• Dual 50' Extension Cords
• H110V 2″ to 2″ Female Vinyl Cuff-Lynx™ Coupler Reducer
• H141V 2″ to 1.5″ Vinyl Cuff-Lynx™ Reducer
• H136V 2″ to 2″ Male Vinyl Cuff-Lynx™ Coupler

Features

Powerful Dual LX Vacuum Motors
Delivers up to 250 CFM and 182" of water lift for high-performance suction and faster drying times.

Versatile Usage
Can be used as a vacuum booster, stand-alone extractor, or in a daisy-chain setup for larger jobs.

Effective Hose Run
Designed to handle up to 150 feet of hose without losing suction power.

Automatic Pump-Out System
Pumps out at 3.3 GPM, eliminating manual water disposal for continuous operation.

Durable Construction
Made from roto-molded polyethylene, ensuring rust and dent resistance.

Single Outlet Operation
Runs on just one power cord when necessary, still providing 180 CFM and 113" of water lift.

Easy Maneuverability
Equipped with 3" locking casters for stability and smooth movement.

What's Included

Included with Your Purchase:

• Dual 50' Extension Cords
• H110V 2″ to 2″ Female Vinyl Cuff-Lynx™ Coupler Reducer
• H141V 2″ to 1.5″ Vinyl Cuff-Lynx™ Reducer
• H136V 2″ to 2″ Male Vinyl Cuff-Lynx™ Coupler

Specifications

• Vacuum Tank: 7-gallon capacity
• Vacuum Motors: Dual Mytee LX™ Vacuum Motors
• Airflow: Up to 250 CFM
• Water Lift: 182 inches
• Effective Hose Run: Up to 150 feet
• Pump-Out Rate: 3.3 GPM
• Construction: Roto-molded polyethylene
• Power Cord: Dual 50' twist-lock 12/3 cords
• Electrical Requirements (110-120V 60Hz): 15 amps per cord
• Electrical Requirements (220-240V 50Hz): 7.5 amps per cord
• Weight: 53 lbs (24 kg)
• Dimensions: 25" x 14" x 27"
• Shipping Weight: 70 lbs (31.8 kg)
• Shipping Dimensions: 30.5" x 14.5" x 37"

FAQ

Q: Can I use the Air Hog with my truck mount?
A: Yes, but make sure to turn on the Air Hog's vacuum motors first before activating the truck mount vacuum motors to prevent damage.

Q: Can I run the Air Hog with only one power cord?
A: Yes, you can run a single vacuum motor on one cord, achieving 180 CFM and 113" of water lift.

Q: Can I daisy-chain multiple Air Hog units?
A: Yes, you can link multiple units for extended reach and more efficient cleaning on large jobs.

Q: Is there a 230V version available?
A: Yes, a 230V 50/60Hz version is available upon request.

Resources

Documents:

• Mytee 7303LX Air Hog Vacuum BoosterUser Manual
• Mytee 7303LX Air Hog Vacuum BoosterParts List (115V 60Hz version)
• Mytee 7303LX Air Hog Vacuum Booster Parts List (230V 50Hz version)
• Mytee 7303LX Air Hog Vacuum Booster Wiring Diagram
• Mytee 7303LX Air Hog Vacuum Booster Product Brochure
