The Teledyne FLIR A500-IS-DFOV-42-24 Image Streaming Fixed-Mount Thermal Imager is built for precision temperature monitoring in demanding industrial environments. Designed with flexibility in mind, this thermal camera integrates seamlessly into machine vision systems using standard protocols like GigE Vision, Modbus TCP, and MQTT. Its durable build and advanced streaming options make it a reliable choice for continuous monitoring, productivity analytics, and early fire detection.

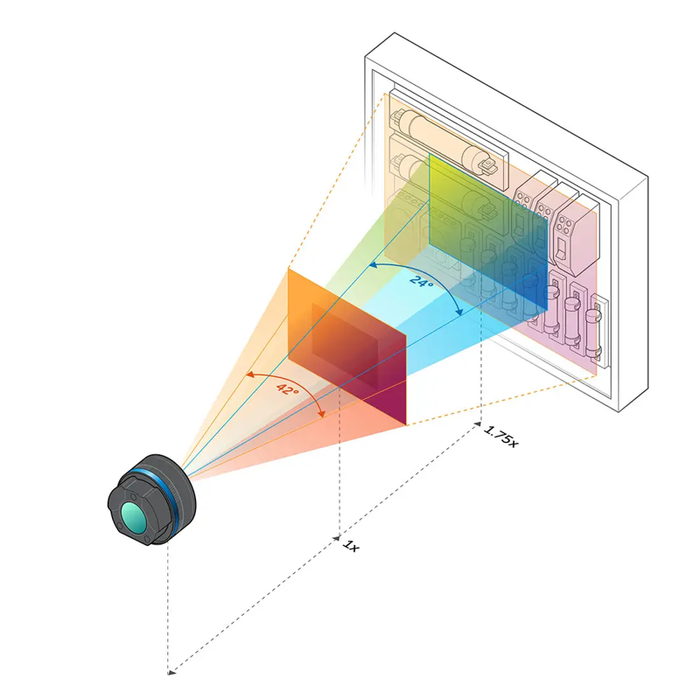

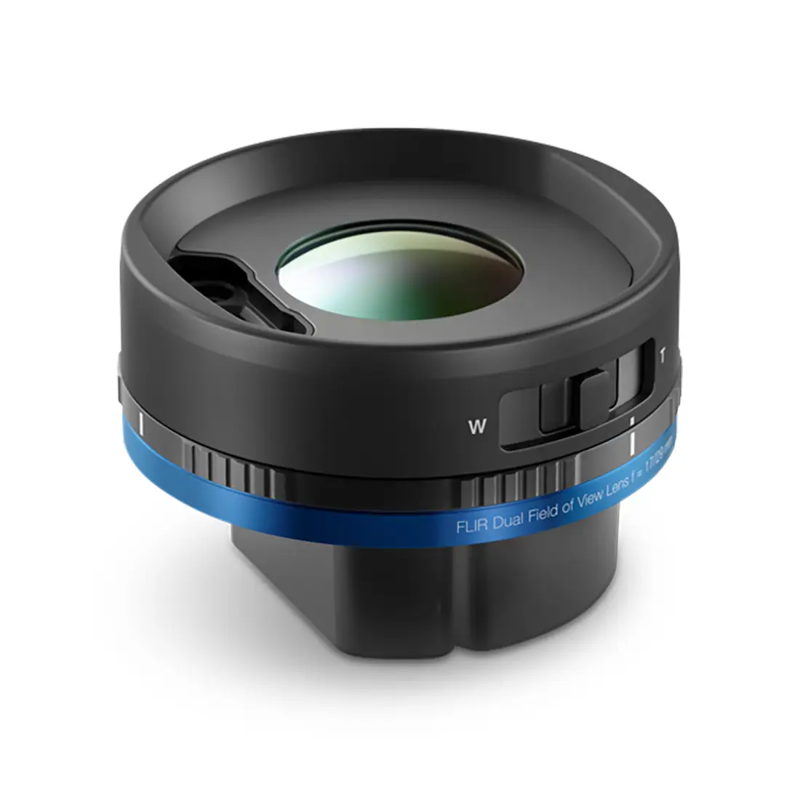

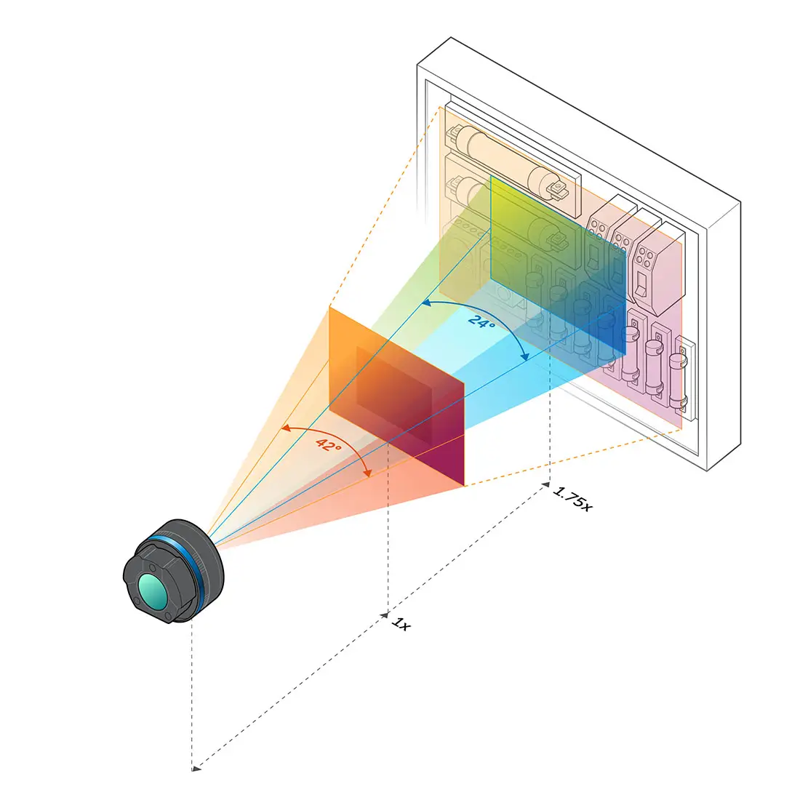

Equipped with a FlexView Dual Field of View 42°/24° lens, this camera allows operators to capture both broad overviews and detailed thermal data with a simple push/pull toggle mechanism. The wide FOV supports quick scanning of large assets, while the narrow FOV maximizes resolution for pinpoint accuracy, enabling users to remain safely outside arc flash zones during inspection. This smart lens technology boosts image detail, enhances measurement precision, and improves operational safety across a wide range of use cases.
What's Included:
- Teledyne FLIR A500-IS-DFOV-42-24 Thermal Imager
- FlexView DFOV 42°/24° Lens
- Power over Ethernet (PoE) Capability
- M12 8-pin X-coded Connector
- RP-SMA Connector
Features
Flexible Integration
Easily integrates into automation systems using EtherNet/IP, Modbus TCP, MQTT, and GigE Vision protocols.
Dual Field of View Lens
The FlexView DFOV 42°/24° lens provides both wide and narrow views for efficient scanning and detailed inspection.
Precision Temperature Measurement
Delivers accurate readings from -4° to 2732°F with ±3.6°F or ±2% accuracy.
Advanced Streaming Capabilities
Supports radiometric streaming via RTSP and GVSP using multiple encoding formats, including JPEG-LS and FLIR radiometric.
Remote Focus Control
Motorized, one-shot contrast and manual focus options allow precise control of image sharpness.
Optimized Safety
Narrow FOV allows operators to perform thermal inspections from outside hazardous zones.
Robust Design
Engineered for reliable performance in harsh industrial environments with wired and optional wireless connectivity.
Application Versatility
Ideal for quality assurance, predictive maintenance, and safety monitoring across a range of sectors.
What's Included
Included with Your Purchase:
- Teledyne FLIR A500-IS-DFOV-42-24 Thermal Imager
- FlexView DFOV 42°/24° Lens
- Power over Ethernet (PoE) Capability
- M12 8-pin X-coded Connector
- RP-SMA Connector
Specifications
-
IR Resolution: 464 x 348
-
Visual Resolution: 1280 x 960
-
Spectral Sensitivity: 30 mK to 50 mK (lens dependent)
-
Lens: FlexView DFOV 42°/24°
-
Focus Options: One-shot contrast, motorized, manual
-
Image Frequency: 30 Hz
-
Temperature Ranges: -4° to 248°F, 32° to 1202°F, 572° to 2732°F
-
Measurement Accuracy: ±3.6°F or ±2% of reading
-
Radiometric Streaming (RTSP): MONO 16, Compressed JPEG-LS, FLIR radiometric
-
Video Streaming (GVSP): Unicast, Multicast, Single Stream
-
Non-Radiometric Streaming: Visual/IR, YUV411/MONO 8, Uncompressed
-
Radiometric Streaming (GVSP): 464 x 348, MONO 16, FLIR Radiometric, JPEG-LS
-
Ethernet Interface: Wired, optional Wi-Fi
-
Connectors: M12 8-pin X-coded, RP-SMA
-
Ethernet Standard: 1000 Mbps, IEEE 802.3
-
Power: PoE IEEE 802.3af Class 3
-
Protocols: EtherNet/IP, Modbus TCP, MQTT
FAQ
Q: What is the temperature range this thermal imager can measure?
A: It can measure temperatures from -4°F to 2732°F across three selectable ranges.
Q: How does the FlexView DFOV lens enhance usability?
A: It allows quick switching between wide and narrow fields of view without physically changing lenses.
Q: Can I stream radiometric data using this camera?
A: Yes, it supports radiometric streaming via RTSP and GVSP protocols using FLIR’s formats.
Q: Is the Ethernet interface PoE compatible?
A: Yes, it supports Power over Ethernet via IEEE 802.3af Class 3.
