The Teledyne FLIR A500-PRO Professional Science Kit features an A500 Image Streaming Thermal Imaging Camera with a 464 x 348 IR resolution and a 30 Hz frame rate. This kit simplifies temperature measurement for researchers and engineers across applications including electronics, aerospace, and life sciences. With streamlined connections and multiple lens options, users can quickly view, acquire, and analyze thermal data using FLIR Research Studio software.
Equipped with 24° and 2.0X macro lenses, the A500-PRO offers automatic, remote, and manual focusing, as well as an innovative FLIR Macro Mode for superior flexibility. FLIR’s patented MSX image enhancement improves clarity by differentiating between features and components, while Wi-Fi transmission of radiometric data ensures untethered, efficient operation. Additionally, the included close-up lens enables precise thermal measurements of small components.

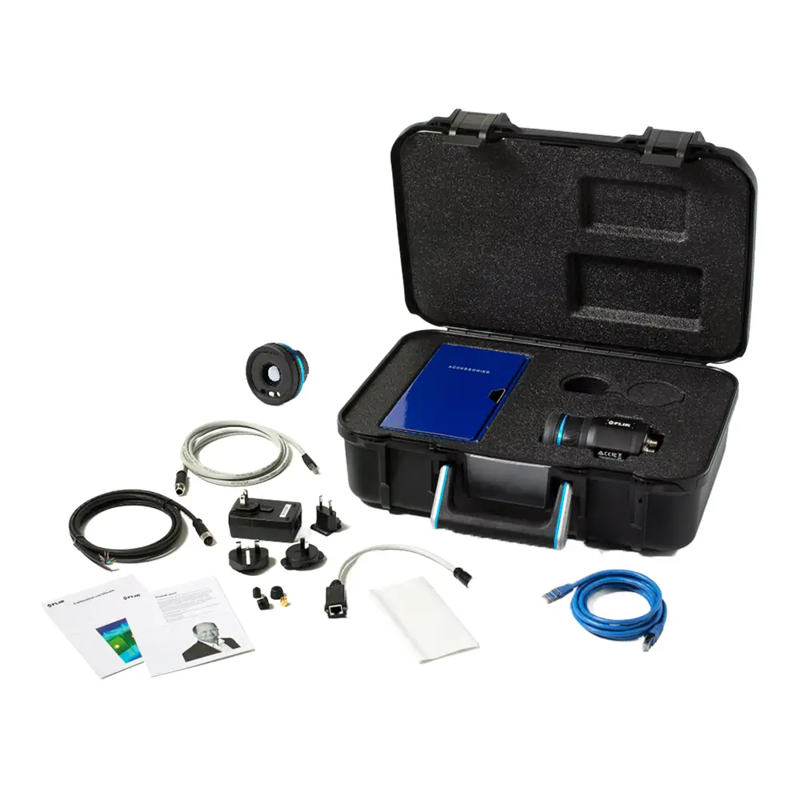

What's Included:
- 1 - A500 Image Streaming Thermal Camera
- 1 - 24° Lens
Features
High-Resolution Thermal Imaging
Capture clear, detailed thermal images with a 464 x 348 resolution and a 30 Hz frame rate for fast, accurate data acquisition.
Superior Focus Options
Obtain correct thermal measurements with crisp remote, automatic, and manual focusing capabilities.
Flexible Lens Choices
Multiple lens options, including a 24° lens and a 2.0X macro lens, ensure maximum pixel coverage for a variety of test targets.
Macro Mode Functionality
Accurately measure temperatures on small objects without switching lenses using the easy one-touch enabled FLIR Macro Mode.
Enhanced Image Clarity
Utilize patented FLIR MSX image enhancement to better differentiate between features and components.
Efficient Workflow
Streamline your work with FLIR Research Studio’s Connect➞View➞Record➞Analyze process for fast thermal analysis.
Cross-Platform Compatibility
Operate within your preferred operating systems and easily share thermal data globally in multiple languages.
Wireless Data Transmission
Stream fully radiometric compressed data via Wi-Fi directly to devices running FLIR Research Studio.
Secure Connections
Ensure reliable operation with M-style, positive lock connectors.
Power Over Ethernet
Eliminate the need for extra cables with standard PoE connectivity.
Remote Operation
Control camera parameters and recordings through Wi-Fi and digital I/O for convenient, flexible usage.
What's Included
Included with Your Purchase:
- 1 - A500 Image Streaming Thermal Camera
- 1 - 24° Lens
Specifications
-
IR Resolution: 464 x 348 pixels
-
Thermal Sensitivity (NETD): <30 mK to <50 mK (lens dependent)
-
Focal Plane Array: Uncooled Microbolometer
-
Detector Pitch: 17 µm
-
Spectral Range: 7.5 - 14.0 μm
-
Frame Rate: 30 Hz
-
Lens Options: 24° Lens and 2.0X Macro Lens
-
Focus Options: Remote, automatic, and manual focusing
-
Image Enhancement: FLIR MSX Technology
-
Wi-Fi Transmission: Fully radiometric compressed data streaming
-
Connectivity: Power over Ethernet (PoE) and M-style connectors
-
Software Compatibility: FLIR Research Studio
FAQ
Q: Can I use this kit with different operating systems?
A: Yes, FLIR Research Studio supports multiple operating systems, and data can be shared globally in various languages.
Q: Is the FLIR A500-PRO capable of wireless operation?
A: Yes, it can transmit fully radiometric compressed data over Wi-Fi and allows camera control through Wi-Fi and digital I/O.
Q: Does the Macro Mode require switching lenses?
A: No, the FLIR Macro Mode allows accurate thermal measurements on small objects without the need to change lenses.
Q: What image enhancement features are included?
A: The A500-PRO uses FLIR’s patented MSX technology to provide enhanced image clarity by overlaying visual details onto thermal images.
