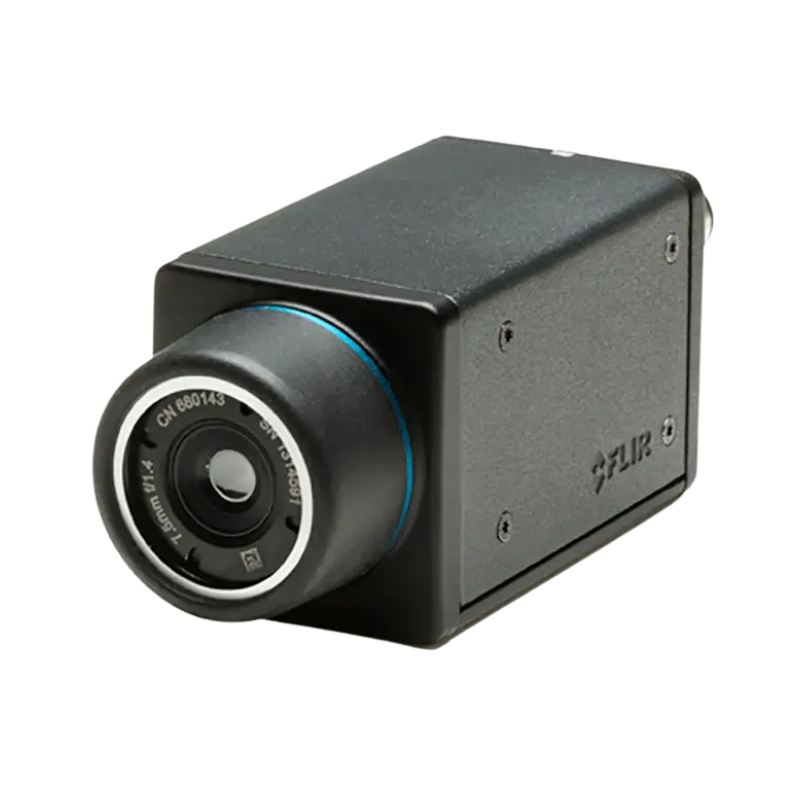

The Teledyne FLIR 73413-0102 A65sc Benchtop Test Kit, 640 x 512, 30 Hz is a compact and powerful thermal imaging solution designed for engineering and science laboratories where space is limited. Featuring an uncooled VOx microbolometer detector, the A65sc delivers thousands of precise temperature data points for comprehensive analysis compared to traditional thermocouples or spot pyrometers.
Its advanced capabilities, such as longwave infrared imaging, gigabit Ethernet communication, and seamless integration with industry-standard software, make it an indispensable tool for R&D and industrial testing applications. The included ResearchIR software, multiple lens options, and robust mounting configurations ensure flexibility and reliable performance across a variety of testing environments.
What's Included:
- 1 - A65 Thermal Camera, 640 x 512, 30 Hz
- 1 - Manual Focus 45° Lens
- 1 - ResearchIR Software
- 1 - Camera Tripod Adapter
- 1 - PoE Injector
Features
High-Resolution Thermal Imaging
Instant non-contact measurements across 327,680 (640 x 512) thermal pixels help eliminate guesswork in detecting hot spots.
Exceptional Accuracy and Sensitivity
Offers ±5% accuracy and thermal sensitivity of <50 mK, enabling spot-on detection of fine thermal variations.
Plug-and-Play Connectivity
GigE Vision and GenICam compliance allow for seamless integration with IMAQ Vision and other software packages.
Advanced Environmental Adaptability
Automatic atmospheric, optics, and emissivity corrections ensure accurate measurements in varying conditions.
Comprehensive Synchronization and Communication
Features Ethernet control and image streaming, PoE operation, and digital I/O for flexible system integration.
Durable and Lightweight Construction
Built with magnesium and aluminum housing, offering excellent heat dissipation and mechanical robustness.
Wide Temperature Range
Measures object temperatures from -40°C to 550°C (-40°F to 1022°F), ideal for a broad range of applications.
What's Included
Included with Your Purchase:
- 1 - A65 Thermal Camera, 640 x 512, 30 Hz
- 1 - Manual Focus 45° Lens
- 1 - ResearchIR Software
- 1 - Camera Tripod Adapter
- 1 - PoE Injector
Specifications
-
IR Resolution: 640 x 512 pixels
-
Image Frequency: 30 Hz
-
Detector Type: Focal Plane Array (FPA), Uncooled VOx Microbolometer
-
Field of View (FOV): 45° x 37°
-
Thermal Sensitivity/NETD: <0.05°C @ 30°C / 50 mK
-
Accuracy: ±5°C or ±5% of reading
-
Object Temperature Range: -25°C to 135°C (-13°F to 275°F) / -40°C to 550°C (-40°F to 1022°F)
-
Communication Interface: GigE Vision, GenICam compliant
-
Synchronization: Frame sync input/output
-
Power Supply: 12/24 VDC or Power over Ethernet (PoE)
-
Housing Material: Magnesium and aluminum
-
Mounting: Base mounting with 4 x M3 thread holes; tripod mounting UNC 1/4"-20
-
Operating Temperature Range: -15°C to 50°C (5°F to 122°F)
-
Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)
-
Shock Resistance: 25 g
-
Vibration Resistance: 2 g
-
Ingress Protection: IP40 with base support mounted
-
Digital Inputs/Outputs: Opto-isolated, programmable general-purpose I/O
-
Ethernet Protocols Supported: TCP, UDP, ICMP, IGMP, DHCP, GigEVision
-
Spectral Range: 7.5 - 13 µm
-
Detector Pitch: 17 µm
-
Focus Type: Fixed
FAQ
Q: What is the primary advantage of using the A65sc compared to a spot pyrometer?
A: The A65sc provides thousands of temperature measurement points in one image, offering broader and more reliable thermal analysis than single-point measurement devices.
Q: Can the A65sc be integrated into custom systems?
A: Yes, with GigE Vision and GenICam compliance, it can easily be integrated into many software platforms and custom applications.
Q: Does the A65sc include analysis software?
A: Yes, ResearchIR software is included for advanced thermal analysis.
Q: What power options does the A65sc support?
A: It can be powered via Power over Ethernet (PoE) or through an external 12/24 VDC supply.
Q: Is it suitable for outdoor use?
A: It is rated IP40 and should be protected from environmental exposure unless properly housed.
