The Teledyne FLIR A700-PRO Professional Science Kit delivers advanced thermal imaging capabilities for high-precision research and industrial applications. With a high-resolution 640 x 480 thermal imaging sensor operating at 30 Hz, this kit provides accurate and detailed temperature analysis, ideal for electronics, aerospace, and life science applications.
Designed for flexibility, the A700-PRO includes 24° and 2.0X macro lenses, enabling thermal capture at various ranges and scales without switching lenses. The camera features remote, automatic, and manual focusing, and supports FLIR Macro Mode for fine details. Integrated MSX image enhancement sharpens visuals by adding edge detail, and radiometric data can be streamed wirelessly using FLIR Research Studio software for seamless analysis and collaboration.
Power over Ethernet (PoE), Wi-Fi streaming, and M-style lock connectors simplify setup, while digital I/O allows for full camera control and data capture customization.

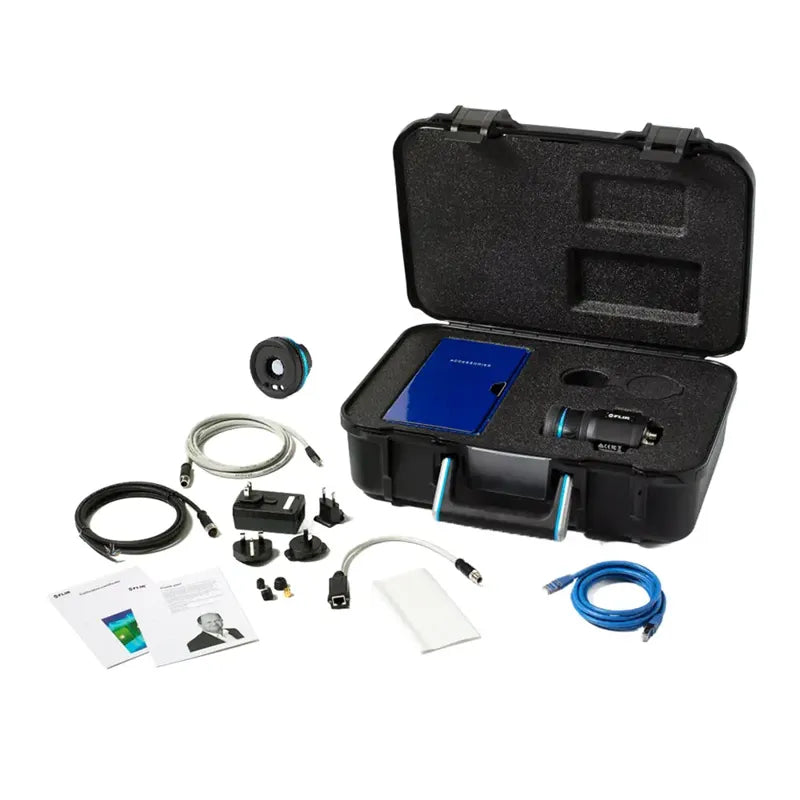

What's Included:
- 1 - Image Streaming Thermal Imaging Camera (A700-PRO)
- 1 - 24° Lens
- 1 - 2.0X Macro Lens
Features
High-Resolution Thermal Imaging
Captures thermal images in 640 x 480 resolution at 30 Hz for detailed temperature measurements and analysis.
Precision Focusing Options
Offers automatic, remote, and manual focusing modes to ensure crisp imaging in all scenarios.
FLIR Macro Mode Enabled
Accurately measures small object temperatures without lens changes using built-in Macro Mode.
Multiple Interchangeable Lenses
Includes 24° and 2.0X macro lenses for flexibility in close-up and wide-angle thermal analysis.
Enhanced Imaging with MSX
FLIR’s patented MSX technology overlays visible light detail on thermal images for improved clarity.
Wi-Fi Radiometric Streaming
Streams fully radiometric compressed data wirelessly to FLIR Research Studio for analysis.
Streamlined Workflow
FLIR Research Studio supports Connect➞View➞Record➞Analyze to streamline your process.
PoE Connectivity
Eliminates the need for additional cables using standard Power over Ethernet setup.
Versatile OS Support
Compatible with various operating systems and languages for global team collaboration.
Digital I/O Control
Allows users to automate and customize data capture and camera settings remotely.
Secure and Reliable Connectors
M-style locking connectors ensure firm and reliable hardware connections.
What's Included
Included with Your Purchase:
- 1 - Image Streaming Thermal Imaging Camera (A700-PRO)
- 1 - 24° Lens
- 1 - 2.0X Macro Lens
Specifications
-
IR Resolution: 640 x 480
-
Thermal Resolution/NETD: <30 mK to <50 mK (lens dependent)
-
Focal Plane Array: Uncooled Microbolometer
-
Detector Pitch: 12 µm
-
Spectral Range: 7.5 - 14.0 μm
-
Frame Rate: 30 Hz
FAQ
Q: Can I switch lenses for different types of analysis?
A: Yes, the kit includes both a 24° and 2.0X macro lens for flexible thermal imaging.
Q: Does this camera support wireless data streaming?
A: Yes, it can stream radiometric data over Wi-Fi directly to FLIR Research Studio.
Q: What software is used for analysis?
A: FLIR Research Studio is used to connect, record, and analyze thermal data.
Q: Is manual focusing available?
A: Yes, the camera supports remote, automatic, and manual focusing options.
