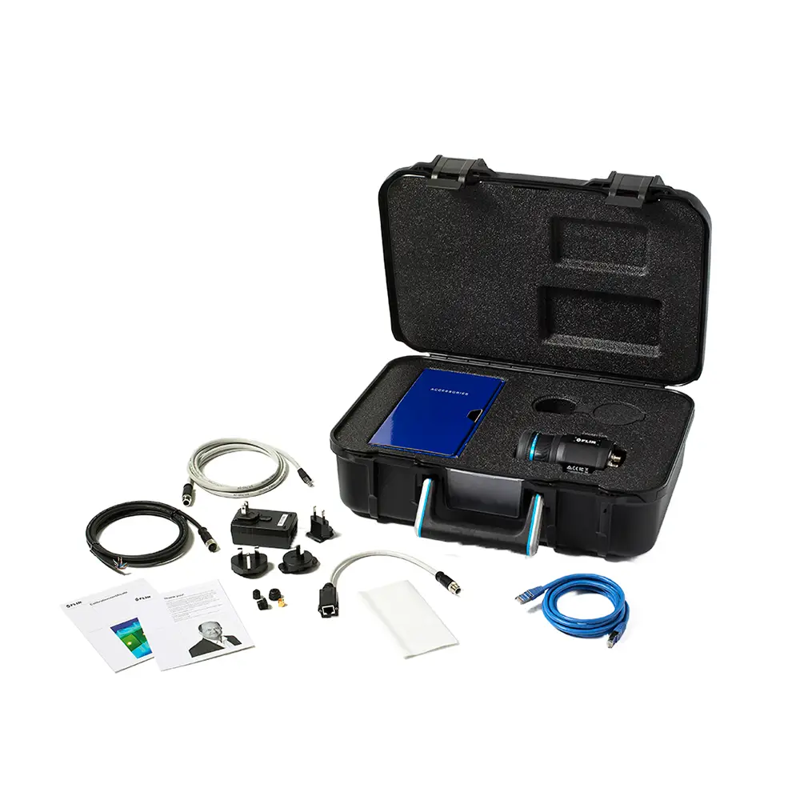

The Teledyne FLIR A700-STD Standard Science Kit features a high-performance A700 Image Streaming Thermal Imaging Camera with 640 x 480 IR resolution and a 30 Hz frame rate. Ideal for engineers and researchers, this kit provides reliable temperature measurements with crisp automatic, manual, and remote focusing. It includes a 24° lens and supports FLIR Macro Mode, allowing accurate analysis of small targets without the need for lens switching.
The kit integrates seamlessly with FLIR Research Studio software, enabling quick data acquisition and streamlined analysis. With support for PoE and M-style locking connectors, it ensures secure and efficient setup. Whether you're in electronics, aerospace, or life sciences, the A700-STD delivers precision and versatility in thermal imaging.
What's Included:
- 1 - Image Streaming Thermal Imaging Camera (A700-STD)
- 1 - 24° Lens
Features
High-Resolution Thermal Imaging
Delivers detailed thermal analysis with a 640 x 480 IR resolution sensor and 30 Hz frame rate.
Advanced Focusing System
Features automatic, manual, and remote focusing for optimal thermal image clarity.
Thermal Sensitivity
NETD ranges from less than 30 mK to 50 mK depending on the lens, ensuring accurate detection of subtle temperature differences.
Macro Mode Included
FLIR’s built-in Macro Mode provides precision measurements on small targets without lens changes.
Streamlined Workflow
Compatible with FLIR Research Studio for intuitive Connect➞View➞Record➞Analyze processing.
Flexible Software Compatibility
Use across multiple operating systems and languages for global collaboration.
Secure and Efficient Connectivity
Features M-style locking connectors and Power over Ethernet (PoE) for simplified cable management.
Comprehensive Control
Manage camera parameters and triggering through digital I/O interfaces.
Versatile Lens Options
Various lenses available to maximize pixel coverage on the object under test.
What's Included
Included with Your Purchase:
- 1 - Image Streaming Thermal Imaging Camera (A700-STD)
- 1 - 24° Lens
Specifications
-
IR Resolution: 640 x 480
-
Frame Rate: 30 Hz
-
Thermal Sensitivity (NETD): <30 mK to <50 mK (lens dependent)
-
Focal Plane Array: Uncooled Microbolometer
-
Detector Pitch: 12 µm
-
Spectral Range: 7.5 - 14.0 µm
-
Focusing: Automatic, Manual, and Remote
-
Macro Mode: One-touch enabled
-
Connectivity: M-style Lock Connectors, Power over Ethernet
-
Software: FLIR Research Studio
-
Lens Included: 24° Lens
FAQ
Q: What software is used with the A700-STD kit?
A: It works with FLIR Research Studio, which provides a simple workflow for capturing and analyzing thermal data.
Q: Can I use this camera on small electronic components?
A: Yes, the included Macro Mode allows for precise thermal measurements on small targets without switching lenses.
Q: Does the camera support PoE?
A: Yes, Power over Ethernet is supported, eliminating the need for additional power cables.
Q: What is the benefit of M-style locking connectors?
A: They ensure secure and reliable connections during critical testing procedures.
