The Teledyne FLIR E96-Dual-FOV-24-42 Advanced Thermal Imager delivers professional-grade thermographic capabilities with a versatile FlexView DFOV 42°/24° Lens. This dual field-of-view lens enables both wide-angle scans and detailed inspections without needing to change lenses manually—enhancing safety and efficiency in demanding environments.
Equipped with laser-assisted autofocus, MSX enhancement, and FLIR’s proprietary Vision Processing, the E96 provides high-clarity thermal imagery that supports accurate diagnostics. Its on-camera software supports voice annotations, image sketches, and FLIR Inspection Route for efficient workflows, while FLIR Ignite allows seamless image uploads to the cloud for storage and sharing.
The lightweight build and quick toggle between fields of view make this imager an optimal choice for professionals handling large-scale industrial assets or sensitive areas like arc flash zones.
What's Included:
- 1 - Advanced Thermal Imager (E96)
- 1 - FlexView DFOV 42°/24° Lens (T300953)
Features

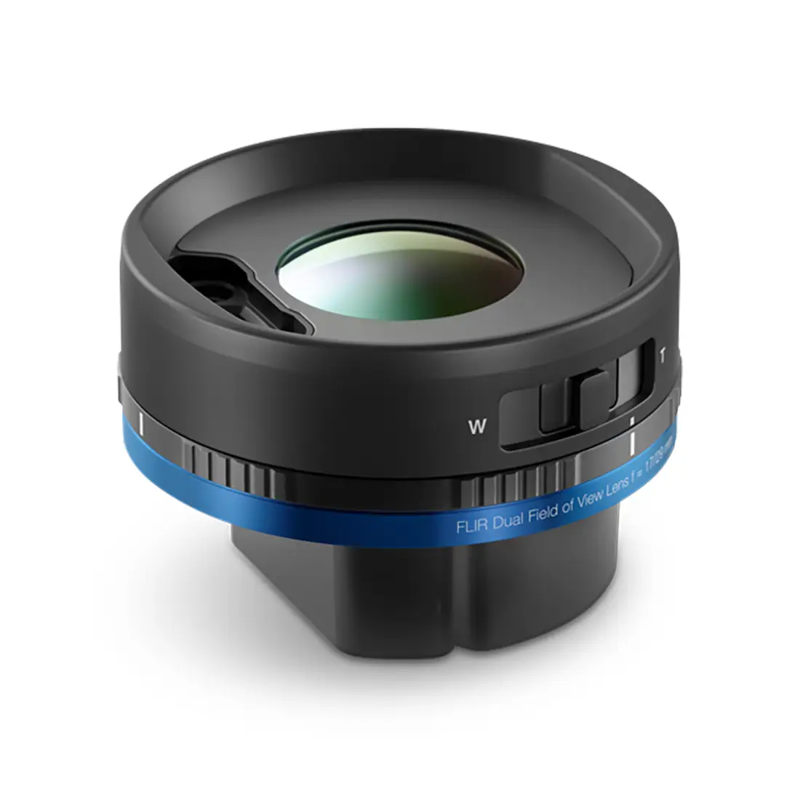

FlexView Dual Field of View Lens

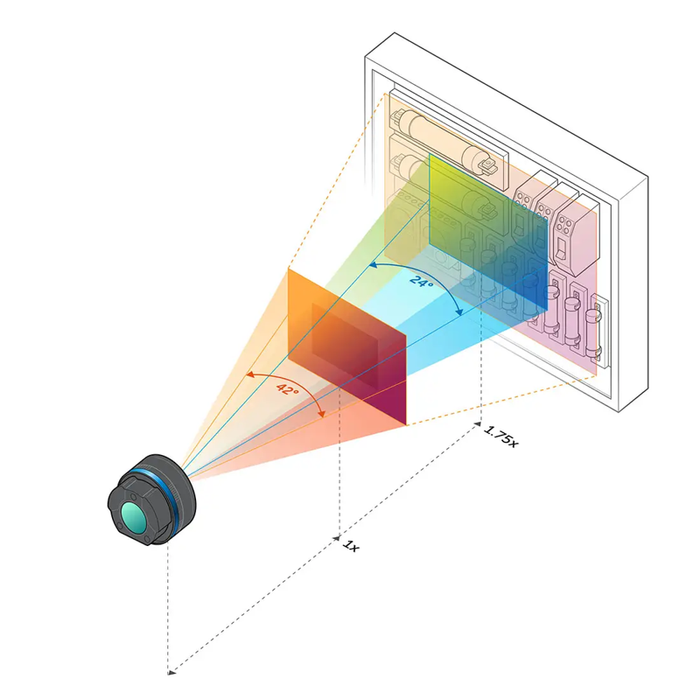

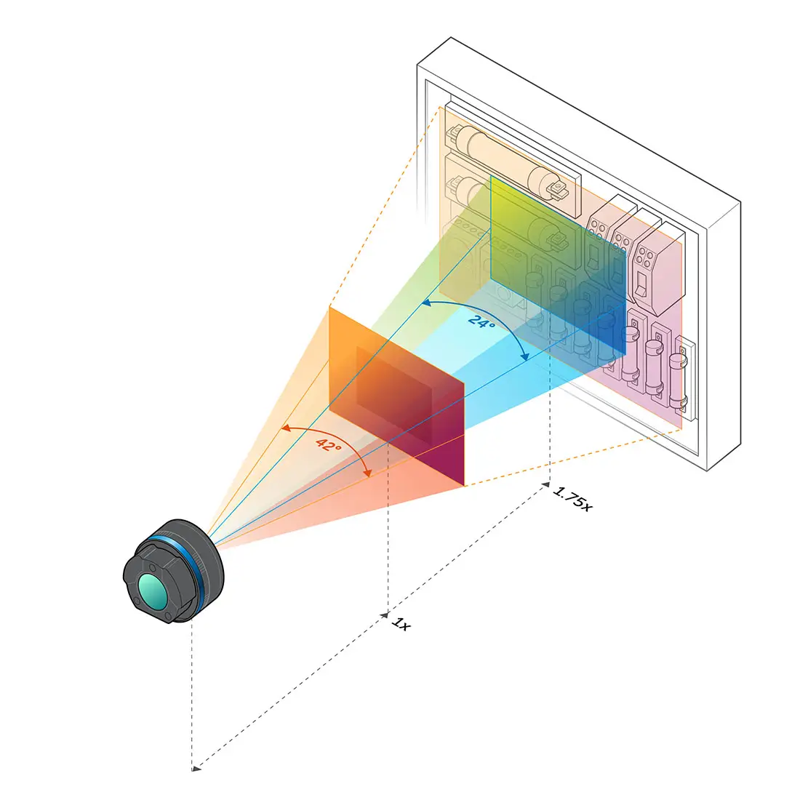

Switch instantly between 42° wide and 24° narrow fields of view with a simple push/pull mechanism—no lens swap required.
FLIR Vision Processing
Enhances thermal images using MSX and UltraMax to reveal subtle temperature differences with crisp clarity.
Laser-Assisted Autofocus
Ensures sharp images and precise temperature readings, reducing user error.
Wide-Angle and Precision Imaging
Use wide FOV for large-area scanning and narrow FOV for high-resolution detail without compromising workflow speed.
One-Touch Controls
Includes 1-Touch Level/Span and intuitive interface for quick parameter adjustments.
Rugged and Lightweight Design
Durable enough for industrial sites, yet light enough to carry easily across large job areas.
Wireless Data Sharing
Connect via Wi-Fi or Bluetooth for real-time image streaming and METERLiNK integration.
Thermal Studio and FLIR Ignite Integration
Provides seamless cloud uploads and powerful desktop reporting tools for advanced analysis.
Improved Safety in Hazard Zones
Narrow FOV lens allows inspections at safe distances—ideal for environments with electrical hazards.
Secure Lens Handling
Reduces risk of lens damage or contamination in harsh conditions by eliminating frequent lens changes.
What's Included
Included with Your Purchase:
- 1 - Advanced Thermal Imager (E96)
- 1 - FlexView DFOV 42°/24° Lens (T300953)
Specifications
-
IR Resolution: 640 x 480
-
UltraMAX Resolution: 1.2 MP effective pixels
-
Object Temperature Range: -4° to 248°F, 32° to 1202°F, 572° to 2732°F
-
Thermal Lens: FlexView Dual FOV 42°/24°
-
Detector Type: Uncooled microbolometer
-
Detector Pitch: 12 µm
-
Digital Zoom: 1 to 8x, continuous
-
Thermal Sensitivity/NETD: 30 mK at 86°F (42° lens)
-
Image Frequency: 30 Hz
-
Lens Identification: Automatic
-
Focus: Continuous with LDM, one-shot LDM, one-shot contrast, manual
-
Display: 640 x 480 (VGA) Dragontrail touchscreen
-
Digital Camera: 5 MP fixed focus with built-in LED lamp
-
Accuracy: ± 3.6°F/± 2% of reading
-
Spotmeter/Area: 3 ea. in live mode
-
Measurement Presets: No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
-
Laser Pointer: Yes
-
Laser Distance Meter: Yes
-
Voice Annotations: Via built-in mic or Bluetooth
-
Text Annotations: Touchscreen keyboard or predefined list
-
Image Sketch: Direct on-screen drawing
-
Distance/Area Measurement: Yes
-
METERLiNK: Yes, via Bluetooth
-
Compass/GPS: Yes, with automatic GPS tagging
-
Cloud Services: FLIR Ignite for secure image uploading and sharing
-
Video Recording: Radiometric JPEG, radiometric/non-radiometric streaming and recording over USB/Wi-Fi
-
Interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
FAQ
Q: How quickly can I switch between fields of view?
A: You can toggle between wide and narrow views in approximately 1 second using the push/pull mechanism.
Q: Does switching fields of view affect visual camera performance?
A: No, the visual image remains consistent and unaffected when changing thermal field of view.
Q: Can this device upload directly to the cloud?
A: Yes, FLIR Ignite allows direct Wi-Fi-based uploading to a secure cloud service.
Q: Is the E96 suitable for hazardous environments?
A: Yes, the narrow FOV allows safe inspection distances, minimizing exposure in arc flash zones.
Q: What is the resolution in UltraMAX mode?
A: UltraMAX delivers up to 1.2 MP effective thermal resolution for enhanced detail.
