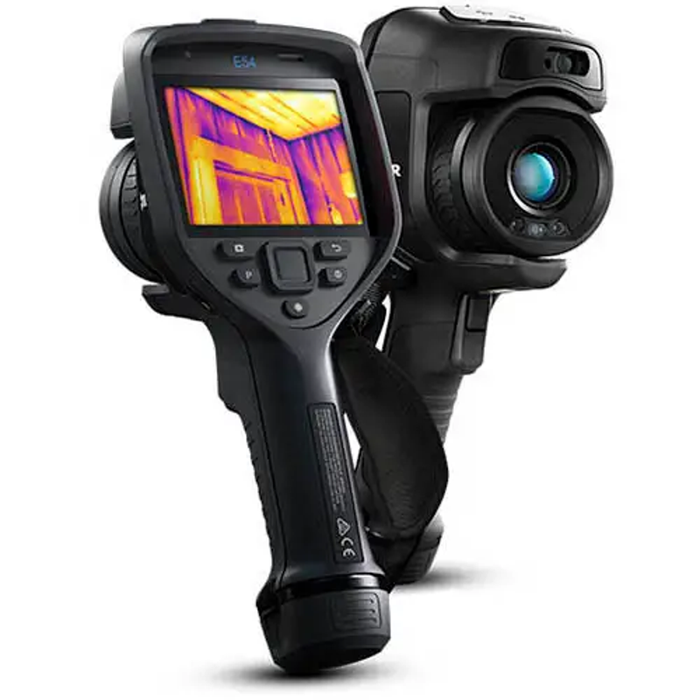

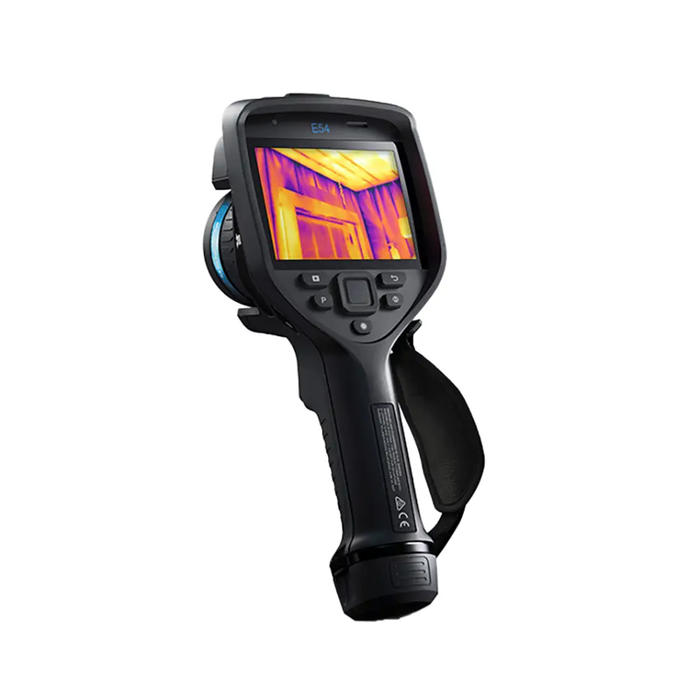

The Teledyne FLIR E54-24-NIST Advanced Thermal Imaging Camera with Viewfinder, MSX Technology, FLIR Thermal Studio Pro, NIST Calibration, and 24° Lens, 320 x 240, 30 Hz is a high-resolution thermal camera designed for a wide range of applications, including condition monitoring, electrical and mechanical inspections, and building diagnostics.
This camera features MSX Technology for enhanced image clarity and a 320 x 240 thermal resolution to accurately capture thermal data up to 650°C (1202°F). With the FLIR Inspection Route, users can perform systematic surveys and document findings with ease. The advanced design ensures a user-friendly experience for both novice and experienced thermographers.
The FLIR Inspection Route Creator Plugin enables users to plan and organize inspections, increasing efficiency and ensuring that all inspection points are covered systematically. Once the route is created, it can be exported to the camera, making it easy to collect and organize images in the field.
Features
Teledyne FLIR 1-Touch Level/Span
Instantly improves image contrast, highlighting potential electrical or mechanical issues.
Temperature Measurement
Measures temperatures up to 650°C (1202°F) and displays max/min temperatures on-screen.
Onboard Integration
Built-in microphone for voice annotation and the ability to generate reports directly from the camera.
High-Resolution Display
4-inch, 640 x 480 pixel touchscreen LCD with auto-rotation for better usability.
Communication Interfaces
Includes USB 2.0, Bluetooth, Wi-Fi, and DisplayPort for seamless connectivity.
Built-in GPS
Automatic image tagging for location-based documentation.
Radiometric IR Video Recording
Real-time radiometric IR video recording and streaming for detailed thermal data capture.
Durability
IP54 rated for dust and water resistance, with shock and vibration protection for rugged fieldwork.
What's Included
Included with Your Purchase:
- 1 - Advanced Thermal Imaging Camera with MSX Technology, 320 x 240, 30 Hz
- 1 - 24° Lens
- 1 - Small Viewfinder Eyecup
- 2 - Batteries
- 1 - Battery Charger
- 1 - Hard Transport Case
- 1 - Lanyard(s)
- 1 - Front Lens Cap
- 1 - Power Suppl(ies)
- 1 - SD Card (8 GB)
- 1 - USB 2.0 A to USB Type-C Cable
- 1 - USB Type-C to HDMI Cable
- 1 - USB Type-C to USB Type-C Cable
- 1 - License Card: FLIR Thermal Studio Pro (3 Month Subscription)
- 1 - FLIR Route Creator Software Plugin for Thermal Studio Pro (3 Month Subscription)
- 1 - User Manual
- 1 - NIST Certificate of Calibration
Specifications
-
IR Resolution: 320 x 240 pixels
-
Image Frequency: 30 Hz
-
Thermal Sensitivity/NETD: < 40 mK at 30°C (86°F)
-
Accuracy: ±2°C (±3.6°F) or ±2% of reading
-
Temperature Measurement Range: -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F)
-
Spot Meter: 3 in live mode
-
Battery Operating Time: > 2.5 hours
-
Storage Media: Removable SD card
-
Video Output: DisplayPort over USB Type-C
-
Communication Interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
-
Operating Temperature Range: -15 to 50°C (5 to 122°F)
-
Storage Temperature Range: -40 to 70°C (-40 to 158°F)
-
Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
-
Detector Type: Uncooled microbolometer, 17 µm
-
Digital Camera: 5 MP with built-in LED photo/video lamp
-
Digital Zoom: 1-4x continuous
-
Focus: Manual
-
Spectral Range: 7.5-14 µm
-
Global Positioning System (GPS): Automatic image tagging
FAQ
Q: What is the camera's resolution?
A: The Teledyne FLIR E54 offers a thermal resolution of 320 x 240 pixels.
Q: Can this camera be used for both building and electrical inspections?

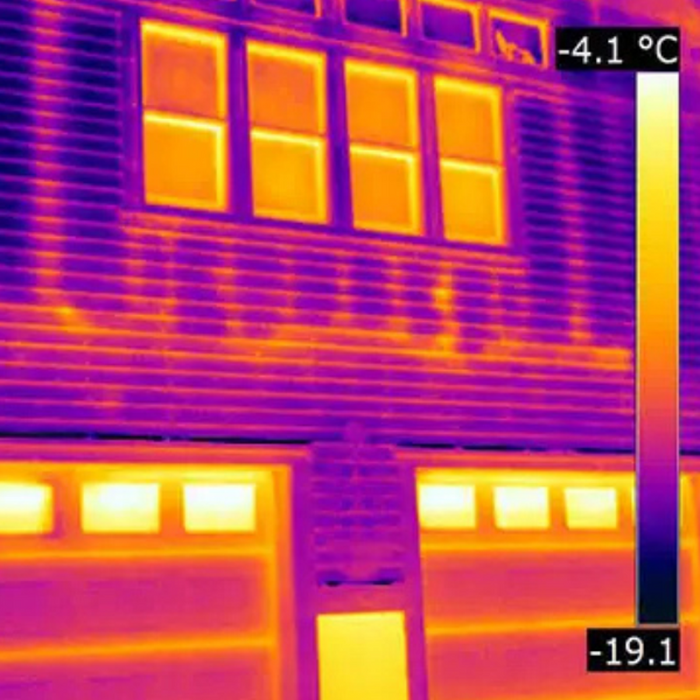

A: Yes, the FLIR E54 is suitable for detecting issues in both buildings (moisture, air leaks) and electrical/mechanical systems (hot spots, potential failures).
Q: Does the camera support image and video storage?
A: Yes, the camera stores images and videos on a removable SD card, with support for radiometric IR video recording and streaming.
Q: What software is included with the camera?
A: The camera includes a 3-month subscription to FLIR Thermal Studio Pro and FLIR Route Creator Software Plugin for efficient image editing and route planning.
