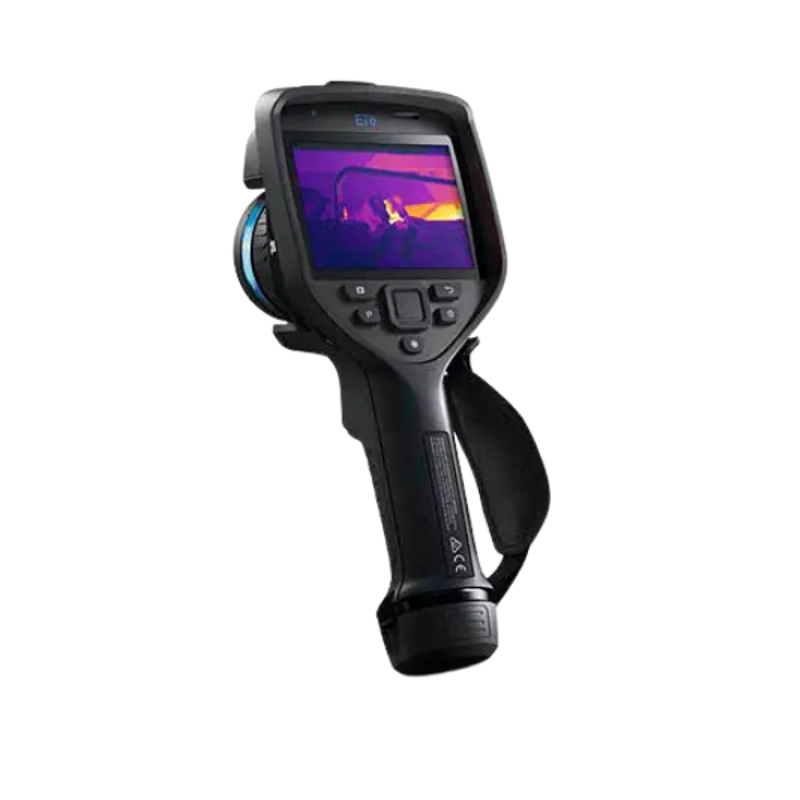

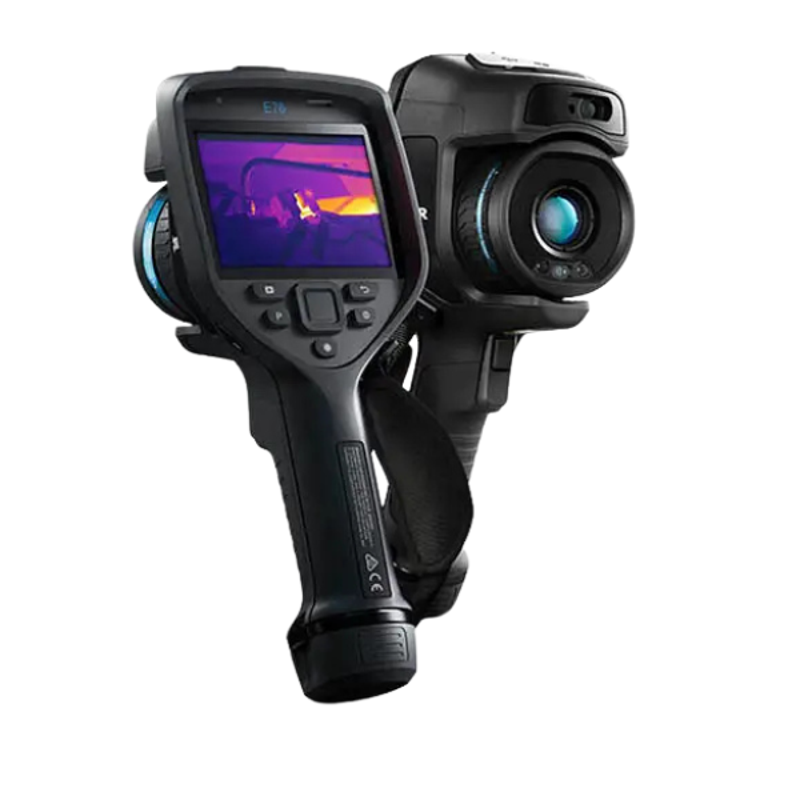

The Teledyne FLIR E76-24-42-NIST Advanced Thermal Imaging Camera delivers unmatched performance with superior image clarity, wide field of view, and advanced temperature range capabilities. Equipped with both 24° and 42° AutoCal lenses, it supports a wide variety of applications from close-up inspections of electrical components to wide-area surveys of buildings and infrastructure. With laser-assisted auto-focus, a vibrant 4" touchscreen, and radiometric image and video recording, this device ensures fast, accurate data collection and analysis.
Users benefit from Teledyne FLIR’s advanced MSX technology, which overlays visible details on thermal imagery for clearer context, and UltraMax enhancement, which quadruples the number of thermal pixels captured. The onboard FLIR Thermal Studio Pro software streamlines image reporting, while the Inspection Route Creator plugin enables structured, efficient data collection over large areas.

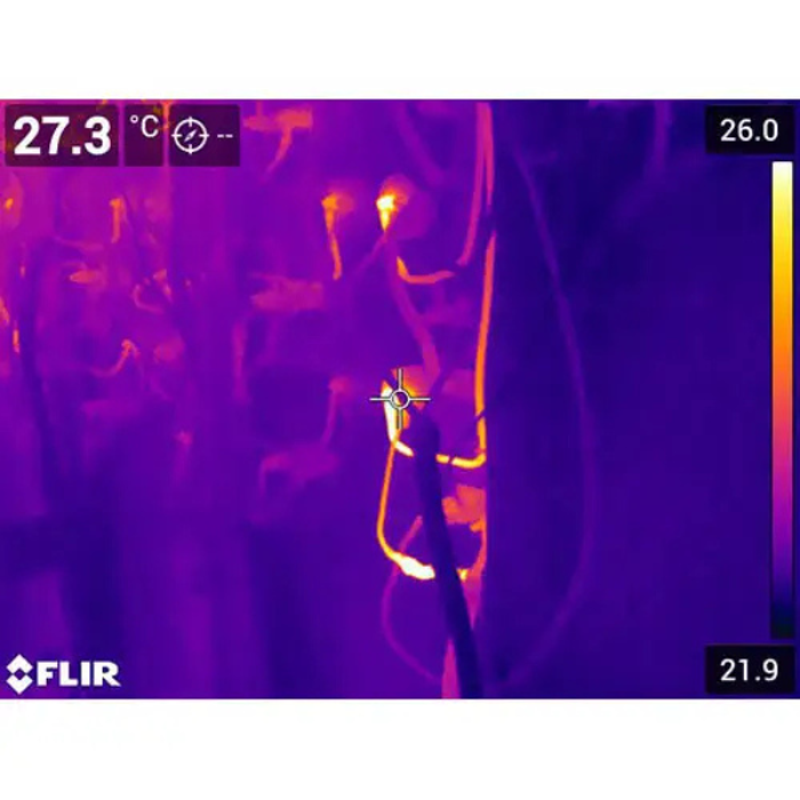

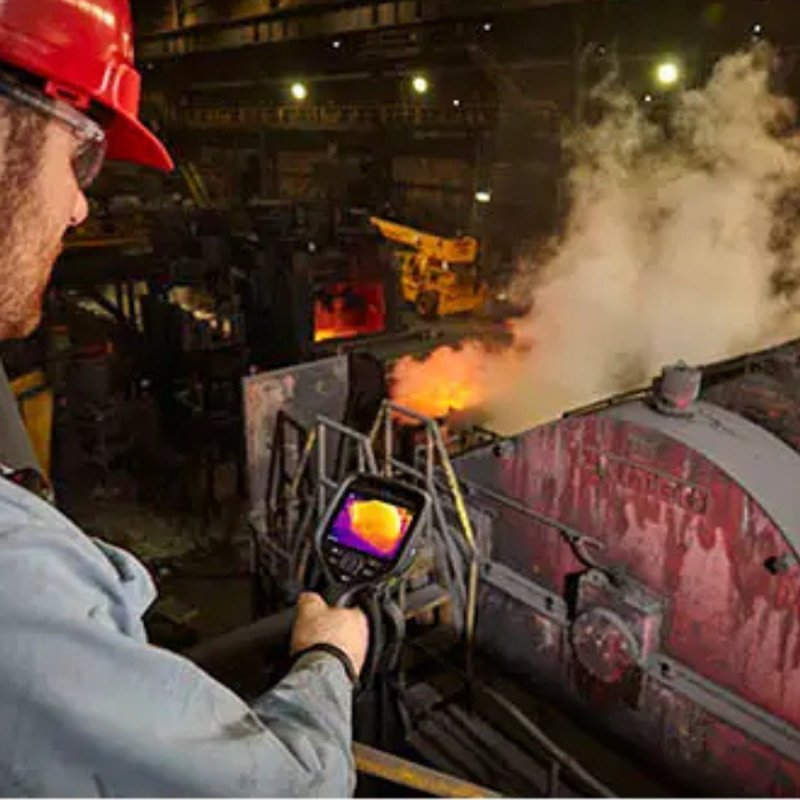

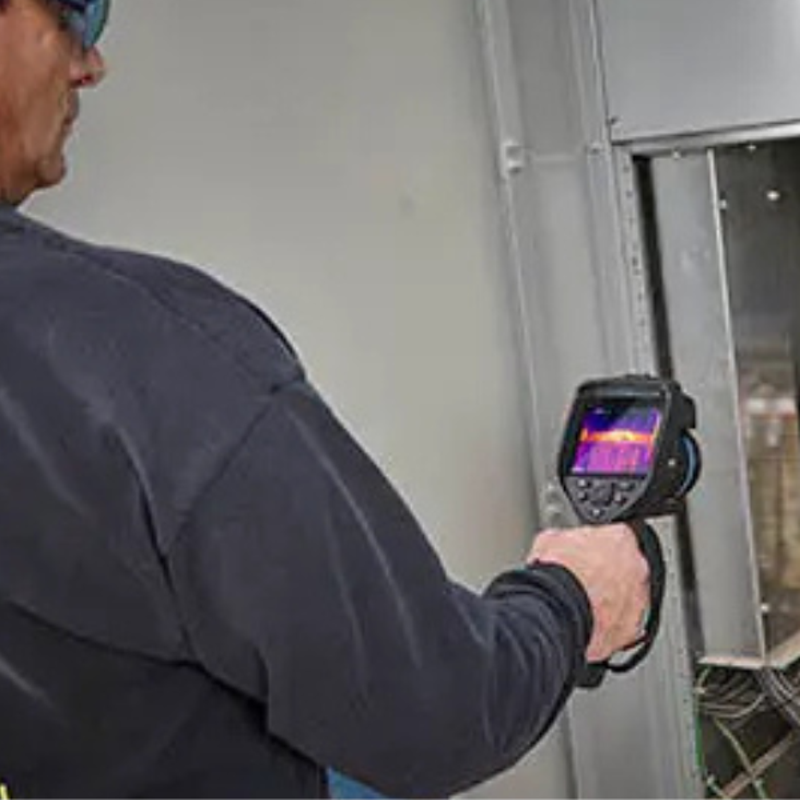

Whether you're conducting predictive maintenance on electrical systems, detecting moisture intrusion in buildings, or working in harsh environments, the E76 provides the precision and reliability professionals demand.
What's Included:
- Teledyne FLIR E76 Thermal Imaging Camera
- 24° Lens (17 mm)
- 42° Wide-Angle Lens (10 mm)
- FLIR Thermal Studio Pro License
- NIST Certificate of Calibration
- Rechargeable Li-ion Battery
- Battery Charger
- Removable SD Card
- USB-C Communication Cable
- Hard Carrying Case
Features
Interchangeable AutoCal Lenses
Includes both 24° and 42° lenses, providing flexibility for close and wide-angle inspections with automatic lens recognition and calibration.
High Thermal Resolution
Captures detailed thermal images at 320 x 240 resolution, enhanced further by MSX and UltraMax technologies.
MSX Technology
Multi-Spectral Dynamic Imaging overlays visible-light edges on thermal images for increased clarity and context.
UltraMax SuperResolution
Captures 16 images in less than a second and enhances clarity and pixel count for higher detail and measurement accuracy.
Large Touchscreen Display
Features a 4-inch 640 x 480 touchscreen with auto-rotation for easy viewing in any orientation.
Built-in Voice and Text Annotation
Tag thermal images with voice notes or text via built-in mic or Bluetooth connection.
Laser Distance Meter and Pointer
Allows for precise distance measurement and pointing to targets of interest.
Thermal Studio Pro + Inspection Route
Streamline large inspections with guided routing and structured data collection using Teledyne FLIR software tools.
Multiple Connectivity Options
Supports USB 2.0, Bluetooth, Wi-Fi, and DisplayPort over USB-C for easy data transfer and streaming.
Rugged and Reliable
IP54-rated with resistance to shock, vibration, and temperature extremes for dependable performance in demanding environments.
What's Included
Included with Your Purchase:
- Teledyne FLIR E76 Thermal Imaging Camera
- 24° Lens (17 mm)
- 42° Wide-Angle Lens (10 mm)
- FLIR Thermal Studio Pro License
- NIST Certificate of Calibration
- Rechargeable Li-ion Battery
- Battery Charger
- Removable SD Card
- USB-C Communication Cable
- Hard Carrying Case
Specifications
-
IR Resolution: 320 x 240 pixels
-
Thermal Sensitivity/NETD: <50 mK at 30°C (86°F)
-
Image Frequency: 30 Hz
-
Spectral Range: 7.5–14 µm
-
Focus: Continuous LDM, One-shot LDM, One-shot contrast, Manual
-
Display: 4 in. 640 x 480 touchscreen LCD
-
Zoom: 1–4x continuous digital
-
Video Output: DisplayPort over USB Type-C
-
Battery Operating Time: Over 2.5 hours at 25°C (typical use)
-
Storage Media: Removable SD card
-
Voice Annotation: 60-second recording via mic or Bluetooth
-
Measurement Accuracy: ±2°C (±3.6°F) or ±2% of reading
-
Object Temperature Range: -20 to 120°C, 0 to 650°C, optional 300 to 1000°C
-
Communication: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
-
Shock/Vibration Resistance: 25g (IEC 60068-2-27), 2g (IEC 60068-2-6)
-
Environmental Rating: IP54 (IEC 60529)
-
Storage Temperature: -40 to 70°C (-40 to 158°F)
-
Operating Temperature: -15 to 50°C (5 to 122°F)
-
Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
-
Detector Type: Uncooled microbolometer, 17 µm pitch
-
GPS: Automatic image tagging
-
Image Formats: Standard JPEG with embedded measurement data
-
Radiometric Video: Real-time radiometric recording (.csq) and streaming over UVC
-
Non-Radiometric Video: H.264 or MPEG-4 over Wi-Fi, MJPEG over UVC
-
Picture-in-Picture: Resizable and movable overlay
-
Lens Identification: Automatic
-
Minimum Focus Distance: 1.0 m
FAQ
Q: What is the difference between the 24° and 42° lenses?
A: The 24° lens is ideal for mid-range inspections from safe distances, while the 42° wide-angle lens captures broader scenes like rooftops or large equipment in one frame.
Q: What does UltraMax do?
A: UltraMax increases image resolution by combining multiple captures into a single enhanced image with four times the pixel count.
Q: Can the camera capture both IR and visual images?
A: Yes, it supports infrared, visual, MSX, and Picture-in-Picture modes.
Q: Is the camera rugged enough for fieldwork?
A: Absolutely, it's IP54-rated and built to withstand shock, vibration, and extreme temperatures.
Q: How does the Inspection Route feature help?
A: It guides users along pre-defined inspection paths, ensuring efficient data collection and report organization.
