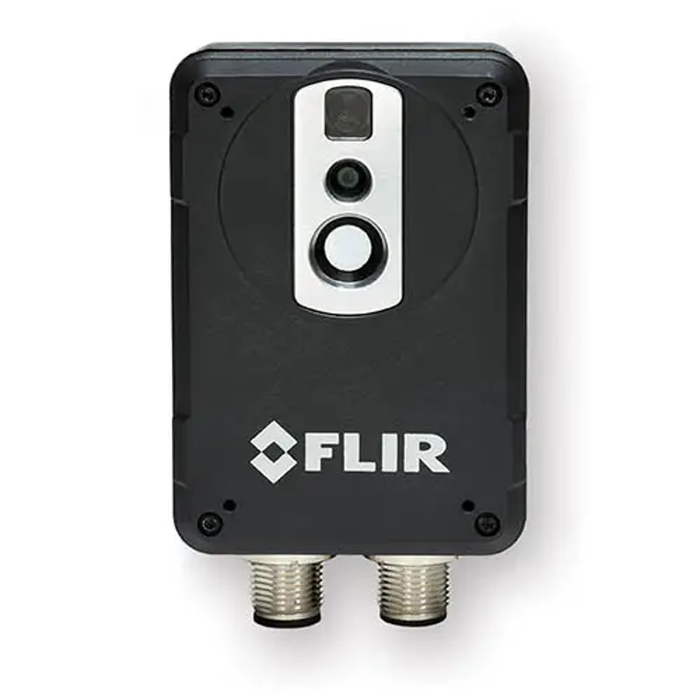

The Teledyne FLIR AX8 Thermal Imaging Camera for Continuous Condition and Safety Monitoring, 80 x 60 is a compact, fixed thermal sensor designed for real-time monitoring of critical equipment. By combining both thermal and visible imagery, it allows users to detect potential issues before they result in costly downtime or safety hazards.
Ideal for electrical cabinets, production lines, data centers, and transit systems, the AX8 offers continuous condition monitoring and automatic alerts for abnormal temperature variations. Its small form factor makes it easy to integrate, while the embedded analytics and alarm capabilities provide proactive fault detection without the need for manual inspection.
What's Included:
Features
Compact Design
Lightweight and slim profile makes it easy to install in tight or enclosed spaces for seamless integration.
Dual-Sensor Imaging
Combines thermal and visible light imagery for enhanced monitoring and diagnostics.
Continuous Monitoring
Provides around-the-clock temperature tracking and alerts, reducing the need for manual thermal scans.
Advanced Radiometric Imaging
Captures 4800 radiometric pixels for thermal readings from -10°C to 150°C.
High Thermal Sensitivity
Detects subtle temperature differences with thermal sensitivity under 0.10°C, suitable for precise diagnostics.
Wide Field of View
Captures a broad area, enabling full visibility of electrical or mechanical components at a glance.
Software Integration
Includes Teledyne FLIR Tools software for professional-level thermal analysis and reporting.
Live Video Streaming
Streams video through Teledyne FLIR Tools, a feature typically not found in compact thermal cameras.
What's Included
Included with Your Purchase:
Specifications
-
IR Resolution: 80 x 60 pixels
-
Object Temperature Range: 14°F - 302°F (-10°C to 150°C)
-
Thermal Sensitivity: <0.10°C at +86°F / 100 mK
-
Catalog Number: 71201-0101
-
Condition: NEW
-
UPC: 845188009373
-
Model Number: AX8
FAQ
Q: What is the primary application for the FLIR AX8?
A: It is designed for continuous thermal monitoring in environments like electrical cabinets, factories, and data centers.
Q: Can the AX8 stream video?
A: Yes, it supports video streaming via Teledyne FLIR Tools software.
Q: Does the AX8 come with analysis software?
A: Yes, it includes the Teledyne FLIR Tools for thermal image analysis and reporting.
Q: How is the unit powered and connected?
A: The AX8 uses Ethernet for both data transfer and power when configured with compatible accessories.
