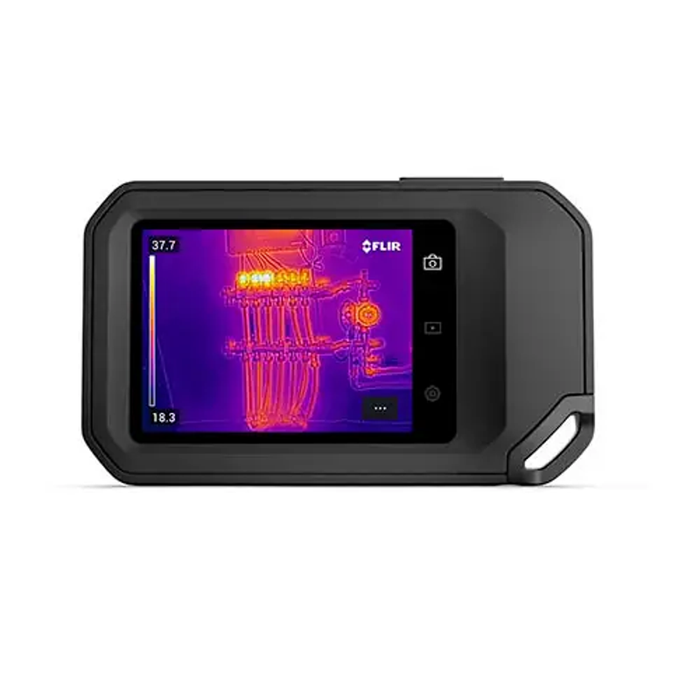

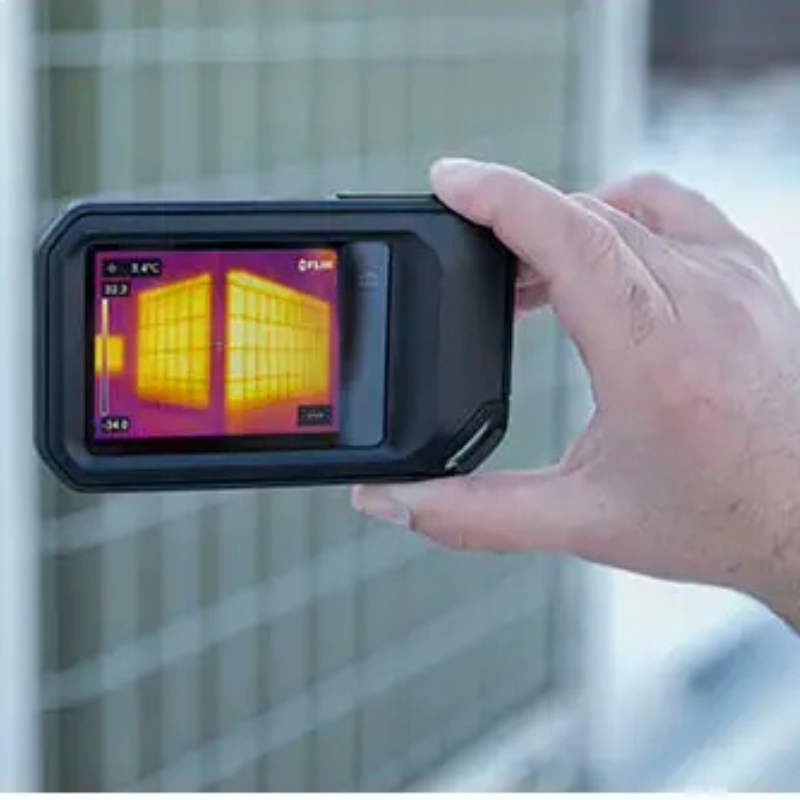

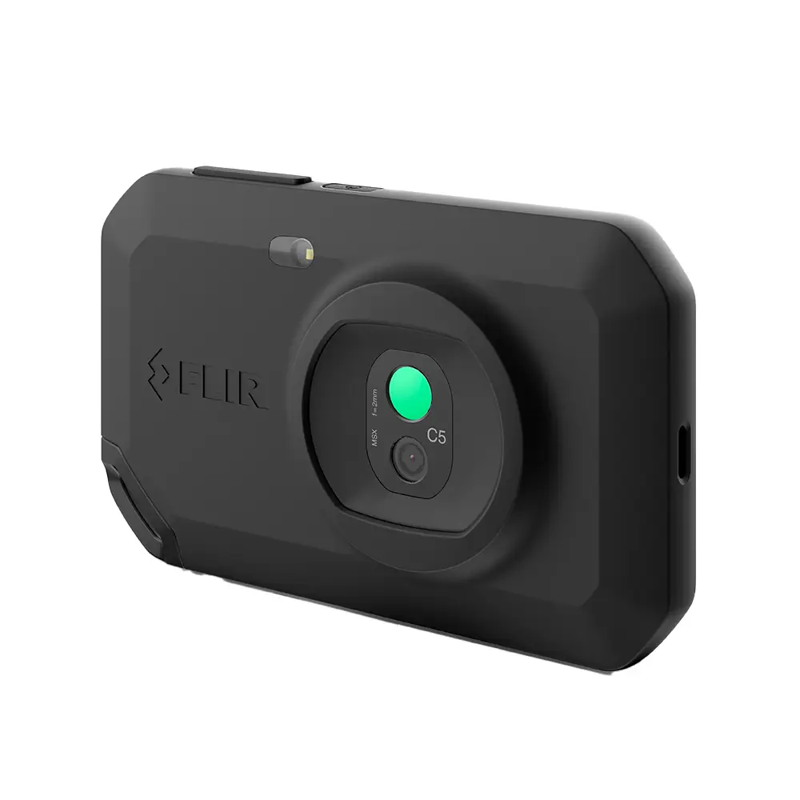

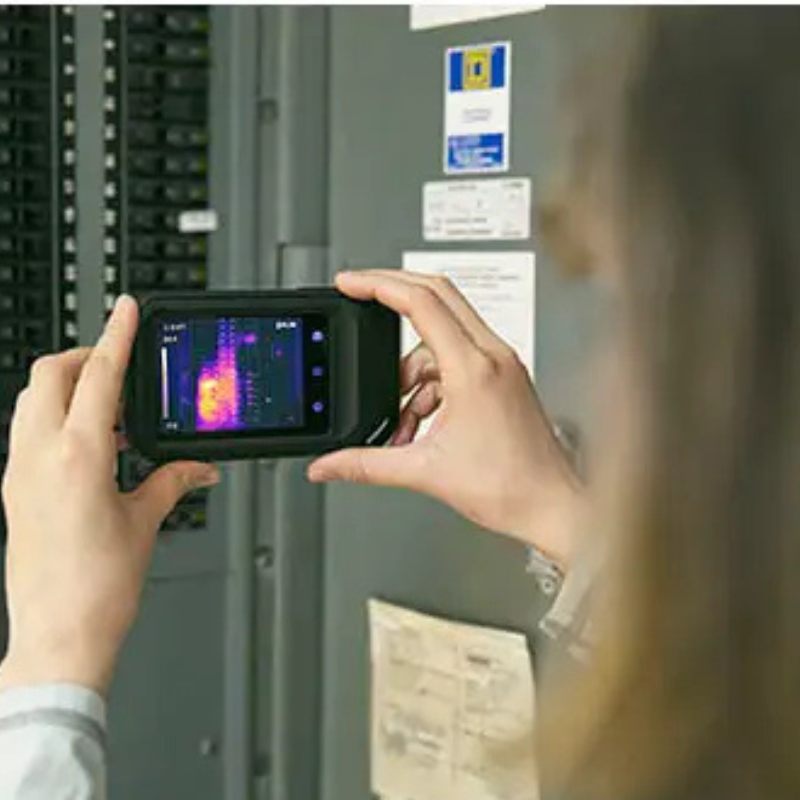

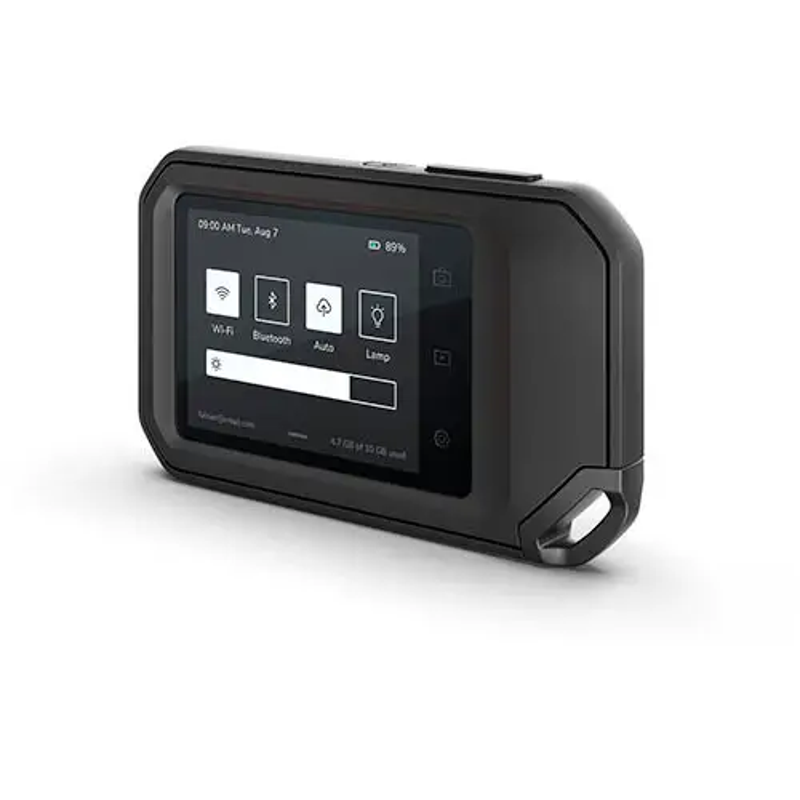

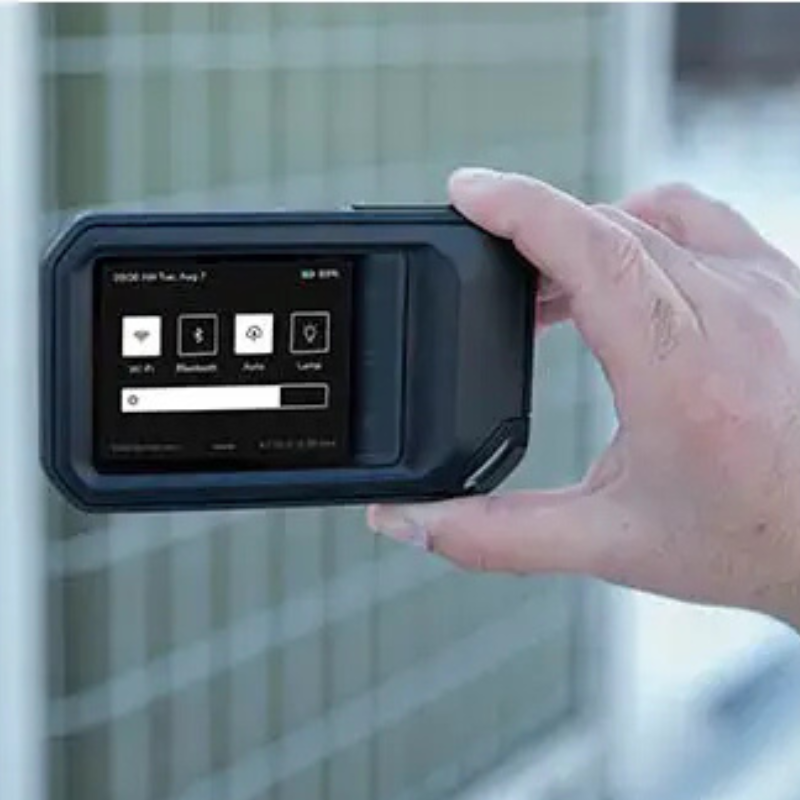

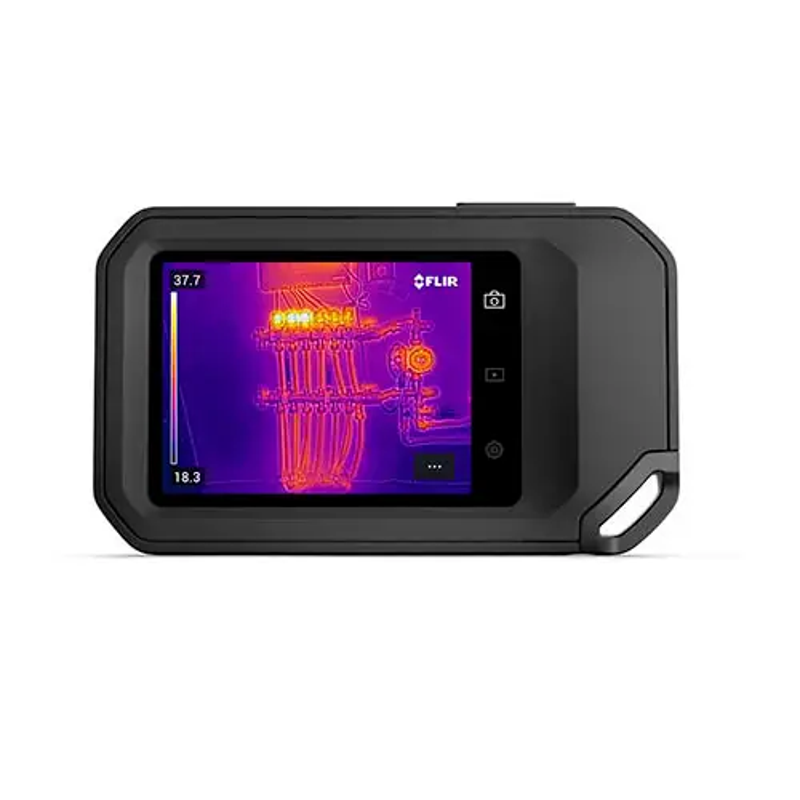

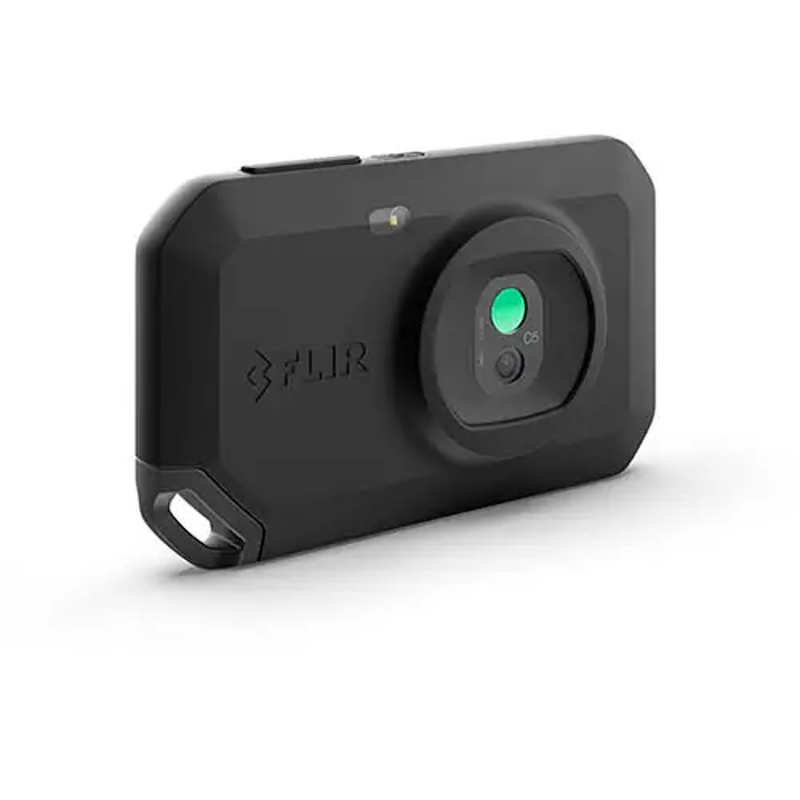

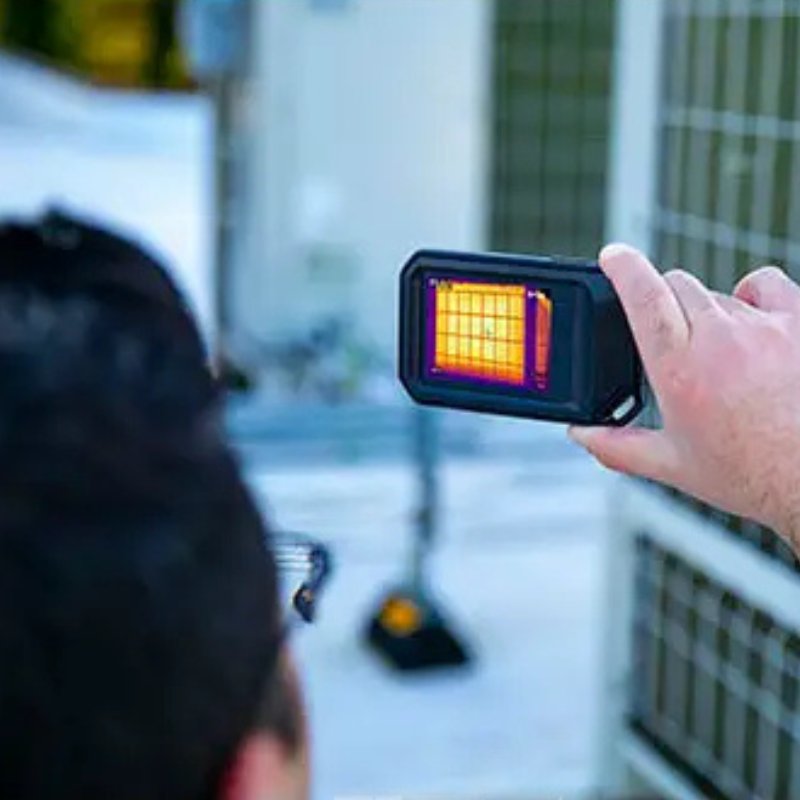

The Teledyne FLIR C5 Compact Thermal Camera with Wi-Fi and MSX Technology, and Ignite Cloud Connectivity, 160 x 120, 9 Hz is your go-to tool for building inspections, facilities maintenance, HVAC/R, electrical repair, and other troubleshooting applications. Featuring a thermal camera, visual inspection camera, and LED flashlight, the powerful Teledyne FLIR C5 makes it easy to identify hidden problems.
Built-in Teledyne FLIR Ignite allows direct data transfer, storage, and backup, so images are always available on all your devices. The 3.5-inch integrated touchscreen is simple to use, enabling quick inspections, efficient documentation, and seamless sharing with customers. With the Teledyne FLIR C5 in your pocket, you're ready to spot hot fuses, air leaks, plumbing issues, and more—anytime, anywhere.
What's Included:
- 1 - Compact Thermal Camera with Wi-Fi and MSX Technology, and Ignite Cloud Connectivity, 160 x 120, 9 Hz
Features
Professional Thermal Imaging
Equipped with a 160 x 120 true thermal sensor and 5MP visual camera for detailed problem identification.
Integrated MSX Technology
Embeds visible light image details onto thermal images for clearer diagnostics and faster issue recognition.
1-Touch Level/Span Adjustment
Instantly optimizes thermal image contrast with a single touch, focusing on areas of interest.
Cloud-Connected Convenience
Upload images directly to FLIR Ignite for secure backup, organization, and access across devices.
Rugged and Portable Design
Compact enough to fit in your pocket and durable enough to withstand 2-meter drops with an IP54 rating.
High-Temperature Range
Measures from -4 to 752°F, ideal for a variety of industrial and commercial applications.
Bright LED Flashlight
Illuminates dark areas, making it easier to inspect tight or low-light spaces.
Secure Sharing Capabilities
Send password-protected report links via email for easy and safe communication.
Annotation and Reporting Tools
Add comments and details to images, then generate professional-grade reports using FLIR Thermal Studio software.
Reliable Battery Life
Powered by a built-in rechargeable lithium-ion battery for dependable usage in the field.
What's Included
Included with Your Purchase:
- 1 - Compact Thermal Camera with Wi-Fi and MSX Technology, and Ignite Cloud Connectivity, 160 x 120, 9 Hz
Specifications
-
IR Resolution: 160 x 120 pixels (19,200 pixels)
-
Temperature Range: -4 to 752°F (-20 to 400°C)
-
Image Frequency: 8.7 Hz
-
Field of View (FOV): 54° x 42°
-
Thermal Sensitivity/NETD: < 70 mK
-
Minimum Focus Distance: Thermal: 0.1 m; MSX: 0.3 m
-
Focus Type: Focus free
-
Spectral Range: 8–14 µm
-
Screen Size: 3.5 inches
-
Visual Camera: 5 MP with fixed focus
-
Battery Type: Built-in rechargeable lithium-ion
-
Enclosure Rating: IP54
-
Drop Test: 2 m (6.6 ft)
FAQ
Q: What kind of problems can the FLIR C5 help detect?
A: It's ideal for identifying electrical faults, HVAC issues, insulation gaps, plumbing leaks, and other hidden problems.
Q: Does the camera store images automatically?
A: Yes, images can be automatically uploaded to the FLIR Ignite cloud for storage and access.
Q: Is the camera suitable for use in wet or dusty environments?
A: Yes, it features an IP54-rated enclosure for protection against dust and water.
Q: Can I create reports with this camera?
A: Yes, images can be annotated and exported into professional reports using Teledyne FLIR Thermal Studio.
