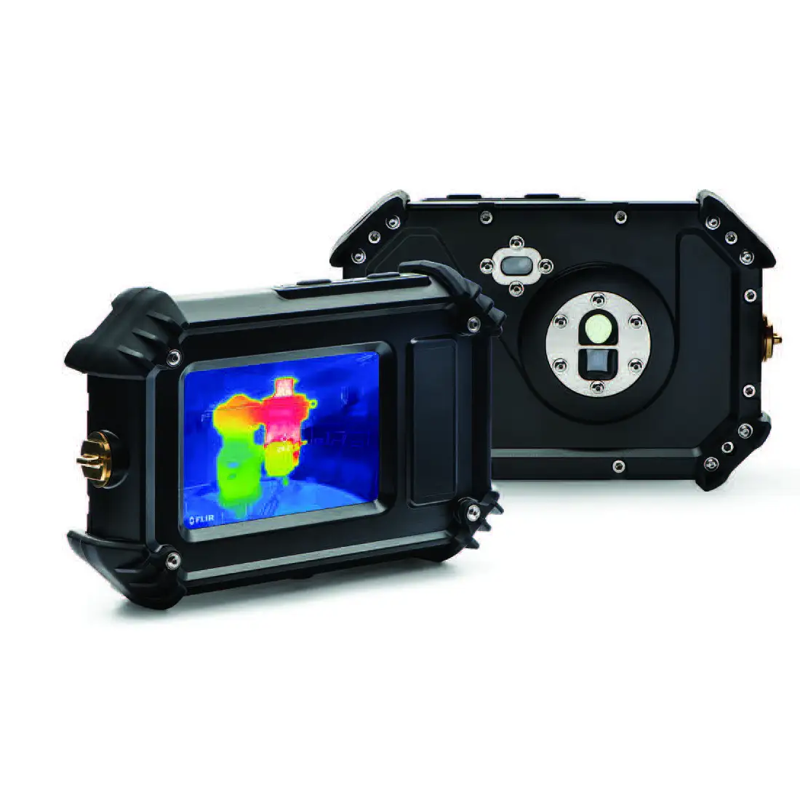

The Teledyne FLIR CX5 Hazardous Location-Rated Compact Thermal Camera is engineered for safer, faster inspections in potentially explosive environments. Certified for use in hazardous locations, this thermal camera helps eliminate the need for hot work permits while enabling efficient T-Class surveys. Designed to support chemical, oil and gas, and wastewater industries, it enhances both safety and operational continuity.
Equipped with a 160 x 120 thermal sensor and FLIR’s proprietary MSX technology, the CX5 delivers crisp thermal images overlaid with visible light detail for better context. The built-in FLIR Ignite cloud platform allows users to instantly upload, store, and back up images securely. Compact and durable, the CX5 fits in your pocket and includes an LED worklight, making it easy to access confined, low-light areas. A user-friendly touchscreen and one-touch level/span control further streamline inspections for professionals on the go.
What's Included:
- 1 - CX5 Compact Hazardous Location-Rated Compact Thermal Camera
Features
Hazardous Location Certified
Safe for use in environments with explosive gas, vapor, or dust without the need for hot work permits.
160 x 120 Thermal Sensor
Captures 19,200 pixels of thermal data to accurately measure temperatures of nearby targets.
FLIR MSX Technology
Enhances thermal images by overlaying visible light detail for improved target identification and clarity.
One-Touch Level/Span Control
Quickly adjusts level and span settings with a single tap for efficient image optimization.
FLIR Ignite Cloud Connectivity
Allows wireless uploading and secure cloud-based storage and sharing of thermal images.
Wi-Fi Enabled
Easily transmit data and collaborate with team members directly from the field.
LED Worklight Behind Impact-Resistant Lens
Illuminates dark or enclosed inspection areas without compromising durability.
Rugged and Pocket-Sized
Compact and tough enough to carry during ladder climbs or in tight inspection zones.
Visual and Thermal Image Annotation
Add notes directly to images to streamline reporting and documentation.
Software Synchronization
Works seamlessly with FLIR Thermal Studio for advanced analysis and professional reporting.
What's Included
Included with Your Purchase:
- 1 - CX5 Compact Hazardous Location-Rated Compact Thermal Camera
Specifications
-
IR Sensor: 160 x 120 (19,200 pixels)
-
Thermal Sensitivity/NETD: <70 mK
-
Field of View (FOV): 54° x 42°
-
Minimum Focus Distance: Thermal - 0.1 m (3.94 in); MSX - 0.3 m (11.8 in)
-
Image Frequency: 8.7 Hz
-
Focus: Focus free
-
Spectral Range: 8–14 μm
-
Screen Size: 3.5 in
-
Visual Camera: 5 MP
-
Digital Camera Focus: Fixed
-
Object Temperature Range: -4°F to 752°F
-
Condition: NEW
-
UPC: 845188026998
-
Model Number: CX5
FAQ
Q: Can the FLIR CX5 be used in explosive environments?
A: Yes, it is certified for use in hazardous locations where explosive gases, vapors, or dust may be present.
Q: Does this camera require a hot work permit?
A: No, the CX5 eliminates the need for hot work permits in certified environments.
Q: What is FLIR MSX technology?
A: It overlays visible light details onto thermal images for better clarity and context.
Q: Can images be stored in the cloud?
A: Yes, images can be uploaded directly to the FLIR Ignite cloud for secure storage and sharing.
Q: Is the device suitable for small or hard-to-reach areas?
A: Yes, the compact size and built-in LED worklight make it ideal for confined or dark locations.
