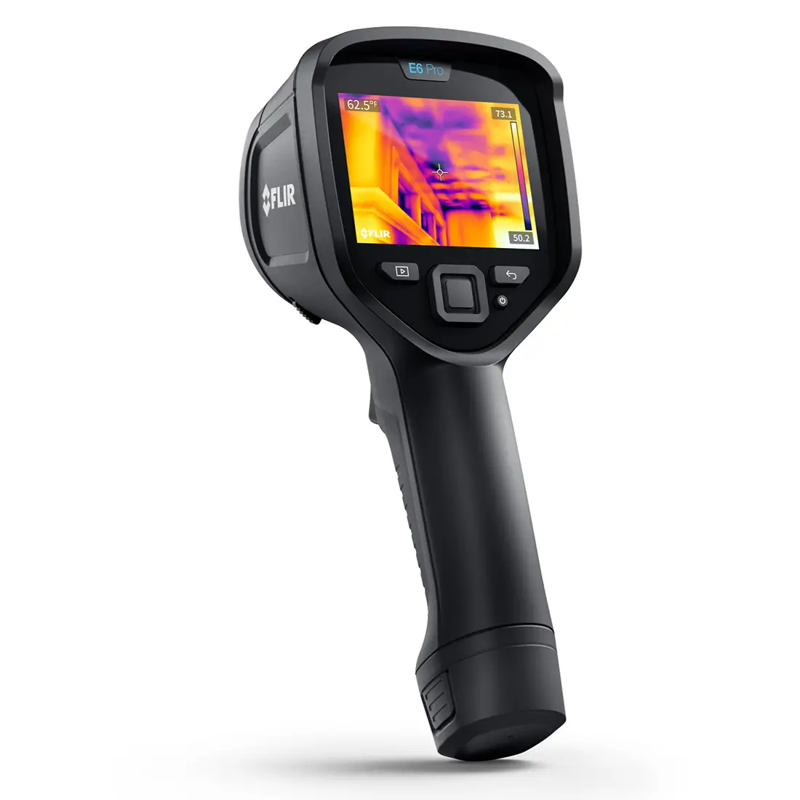

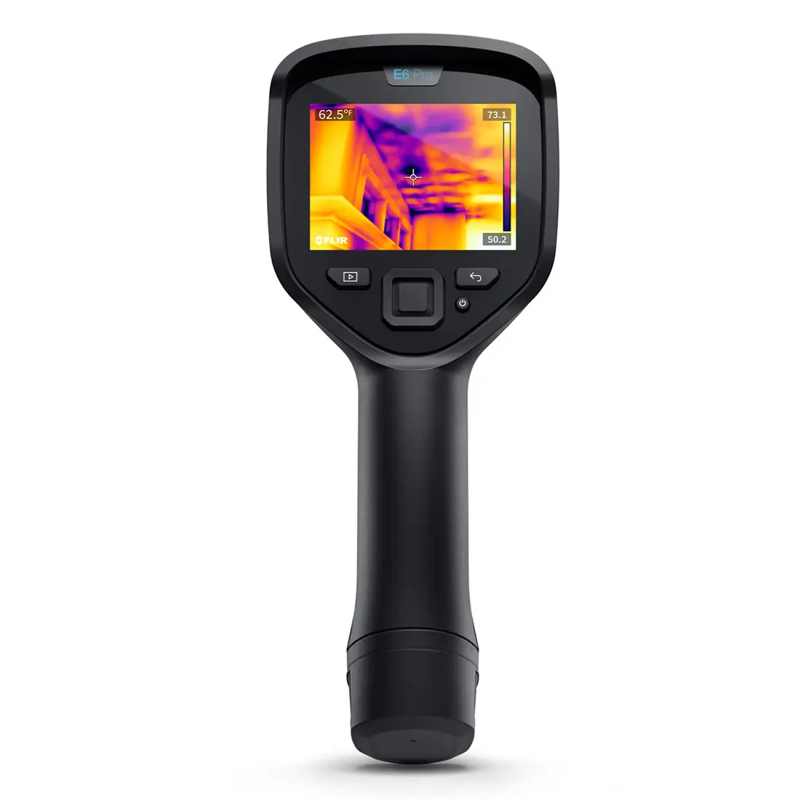

The Teledyne FLIR E6 Pro Infrared Camera is a rugged, point-and-shoot thermal imaging device designed to elevate the efficiency of inspections. With a sharp 240 × 180 thermal resolution and FLIR’s patented MSX enhancement, it overlays visual image detail onto thermal imagery for superior clarity. This ensures users can accurately pinpoint problems, from electrical faults to insulation gaps, in seconds.
Its large 3.5-inch touchscreen display (640 × 480) simplifies navigation and allows users to annotate images, pan and zoom, and adjust span levels with just a touch. Built-in FLIR Ignite cloud integration enables automatic uploads, organization, and sharing of thermal images—accessible anytime from any device. Lightweight yet durable, the E6 Pro is engineered for single-hand operation, making it ideal for fieldwork in industrial and building inspection environments.
What's Included:
- Teledyne FLIR E6 Pro Infrared Camera
- Integrated 5 MP visual camera with LED lamp
- FLIR Ignite Cloud connectivity
- Touchscreen user interface
- USB cable
- Battery
- Battery charger
- Hard carrying case
Features
High-Resolution Thermal Imaging
Features a 240 × 180 infrared resolution (43,200 pixels) for detailed thermal analysis.
MSX Image Enhancement
FLIR’s Multi-Spectral Dynamic Imaging embeds visible details over thermal images, improving target recognition.
Delta T Measurement Tools
NFPA 70B compliant with 1-touch span/level adjustment, annotations, and pan/zoom tools.
Large Touchscreen Display
640 × 480 resolution for easy viewing and navigation even in challenging environments.
Streamlined Workflow
Direct image uploads to FLIR Ignite cloud, enabling seamless editing, organizing, and sharing.
Efficient Image Capture
5 MP visual camera with LED light supports better documentation and decision-making.
Versatile Focus
Fixed focus optics keep every shot sharp for quick scans and high accuracy.
Rugged, One-Handed Design
Lightweight yet tough, with a secure grip for easy operation on the job.
What's Included
Included with Your Purchase:
- Teledyne FLIR E6 Pro Infrared Camera
- Integrated 5 MP visual camera with LED lamp
- FLIR Ignite Cloud connectivity
- Touchscreen user interface
- USB cable
- Battery
- Battery charger
- Hard carrying case
Specifications
-
Thermal Resolution: 240 x 180 (43,200 pixels)
-
Thermal Sensitivity (NETD): <0.05°C (0.09°F) / <50 mK at 30°C (86°F)
-
Spatial Resolution (IFOV): 2.5 mrad
-
Visual Camera: 5 MP with LED lamp
-
Display: 3.5" touchscreen, 640 × 480 resolution
-
Connectivity: FLIR Ignite Cloud enabled
-
Temperature Range: -4°F to 1022°F
-
Catalog Number: 13302-0201
-
UPC: 845188029159
-
Condition: NEW
-
Vendor Alias: FLIR E6 PRO
FAQ
Q: What is MSX and how does it help?
A: MSX (Multi-Spectral Dynamic Imaging) overlays visual details onto thermal images for better image clarity and recognition.
Q: Can I add notes to images directly on the camera?
A: Yes, the camera allows you to annotate images and adjust levels using the touchscreen interface.
Q: Is the FLIR Ignite cloud service included?
A: Yes, the camera includes FLIR Ignite Cloud functionality for seamless storage and sharing.
Q: What environments is the E6 Pro ideal for?
A: It is ideal for electrical inspections, mechanical maintenance, and building energy audits.
