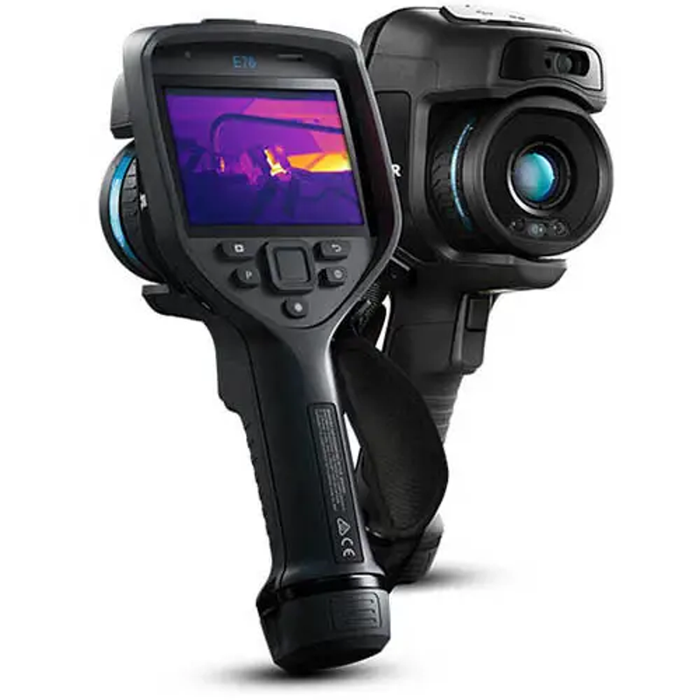

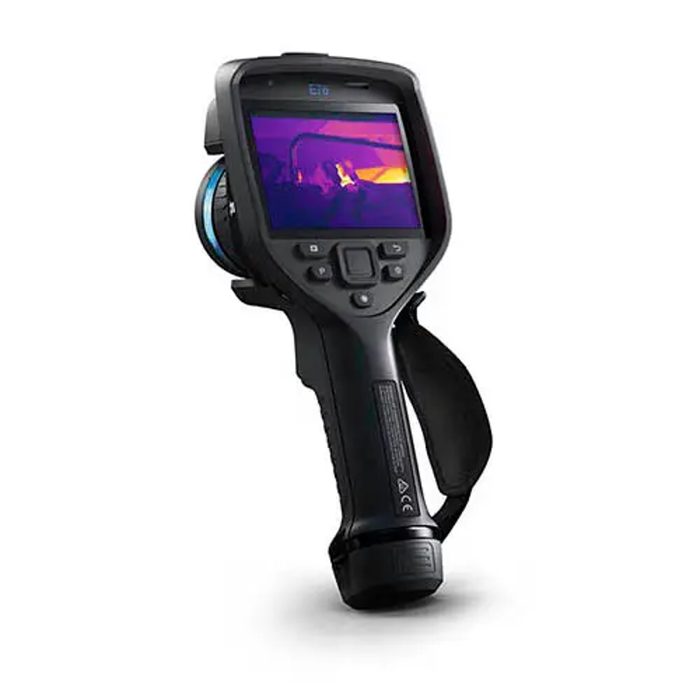

The Teledyne FLIR E76-14 Advanced Thermal Imaging Camera combines high thermal resolution with the latest in image enhancement technologies, delivering detailed, actionable insights for a range of applications. Equipped with MSX and UltraMax, it improves clarity and detail by blending thermal and visible images and boosting resolution, respectively. This model includes a 14° telephoto lens ideal for precise distance inspections and supports automatic lens calibration for seamless switching in the field.
Its integrated voice and text annotation, GPS tagging, and FLIR Thermal Studio Pro software compatibility make it ideal for structured inspection workflows. The camera supports both real-time radiometric video recording and streaming, offering flexibility and comprehensive documentation. Whether for electrical, mechanical, or building diagnostics, the E76 empowers professionals with accuracy, efficiency, and reliability.
What's Included:
- Teledyne FLIR E76 Thermal Imaging Camera
- 14° Telephoto Lens (29 mm)
- Rechargeable Li-ion Battery
- Removable SD Card
- FLIR Thermal Studio Pro Software License
- USB 2.0 to USB Type-C Cable
- Power Adapter
- Carrying Case
Features
14° Telephoto Lens
Enables precise focus on distant targets for detailed thermal imaging, reducing the need for close proximity in hazardous areas.
UltraMax and MSX Technologies
UltraMax increases resolution and clarity by synthesizing multiple frames, while MSX overlays visible light details for contextual image enhancement.
Teledyne FLIR Inspection Route Integration
Optimizes inspections by following a pre-defined route, ensuring thorough data collection and easy reporting.
Touchscreen Interface
Large 4" LCD touchscreen with 640 x 480 resolution supports easy navigation, image sketching, and annotations.
Voice and Text Annotation
Adds contextual information using built-in mic or Bluetooth, with text input via a touchscreen keyboard.
Versatile Storage and Output
Supports infrared and visual image modes, standard JPEG format with measurement data, and video output via DisplayPort over USB-C.
Robust Connectivity
Features USB 2.0, Bluetooth, Wi-Fi, and METERLiNK for streamlined data transfer and device communication.
AutoCal Lens Compatibility
Automatically calibrates with any attached FLIR AutoCal lens, streamlining field use and ensuring optimal accuracy.
What's Included
Included with Your Purchase:
- Teledyne FLIR E76 Thermal Imaging Camera
- 14° Telephoto Lens (29 mm)
- Rechargeable Li-ion Battery
- Removable SD Card
- FLIR Thermal Studio Pro Software License
- USB 2.0 to USB Type-C Cable
- Power Adapter
- Carrying Case
Specifications
-
IR Resolution: 320 x 240 pixels
-
Image Frequency: 30 Hz
-
Thermal Sensitivity (NETD): <50 mK at 30°C
-
Spectral Range: 7.5–14 µm
-
Focus Options: Continuous LDM, One-shot LDM, One-shot Contrast, Manual
-
Digital Zoom: 1–4x continuous
-
Image Formats: Standard JPEG with measurement data
-
Display: 4" LCD touchscreen, 640 x 480 pixels
-
Video Recording: Radiometric (.csq), Non-radiometric (H.264)
-
Connectivity: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
-
GPS: Automatic image tagging
-
Operating Temperature: -15 to 50°C
-
Storage Temperature: -40 to 70°C
-
Encapsulation: IP54
-
Shock/Vibration: 25g / 2g
-
Battery Life: >2.5 hours
-
Measurement Accuracy: ±2°C or ±2% of reading
-
Object Temperature Range: -20 to 120°C; 0 to 650°C; Optional 300 to 1000°C
FAQ
Q: Can the E76 capture and store video?
A: Yes, it supports both radiometric and non-radiometric video recording and streaming.
Q: What image formats are supported?
A: Images are stored as standard JPEGs with embedded measurement data.
Q: Does it support wireless connectivity?
A: Yes, the camera features Wi-Fi and Bluetooth for wireless data transfer and communication.
Q: Is the lens interchangeable?
A: Yes, the E76 is compatible with AutoCal lenses and automatically calibrates when a new lens is attached.
