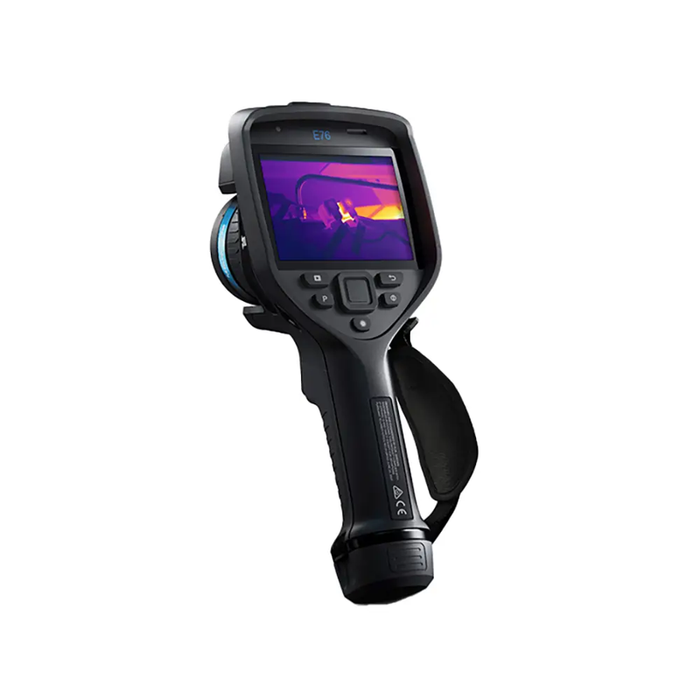

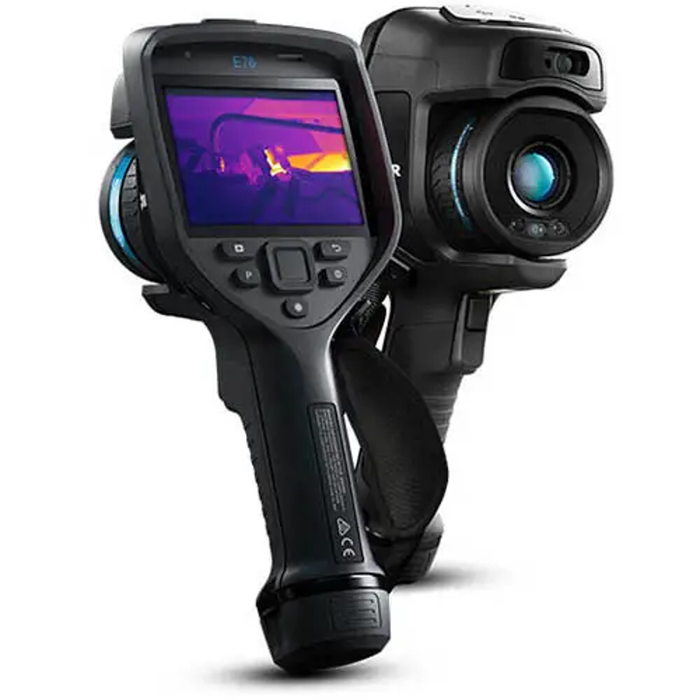

The Teledyne FLIR E76-24 Advanced Thermal Imaging Camera delivers superior thermal imaging performance for building diagnostics, electrical inspections, and mechanical maintenance. With a 320 x 240 thermal resolution, it captures clear, detailed images and enhances them further using MSX and UltraMax technologies for unparalleled clarity and analysis precision.
This powerful thermal camera features a 24° lens that allows operators to maintain a safe distance from energized equipment while still achieving sharp focus on small targets. AutoCal lens compatibility ensures seamless calibration and optimal image quality across a variety of applications. The E76 also supports FLIR Inspection Route and integrates with Thermal Studio Pro software for efficient report generation and workflow management.
Equipped with a laser-assisted auto-focus, integrated voice annotation, and advanced connectivity options, the E76 is a rugged, versatile solution for professionals who demand high performance and accuracy.
What's Included:
- Teledyne FLIR E76 Thermal Camera with 24° Lens
- Rechargeable Li-ion Battery
- Removable SD Card
- USB 2.0 and USB Type-C Cables
- FLIR Thermal Studio Pro Software (license required)
- Hard Carrying Case
Features
High-Resolution Thermal Imaging
Captures 320 x 240 pixel thermal images enhanced by UltraMax and MSX technologies for greater detail and accuracy.
Standard 24° Lens
Provides an optimal field of view for general inspections while maintaining safe working distances.
Teledyne FLIR Inspection Route Compatibility
Streamlines data collection by guiding users through structured inspection routes directly on the device.
Advanced Image and Data Management
Onboard integration with FLIR routing software, voice annotation via built-in mic, and report generation boost workflow efficiency.
Intuitive 4" Touchscreen Display
Features a 640 x 480 LCD with auto-rotation for clear viewing and easy operation in various orientations.
UltraMax SuperResolution Technology
Combines multiple frames into a high-definition image with quadrupled thermal pixel density for better spot-size and clarity.
Full Connectivity Suite
Supports USB 2.0, Bluetooth, Wi-Fi, DisplayPort, and METERLiNK for seamless data transfer and communication.
Flexible Measurement Capabilities
Includes hot/cold spot detection, center spot, and user presets to suit different diagnostic needs.
Durable and Weather-Resistant Design
Built to IP54 standards and tested for shock and vibration resistance to withstand tough environments.
What's Included
Included with Your Purchase:
- Teledyne FLIR E76 Thermal Camera with 24° Lens
- Rechargeable Li-ion Battery
- Removable SD Card
- USB 2.0 and USB Type-C Cables
- FLIR Thermal Studio Pro Software (license required)
- Hard Carrying Case
Specifications
-
IR Resolution: 320 x 240 pixels
-
Lens: 24° (17 mm)
-
Thermal Sensitivity (NETD): <50 mK at 30°C
-
Image Frequency: 30 Hz
-
Focus: Continuous LDM, One-shot LDM, One-shot contrast, Manual
-
Display: 4 in. 640 x 480 pixel touchscreen LCD
-
Battery Operating Time: >2.5 hours at 25°C typical use
-
Image File Format: JPEG with radiometric data
-
Digital Camera: 5 MP with LED lamp
-
Zoom: 1-4x continuous digital
-
Video Out: DisplayPort over USB Type-C
-
Communication: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
-
Storage Media: Removable SD card
-
Measurement Range: -20 to 120°C, 0 to 650°C; optional up to 1000°C
-
Operating Temperature: -15 to 50°C
-
Storage Temperature: -40 to 70°C
-
Ingress Protection: IP54
-
Shock/Vibration Resistance: 25g / 2g
-
Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
-
Spectral Range: 7.5–14 µm
FAQ
Q: Does the E76 support UltraMax technology?
A: Yes, it captures 16 frames in less than a second and enhances them into a high-resolution thermal image.
Q: What software is included for reporting?
A: The E76 integrates with FLIR Thermal Studio Pro, which supports efficient report creation and image analysis.

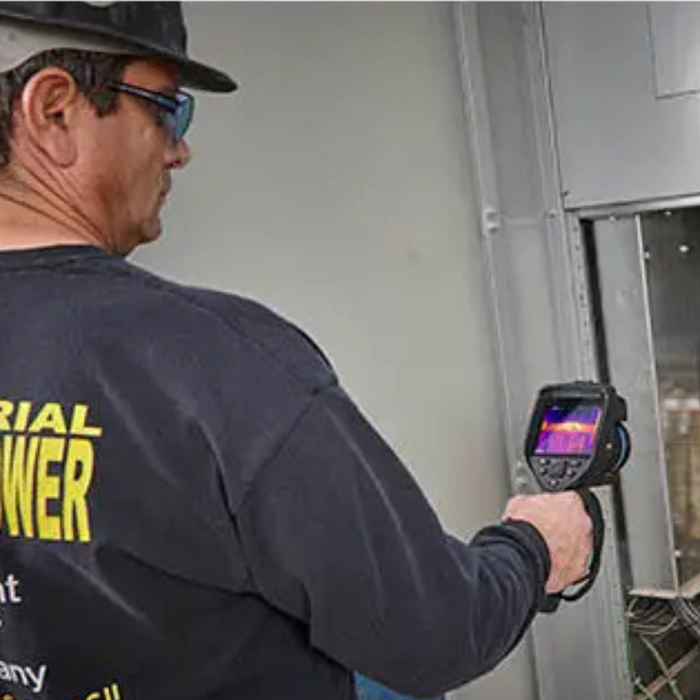

Q: Can this camera be used for building and electrical inspections?

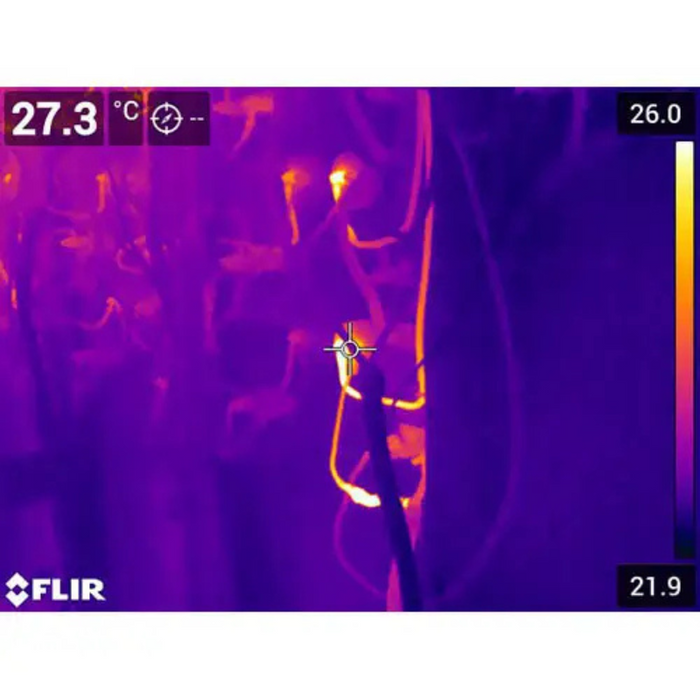

A: Yes, it is ideal for identifying issues in buildings and detecting hotspots in electrical and mechanical systems.
Q: How is the camera powered?
A: It uses a rechargeable Li-ion battery with a runtime of more than 2.5 hours under typical use.
