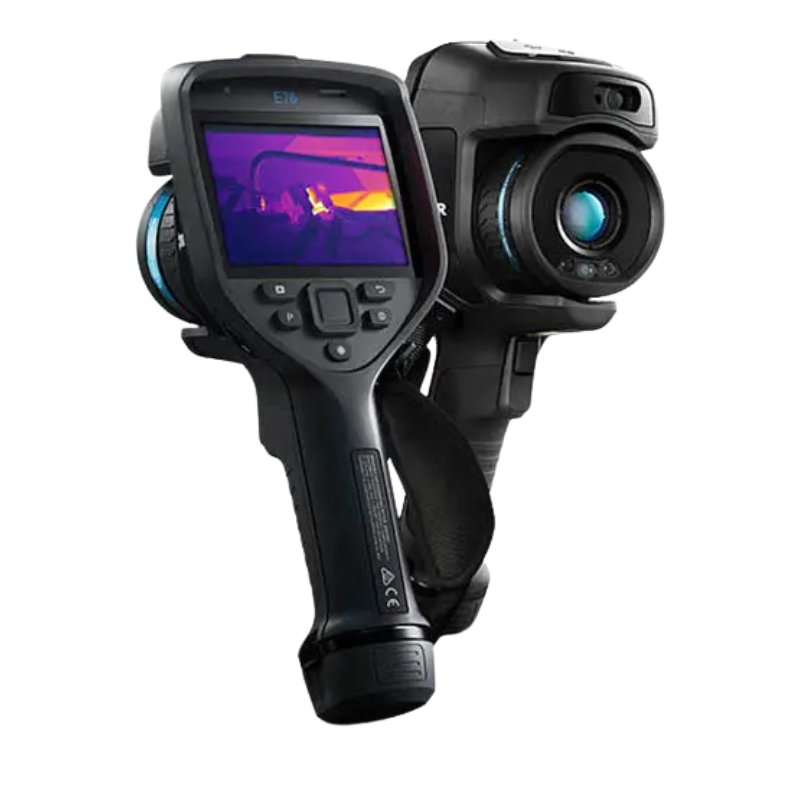

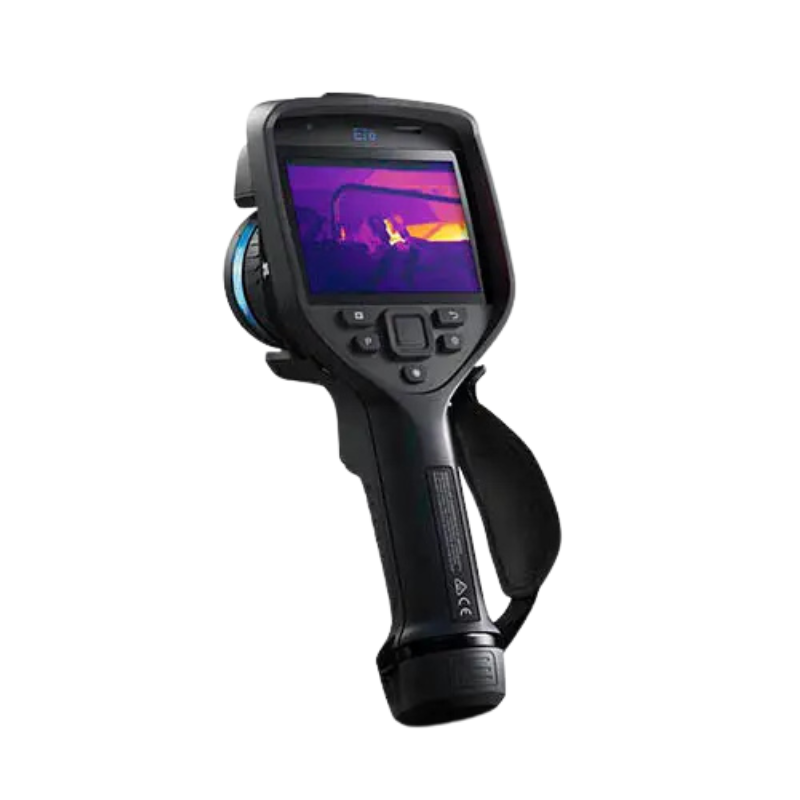

The Teledyne FLIR E76-42 Advanced Thermal Imaging Camera provides a robust and versatile solution for thermal inspection professionals. Equipped with a 42° wide-angle lens and advanced technologies like MSX and UltraMax, this device offers detailed, high-resolution imagery for building diagnostics, electrical systems, and mechanical evaluations. Its 320 x 240 pixel resolution at 30 Hz ensures smooth, detailed thermal imaging.
Designed for superior performance and ease of use, the E76 includes laser-assisted autofocus, automatic lens recognition with AutoCal support, and advanced features such as 1-Touch Level/Span, GPS tagging, and customizable inspection routes. The included FLIR Thermal Studio Pro software suite enhances workflow with efficient image management and professional report generation.
Ideal for both close-range and distant target inspections, this camera helps professionals work more efficiently and accurately while reducing time spent on documentation.
What's Included:
- FLIR E76 Camera with 42° Lens
- Removable SD Storage Card
- Rechargeable Li-ion Battery
- USB Cable (Type-C)
- Power Adapter with International Plugs
- Hard Transport Case
- Wrist Strap and Neck Strap
- FLIR Thermal Studio Pro License
Features
42° Wide-Angle Lens
Provides a broad field of view ideal for capturing full scenes in building or roofing inspections.
1-Touch Level/Span
Quickly enhances image contrast to highlight critical thermal details with a single touch.
MSX Technology
Combines visible and infrared images for added context, making labels and structural details stand out.
UltraMax SuperResolution
Combines multiple frames into one high-resolution image, improving clarity and measurement precision.
4" Touchscreen LCD
High-resolution 640 x 480 display with auto-rotation improves ease of viewing and navigation.
Inspection Route Integration
Guides users through predefined checkpoints and streamlines image capture during inspections.
Built-in Mic and Voice Annotation
Allows audio notes to be added to images or video for easier reporting and documentation.
Multiple Communication Interfaces
Includes USB 2.0, Bluetooth, Wi-Fi, and DisplayPort over USB-C for easy data transfer and connectivity.
Laser Distance Meter
Assists with precise measurements and accurate focusing on targets.
Rugged and Reliable
Tested to 25g shock, 2g vibration, and IP54 for dust and water protection.
What's Included
Included with Your Purchase:
- FLIR E76 Camera with 42° Lens
- Removable SD Storage Card
- Rechargeable Li-ion Battery
- USB Cable (Type-C)
- Power Adapter with International Plugs
- Hard Transport Case
- Wrist Strap and Neck Strap
- FLIR Thermal Studio Pro License
Specifications
-
IR Resolution: 320 x 240 pixels
-
Image Frequency: 30 Hz
-
Thermal Sensitivity (NETD): <50 mK at 30°C (86°F)
-
Lens: 42°, 10 mm with AutoCal
-
Focus: Continuous LDM, One-shot LDM, One-shot contrast, Manual
-
Display: 4 in., 640 x 480 pixel touchscreen LCD
-
Image Modes: Infrared, Visual, MSX, Picture-in-Picture, Gallery
-
Measurement Accuracy: ±2°C (±3.6°F) or ±2% of reading
-
Object Temperature Range: -20 to 120°C, 0 to 650°C, optional up to 1000°C
-
Spot Meter: 3 in live mode
-
GPS: Automatic image tagging
-
Storage: Removable SD card
-
Video Out: DisplayPort over USB Type-C
-
Image Storage Format: JPEG with measurement data
-
Battery Operating Time: >2.5 hours
-
Operating Temperature: -15 to 50°C (5 to 122°F)
-
Storage Temperature: -40 to 70°C (-40 to 158°F)
-
Digital Camera: 5 MP with LED lamp
-
Digital Zoom: 1-4x continuous
-
Laser Distance Meter: Yes, dedicated button
-
Communication Interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
-
Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
-
Encapsulation: IP54 (IEC 60529)
-
Shock and Vibration: 25g (IEC 60068-2-27), 2g (IEC 60068-2-6)
-
Compliance: EN/UL/CSA/PSE 60950-1
FAQ
Q: Can I use the FLIR E76 for building inspections?
A: Yes, its 42° wide lens, MSX imaging, and area measurement tools make it ideal for detecting air leaks, moisture intrusion, and insulation issues.
Q: What does UltraMax technology do?
A: UltraMax captures multiple thermal images and fuses them into a higher-resolution, lower-noise image, improving clarity and detail.
Q: Is the lens interchangeable?
A: Yes, the E76 supports AutoCal interchangeable lenses and automatically calibrates when a new lens is attached.
Q: How long can I operate the camera on a full charge?
A: The battery provides more than 2.5 hours of operation under typical conditions.
Q: What formats are used for image and video storage?
A: Images are stored as radiometric JPEGs, and non-radiometric video can be saved as H.264 or streamed via Wi-Fi or USB.
