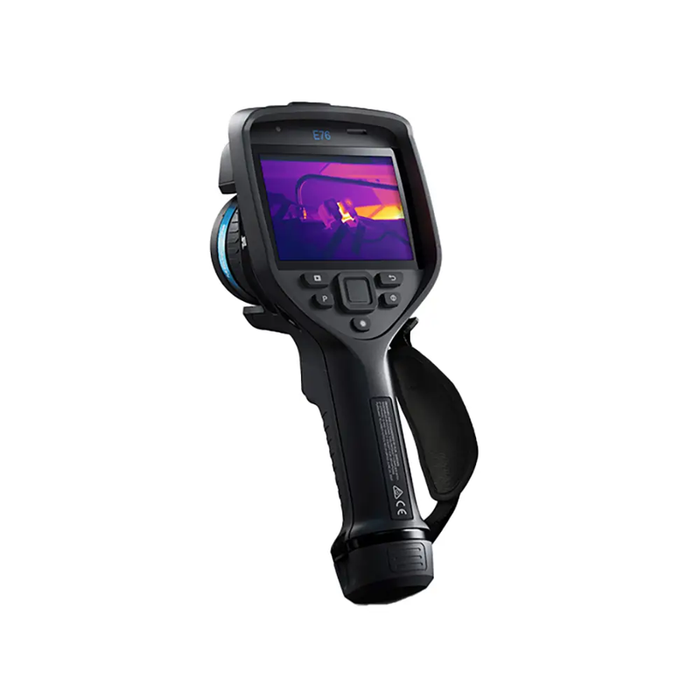

The Teledyne FLIR E76-80 30Hz/320x240 Advanced Thermal Imaging Camera with 80° Dual FOV Lens and FLIR Thermal Studio Starter is engineered for precision thermal inspections across industrial and commercial environments. Featuring a high-resolution 320 x 240 detector and FLIR's proprietary MSX image enhancement, this camera delivers detailed thermal imagery to identify electrical, mechanical, and building-related issues with clarity.
Equipped with an ultra wide-angle 80° FlexView lens, users can effortlessly switch between wide-area coverage and focused views at the touch of a button, making it ideal for inspecting tight or expansive spaces without changing lenses. The laser-assisted autofocus and integrated 1-Touch Level/Span system streamline image capture while ensuring maximum contrast in critical areas. The FLIR E76-80 also includes onboard route-based inspection planning via FLIR Inspection Route and automatic cloud uploads through FLIR Ignite for efficient data management and collaboration.
What's Included:
- FLIR E76-80 Thermal Imaging Camera
- 80° Dual Field-of-View FlexView Lens
- FLIR Thermal Studio Starter Software
- Battery and Charger
- Carrying Case
- USB Cable
- Documentation
Features
Ultra Wide-Angle Lens
Ideal for building and cabinet inspections, the 80° lens captures large scenes or tight spaces in one shot without repositioning.
Dual FOV with FlexView
Switch seamlessly between wide and narrow views with a single button press using FLIR’s dual field-of-view technology.
High-Resolution Thermal Imaging
320 x 240 pixel infrared resolution ensures crisp, accurate thermal visuals for detailed analysis.
FLIR 1-Touch Level/Span
Automatically adjusts image contrast to highlight thermal anomalies and optimize visibility of potential issues.
Laser-Assisted Autofocus
Enhances accuracy and sharpness by automatically focusing on the target area using integrated laser distance measurement.
Onboard FLIR Inspection Route
Enables efficient survey workflows by guiding users through pre-planned inspection routes.
FLIR Ignite Cloud Integration
Wirelessly uploads captured images to the cloud for secure access, storage, and sharing.
Rugged Touchscreen Display
Features a 4-inch 640 x 480 LCD with auto-rotation for intuitive viewing and navigation.
What's Included
Included with Your Purchase:
- FLIR E76-80 Thermal Imaging Camera
- 80° Dual Field-of-View FlexView Lens
- FLIR Thermal Studio Starter Software
- Battery and Charger
- Carrying Case
- USB Cable
- Documentation
Specifications
-
IR Resolution: 320 x 240 pixels
-
Thermal Sensitivity/NETD: <40 mK at 30°C (86°F)
-
Temperature Range: -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F)
-
Accuracy: ±2°C (±3.6°F) or ±2% of reading
-
Field of View (FOV): 80° x 63°
-
Digital Camera: 5 MP with LED lamp (disabled when 80° lens is used)
-
Display: 4-inch 640 x 480 LCD touchscreen with auto-rotation
-
Frame Rate: 30 Hz
-
Laser Distance Meter: Yes
-
Image Enhancement: MSX (Multi-Spectral Dynamic Imaging)
-
Connectivity: FLIR Ignite cloud integration
FAQ
Q: Can I use the 80° lens for both wide and narrow shots?
A: Yes, the FlexView lens allows you to switch between wide-area and telephoto views with one button press.
Q: Does the camera come with analysis software?
A: Yes, it includes FLIR Thermal Studio Starter for image analysis and reporting.
Q: Is Wi-Fi included for cloud uploads?
A: Yes, the camera supports automatic uploads to the FLIR Ignite cloud platform.
Q: What’s the benefit of FLIR MSX?
A: MSX overlays visual image detail onto thermal images to enhance clarity and provide context to your thermal data.
