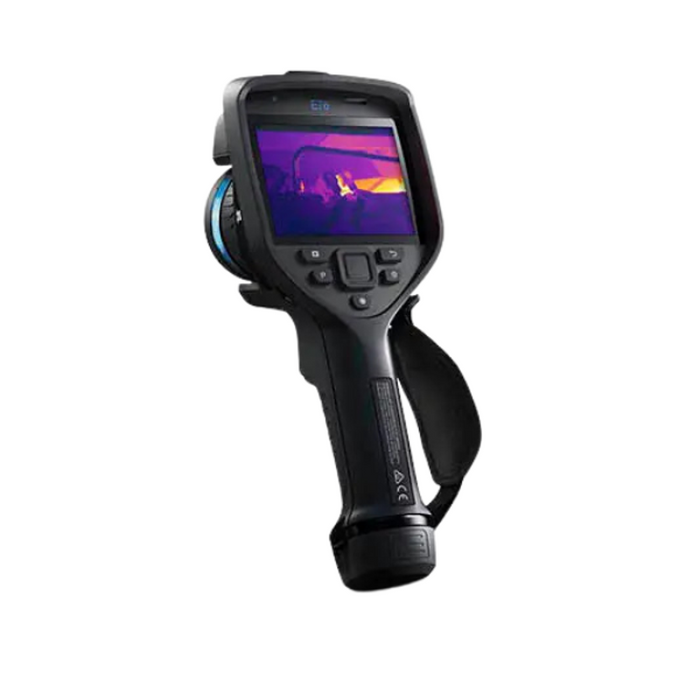

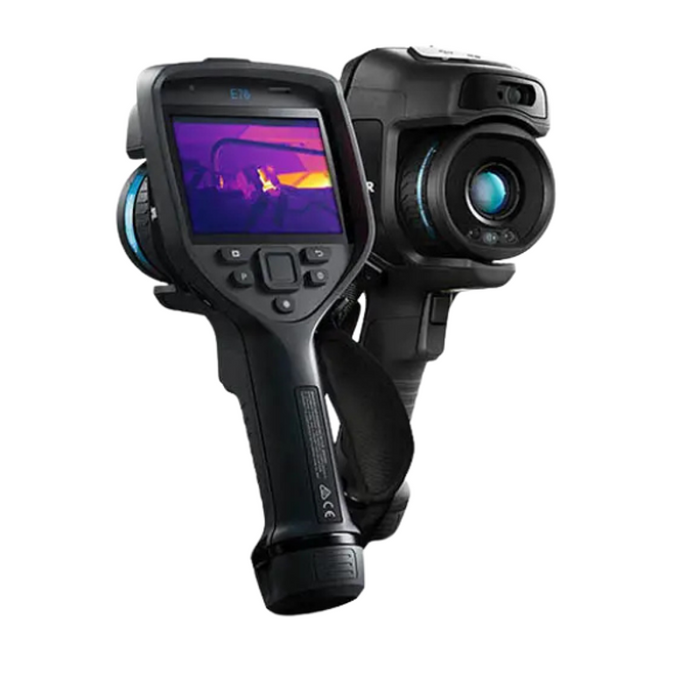

The Teledyne FLIR E76-24-14-NIST Advanced Thermal Imaging Camera is engineered for professionals demanding high-performance diagnostics in both near and distant inspections. Equipped with a 320 x 240 thermal resolution sensor, this camera delivers sharp, vibrant imagery enhanced with FLIR’s MSX and UltraMax technologies. These features allow for clear identification of small anomalies and fine detail, even at greater distances, ensuring accurate and efficient reporting.

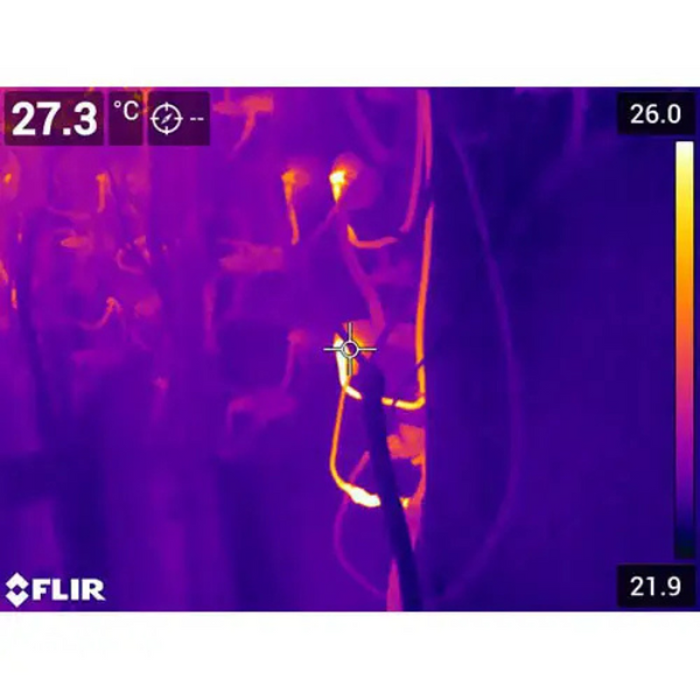

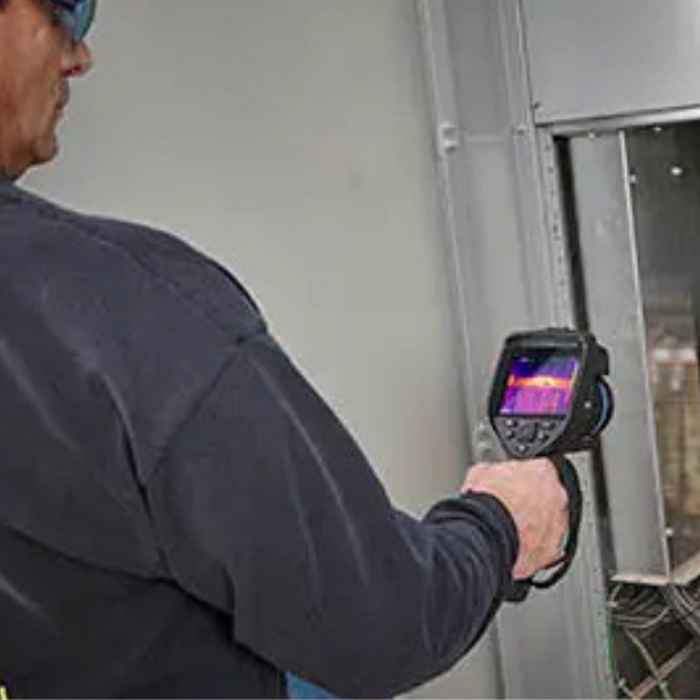

Designed for a wide range of applications, the E76 includes AutoCal-compatible 24° and 14° lenses, supporting everything from broad building scans to precise electrical component evaluations. Integrated laser-assisted autofocus, 30 Hz frame rate, and built-in GPS provide precise, real-time imaging and tagging. Streamlined reporting and data management are enabled by voice annotation, FLIR Inspection Route, and FLIR Thermal Studio Pro software.

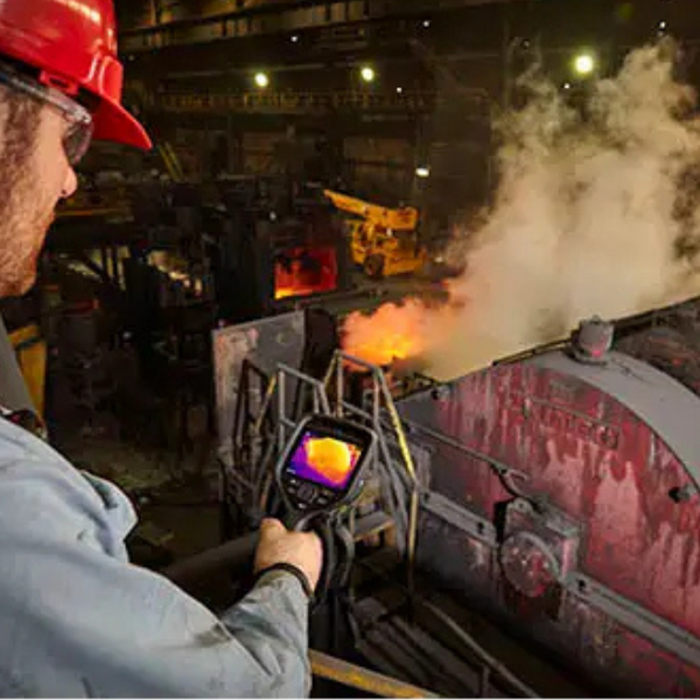

Whether detecting moisture intrusion, assessing mechanical systems, or performing predictive maintenance, the E76 provides the robust functionality and intuitive operation needed to get the job done reliably and efficiently.
What's Included:
- Teledyne FLIR E76 Thermal Camera
- 24° Lens (17 mm)
- 14° Lens (29 mm)
- FLIR Thermal Studio Pro Software
- NIST Certificate of Calibration
- Rechargeable Li-ion Battery
- USB Cable
- Hard Carrying Case
- Power Supply
- User Documentation
Features
Dual Lens Capability
Includes 24° standard lens for wide coverage and 14° telephoto lens for pinpoint accuracy on distant targets.
UltraMax Technology
Combines multiple thermal frames to deliver enhanced resolution and clarity for small target analysis.
MSX Image Enhancement
Adds visual details to thermal images, making labels and features clearer for easier interpretation.
FLIR Inspection Route
Preloaded route guidance improves inspection consistency and efficiency for large facilities.
Advanced Reporting Software
Includes FLIR Thermal Studio Pro for streamlined image organization, analysis, and report generation.
Voice and Text Annotation
Document findings on-site with voice recordings or keyboard input using the built-in mic and touchscreen.
Touchscreen Display
4-inch, 640 x 480 LCD screen with auto-rotation for easy viewing in any orientation.
Laser-Assisted Autofocus
Enables precise focusing with integrated laser distance measurement for high-accuracy results.
Connectivity Options
Features USB 2.0, Bluetooth, Wi-Fi, and DisplayPort for seamless data transfer and live sharing.
Robust Environmental Design
Rated IP54 with high resistance to shock and vibration, suitable for tough field conditions.
What's Included
Included with Your Purchase:
- Teledyne FLIR E76 Thermal Camera
- 24° Lens (17 mm)
- 14° Lens (29 mm)
- FLIR Thermal Studio Pro Software
- NIST Certificate of Calibration
- Rechargeable Li-ion Battery
- USB Cable
- Hard Carrying Case
- Power Supply
- User Documentation
Specifications
-
Thermal Resolution: 320 x 240 pixels
-
Image Frequency: 30 Hz
-
Lens Field of View: 24° x 18° and 14° x 10.5°
-
Focus: Continuous LDM, One-shot LDM, One-shot contrast, Manual
-
Display: 4 in. touchscreen LCD, 640 x 480 resolution
-
Zoom: 1–4x continuous digital
-
Detector Type: Uncooled microbolometer, 17 µm
-
Spectral Range: 7.5–14 µm
-
Thermal Sensitivity/NETD: <50 mK at 30°C
-
Image Storage: Infrared, Visual, MSX, Picture-in-Picture, Gallery
-
File Format: JPEG with embedded measurement data
-
Video Recording: Radiometric (CSQ), Non-radiometric (H.264)
-
Video Streaming: Radiometric via UVC; Non-radiometric via Wi-Fi or USB
-
Laser Distance Meter: Yes, with dedicated button
-
Text and Voice Notes: Touchscreen keyboard; 60 sec. voice recording
-
Measurement Modes: Center Spot, Hot/Cold Spot, User Presets
-
Temperature Range: -20 to 120°C; 0 to 650°C; optional up to 1000°C
-
Accuracy: ±2°C or ±2% of reading
-
Battery Life: >2.5 hours at 25°C with typical use
-
Storage Media: Removable SD card
-
Communication Interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
-
GPS: Automatic geotagging
-
Ruggedness: IP54, 25g shock, 2g vibration
-
Operating Temp Range: -15 to 50°C
-
Storage Temp Range: -40 to 70°C
-
Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
FAQ
Q: What lenses are included with the E76?
A: The camera comes with a 24° lens for general use and a 14° telephoto lens for inspecting distant targets.
Q: Does the E76 include software for reporting?
A: Yes, it includes FLIR Thermal Studio Pro for managing thermal data and generating inspection reports.
Q: Can I use the E76 for high-temperature applications?
A: Yes, the E76 supports optional temperature measurement up to 1000°C (1832°F).
Q: Is the camera rugged enough for industrial environments?
A: Absolutely. It is rated IP54 and tested for vibration and shock resistance.
Q: How long does the battery last?
A: The rechargeable battery provides over 2.5 hours of typical operation time.
