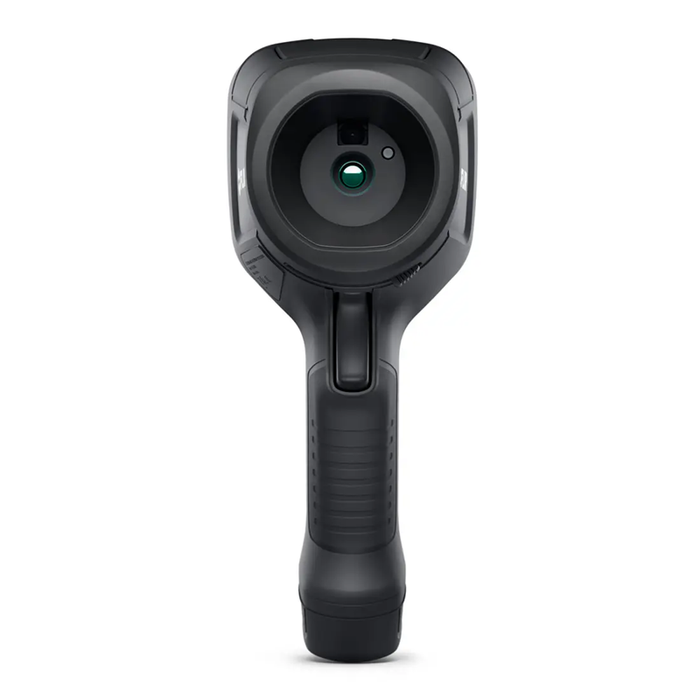

The Teledyne FLIR E8 Pro-NIST Pro-Series Infrared Camera is a powerful tool for quickly identifying and diagnosing issues in electrical, mechanical, and building systems. With its 320 x 240 thermal resolution and patented FLIR MSX technology, users can capture sharp, highly detailed thermal images that clearly highlight problem areas. This rugged, point-and-shoot camera is ideal for professionals needing fast, accurate thermal imaging in the field.
Efficiency is at the forefront of the E8 Pro-NIST. The 3.5-inch touchscreen allows for intuitive operation, including photo organization, note annotation, and wireless image upload via the FLIR Ignite cloud. Seamless integration with FLIR Thermal Studio ensures that detailed client reports are easy to create and share from any device. The camera is delivered with a NIST Certificate of Calibration, providing confidence in the accuracy and reliability of every measurement.
What's Included:
- 1 - Pro-Series Infrared Camera (E8 Pro)
- 1 - Hard Transport Case
- 1 - Battery, Installed
- 1 - Extra Battery
- 1 - Tabletop Charger
- 1 - Power Supply with EU/UK/US/AU Plugs
- 1 - Micro USB Adapter
- 1 - FLIR Thermal Studio Starter
- 1 - Printed Documentation
- 1 - NIST Certificate of Calibration
Features
High-Resolution Thermal Imaging
320 x 240 infrared resolution delivers 76,800 pixels of detailed thermal imagery for accurate diagnostics.
Enhanced Image Clarity
FLIR MSX embosses visible light details onto thermal images for easier problem recognition.

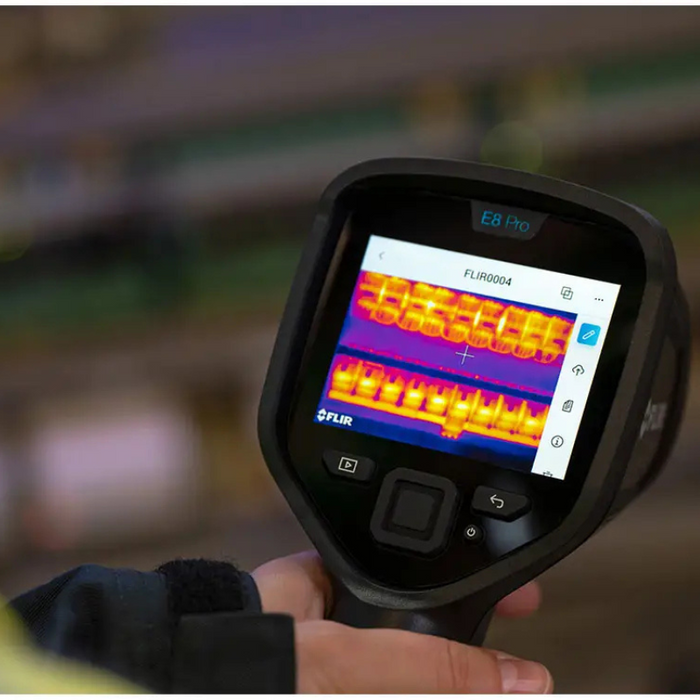

Touchscreen Control
Large 3.5 in. 640 × 480 capacitive LCD provides easy access to menus and image manipulation.
Instant Cloud Upload
Wi-Fi enabled FLIR Ignite allows images to be automatically uploaded, organized, and shared.
1-Touch Level/Span
Quickly enhances contrast to focus on problem areas with a single touch.
Professional Reporting Software
Create fast, detailed reports using FLIR Ignite or advanced reports using FLIR Thermal Studio Suite.
Multiple Viewing Modes
Includes thermal, MSX, picture-in-picture, and standard visual imaging modes.
Certified Accuracy
Comes with NIST Certificate of Calibration for reliable performance and compliance needs.
Versatile Applications

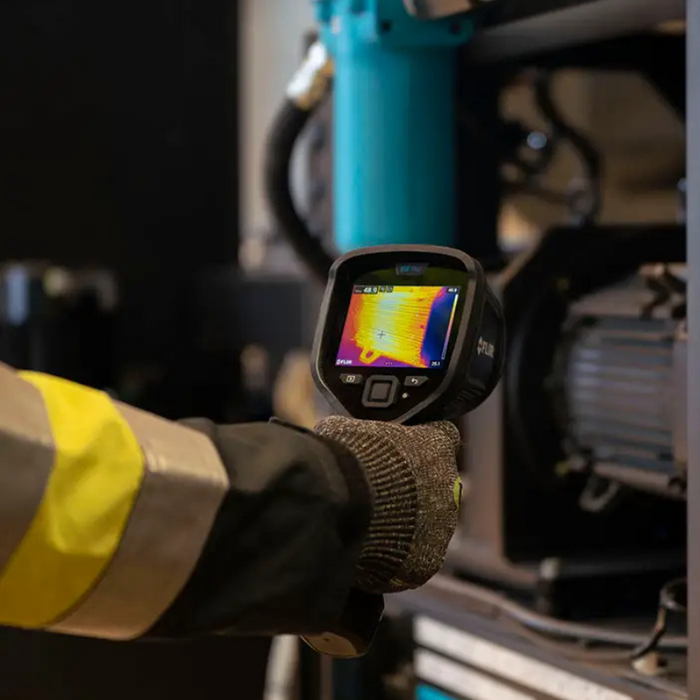

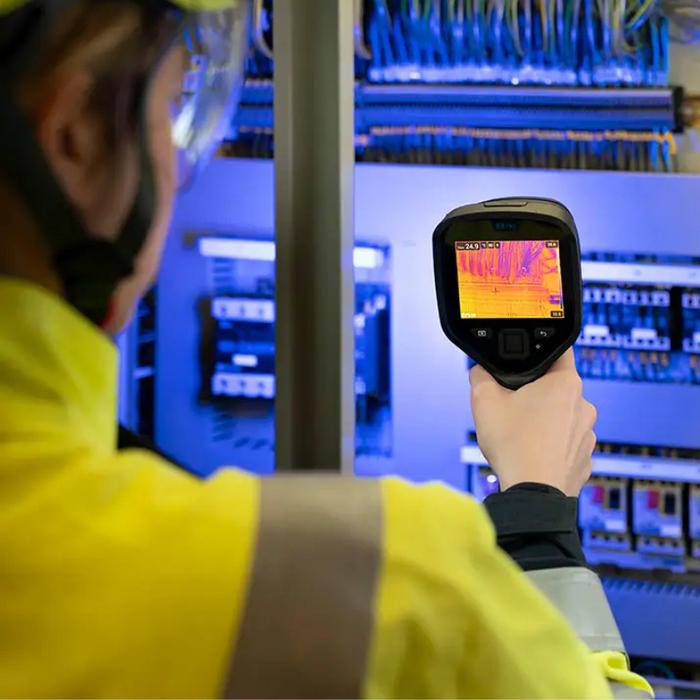

Ideal for industrial inspections, predictive maintenance, and building energy audits.
What's Included
Included with Your Purchase:
- 1 - Pro-Series Infrared Camera (E8 Pro)
- 1 - Hard Transport Case
- 1 - Battery, Installed
- 1 - Extra Battery
- 1 - Tabletop Charger
- 1 - Power Supply with EU/UK/US/AU Plugs
- 1 - Micro USB Adapter
- 1 - FLIR Thermal Studio Starter
- 1 - Printed Documentation
- 1 - NIST Certificate of Calibration
Specifications
-
IR Resolution: 320 x 240 (76,800 pixels)
-
Thermal Sensitivity/NETD: 0.07°F/40 mK at 86°F
-
Field of View (FOV): 33° × 25°
-
Spatial Resolution (IFOV): 1.8 mrad
-
Focus: Focus-free
-
Image Frequency: 9 Hz
-
Digital Camera: 5 MP
-
Color Palettes: Iron, white hot, black hot, rainbow, arctic, lava, rainbow HC
-
Detector Type: Uncooled microbolometer
-
Image Modes: Thermal MSX, thermal, picture-in-picture, digital camera
-
Minimum Focus Distance: 1.18 ft.
-
Spectral Range: 7.5 to 13 µm
-
Object Temperature Range: -4°F to 1022°F (2 ranges)
-
Spot Meter: Center spot; box with min./max.
-
Isotherm: Above alarm, below alarm
-
Delta T: Yes, NFPA 70B compliant
-

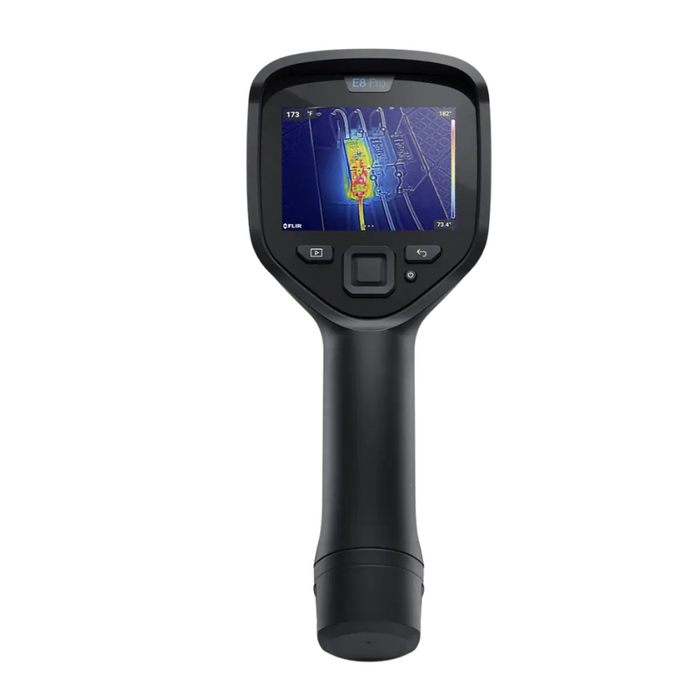

Display: 3.5 in., 640 x 480 color LCD
-
Flashlight: Bright LED
FAQ
Q: What is MSX technology and how does it help?
A: MSX embosses visual image detail onto the thermal image, helping users identify issues more clearly.
Q: How can I share images from the camera?
A: Images can be uploaded to the FLIR Ignite cloud over Wi-Fi for easy access, sharing, and reporting.
Q: Does this model come with calibration certification?
A: Yes, it includes a NIST Certificate of Calibration to ensure measurement accuracy.
Q: What are the ideal uses for this camera?
A: It's perfect for industrial inspection, preventative maintenance, and building diagnostics.
