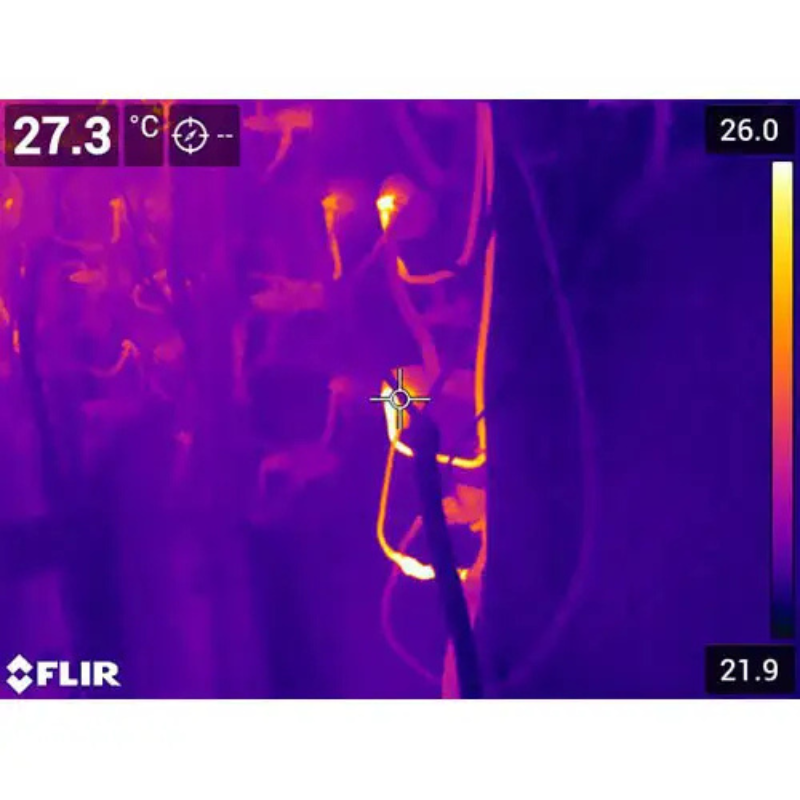

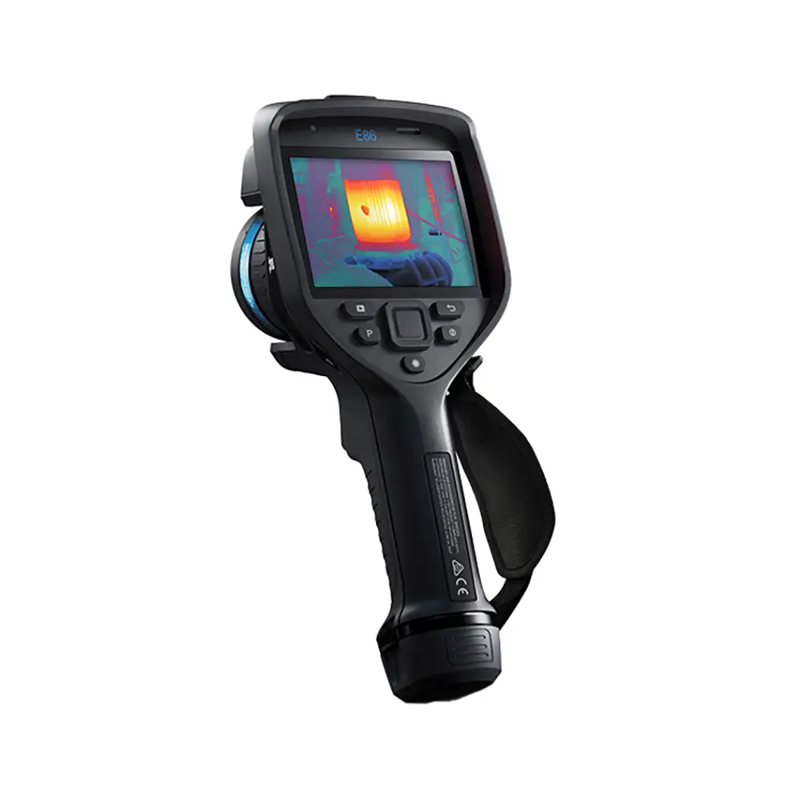

Experience professional-grade thermal imaging with this rugged, handheld imager built for demanding industrial, electrical, mechanical, and building inspections. It features a high-resolution 464 × 348 infrared sensor and a 30 Hz refresh rate for crisp, fast thermal imaging that uncovers hidden faults, hot spots, and inefficiencies with precision. The device supports dual and triple AutoCal™ lens configurations—from 14° wide-angle to 80° telephoto—allowing instant, one-second switching using FLIR’s FlexView system. These interchangeable lenses eliminate manual calibration and enhance workflow efficiency while protecting sensitive optics from contamination.

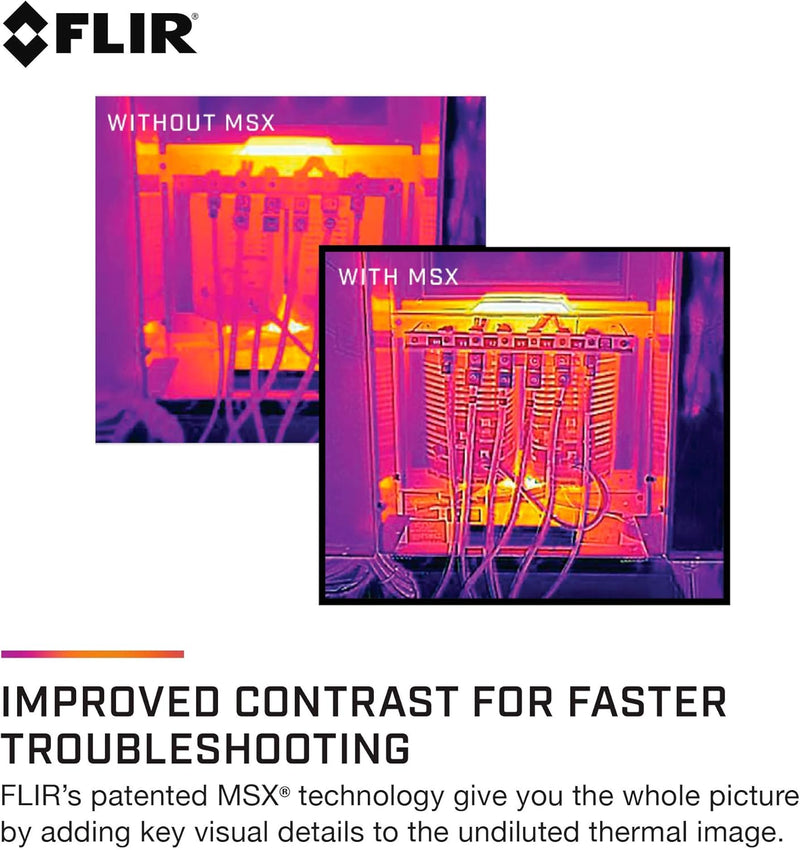

Advanced imaging technologies like FLIR’s MSX® and UltraMax® overlay visible details onto thermal images for improved clarity and superresolution up to four times the native pixel count. Housed in a durable IP54-rated body with 25g shock resistance and vibration tolerance, it also includes a 4-inch auto-rotating touchscreen, laser-assisted autofocus with distance measurement, and onboard tools such as voice annotations, text input, and sketching. Integrated FLIR Ignite® cloud support, Thermal Studio Pro software compatibility, and connectivity via USB, Wi-Fi, Bluetooth, and DisplayPort make data capture, analysis, and reporting seamless. The device offers radiometric JPEGs, thermal video recording, and live streaming, with temperature ranges from -20°C to 1500°C and accuracy of ±2°C or ±2%, including spot meters, hot/cold detection, and area analysis tools.
FLIR Thermal Studio Pro software license and Inspection Route plugin
Protective hard carrying case and accessory kit
Specifications

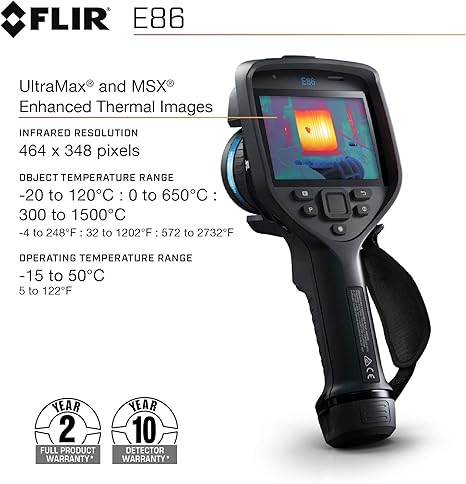

Infrared Sensor Resolution: 464 x 348 pixels
Refresh Rate: 30 Hz

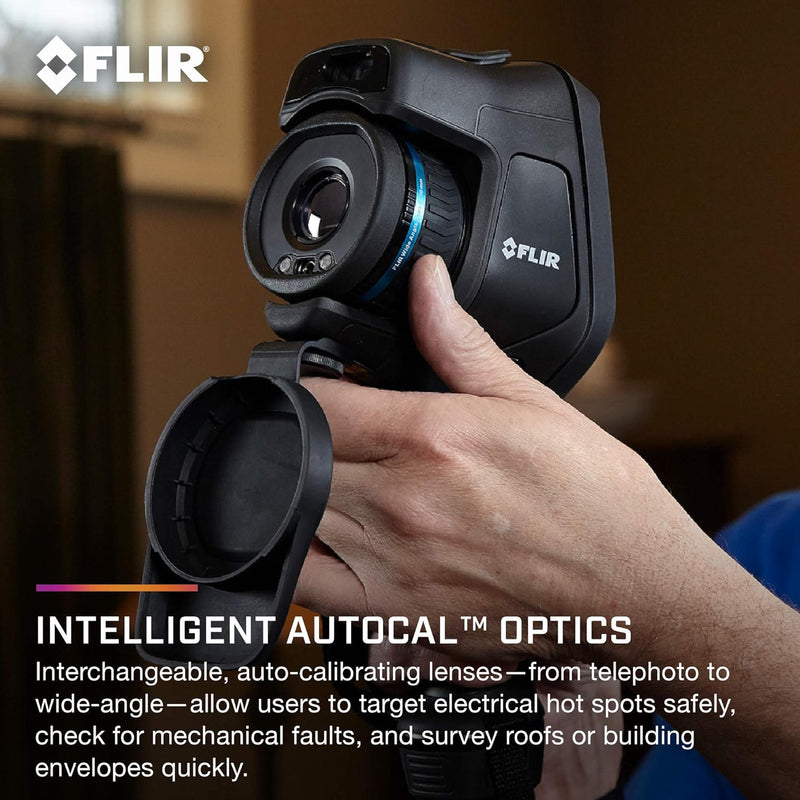

Lens Options: 14° to 80° AutoCal interchangeable lenses (dual and triple lens configurations)
FlexView Support: Yes, dual field-of-view system for instant lens switching

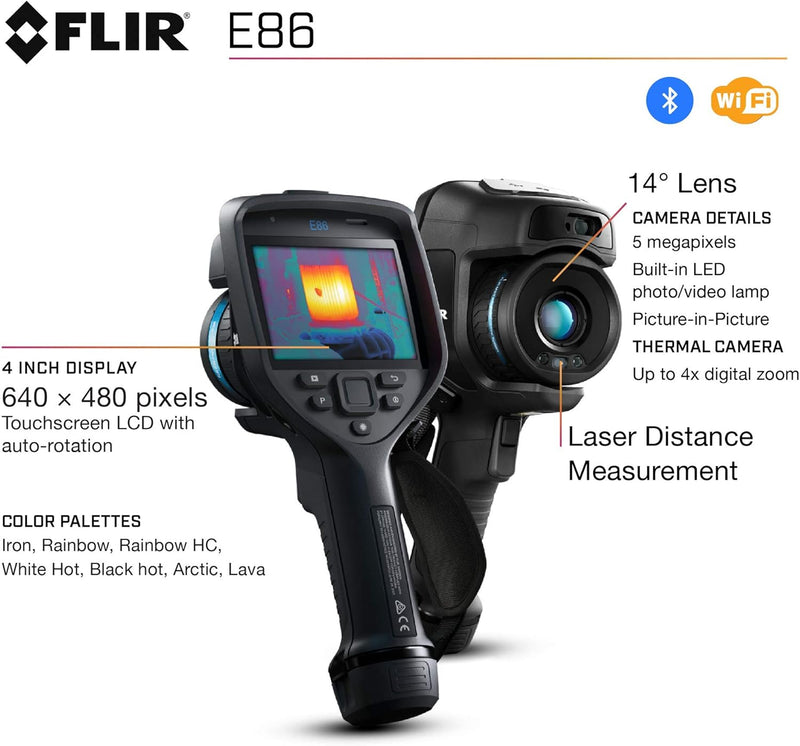

Display: 4-inch touchscreen LCD, 640 x 480 resolution, with auto-rotation
Temperature Measurement Range: -20°C to 1500°C (-4°F to 2732°F)
Measurement Accuracy: ±2°C or ±2% of reading

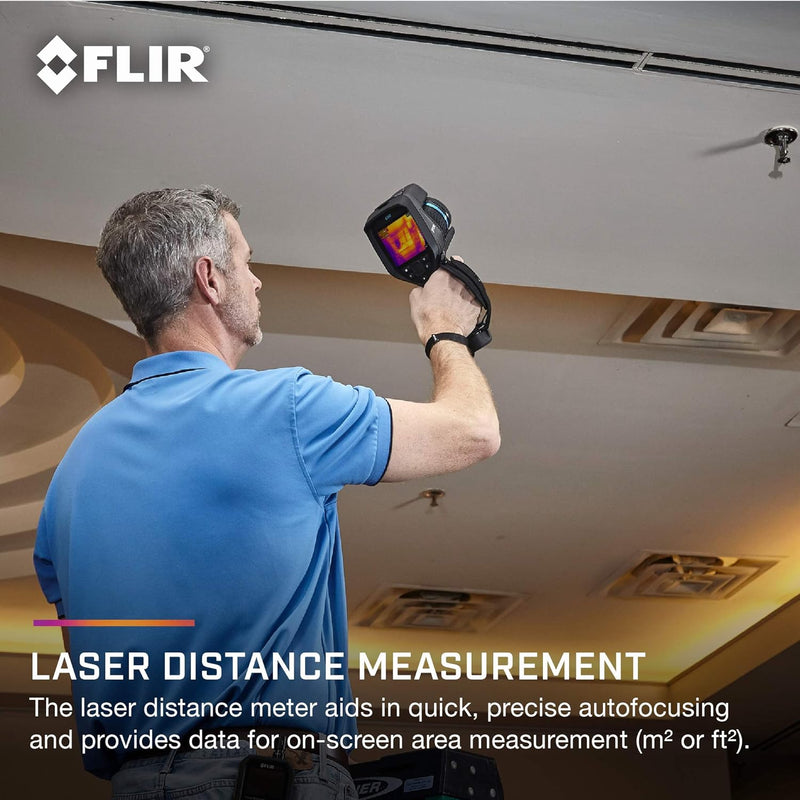

Laser Distance Meter: Integrated, for autofocus and area measurement
Video Formats: .csq, H.264, MJPEG (radiometric and non-radiometric)

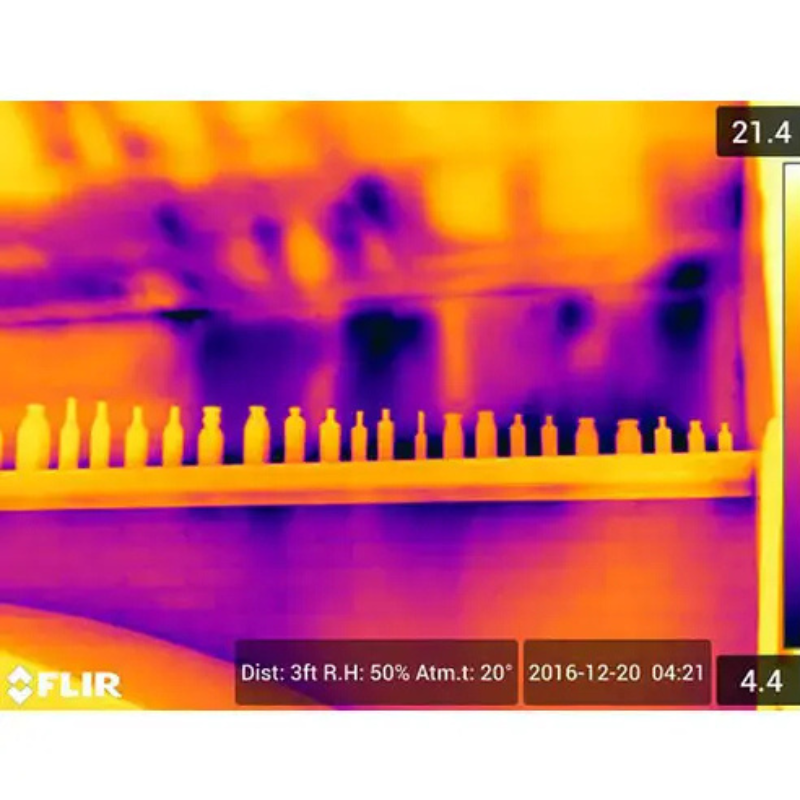

Image Formats: Radiometric JPEG
Streaming: Real-time via UVC or Wi-Fi
Annotation: Voice (up to 60 sec), text, and sketch
Protection Rating: IP54; shock and vibration resistant

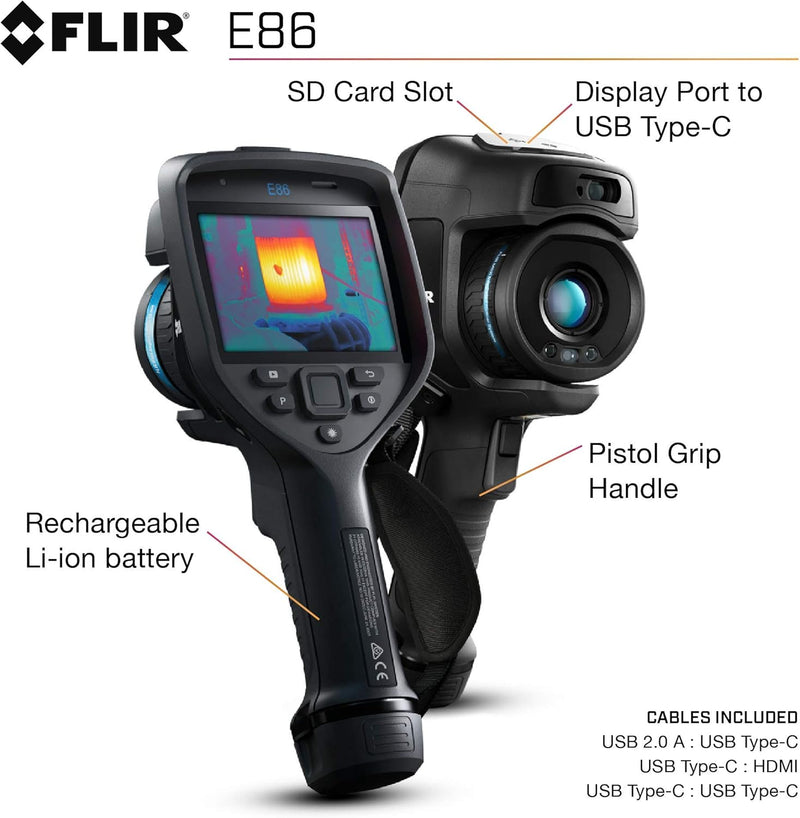

Connectivity: USB 2.0, Bluetooth, Wi-Fi, DisplayPort

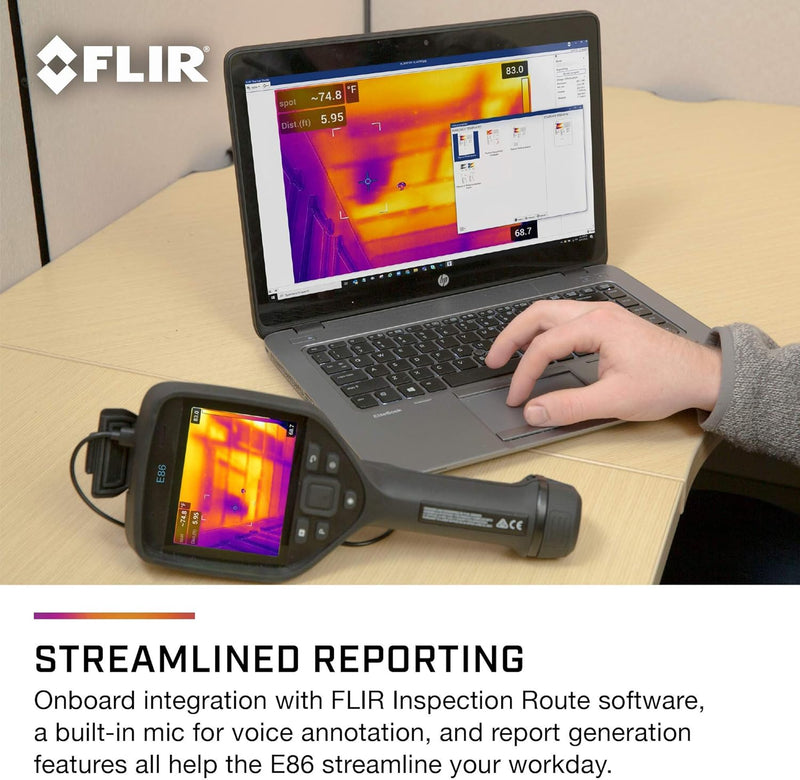

Software: FLIR Thermal Studio Pro with Inspection Route
Cloud Integration: FLIR Ignite
FAQ

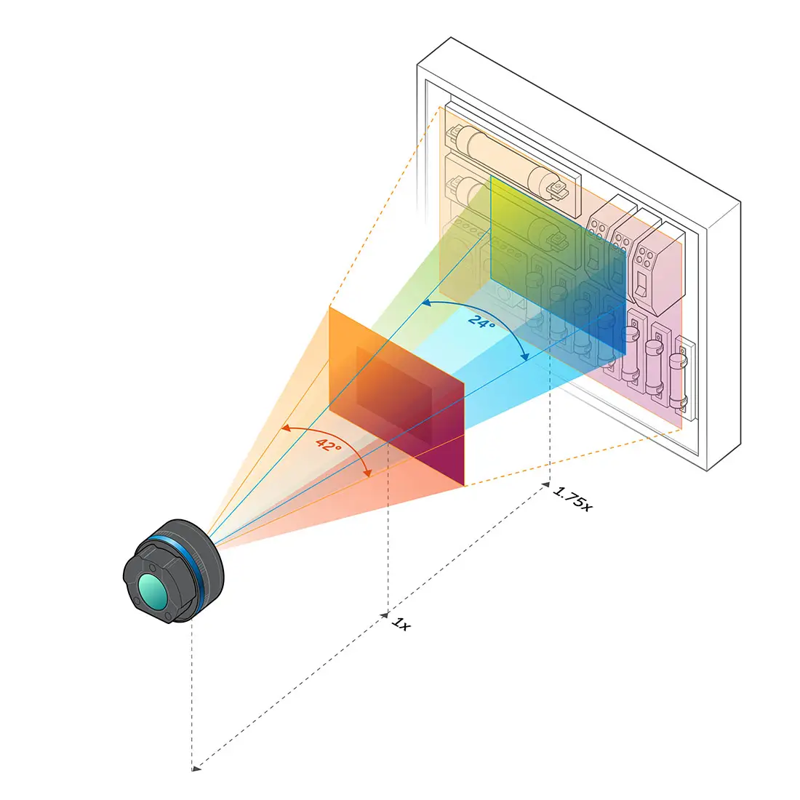

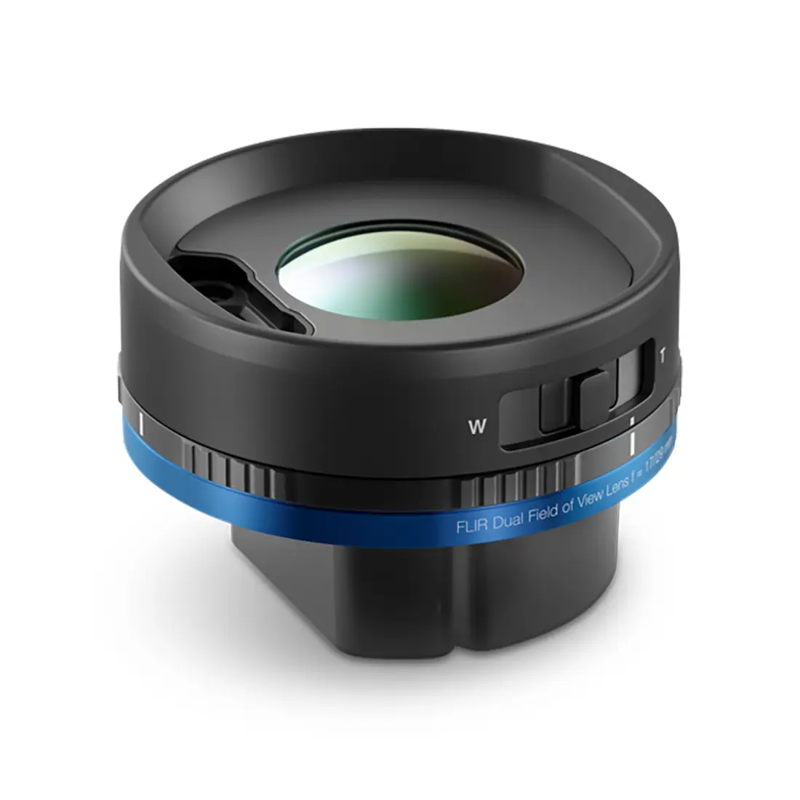

Q: What is the FlexView Dual FOV system? A: FlexView allows you to instantly switch between two lenses in one second without swapping optics, improving efficiency and protecting sensitive components.
Q: Can I annotate images directly on the device? A: Yes, you can add voice notes, type text, or draw sketches directly onto images for clear documentation.
Q: What’s the temperature range this camera can measure? A: It can measure from -20°C to 1500°C (-4°F to 2732°F) with ±2°C or ±2% accuracy.
Q: Does this imager support live video streaming? A: Yes, it supports real-time streaming via UVC or Wi-Fi to compatible devices or displays.
Q: What software is included? A: The system includes FLIR Thermal Studio Pro with an Inspection Route plugin for advanced analysis and report generation, plus cloud access via FLIR Ignite.
